8-50 — AIR CONDITIONING SYSTEM; FRONT (#153972) — 94 parça

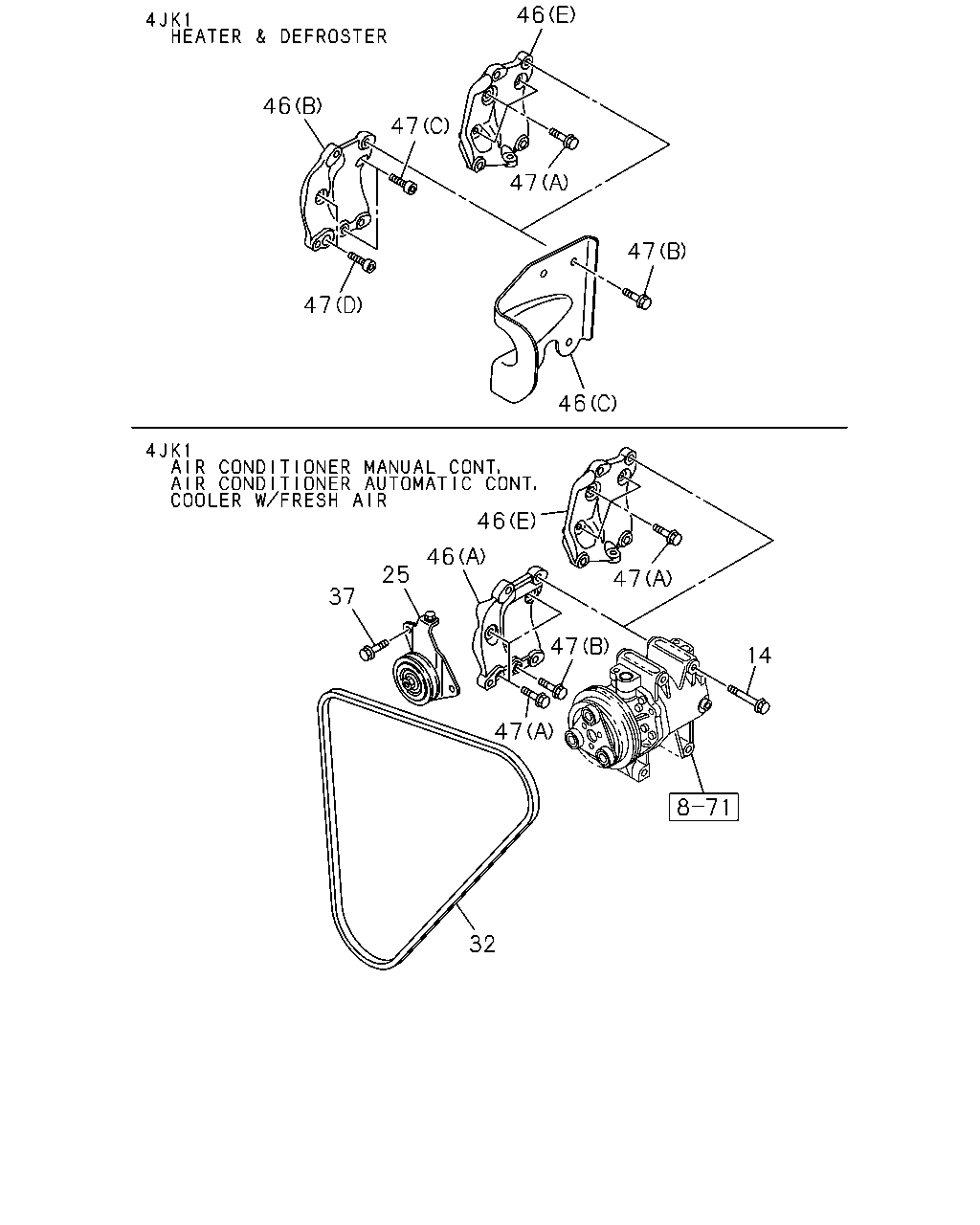

çizim 460068
46 47 46 47 47 46 47 37 25 46 46 47 47 47 14 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 09.171 BOLT; CMPR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) M10X100 FLANGE 		0-28151-000-0 04 1 1412- ● ● ● ●
14 09.171 BOLT; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1412-1510 ● ● ● ●
14 09.171 BOLT; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1511- ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98130-204-0 01 1 1412- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98205-963-0 01 1 1412-1510 ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 		8-98205-963-0 01 1 1511- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1412-1510 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1511- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) L=1445 BANDO 		8-97985-122-0 01 1 1412-1510 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) L=1445 BANDO 		8-97985-122-0 01 1 1511- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 1412- ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 1412- ● ●
37 09.173 BOLT; PULLEY BRKT
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1412-1510 ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1412-1510 ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-97371-258-0 01 1 1412- ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) (E) 		8-98226-839-0 01 1 1412-1510 ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (E) 		8-98226-839-0 01 1 1511- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) (C) 		8-98187-806-2 01 1 1412-1510 ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) (C) 		8-98187-806-2 01 1 1511- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98177-499-0 01 1 1412-1510 ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98177-499-0 01 1 1511- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) (D) 		8-97358-563-0 01 1 1412- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) EXC. PROVISIONAL PACKAGE SPEC(BCC) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1412- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1412- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) HEATER & DEFROSTER(C42) (B) 		8-98285-618-0 04 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98285-618-0 04 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) 00.029 (B) M10X25 FLANGE 		0-28751-025-0 04 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) 00.029 (B) M10X25 FLANGE 		0-28751-025-0 04 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C) 		8-98177-473-0 02 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C) 		8-98177-473-0 02 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98177-474-0 02 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98177-474-0 02 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 02.277 (E) M8X40 FLANGE 		0-28050-840-0 02 1 1412- ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 00.685 (F) M10X45 FLANGE 		0-28051-045-0 02 1 1412- ● ●
çizim 460082
14 14 32 262 99 262 99 46 47 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 09.171 BOLT; CMPR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) M10X100 FLANGE 		0-28151-000-0 04 1 1412- ● ● ● ●
14 09.171 BOLT; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1412-1510 ● ● ● ●
14 09.171 BOLT; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1511- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1412-1510 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1511- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) L=1445 BANDO 		8-97985-122-0 01 1 1412-1510 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) L=1445 BANDO 		8-97985-122-0 01 1 1511- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 1412- ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 1412- ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-97371-258-0 01 1 1412- ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) (E) 		8-98226-839-0 01 1 1412-1510 ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (E) 		8-98226-839-0 01 1 1511- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) (C) 		8-98187-806-2 01 1 1412-1510 ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) (C) 		8-98187-806-2 01 1 1511- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98177-499-0 01 1 1412-1510 ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98177-499-0 01 1 1511- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) (D) 		8-97358-563-0 01 1 1412- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) EXC. PROVISIONAL PACKAGE SPEC(BCC) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1412- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1412- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) HEATER & DEFROSTER(C42) (B) 		8-98285-618-0 04 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98285-618-0 04 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) PROVISIONAL PACKAGE SPEC(BCC) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) 00.029 (B) M10X25 FLANGE 		0-28751-025-0 04 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) 00.029 (B) M10X25 FLANGE 		0-28751-025-0 04 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C) 		8-98177-473-0 02 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C) 		8-98177-473-0 02 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98177-474-0 02 1 1412-1510 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) EXC. PROVISIONAL PACKAGE SPEC(BCC) (D) 		8-98177-474-0 02 1 1511- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 02.277 (E) M8X40 FLANGE 		0-28050-840-0 02 1 1412- ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 00.685 (F) M10X45 FLANGE 		0-28051-045-0 02 1 1412- ● ●
99 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1412-1510 ● ●
99 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1412-1510 ● ●
99 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
99 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (B) 		8-98103-644-0 01 1 1412-1510 ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) 		8-98103-644-0 01 1 1412-1510 ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) 		8-98103-644-0 01 1 1511- ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (A) 		8-98103-645-0 01 1 1412-1510 ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) 		8-98103-645-0 01 1 1412-1510 ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) 		8-98103-645-0 01 1 1511- ● ● ● ● ●

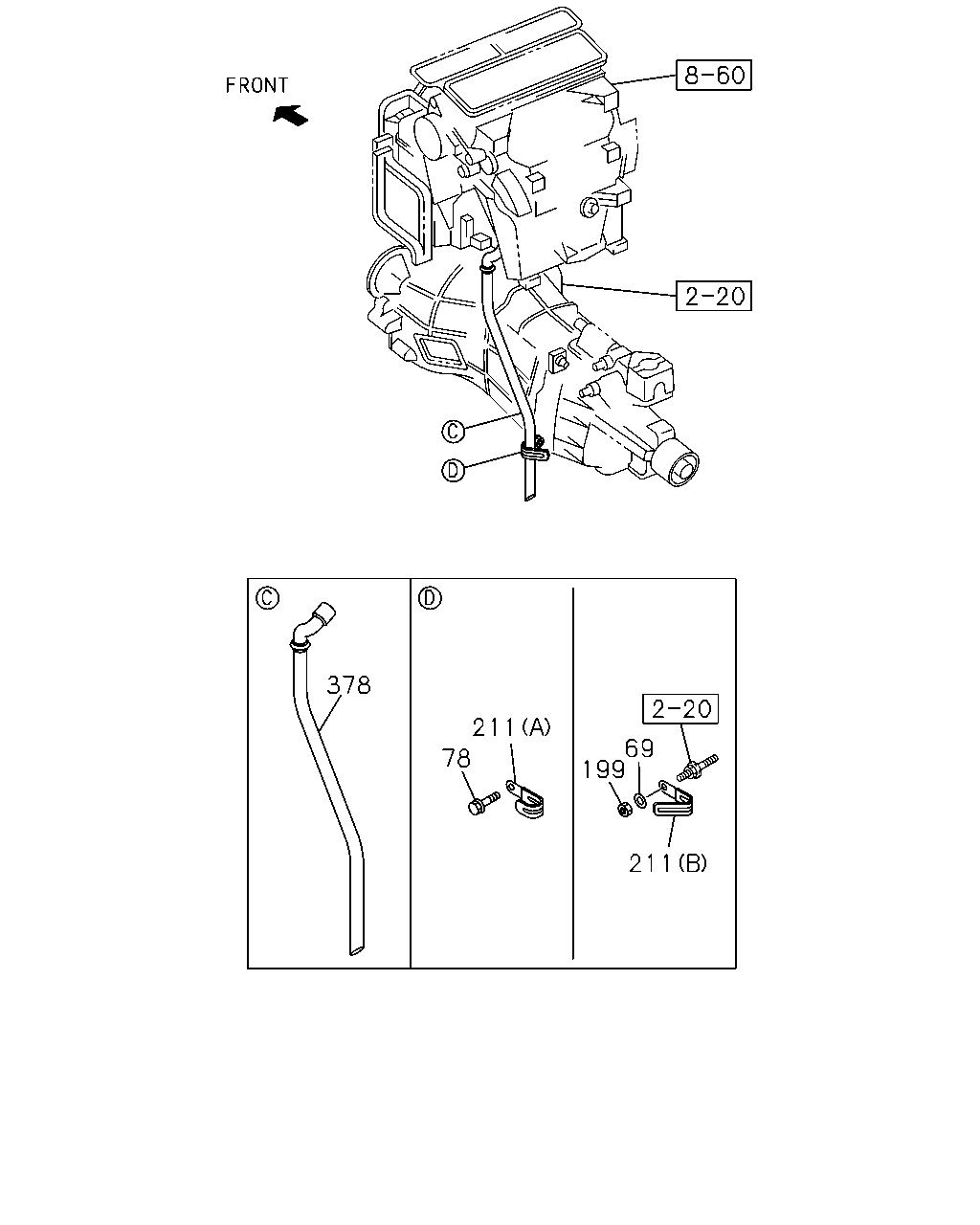

çizim 460105
378 211 78 69 199 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1412-1412 ● ● ● ●
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1501-1510 ● ● ● ●
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1511- ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1412-1510 ● ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED5S(MZJ) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1511- ● ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1412-1412 ● ● ● ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1501-1510 ● ● ● ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1511- ● ● ● ● ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (B) 		8-98173-569-0 01 1 1412-1412 ● ● ● ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) (B) 		8-98173-569-0 01 1 1501-1510 ● ● ● ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) (B) 		8-98173-569-0 01 1 1511- ● ● ● ● ●
211 09.190 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1) 02.343 (A) ID=22 L=35 		8-97375-643-0 01 1 1412-1510 ● ●
211 09.190 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED5S(MZJ) 02.343 (A) ID=22 L=35 		8-97375-643-0 01 1 1511- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98163-367-2 01 1 1412-1510 ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98163-367-2 01 1 1511- ● ● ● ● ●
