Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#153971) — 151 parça

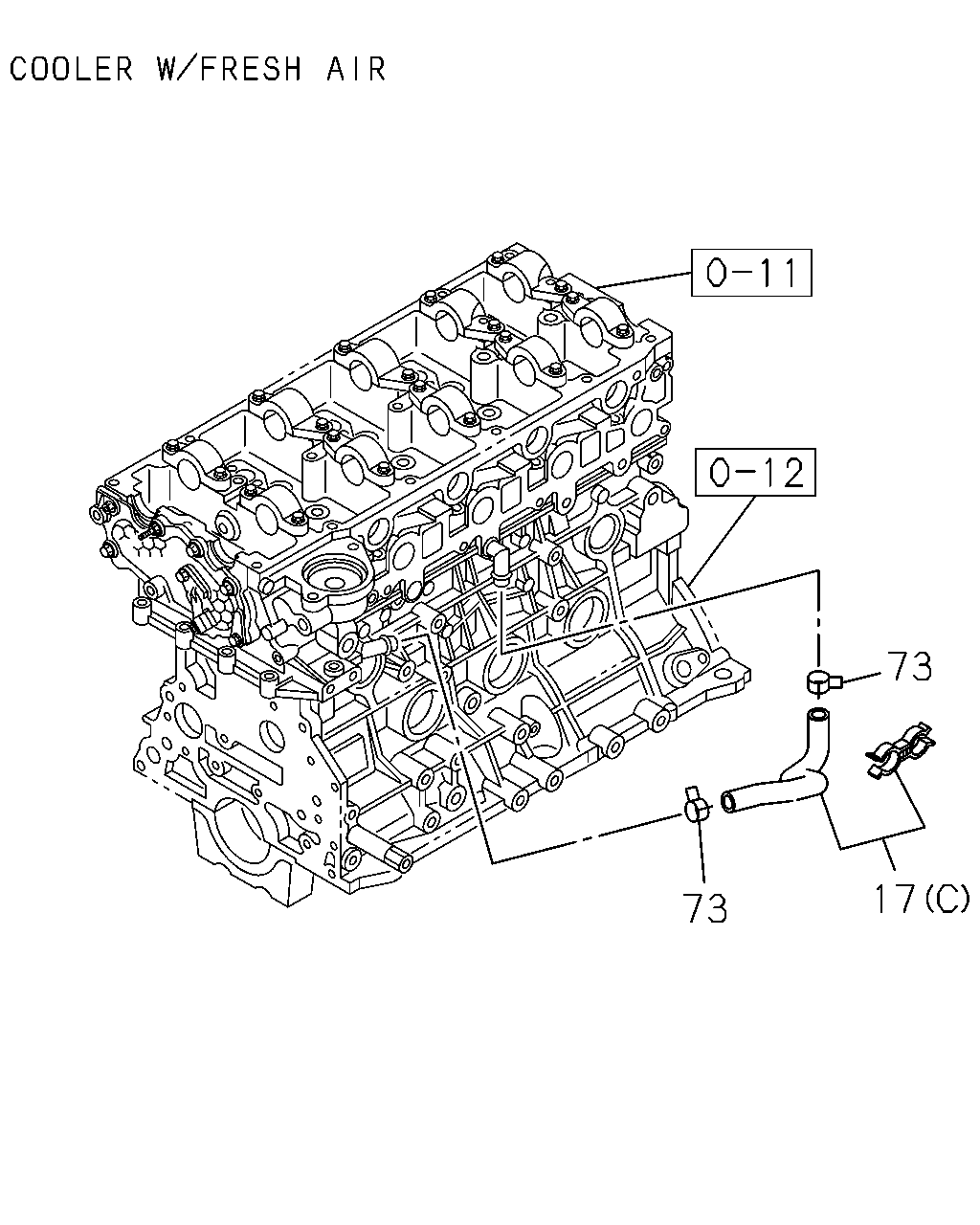

73 17 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-368-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) (A)	8-98132-368-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) (B)	8-98036-848-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) (C)	8-98205-896-0	01	1	1412-1510	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) (C)	8-98205-896-0	01	1	1511-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1412-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1412-1510	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1511-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1412-1510	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1511-	●	●	●	●	●

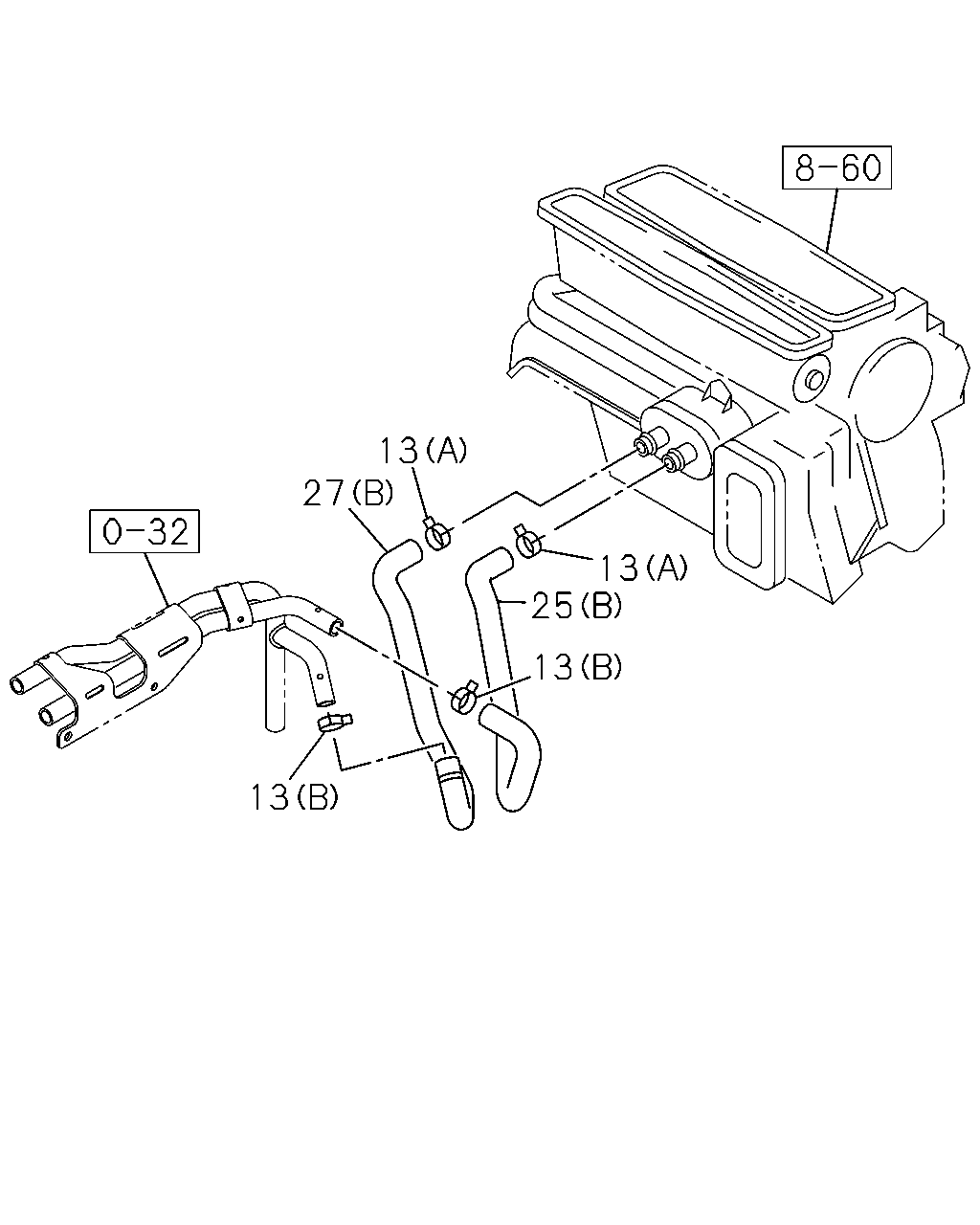

27 13 13 25 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1412-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1412-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1511-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1412-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1412-1510	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1511-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1412-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1412-1510	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1511-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1412-	●	●	●	●

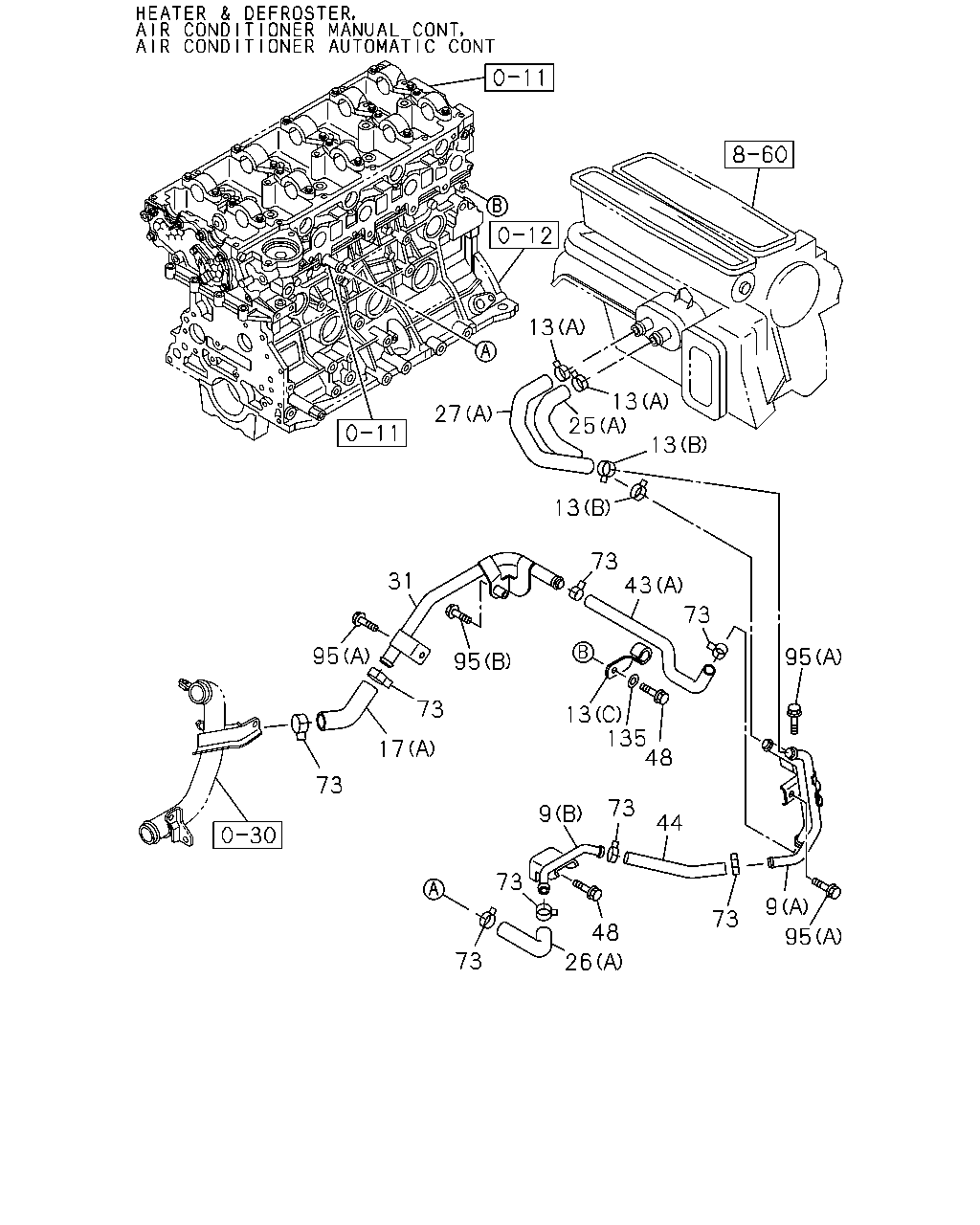

13 13 13 25 27 13 73 43 73 95 9 95 73 48 44 73 9 13 135 48 95 95 31 73 17 73 73 26 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	08.846 PIPE; HTR 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1412-	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98163-300-0	01	1	1412-	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-98228-412-0	01	1	1412-1510	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-98228-412-0	01	1	1511-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1412-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1412-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1511-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-368-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) (A)	8-98132-368-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) (B)	8-98036-848-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) (C)	8-98205-896-0	01	1	1412-1510	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) (C)	8-98205-896-0	01	1	1511-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1412-1510	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1511-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1412-	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98011-630-0	01	1	1412-	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98228-459-0	01	1	1412-1510	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98228-459-0	01	1	1511-1511	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B)	8-98228-459-0	01	1	1511-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1412-1510	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1511-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1412-	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98131-989-0	01	1	1412-	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCS ENG(LKZ)	8-98131-989-0	01	1	1412-	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1412-	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98239-131-0	01	1	1412-1510	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98239-131-0	01	1	1511-	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1412-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCS ENG(LKZ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1511-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1412-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1412-1510	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1511-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1412-1510	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1511-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1412-1510	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1511-	●	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1510	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1510	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1511-	●	●	●	●	●

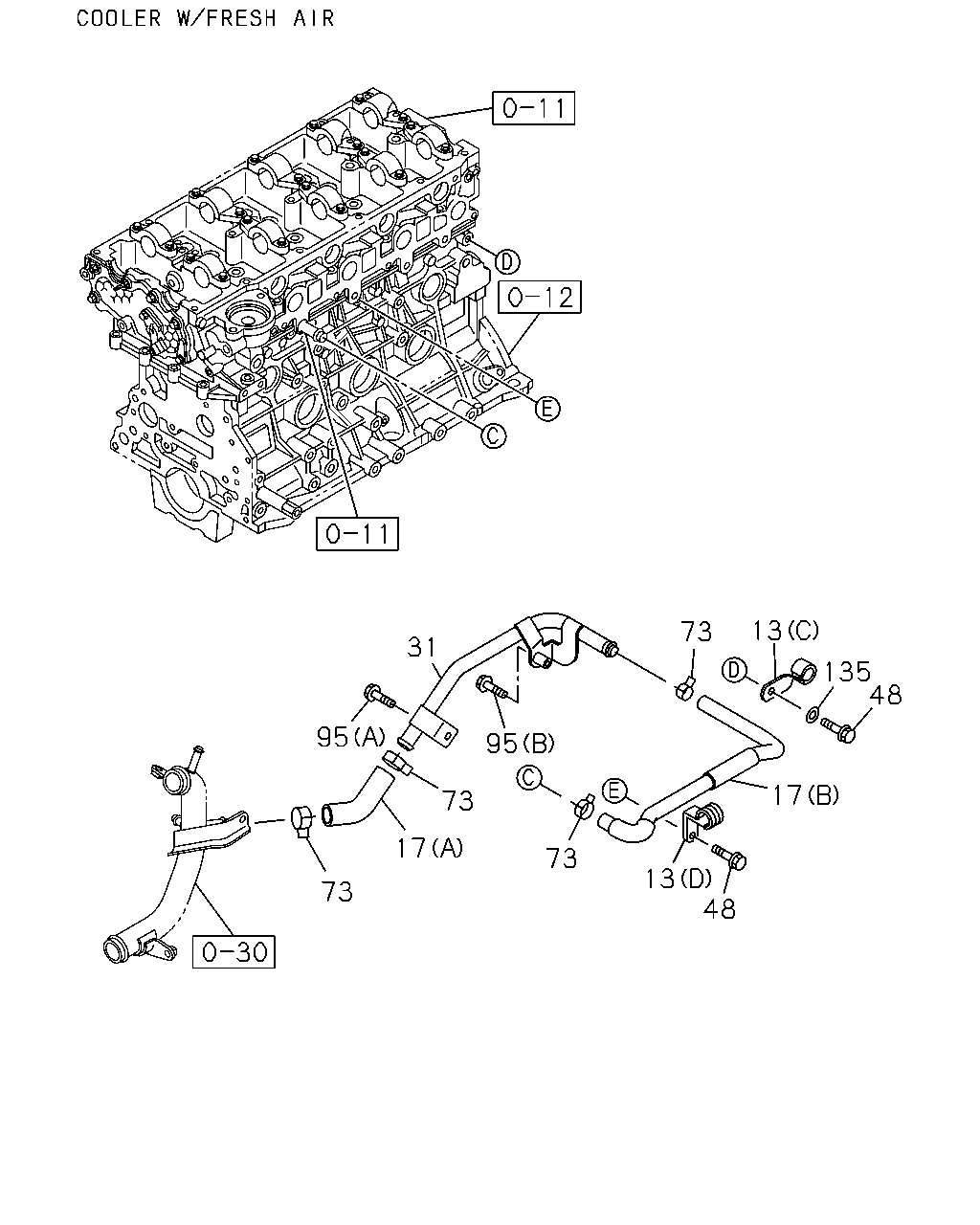

73 95 31 17 73 95 73 13 48 17 73 13 135 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1412-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1412-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1511-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-368-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) (A)	8-98132-368-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) (B)	8-98036-848-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) (C)	8-98205-896-0	01	1	1412-1510	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) (C)	8-98205-896-0	01	1	1511-	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98131-989-0	01	1	1412-	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCS ENG(LKZ)	8-98131-989-0	01	1	1412-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCS ENG(LKZ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1511-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1412-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1412-1510	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1511-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1412-1510	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1511-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1412-1510	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1511-	●	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1510	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1510	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1511-	●	●	●	●	●

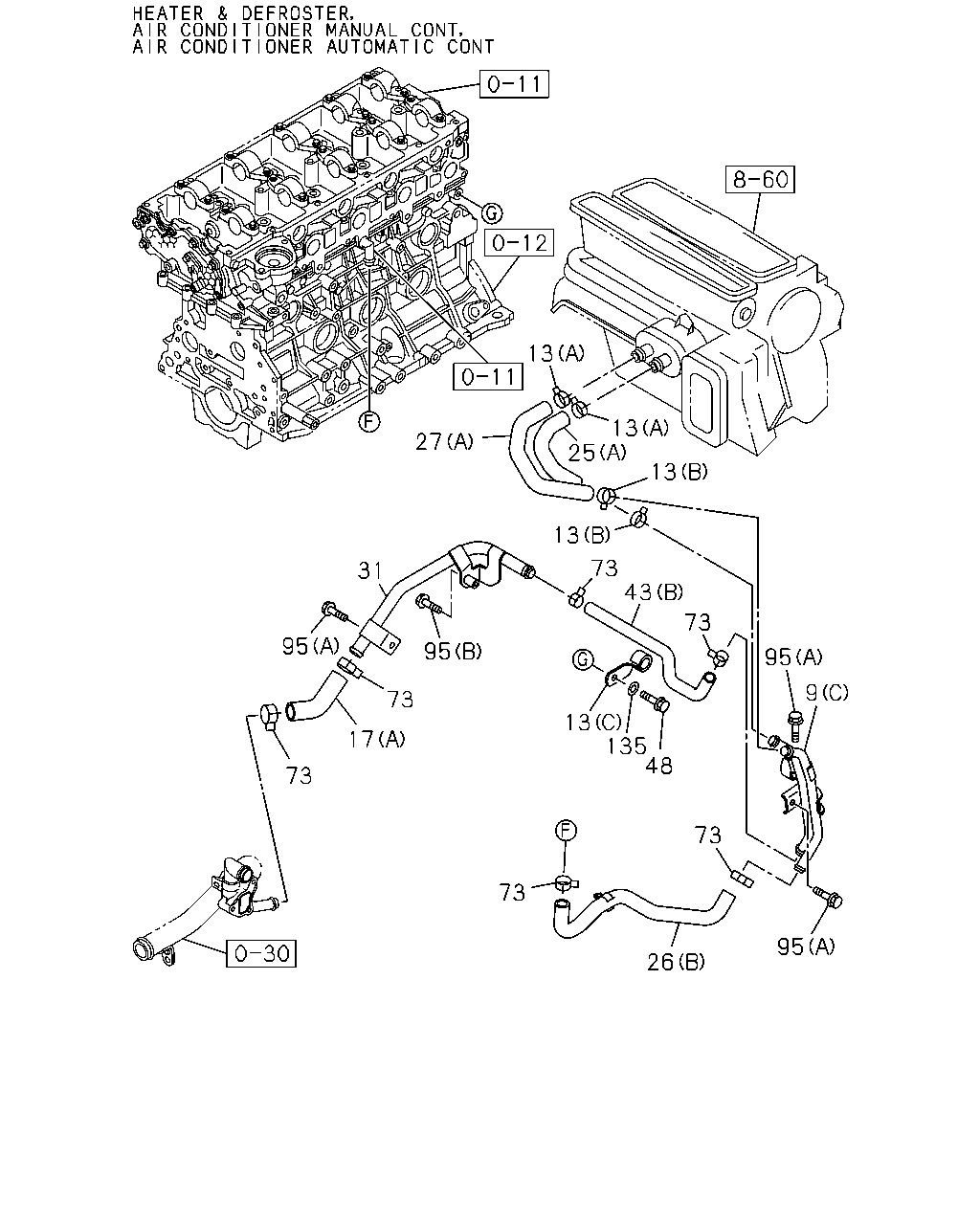

73 17 95 31 73 95 73 26 73 95 9 95 48 135 13 43 73 73 13 27 25 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	08.846 PIPE; HTR 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1412-	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98163-300-0	01	1	1412-	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-98228-412-0	01	1	1412-1510	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-98228-412-0	01	1	1511-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1412-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1412-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1511-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98132-368-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) (A)	8-98132-368-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) (B)	8-98036-848-0	01	1	1412-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) (C)	8-98205-896-0	01	1	1412-1510	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) (C)	8-98205-896-0	01	1	1511-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1412-1510	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1511-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1412-	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98011-630-0	01	1	1412-	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98228-459-0	01	1	1412-1510	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98228-459-0	01	1	1511-1511	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B)	8-98228-459-0	01	1	1511-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1412-1510	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1511-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1412-	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98131-989-0	01	1	1412-	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCS ENG(LKZ)	8-98131-989-0	01	1	1412-	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1412-	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98239-131-0	01	1	1412-1510	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98239-131-0	01	1	1511-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCS ENG(LKZ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1511-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1412-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1412-1510	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	06	1	1511-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1412-1510	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	02	1	1511-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCS ENG(LKZ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1412-1510	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1511-	●	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1510	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1510	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1511-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
