8-40 — HEATER SYSTEM (#153969) — 46 parça

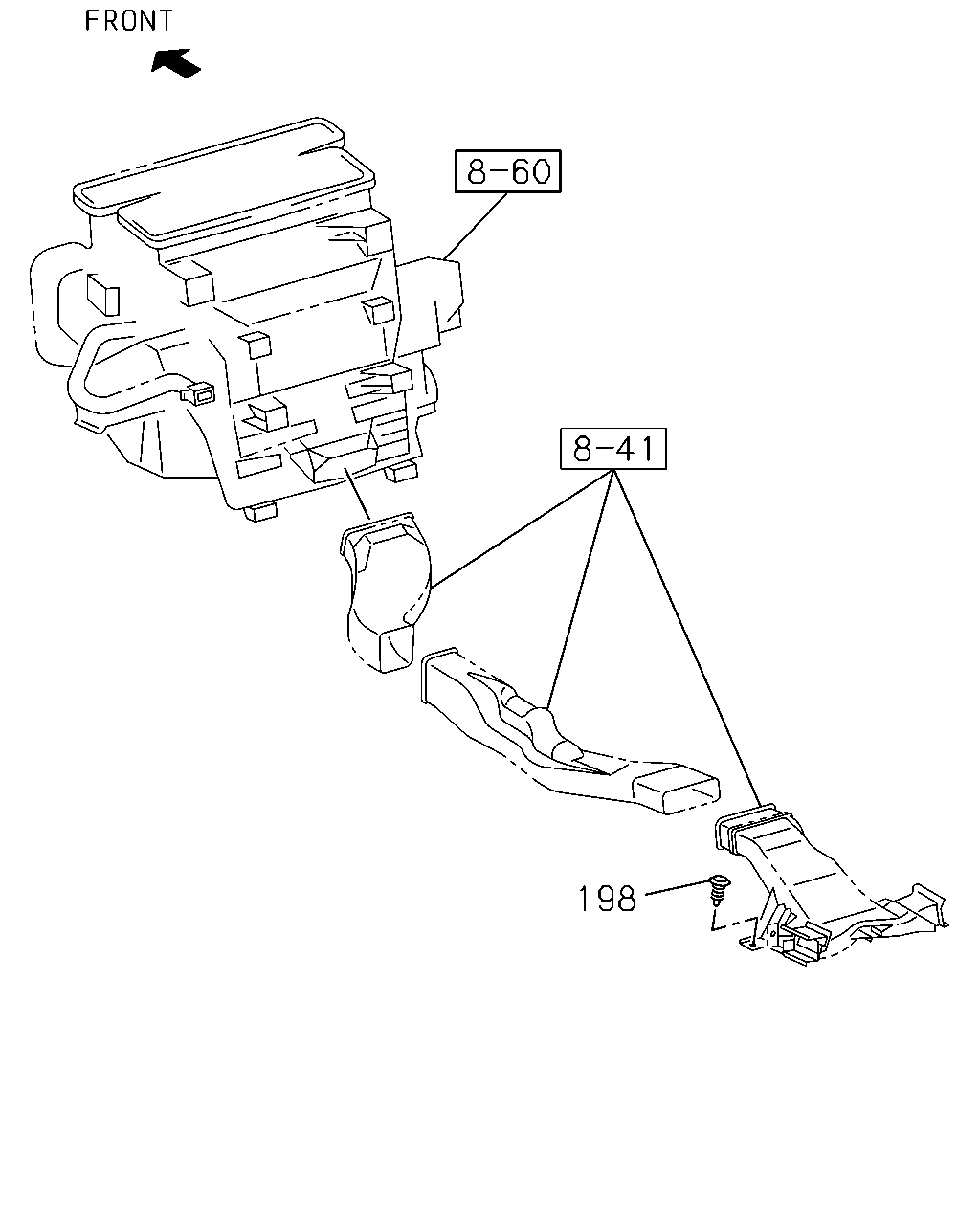

çizim 459227
198
BalonParca AdiParca NoAdetTipApplied Date A B C D E
198 09.787 CLIP; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98147-301-0 02 1 1412- ● ●

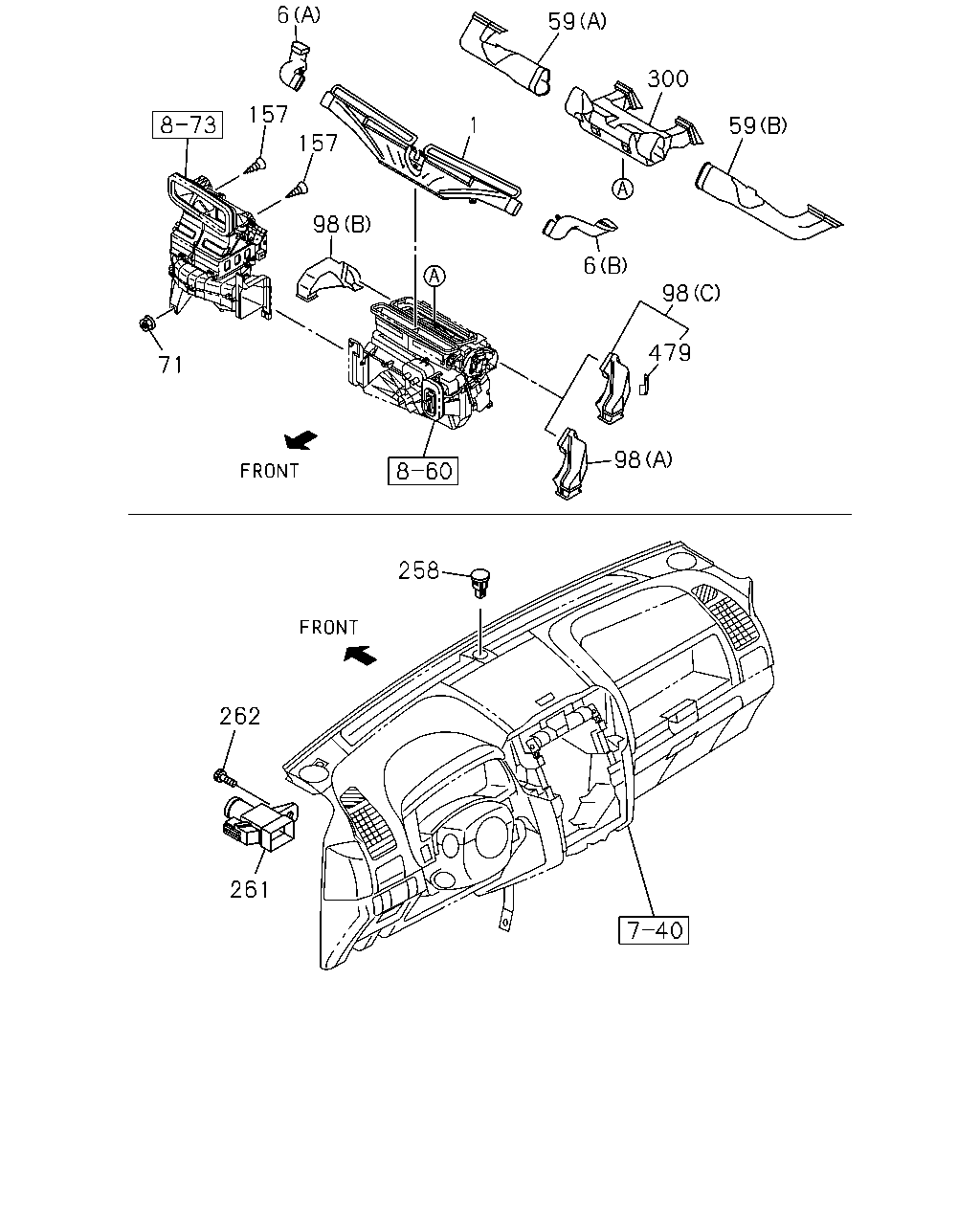

çizim 460046
6 59 300 59 98 157 157 6 98 98 479 71 1 262 258 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.779 NOZZLE; DEFROSTER,INST PNL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98187-101-2 01 1 1412-1510 ● ● ● ●
1 09.779 NOZZLE; DEFROSTER,INST PNL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98187-101-2 01 1 1511- ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98187-102-0 01 1 1412-1510 ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98187-102-0 01 1 1511- ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98187-103-0 01 1 1412-1510 ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98187-103-0 01 1 1511- ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1412-1510 ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1511- ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1412-1510 ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1511- ● ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
03.417 M6 FLANGE 		8-94279-514-0 01 1 1412-1505 ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
03.417 M6 FLANGE 		8-94279-514-0 01 1 1506-1510 ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
03.417 M6 FLANGE 		8-94279-514-0 01 1 1511- ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (A) 		8-98233-057-0 01 1 1412-1505 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98233-057-0 01 1 1412-1505 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (A) 		8-98233-057-0 01 1 1412-1505 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98233-057-0 01 1 1412-1505 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (A) 		8-98233-057-0 01 1 1506-1510 ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (A) 		8-98233-057-0 01 1 1511- ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98233-056-0 01 1 1412-1505 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B) 		8-98233-056-0 01 1 1412-1505 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (B) 		8-98233-056-0 01 1 1412-1505 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98233-056-0 01 1 1412-1505 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
(B) 		8-98233-056-0 01 1 1506-1510 ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
(B) 		8-98233-056-0 01 1 1511- ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (C) 		8-98274-166-0 01 1 1412-1505 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (C) 		8-98274-166-0 01 1 1506-1510 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (C) 		8-98274-166-0 01 1 1511- ● ● ●
157 09.264 SCREW
16.650 M5X16 		8-98167-220-0 02 1 1412-1505 ● ● ● ●
157 09.264 SCREW
16.650 M5X16 		8-98167-220-0 02 1 1506-1510 ● ● ● ●
157 09.264 SCREW
16.650 M5X16 		8-98167-220-0 02 1 1511- ● ● ● ● ●
258 08.845 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98103-691-0 01 1 1412-1505 ● ●
258 08.845 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98103-691-0 01 1 1506-1510 ● ●
258 08.845 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98103-691-0 01 1 1511- ● ● ●
261 08.845 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98103-694-0 01 1 1412-1505 ● ●
261 08.845 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98103-694-0 01 1 1506-1510 ● ●
261 08.845 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98103-694-0 01 1 1511- ● ● ●
262 08.845 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT(C61) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 16.345 M5X14 TAPPING 		8-98184-363-0 01 1 1412-1505 ● ●
262 08.845 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT(C61) 16.345 M5X14 TAPPING 		8-98184-363-0 01 1 1506-1510 ● ●
262 08.845 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT(C61) 16.345 M5X14 TAPPING 		8-98184-363-0 01 1 1511- ● ● ●
300 09.264 DUCT; VENT,CENTER 8-98187-098-0 01 1 1412-1510 ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-98187-098-0 01 1 1511- ● ● ● ● ●
479 09.262 SPONGE
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98274-219-0 01 1 1412-1505 ● ●
479 09.262 SPONGE
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98274-219-0 01 1 1506-1510 ● ●
479 09.262 SPONGE
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98274-219-0 01 1 1511- ● ● ●
