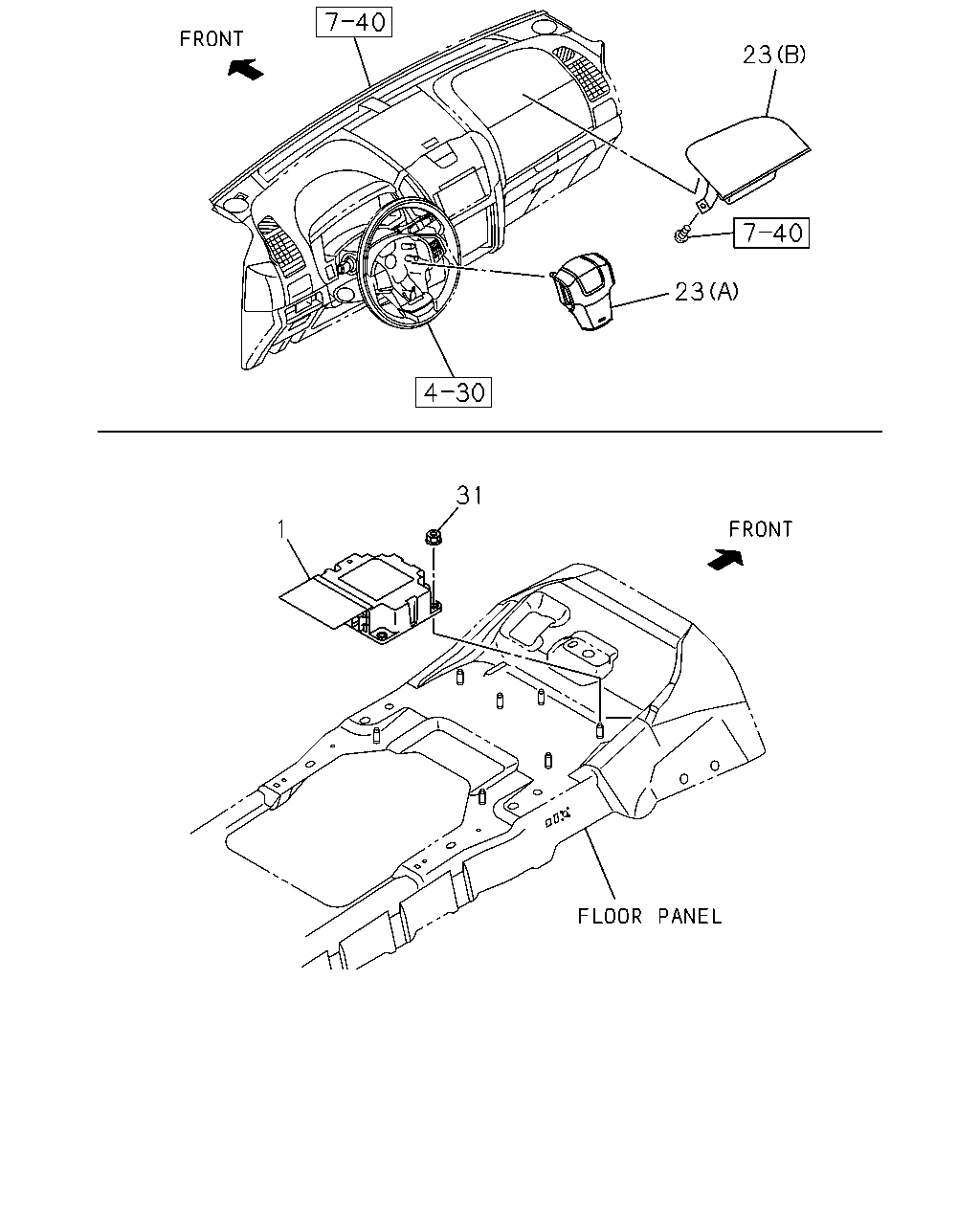

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#153967) — 11 parça

23 23 31 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.559 CONTROL UNIT; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-98127-250-2	01	1	1412-1510	●	●	●	●
1	02.559 CONTROL UNIT; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-98127-250-2	01	1	1511-	●	●	●	●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK	8-97417-401-7	01	1	1412-1510	●	●	●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK	8-97417-401-7	01	1	1511-	●	●	●	●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK	8-97416-641-6	01	1	1412-	●		●
23	02.559 AIR BAG UNIT INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5) EXC. SALES PACKAGE SPORTY<XK0> (A) BLACK	8-97416-641-6	01	1	1412-		●		●
23	02.559 AIR BAG UNIT INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5) SALES PACKAGE SPORTY<XK0> (A) BLACK	8-97423-893-2	01	1	1412-1510		●		●
23	02.559 AIR BAG UNIT INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5) SALES PACKAGE SPORTY<XK0> (A) BLACK	8-97423-893-2	01	1	1511-		●		●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK	8-97423-893-2	01	1	1511-					●
31	14.865 NUT AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE	0-91180-206-0	03	1	1412-1510	●	●	●	●
31	14.865 NUT AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE	0-91180-206-0	03	1	1511-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
