◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#153965) — 98 parça
çizim 459407
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1412-1510 ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1511- ● ● ● ● ●
çizim 460022
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1412-1510 ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1511- ● ● ● ● ●

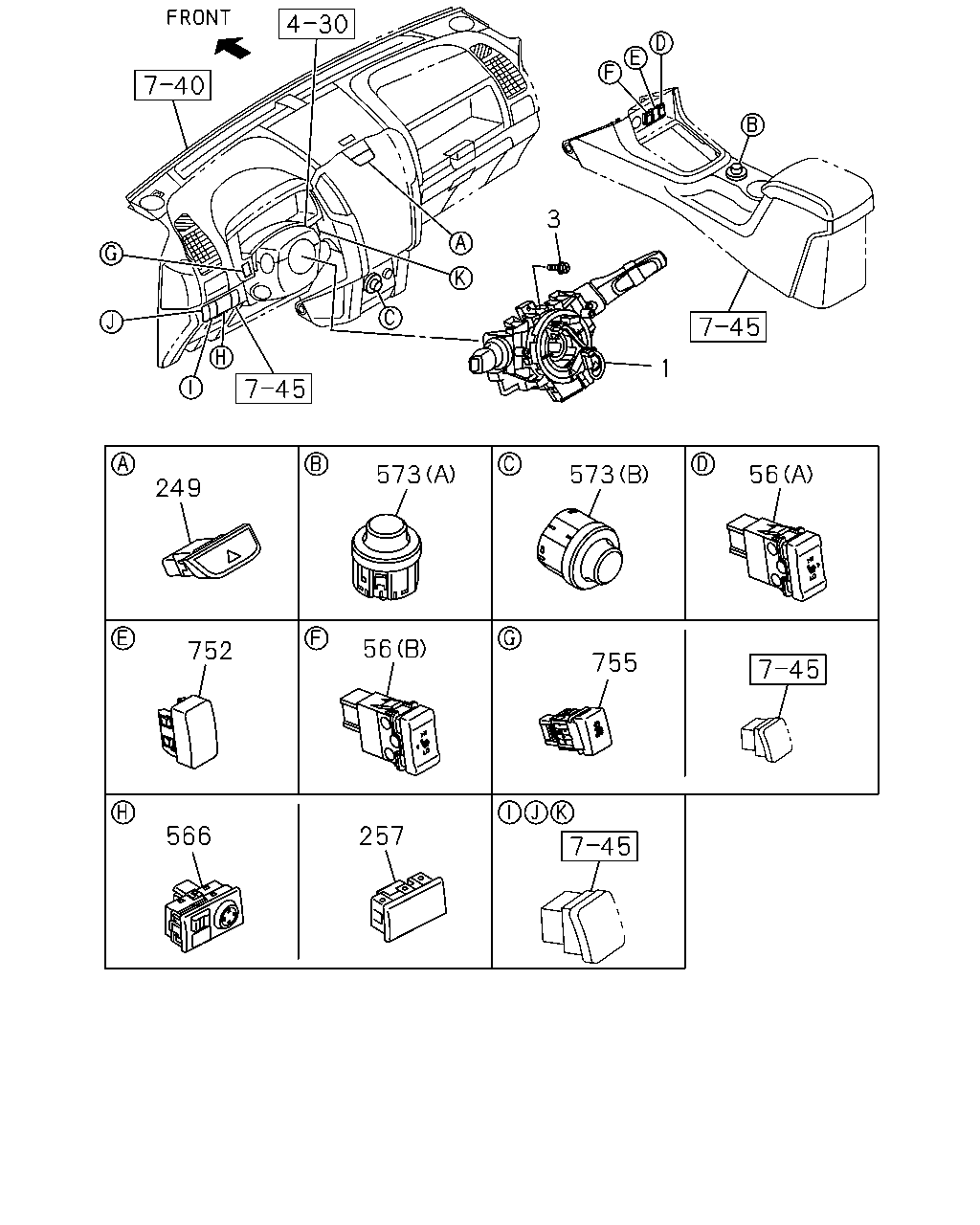

çizim 460244
1 3 257 566 752 56 755 573 56 573 249
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98194-147-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98194-147-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98194-147-1 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98194-147-1 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98194-146-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98194-146-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98194-146-1 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98194-146-1 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENTINSTRUMENTATION CLUSTER<UCA> 		8-98194-145-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>, FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-145-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENTINSTRUMENTATION CLUSTER<UCA> 		8-98194-145-1 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>, FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-145-1 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-148-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-148-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-148-1 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-148-1 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98194-144-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECT RO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98194-144-1 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98194-144-1 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECT RO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98194-144-1 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98059-587-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98059-587-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98059-587-2 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98059-587-2 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98059-585-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98059-585-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98059-585-2 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98059-585-2 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENTINSTRUMENTATION CLUSTER<UCA> 		8-98059-584-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>, FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-584-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENTINSTRUMENTATION CLUSTER<UCA> 		8-98059-584-2 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>, FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-584-2 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-590-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-590-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-590-2 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-590-2 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98059-583-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECT RO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98059-583-2 01 1 1412-1510 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98059-583-2 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECT RO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98059-583-2 01 1 1511- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98194-149-1 01 1 1412- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98227-412-1 01 1 1412- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENTINSTRUMENTATION CLUSTER<UCA> 		8-98194-151-1 01 1 1412- ● ●
3 02.897 SCREW; COMB SW
09.744 M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1412-1510 ● ● ● ●
3 02.897 SCREW; COMB SW
09.744 M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1511- ● ● ● ● ●
56 08.840 SWITCH; SEAT HTR
HEATER FRT SEAT<KA1> (A) 		8-98147-380-1 01 1 1412- ● ●
56 08.840 SWITCH; SEAT HTR
HEATER FRT SEAT<KA1> (B) 		8-98158-214-1 01 1 1412- ● ●
249 02.485 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1412-1510 ● ● ● ●
249 02.485 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
DOOR MIRROR<RT9> 		8-98106-389-2 01 1 1412- ● ● ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98058-078-1 01 1 1412-1510 ● ● ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98058-078-1 01 1 1511- ● ● ● ● ●
573 09.755 SWITCH; 4WD
FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1412- ●
573 09.755 SWITCH; 4WD
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1412- ●
573 09.755 SWITCH; 4WD
EXC. FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1412- ●
573 09.755 SWITCH; 4WD
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1412- ●
752 08.840 COVER; SEAT HTR
HEATER FRT SEAT<KA1> 		8-98141-215-1 01 1 1412- ● ●
755 03.883 SWITCH; ESC OFF
ELECTRONIC TRACTION CONTROL<NW9> 		8-98058-081-1 01 1 1412- ● ●

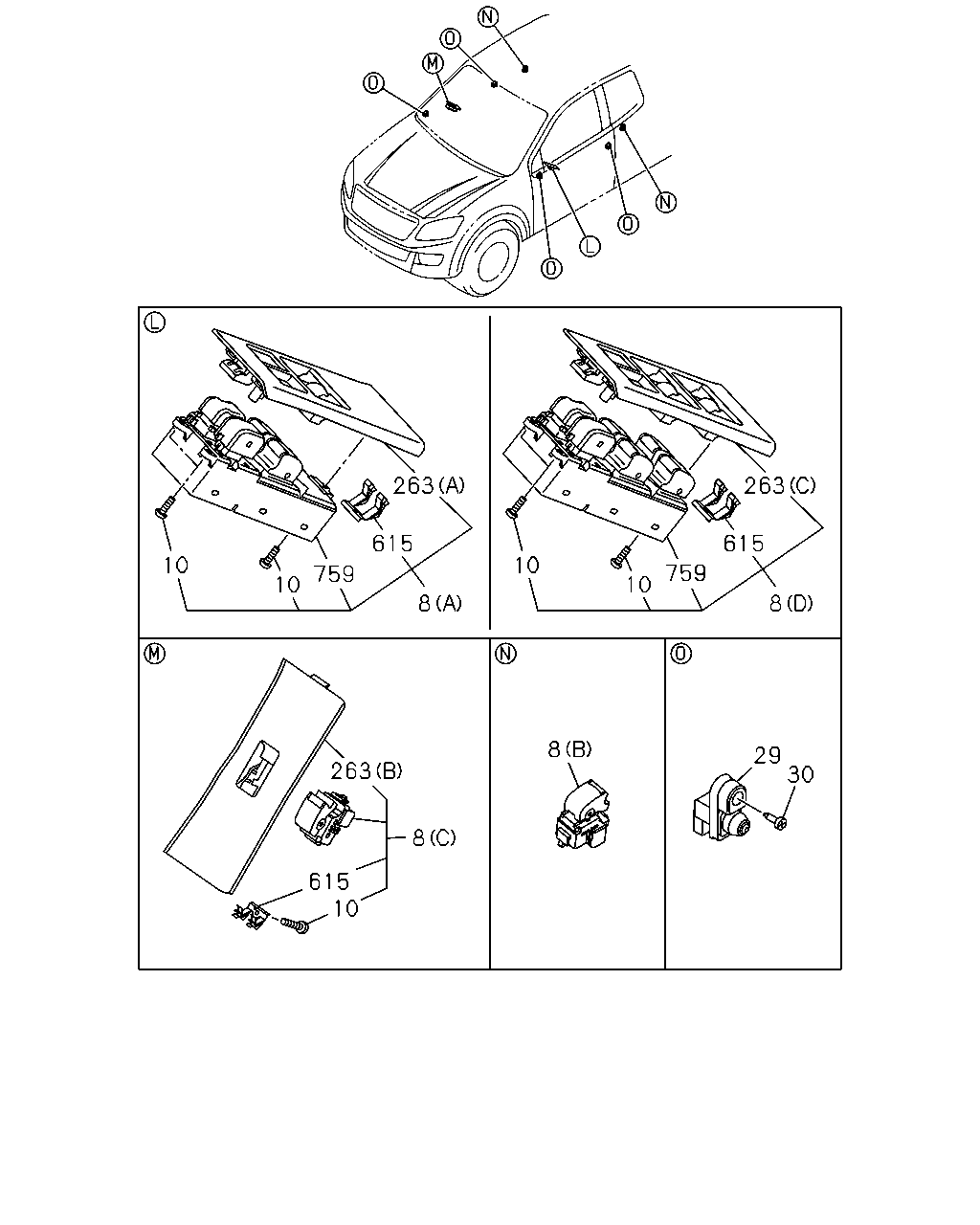

çizim 460303
263 615 759 10 10 8 263 8 759 263 8 29 30 8 615 10 10 10 615
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK 		8-97417-470-0 01 1 1412-1510 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK 		8-97417-470-0 01 1 1511- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK 		8-97417-531-0 01 1 1412-1510 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK 		8-97417-531-0 01 1 1511- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97417-468-0 01 1 1412-1510 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97417-468-0 01 1 1511- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK 		8-97417-471-0 01 1 1412- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-004-0 02 1 1412- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (D) BLACK 		8-97417-469-0 01 1 1412- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 01 1 1412-1510 ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 01 1 1511- ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 03 1 1412-1510 ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 03 1 1511- ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1412-1510 ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1412-1510 ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1511- ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1511- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1412-1510 ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1412-1510 ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1511- ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1511- ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98192-248-0 01 1 1412-1510 ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98192-248-0 01 1 1511- ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98192-245-0 01 1 1412-1510 ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98192-245-0 01 1 1511- ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98192-246-0 01 1 1412- ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1412-1510 ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1412-1510 ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1511- ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1511- ● ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-253-0 01 1 1412-1510 ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-253-0 01 1 1511- ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-254-0 01 1 1412-1510 ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-254-0 01 1 1511- ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-255-0 01 1 1412- ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-256-0 01 1 1412- ● ●
