◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#153961) — 21 parça

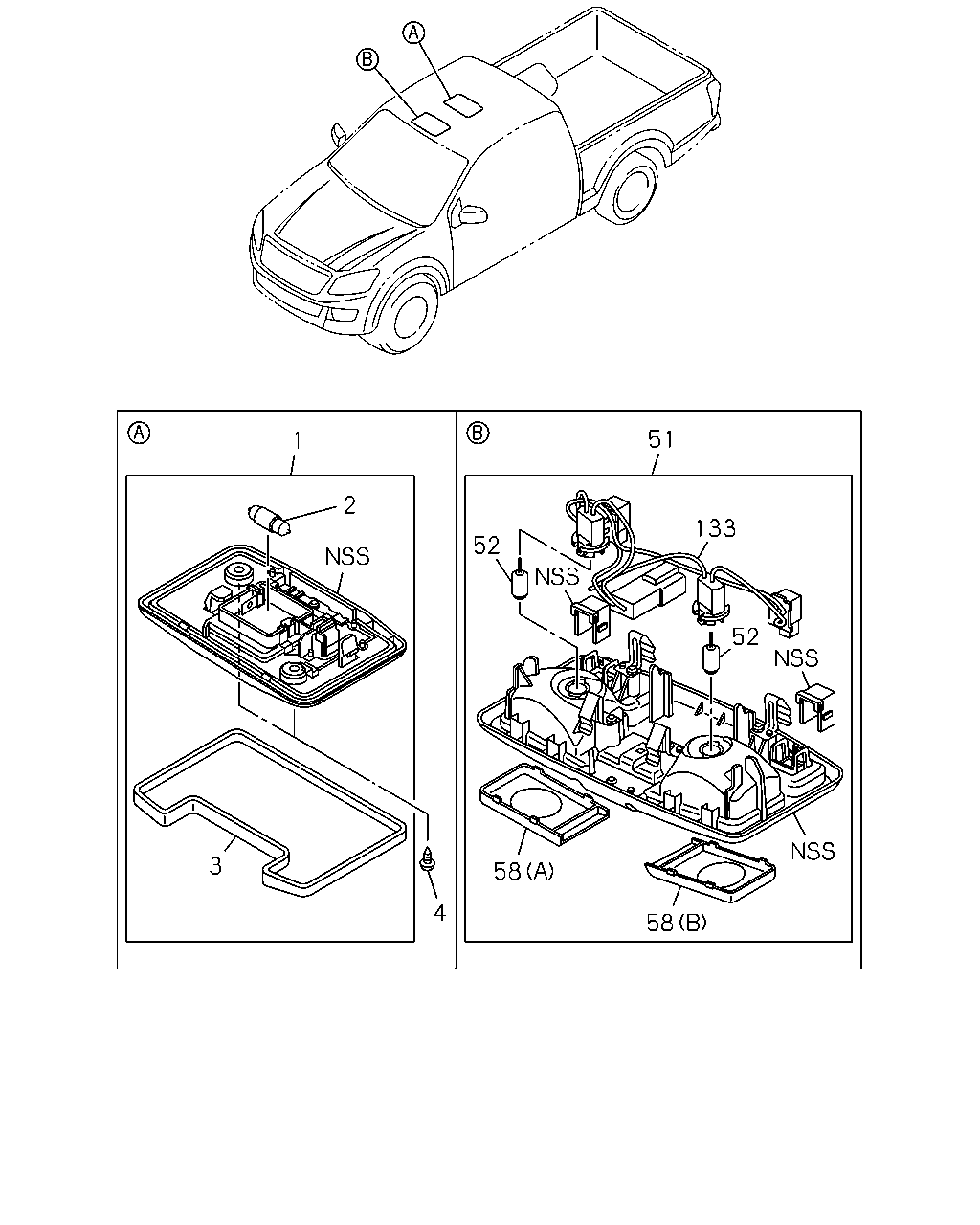

çizim 460016
51 133 52 52 2 1 3 4 58 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.494 LAMP ASM; ROOM
GRAY 		8-97419-992-0 01 1 1412- ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97419-992-0 01 1 1412- ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-972-0 01 1 1412-1510 ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-972-0 01 1 1511- ● ●
1 16.494 LAMP ASM; ROOM
BLACK 		8-97423-972-0 01 1 1511- ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 1412-1510 ● ● ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 1511- ● ● ● ● ●
3 16.495 LENS; ROOM LAMP 8-97333-429-0 01 1 1412-1510 ● ● ● ●
3 16.495 LENS; ROOM LAMP 8-97333-429-0 01 1 1511- ● ● ● ● ●
4 16.495 SCREW; ROOM LAMP
M5X12 TAPPING 		0-71040-512-0 02 1 1412-1510 ● ● ● ●
4 16.495 SCREW; ROOM LAMP
M5X12 TAPPING 		0-71040-512-0 02 1 1511- ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<C74> GRAY 		8-97421-747-0 01 1 1412-1510 ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<C74> GRAY 		8-97421-747-0 01 1 1511- ● ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<C74> 12V 5W 		8-94124-595-0 02 1 1412-1510 ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<C74> 12V 5W 		8-94124-595-0 02 1 1511- ● ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (A) 		8-97333-440-0 01 1 1412-1510 ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (A) 		8-97333-440-0 01 1 1511- ● ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (B) 		8-97333-441-0 01 1 1412-1510 ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (B) 		8-97333-441-0 01 1 1511- ● ● ●
133 16.494 SOCKET ASM; SPOT LAMP
MAP LAMP<C74> 		8-97176-526-0 01 1 1412-1510 ● ●
133 16.494 SOCKET ASM; SPOT LAMP
MAP LAMP<C74> 		8-97176-526-0 01 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
