7-55 — REAR SEAT (#153957) — 177 parça

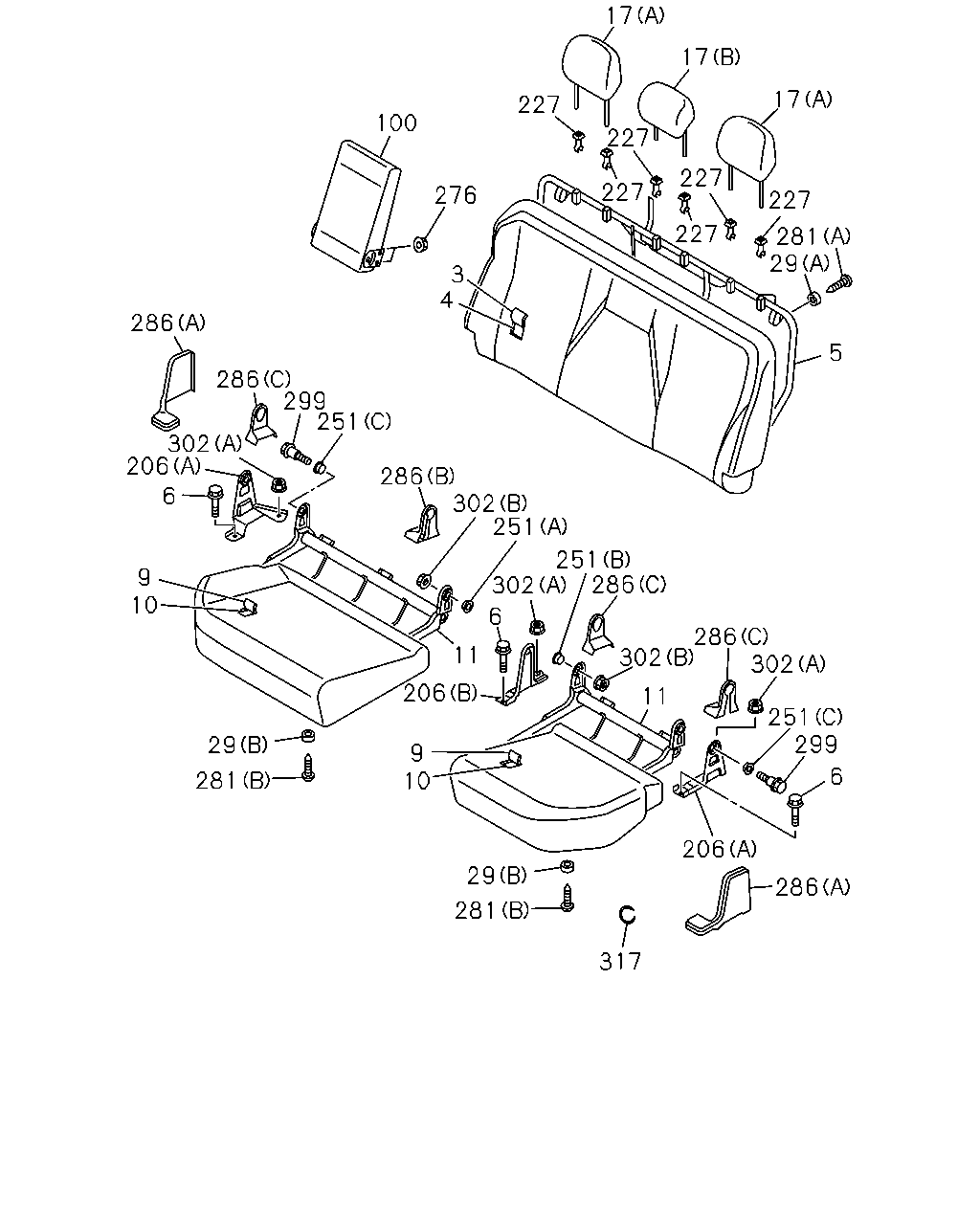

çizim 459167
17 17 17 227 227 227 227 227 227 281 5 29 100 276 3 4 286 286 251 302 206 9 10 6 286 299 302 251 251 302 286 6 11 206 302 6 302 351 299 6 206 286 29 281 317 281 9 10 29 11
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM VINYL<8LJ> EXC. RESTRAINT PROVISIONS CHILD<AN4> GRAY 		8-97423-383-0 01 1 1412- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-406-0 01 1 1412- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-403-0 01 1 1412- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97465-103-0 01 1 1412-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-365-0 01 1 1508- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97465-101-0 01 1 1412-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-334-0 01 1 1508- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> RED 		8-97465-132-0 01 1 1412-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-366-0 01 1 1508- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> RED 		8-97465-104-0 01 1 1412-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-335-0 01 1 1508- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97423-418-0 01 1 1412-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97460-354-0 01 1 1508- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-390-0 01 1 1412-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-327-0 01 1 1508- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> RED 		8-97429-578-0 01 1 1412-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY 		8-97460-356-0 01 1 1508- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> RED 		8-97429-470-0 01 1 1412-1507 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97460-328-0 01 1 1508- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> 		8-98196-180-0 01 1 1412- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> 		8-98200-491-0 01 1 1412-1507 ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> 		8-98300-434-0 01 1 1508- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98196-183-0 01 1 1412-1507 ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98300-432-0 01 1 1508- ● ●
5 16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97427-751-0 01 1 1412- ● ●
5 16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97427-756-0 01 1 1412- ● ●
6 16.679 BOLT; RR SEAT
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 03 1 1412-1510 ● ●
6 16.679 BOLT; RR SEAT
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 03 1 1511- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2> LIGHT GRAY 		8-97423-325-0 01 1 1511- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2> LIGHT GRAY 		8-97423-326-0 01 1 1511- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM VINYL<8LJ> EXC. RESTRAINT PROVISIONS CHILD<AN4> GRAY 		8-97423-384-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM VINYL<8LJ> EXC. RESTRAINT PROVISIONS CHILD<AN4> GRAY 		8-97423-385-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-407-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-408-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-404-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-405-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97465-117-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-200-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97465-127-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-201-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97465-118-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-336-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97465-128-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-338-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> RED 		8-97465-133-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-368-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> RED 		8-97465-135-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-370-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> RED 		8-97465-116-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-320-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> RED 		8-97465-126-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-324-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97423-394-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97460-304-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97423-395-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97460-306-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-376-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-295-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-377-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-299-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> RED 		8-97429-580-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY 		8-97460-358-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> RED 		8-97429-582-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY 		8-97460-360-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-987-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97460-296-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-988-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97460-300-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98200-493-1 01 1 1412- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98200-497-1 01 1 1412- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> 		8-98200-494-1 01 1 1412- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> 		8-98200-498-1 01 1 1412- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> 		8-98200-496-0 01 1 1412-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> 		8-98300-438-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> 		8-98200-500-0 01 1 1412-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> 		8-98300-442-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98200-495-0 01 1 1412-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-437-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98200-499-0 01 1 1412-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-441-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98196-199-0 01 1 1412-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98300-436-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98196-213-0 01 1 1412-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98300-440-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-198-0 01 1 1412-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-435-0 01 1 1508- ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-212-0 01 1 1412-1507 ● ●
10 16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-439-0 01 1 1508- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97427-776-0 01 1 1412- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97427-779-0 01 1 1412- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97427-778-1 01 1 1412- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97427-781-1 01 1 1412- ● ●
17 16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM VINYL<8LJ> EXC. RESTRAINT PROVISIONS CHILD<AN4> (A) GRAY 		8-97425-358-0 02 1 1412- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97424-691-0 02 1 1412- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK 		8-97465-070-0 02 1 1412- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK 		8-97465-074-0 01 1 1412- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) LIGHT GRAY 		8-97424-692-0 01 1 1412- ● ●
29 16.686 RUBBER; RR SEAT
(A) 		8-98224-609-0 02 1 1412- ● ●
29 16.686 RUBBER; RR SEAT
EXC. RESTRAINT PROVISIONS CHILD<AN4> (B) 		8-98224-621-0 04 1 1412- ● ●
29 16.686 RUBBER; RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> (B) 		8-98224-621-0 05 1 1412- ● ●
100 15.039 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK 		8-97465-106-0 01 1 1412- ● ●
100 15.039 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY 		8-97424-694-0 01 1 1412- ● ●
206 16.682 BRACKET ASM; LEG,RR SEAT
(A) 		8-98224-625-0 01 1 1412- ● ●
206 16.682 BRACKET ASM; LEG,RR SEAT
(B) 		8-98224-695-0 01 1 1412- ● ●
206 16.682 BRACKET ASM; LEG,RR SEAT
(A) 		8-98224-697-0 01 1 1412- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> 16.716 LOCK BLACK 		8-97424-499-0 02 1 1412- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> 16.716 FREE BLACK 		8-97424-500-0 02 1 1412- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK 		8-97424-499-0 03 1 1412- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK 		8-97424-500-0 03 1 1412- ● ●
251 16.682 BUSHING; HINGE PIN
(A) 		8-98224-622-0 01 1 1412- ● ●
251 16.682 BUSHING; HINGE PIN
(B) 		8-98224-623-0 01 1 1412- ● ●
251 16.682 BUSHING; HINGE PIN
(C) 		8-98224-624-0 02 1 1412- ● ●
276 16.720 NUT; ARM REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M6 FLANGE 		8-98224-604-0 04 1 1412- ● ●
281 16.715 SCREW
(A) M4X14 		8-98224-611-0 02 1 1412- ● ●
281 16.715 SCREW
EXC. RESTRAINT PROVISIONS CHILD<AN4> (B) M5X18 		8-98233-169-0 04 1 1412- ● ●
281 16.715 SCREW
RESTRAINT PROVISIONS CHILD<AN4> (B) M5X18 		8-98233-169-0 05 1 1412- ● ●
286 16.716 COVER; HINGE
(B) BLACK 		8-97424-699-1 01 1 1412- ● ●
286 16.716 COVER; HINGE
(C) BLACK 		8-97424-700-0 03 1 1412- ● ●
286 16.716 COVER; HINGE
(A) BLACK 		8-97416-997-2 01 1 1412- ● ●
286 16.716 COVER; HINGE
(A) BLACK 		8-97416-999-2 01 1 1412- ● ●
299 16.716 BOLT; LEG
M8X26 		8-98224-698-0 02 1 1412- ● ●
302 16.715 NUT; RR SEAT
JUMP SEAT<AJ2> 05.816 (A) M12 FLANGE 		0-91180-212-0 04 1 1511- ●
302 16.715 NUT; RR SEAT
(B) M6 FLANGE 		8-98225-096-0 02 1 1412- ● ●
302 16.715 NUT; RR SEAT
05.816 (A) M12 FLANGE 		0-91180-212-0 03 1 1412-1510 ● ●
302 16.715 NUT; RR SEAT
05.816 (A) M12 FLANGE 		0-91180-212-0 03 1 1511- ● ●
317 16.717 RING; BACK,RR SEAT
16.724 		8-98220-068-0 AR 1 1412- ● ●

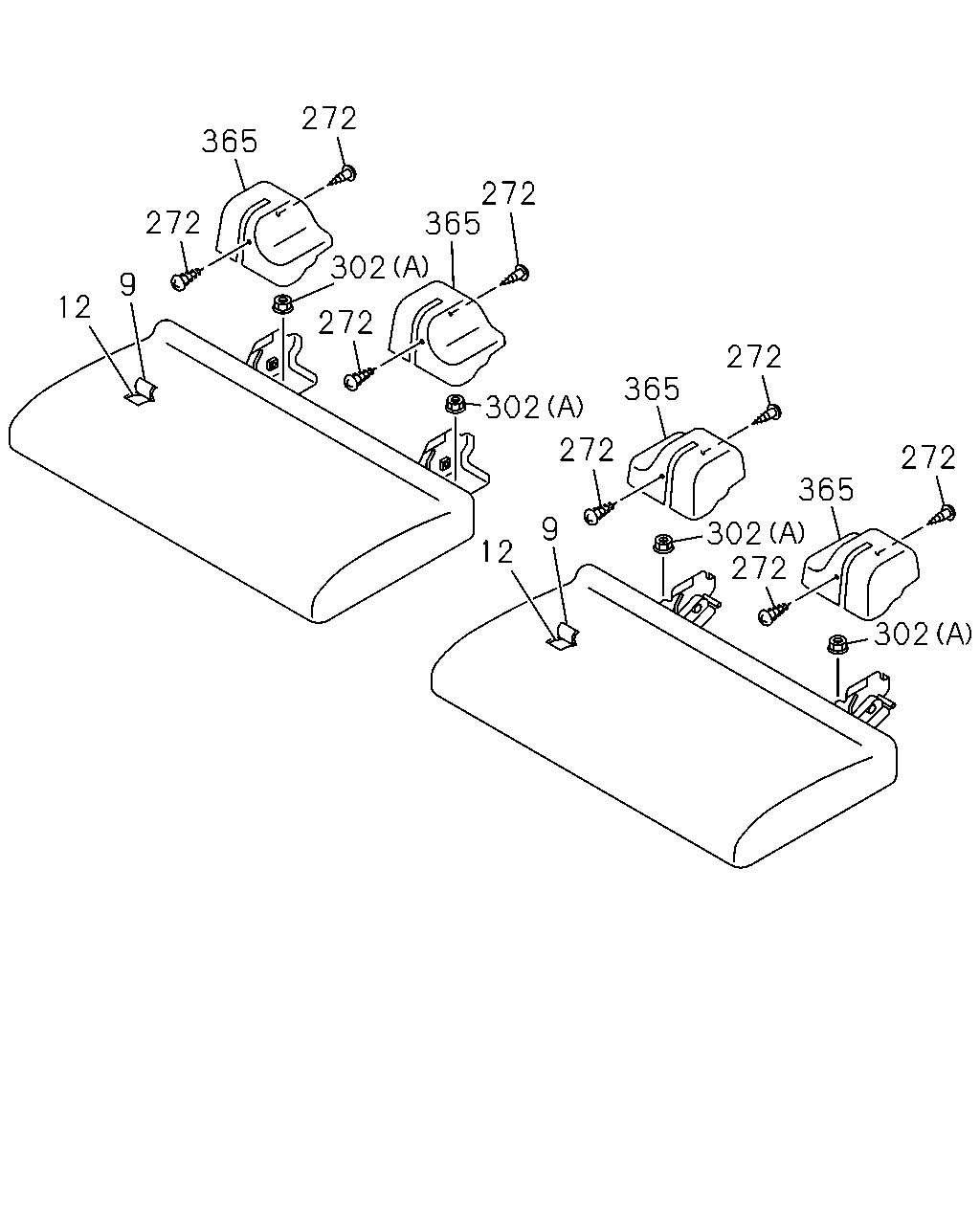

çizim 503350
12 9 272 365 272 272 302 365 272 302 365 12 272 9 302 272 365 272 272 302
BalonParca AdiParca NoAdetTipApplied Date A B C
9 16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2> LIGHT GRAY 		8-97423-325-0 01 1 1511- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2> LIGHT GRAY 		8-97423-326-0 01 1 1511- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM VINYL<8LJ> EXC. RESTRAINT PROVISIONS CHILD<AN4> GRAY 		8-97423-384-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM VINYL<8LJ> EXC. RESTRAINT PROVISIONS CHILD<AN4> GRAY 		8-97423-385-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-407-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-408-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-404-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) SEAT TRIM BASE CLOTH<8LK> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-405-0 01 1 1412- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97465-117-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-200-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97465-127-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-201-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97465-118-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-336-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97465-128-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-338-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> RED 		8-97465-133-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-368-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> RED 		8-97465-135-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> BLACK 		8-97460-370-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> RED 		8-97465-116-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-320-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> RED 		8-97465-126-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> SEAT TRIM LEATHER<6TB> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-324-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97423-394-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97460-304-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97423-395-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97460-306-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-376-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-295-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-377-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-299-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> RED 		8-97429-580-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY 		8-97460-358-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> RED 		8-97429-582-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY 		8-97460-360-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-987-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97460-296-0 01 1 1508- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-988-0 01 1 1412-1507 ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97460-300-0 01 1 1508- ● ●
12 16.717 PAD & FRAME ASM; RR CUSHION
JUMP SEAT<AJ2> 		8-98194-128-1 01 1 1511- ●
12 16.717 PAD & FRAME ASM; RR CUSHION
JUMP SEAT<AJ2> 		8-98194-129-1 01 1 1511- ●
272 16.720 SCREW; COVER
JUMP SEAT<AJ2> 		8-98194-130-0 08 1 1511- ●
302 16.715 NUT; RR SEAT
JUMP SEAT<AJ2> 05.816 (A) M12 FLANGE 		0-91180-212-0 04 1 1511- ●
302 16.715 NUT; RR SEAT
(B) M6 FLANGE 		8-98225-096-0 02 1 1412- ● ●
302 16.715 NUT; RR SEAT
05.816 (A) M12 FLANGE 		0-91180-212-0 03 1 1412-1510 ● ●
302 16.715 NUT; RR SEAT
05.816 (A) M12 FLANGE 		0-91180-212-0 03 1 1511- ● ●
365 16.717 COVER; PIVOT
JUMP SEAT<AJ2> INNER BLACK 		8-97423-321-3 01 1 1511- ●
365 16.717 COVER; PIVOT
JUMP SEAT<AJ2> INNER BLACK 		8-97423-322-3 01 1 1511- ●
365 16.717 COVER; PIVOT
JUMP SEAT<AJ2> OUTER BLACK 		8-97423-323-3 01 1 1511- ●
365 16.717 COVER; PIVOT
JUMP SEAT<AJ2> OUTER BLACK 		8-97423-324-3 01 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
