◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#153954) — 67 parça

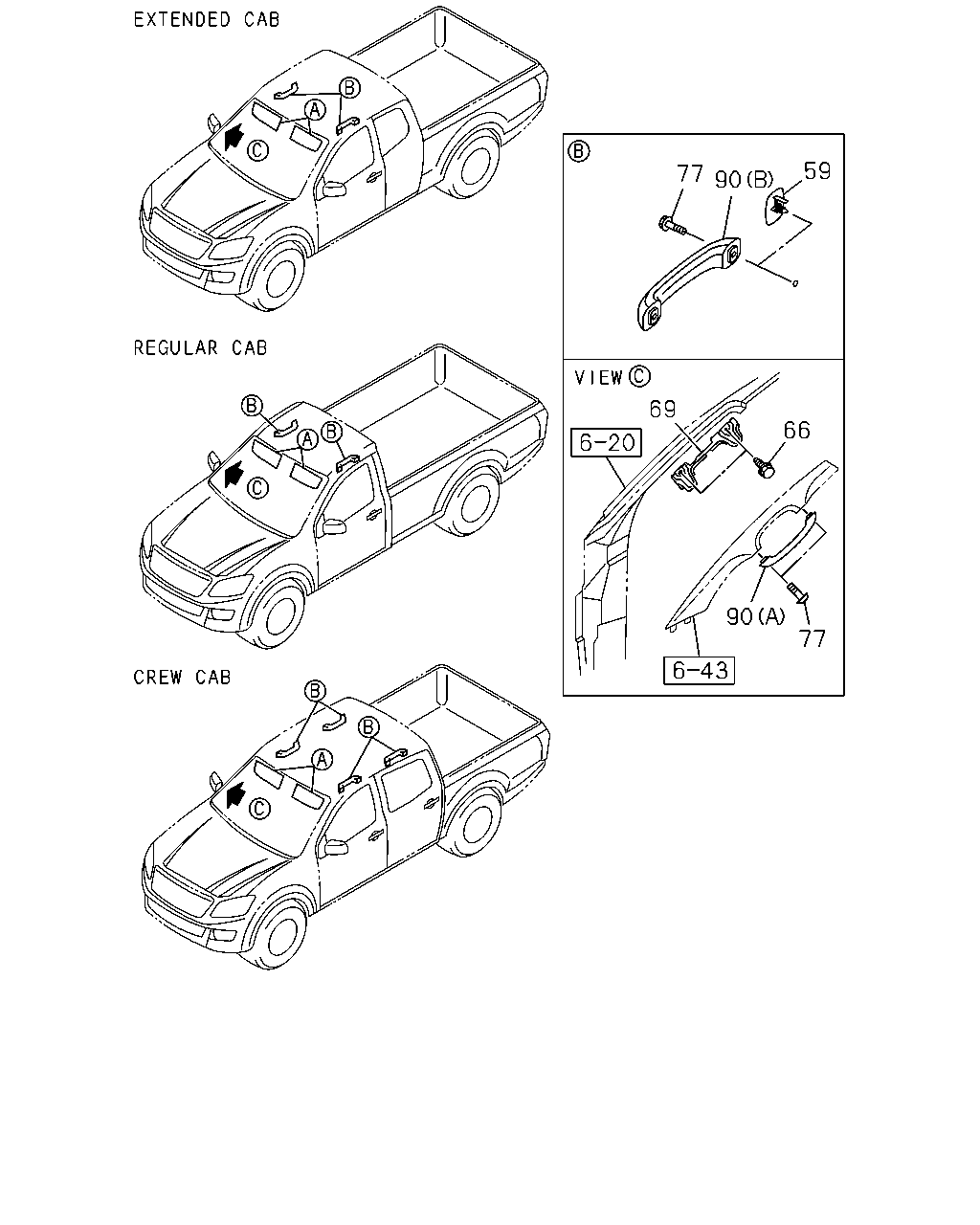

çizim 459143
66 90 77 59 69 90 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E
59 16.450 COVER; ASSIST GRIP
GRAY 		8-97416-700-0 02 1 1412- ● ●
59 16.450 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1412- ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-700-0 02 1 1412- ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR DARK GRAY(117) EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1412- ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-934-0 02 1 1412-1510 ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. ASSIST HANDLE<E28> BLACK 		8-97423-934-0 02 1 1412-1510 ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-934-0 02 1 1511- ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. ASSIST HANDLE<E28> BLACK 		8-97423-934-0 02 1 1511- ● ●
59 16.450 COVER; ASSIST GRIP
BLACK 		8-97423-934-0 02 1 1511- ●
59 16.450 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> BLACK 		8-97423-934-0 02 1 1511- ●
66 16.450 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE 		8-98050-320-0 04 1 1412-1510 ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1412-1510 ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE 		8-98050-320-0 04 1 1511- ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1511- ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-347-3 01 1 1412-1510 ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-347-3 01 1 1412-1510 ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-347-3 01 1 1511- ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-347-3 01 1 1511- ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-348-3 01 1 1412-1510 ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-348-3 01 1 1412-1510 ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-348-3 01 1 1511- ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-348-3 01 1 1511- ● ●
77 16.450 SCREW; ASSIST GRIP
ASSIST HANDLE<E28> M6X25 		0-36230-625-0 02 1 1412-1510 ● ● ● ●
77 16.450 SCREW; ASSIST GRIP
ASSIST HANDLE<E28> M6X25 		0-36230-625-0 02 1 1511- ● ● ● ● ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1412- ● ● ●
77 16.450 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) M6X25 		0-36230-625-0 04 1 1412- ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1412- ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97416-698-4 01 1 1412- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97416-698-4 01 1 1412- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) (B) REAR GRAY 		8-97418-299-1 01 1 1412- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) (B) REAR GRAY 		8-97418-300-1 01 1 1412- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) HIGH RIDE SUSPENSION(7YC) (A) GRAY 		8-97416-698-4 02 1 1412- ●
90 16.450 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1412- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) (A) GRAY 		8-97416-698-4 02 1 1412- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) (B) REAR BLACK 		8-97423-932-1 01 1 1412- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) (B) REAR BLACK 		8-97423-933-1 01 1 1412- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) ASSIST HANDLE<E28> (B) FRONT BLACK 		8-97423-931-4 01 1 1412-1510 ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) ASSIST HANDLE<E28> (B) FRONT BLACK 		8-97423-931-4 01 1 1511- ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> (B) FRONT BLACK 		8-97423-931-4 01 1 1511- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97423-931-4 02 1 1412- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) (A) BLACK 		8-97423-931-4 02 1 1412- ●

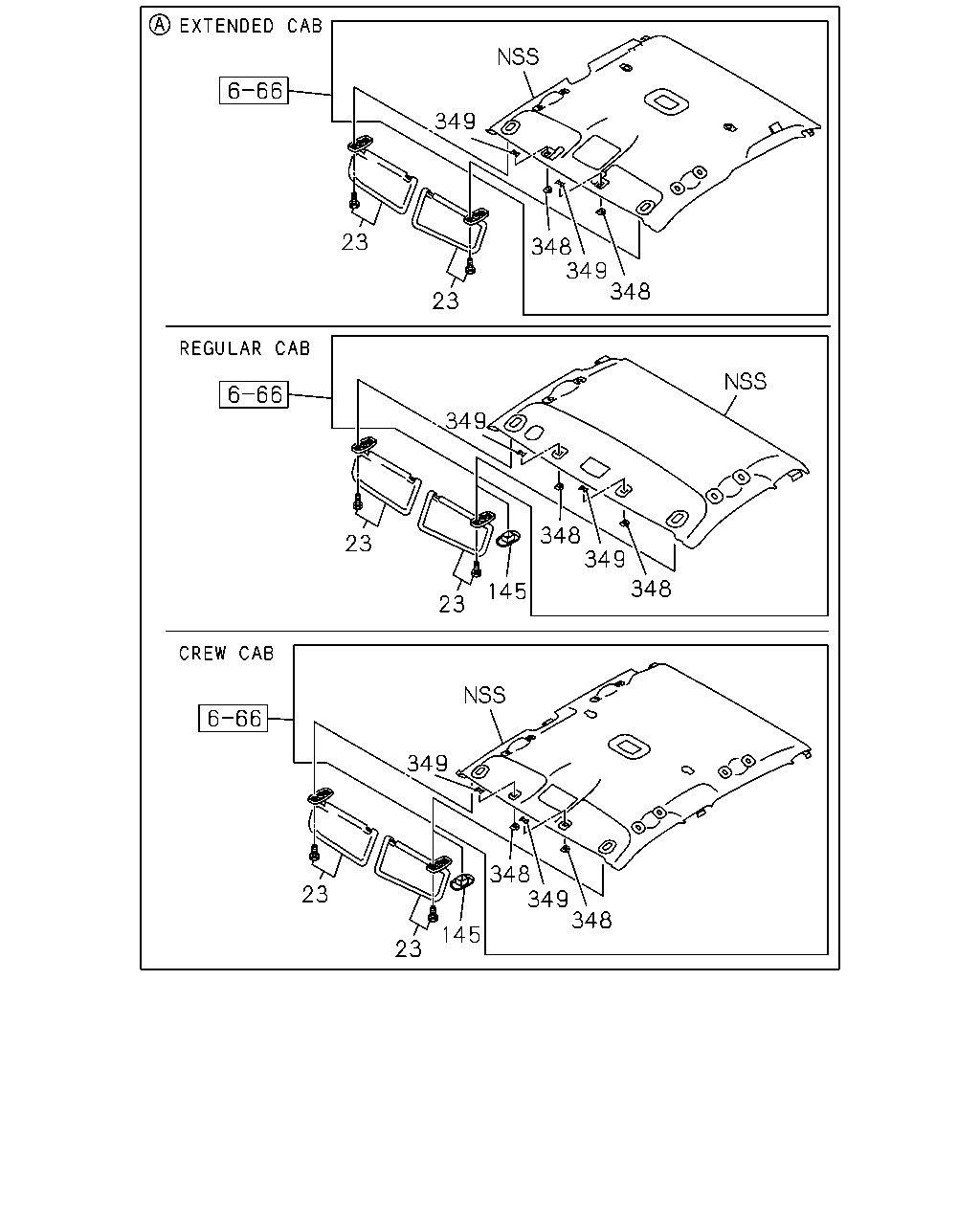

çizim 459941
349 23 23 348 349 348 348 349 348 349 23 23 145 349 23 23 145 348 349 348
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-461-3 01 1 1412- ● ● ● ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97417-465-2 01 1 1412- ● ● ● ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-451-3 01 1 1412- ● ● ● ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97416-682-2 01 1 1412- ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-449-2 01 1 1412- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-449-2 01 1 1412- ●
23 16.070 SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97416-681-2 01 1 1412- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97416-681-2 01 1 1412- ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-210-3 01 1 1412-1510 ● ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-210-3 01 1 1511- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97429-210-3 01 1 1511- ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-206-3 01 1 1412-1510 ● ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-206-3 01 1 1511- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97429-206-3 01 1 1511- ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-208-2 01 1 1412-1510 ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-208-2 01 1 1511- ●
23 16.070 SUN VISOR
BLACK 		8-97429-208-2 01 1 1511- ●
23 16.070 SUN VISOR
GRAY 		8-97417-453-2 01 1 1412- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97417-453-2 01 1 1412- ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97429-209-2 01 1 1412- ●
145 16.070 PLUG; HOLE
EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97416-689-1 01 1 1412- ● ● ● ●
348 16.070 RETAINER; SUNSHADE
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97403-990-0 02 1 1412- ● ● ● ●
348 16.070 RETAINER; SUNSHADE
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-949-0 02 1 1412-1510 ● ●
348 16.070 RETAINER; SUNSHADE
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-949-0 02 1 1511- ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE 8-98039-903-0 02 1 1412-1510 ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE 8-98039-903-0 02 1 1511- ● ● ● ● ●
