Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

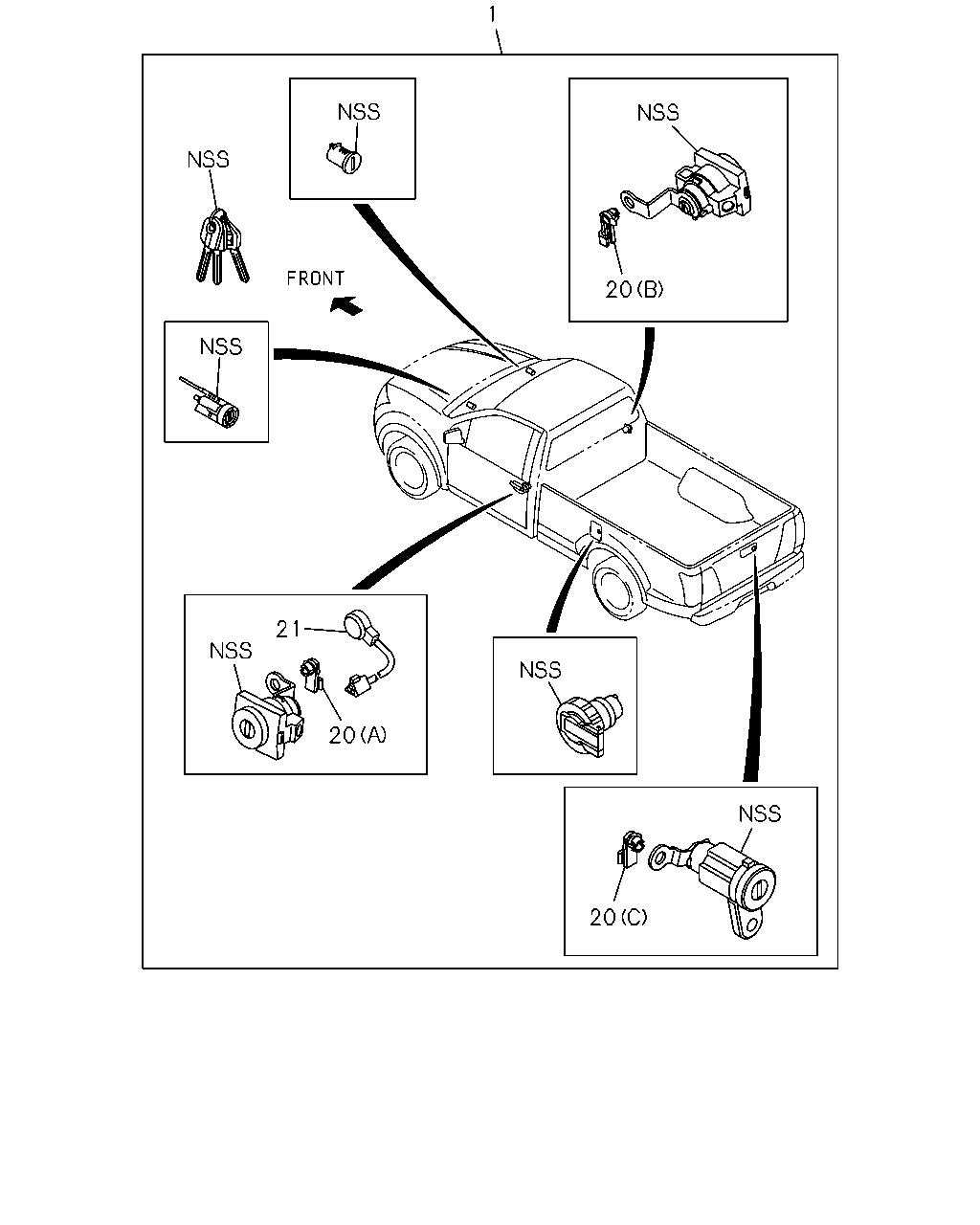

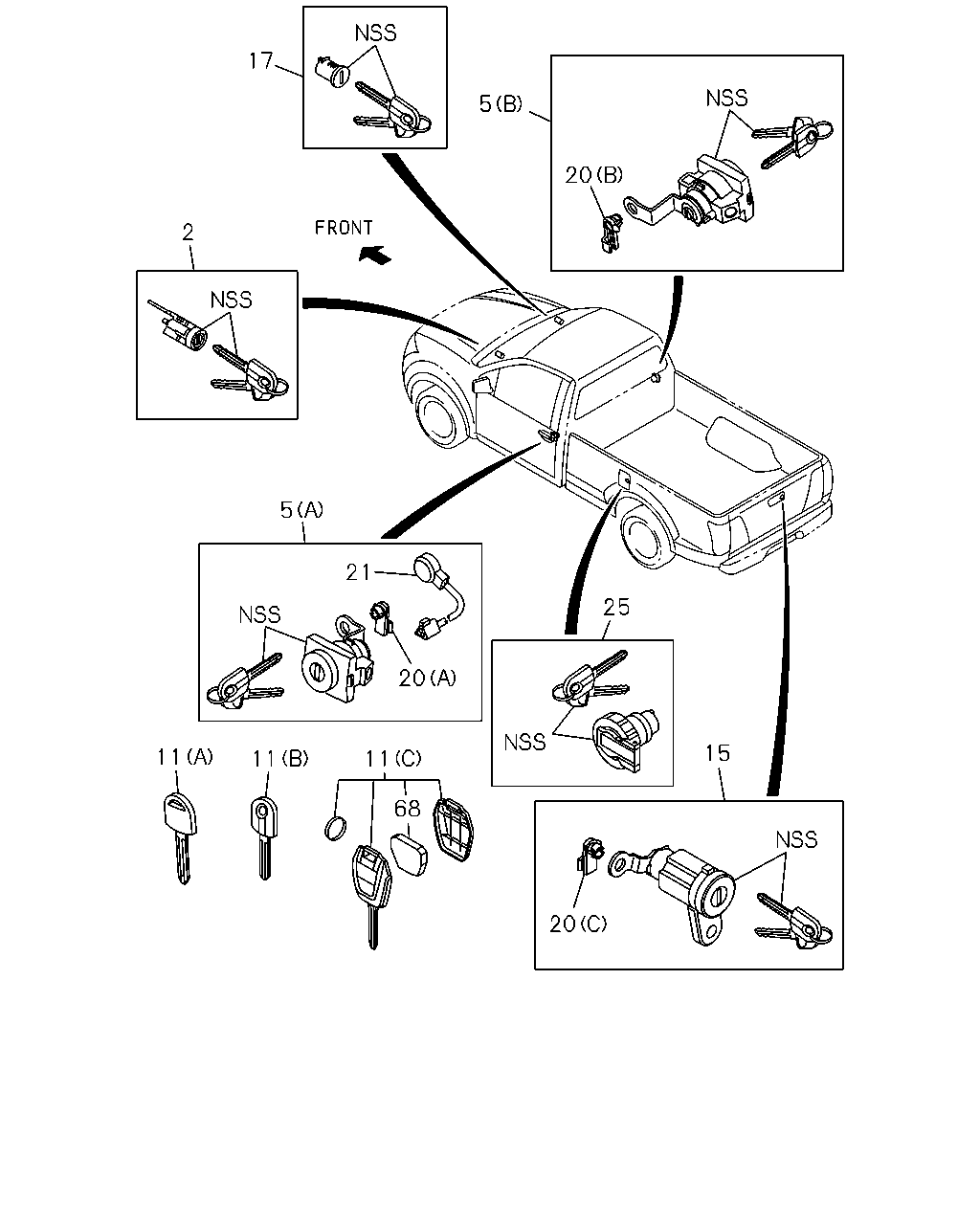

7-30 — LOCK CYLINDER SET (#153951) — 61 parça

1 20 21 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.188 CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98103-059-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98292-025-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98103-044-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>	8-98283-901-0	01	1	1412-		●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAPW/LOCK<N05>	8-98247-308-0	01	1	1412-		●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98103-040-0	01	1	1412-		●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98103-039-0	01	1	1412-		●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>	8-98103-037-0	01	1	1412-		●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUELTANK CAP W/LOCK<N05>	8-98103-036-0	01	1	1412-		●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05>	8-98103-057-0	01	1	1412-1510			●		●
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUELTANK CAP W/LOCK<N05>	8-98103-057-0	01	1	1511-		●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>	8-98103-055-0	01	1	1412-1510			●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-055-0	01	1	1511-	●		●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98185-822-0	01	1	1412-1510			●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK END GATE<8CW>	8-98185-822-0	01	1	1511-	●		●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98103-045-0	01	1	1412-1510			●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-045-0	01	1	1511-	●		●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>	8-98103-043-0	01	1	1412-1510			●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW>	8-98103-043-0	01	1	1511-	●		●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98103-042-0	01	1	1412-1510			●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-042-0	01	1	1511-	●		●		●
20	16.328 SNAP; DOOR LOCK CYL 4JK1-TCX ENG(LR0) LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> (C)	8-97357-958-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL (A) YELLOW	8-97350-043-0	01	1	1412-1510		●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL (A) YELLOW	8-97350-043-0	01	1	1511-	●	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (B) WHITE	8-97350-044-0	01	1	1412-1510		●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (B) WHITE	8-97350-044-0	01	1	1511-	●	●	●	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1412-1510		●	●	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1511-	●	●	●	●	●

17 2 5 21 20 5 20 25 15 20 68 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98193-734-0	01	1	1412-1510		●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98193-734-0	01	1	1511-	●	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98193-733-0	01	1	1412-1510		●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98193-733-0	01	1	1511-	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-737-0	01	1	1412-1510		●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A)	8-98193-737-0	01	1	1412-1510		●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-737-0	01	1	1511-	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A)	8-98193-737-0	01	1	1511-	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-739-0	01	1	1412-1510		●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-739-0	01	1	1511-	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5> (B)	8-98193-736-0	01	1	1412-1510		●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5> (B)	8-98193-736-0	01	1	1511-	●	●	●	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1412-1510		●	●	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1511-	●	●	●	●	●
11	02.187 KEY; BLANK (A)	8-97350-352-0	AR	1	1412-1510		●	●	●	●
11	02.187 KEY; BLANK (A)	8-97350-352-0	AR	1	1511-	●	●	●	●	●
11	02.187 KEY; BLANK EXC. REMOTE CONT DOOR LOCK<AP5> (B) IMMOBILIZER	8-98007-939-1	AR	1	1412-1510		●	●	●	●
11	02.187 KEY; BLANK EXC. REMOTE CONT DOOR LOCK<AP5> (B) IMMOBILIZER	8-98007-939-1	AR	1	1511-	●	●	●	●	●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO 4JK1-TCX ENG(LR0) LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98193-740-0	01	1	1511-	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO LOCK GLOVE BOX<A99>	8-98193-735-0	01	1	1412-1510			●		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO LOCK GLOVE BOX<A99>	8-98193-735-0	01	1	1511-			●		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO	8-98193-735-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL 4JK1-TCX ENG(LR0) LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> (C)	8-97357-958-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL (A) YELLOW	8-97350-043-0	01	1	1412-1510		●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL (A) YELLOW	8-97350-043-0	01	1	1511-	●	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (B) WHITE	8-97350-044-0	01	1	1412-1510		●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (B) WHITE	8-97350-044-0	01	1	1511-	●	●	●	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1412-1510		●	●	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1511-	●	●	●	●	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-98060-587-0	01	1	1412-1510		●	●	●	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-98060-587-0	01	1	1511-	●	●	●	●	●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98102-844-1	01	1	1412-1510		●	●	●	●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98102-844-1	01	1	1511-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
