◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#153949) — 36 parça

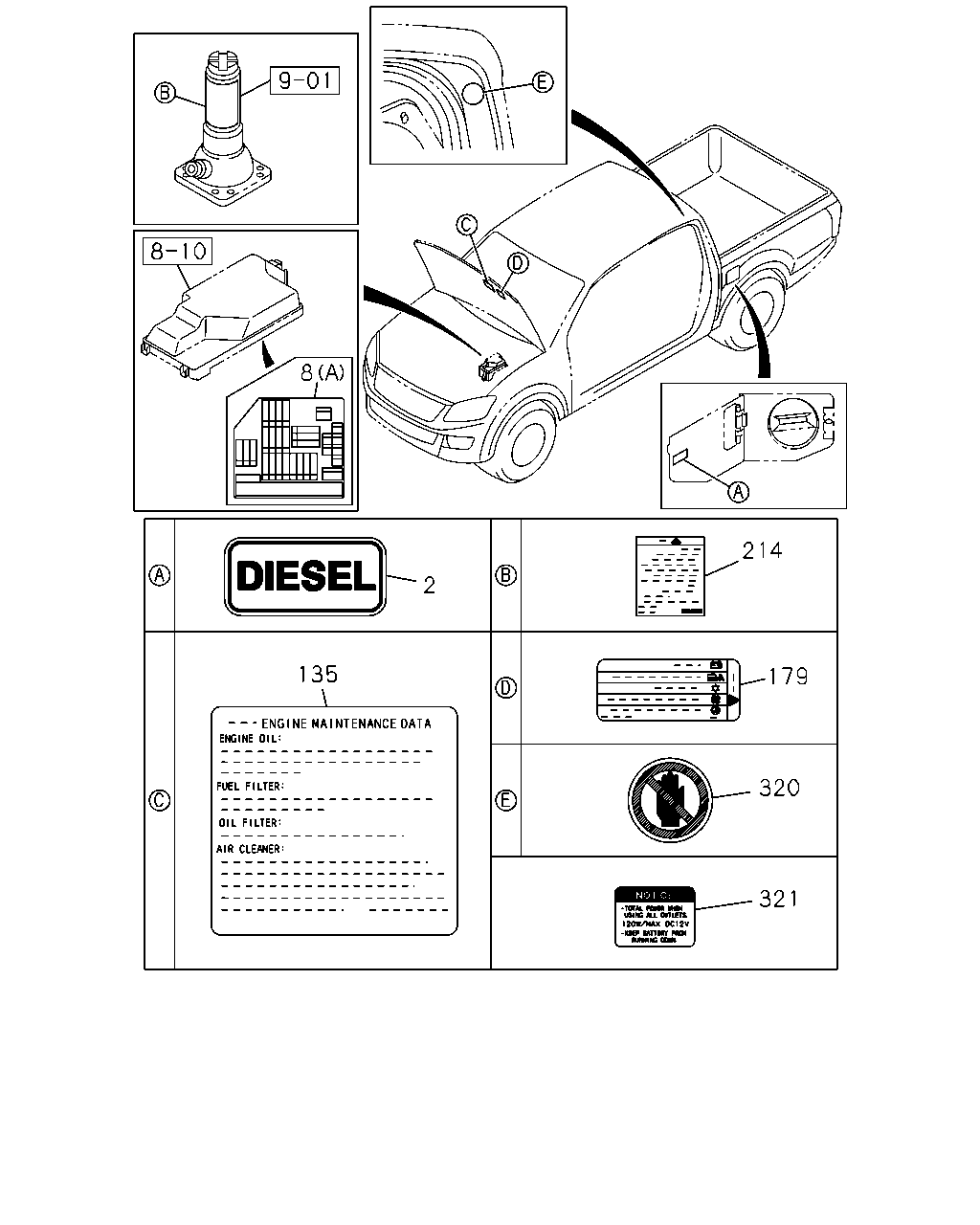

çizim 459304
321 320 179 214 8 135 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1412-1510 ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1511-1511 ● ● ● ● ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) (A) 		8-98166-842-3 01 1 1412-1510 ● ● ● ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98166-842-3 01 1 1511- ● ● ● ● ●
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) (A) 		8-98181-920-1 01 1 1412- ● ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1412-1510 ● ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1511- ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) 		8-98200-830-0 01 1 1511- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 		8-98200-831-0 01 1 1412-1510 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 		8-98200-831-0 01 1 1511- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) 		8-98200-831-0 01 1 1511- ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-T ENG(LP0) 		8-97332-377-1 01 1 1412- ● ●
179 08.808 PLATE; CAUTION,SERVICE 8-97356-568-0 01 1 1412-1510 ● ● ● ●
179 08.808 PLATE; CAUTION,SERVICE 8-97356-568-0 01 1 1511- ● ● ● ● ●
214 08.808 LABEL; JACK 8-97943-121-0 01 1 1412-1510 ● ● ● ●
214 08.808 LABEL; JACK 8-97943-121-0 01 1 1511- ● ● ● ● ●
320 08.808 LABEL; WARNING,DOOR 8-98302-861-0 02 1 1511- ●
321 08.808 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1412-1510 ● ● ● ●
321 08.808 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1511- ● ● ● ●
321 08.808 LABEL; WARNING,POWER 8-98183-494-1 01 1 1511- ●

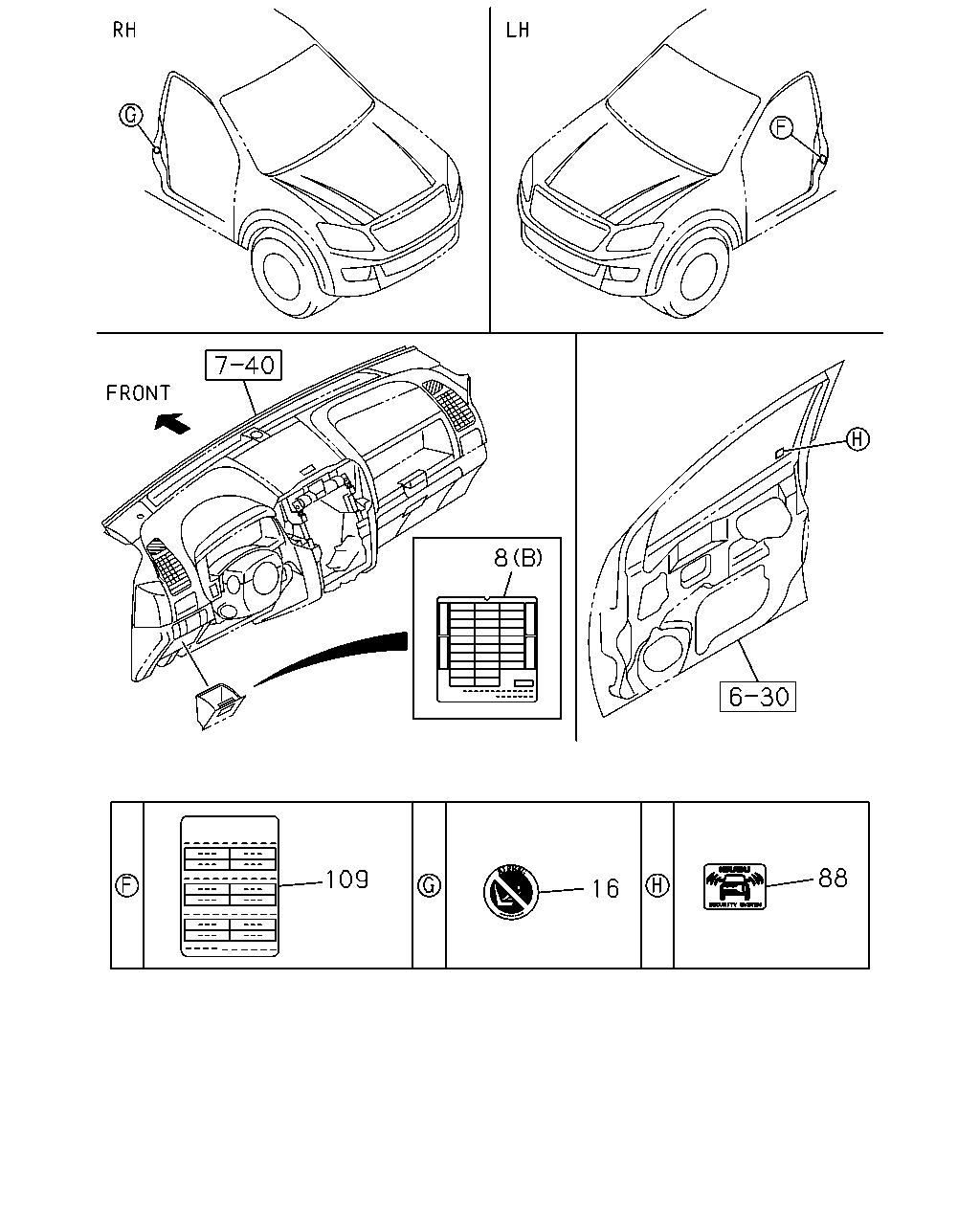

çizim 459845
8 109 16 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) (A) 		8-98166-842-3 01 1 1412-1510 ● ● ● ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98166-842-3 01 1 1511- ● ● ● ● ●
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) (A) 		8-98181-920-1 01 1 1412- ● ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1412-1510 ● ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1511- ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97378-569-0 01 1 1412-1510 ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97378-569-0 01 1 1511- ● ● ● ● ●
88 08.808 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98141-993-2 02 1 1412-1510 ● ● ● ●
88 08.808 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98141-993-2 02 1 1511- ● ● ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 195R15C(QZO) 		8-98100-752-1 01 1 1412-1510 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-752-1 01 1 1412-1510 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 195R15C(QZO) 		8-98100-752-1 01 1 1511- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-752-1 01 1 1511- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98100-752-1 01 1 1511- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION(7YC) 		8-98102-346-1 01 1 1412- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 245/70R16(QCQ),FRT&RR 255/65R17(QZX) 		8-98102-346-1 01 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
