6-78 — FLOOR HOLE PLUG (#153942) — 9 parça

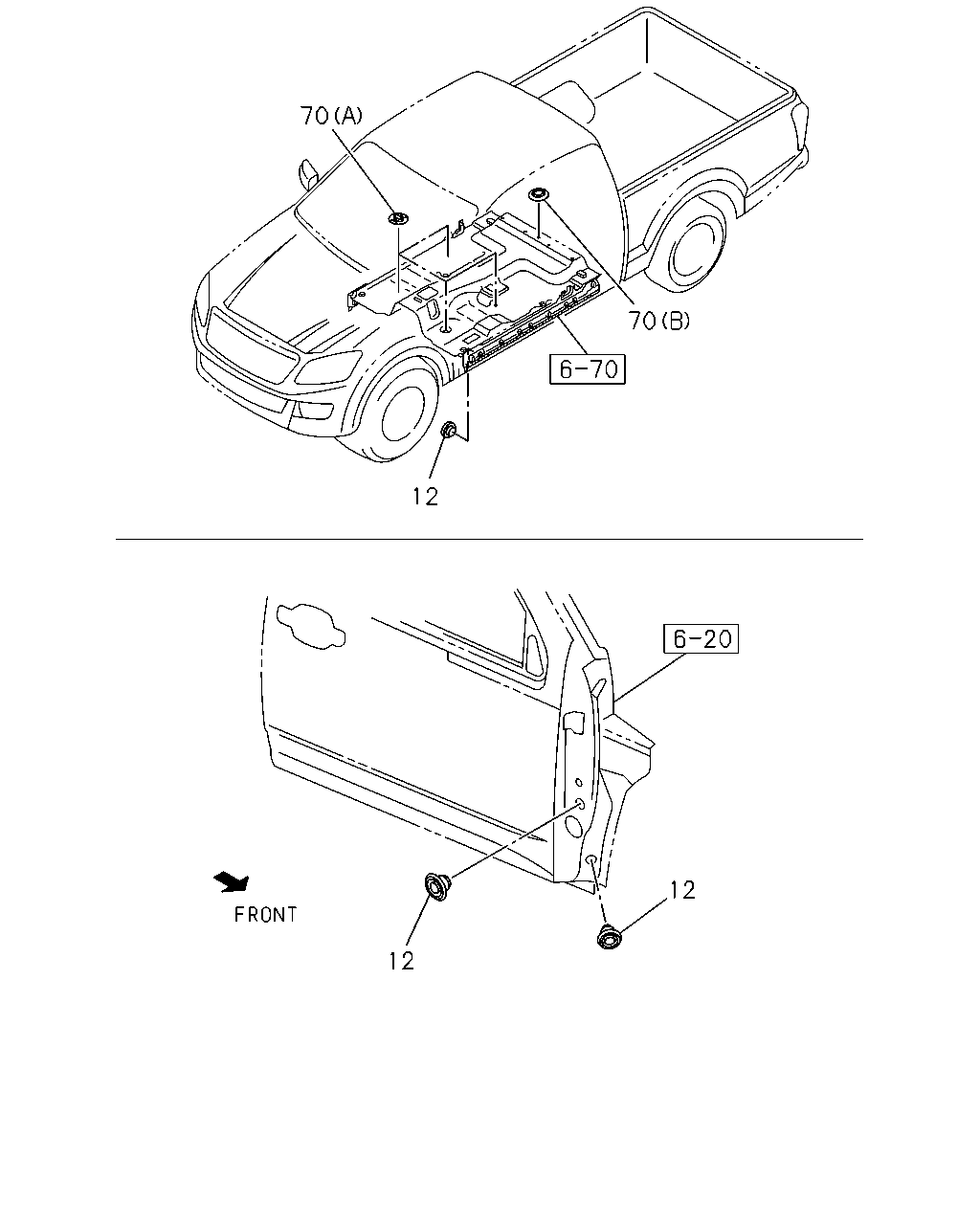

çizim 459990
12 12 12 70 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> OD=35 		8-97320-908-0 06 1 1412-1505 ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 06 1 1506-1510 ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 06 1 1511- ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 04 1 1412- ● ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 12 1 1412-1510 ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 12 1 1511- ● ● ●
70 09.775 PLUG; METAL,FLOOR
EXC. JUMP SEAT<AJ2> 12.491 (B) OD=24 		8-94119-796-0 01 1 1511- ●
70 09.775 PLUG; METAL,FLOOR
(A) 		8-97324-563-0 04 1 1412-1510 ● ● ● ●
70 09.775 PLUG; METAL,FLOOR
(A) 		8-97324-563-0 04 1 1511- ● ● ● ● ●
