◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#153940) — 49 parça

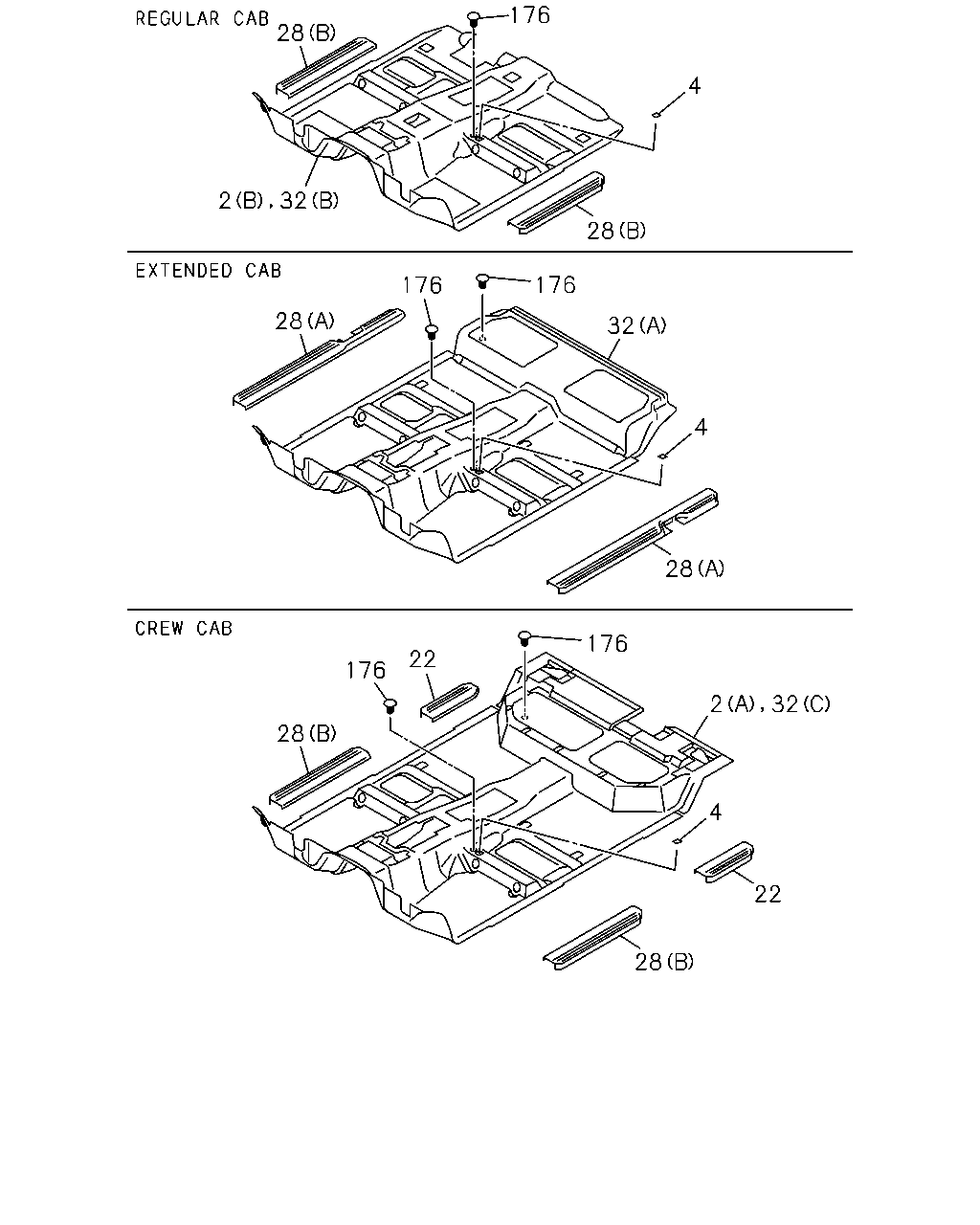

çizim 459917
176 28 4 28 176 176 2 32 28 28 4 32 22 176 28 176 2 32 22 4 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-441-8 01 1 1412- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-441-8 01 1 1412- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97417-446-7 01 1 1412- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97417-446-7 01 1 1412- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-442-6 01 1 1412- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-442-6 01 1 1412- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> (A) BLACK 		8-97417-445-7 01 1 1412-1510 ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> (A) BLACK 		8-97417-445-7 01 1 1412-1510 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR DARK GRAY(117) FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> (A) BLACK 		8-97417-445-7 01 1 1511- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> (A) BLACK 		8-97417-445-7 01 1 1511- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-444-7 01 1 1412-1510 ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-444-7 01 1 1412-1510 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-444-7 01 1 1511- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-444-7 01 1 1511- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (A) BLACK 		8-97417-448-7 01 1 1412-1510 ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (A) BLACK 		8-97417-448-7 01 1 1412-1510 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (A) BLACK 		8-97417-448-7 01 1 1511- ●
2 16.800 MAT; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (A) BLACK 		8-97417-448-7 01 1 1511- ●
4 16.547 INSULATOR; FRT 8-98185-968-0 04 1 1412-1510 ● ● ● ●
4 16.547 INSULATOR; FRT 8-98185-968-0 04 1 1511- ● ● ● ● ●
22 16.870 PLATE; SILL,RR
BLACK 		8-97416-948-5 01 1 1412- ● ●
22 16.870 PLATE; SILL,RR
BLACK 		8-97416-950-5 01 1 1412- ● ●
28 16.870 PLATE; SILL,FRT
(A) BLACK 		8-97416-669-2 01 1 1511- ●
28 16.870 PLATE; SILL,FRT
(A) BLACK 		8-97416-671-2 01 1 1511- ●
28 16.870 PLATE; SILL,FRT
(B) BLACK 		8-97416-944-3 01 1 1412- ● ● ● ●
28 16.870 PLATE; SILL,FRT
(B) BLACK 		8-97416-946-3 01 1 1412- ● ● ● ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) JUMP SEAT<AJ2> (A) BLACK 		8-97423-021-6 01 1 1511- ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97423-020-5 01 1 1511- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> (B) BLACK 		8-97417-438-6 01 1 1412- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> (B) BLACK 		8-97417-438-6 01 1 1412- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-439-5 01 1 1412- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-439-5 01 1 1412- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-423-5 01 1 1412- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-423-5 01 1 1412- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-033-5 01 1 1412-1510 ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-033-5 01 1 1412-1510 ●
32 16.800 CARPET; FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-033-5 01 1 1511- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-033-5 01 1 1511- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97423-034-5 01 1 1412-1510 ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97423-034-5 01 1 1412-1510 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR DARK GRAY(117) FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97423-034-5 01 1 1511- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97423-034-5 01 1 1511- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-035-5 01 1 1412-1510 ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-035-5 01 1 1412-1510 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-035-5 01 1 1511- ●
32 16.800 CARPET; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) INTERIOR COLOR DARK GRAY(117) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97423-035-5 01 1 1511- ●
176 16.870 RETAINER; CARPET
BLACK 		8-97416-667-0 02 1 1412- ● ●
176 16.870 RETAINER; CARPET
BLACK 		8-97416-667-0 10 1 1412-1510 ● ●
176 16.870 RETAINER; CARPET
BLACK 		8-97416-667-0 10 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
