◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#153939) — 128 parça

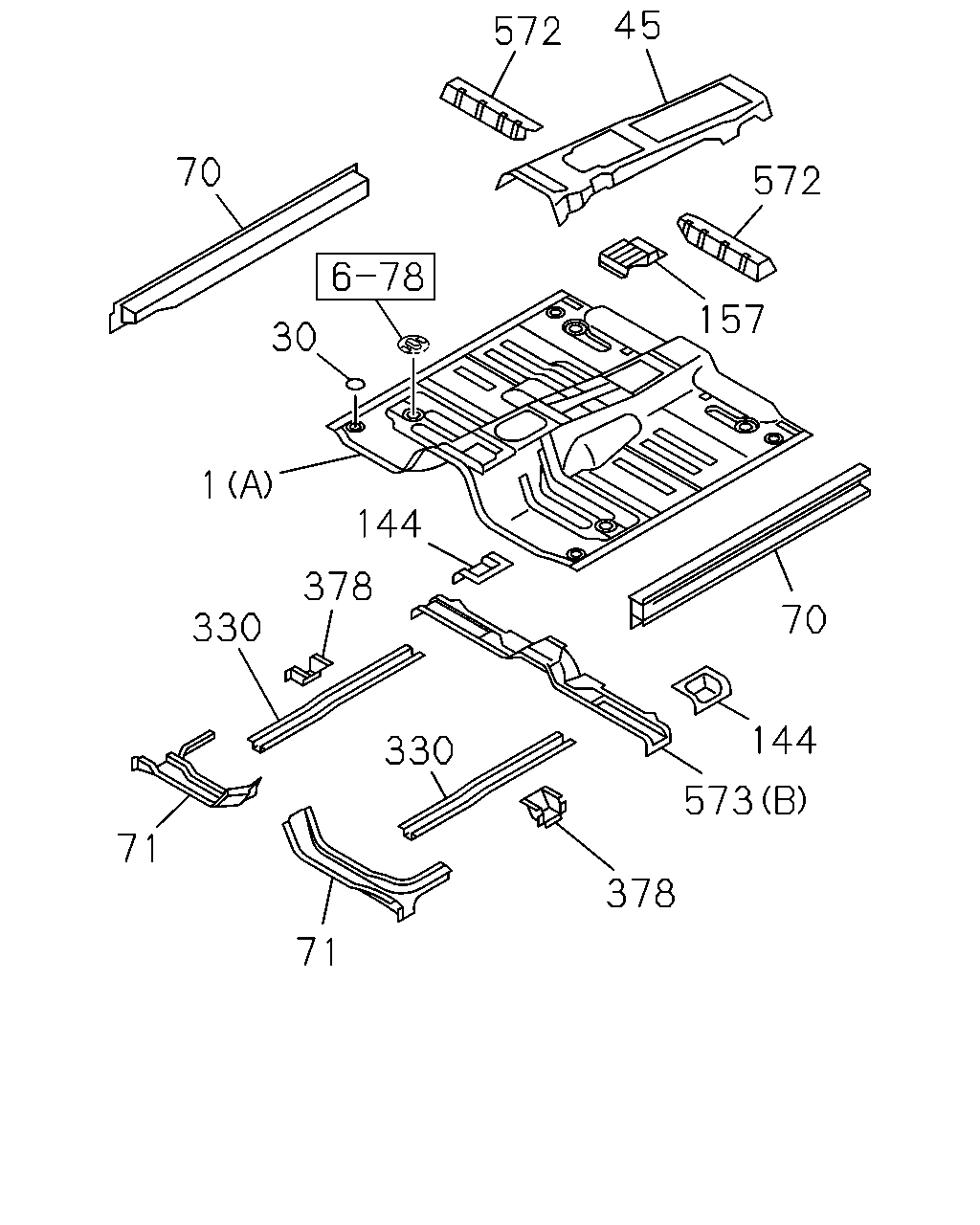

çizim 459803
572 45 572 30 70 1 330 71 71 330 378 70 144 573 378 144 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98112-030-6 01 1 1511- ●
1 16.545 PANEL; FLOOR
(A) 		8-98103-921-7 01 1 1412- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1412- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1412-1510 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1511- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1412- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-200-5 01 1 1412- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1412-1510 ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1511- ● ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1511- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1511- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1412- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1412-1510 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1511- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1412-1510 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1511- ● ● ● ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1412- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1412- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1412- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1412- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1412- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1412-1510 ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1511- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1412-1510 ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1511- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1412-1510 ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1511- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1412-1510 ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1511- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1412- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412-1510 ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412-1510 ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1511- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1511- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1412- ● ●

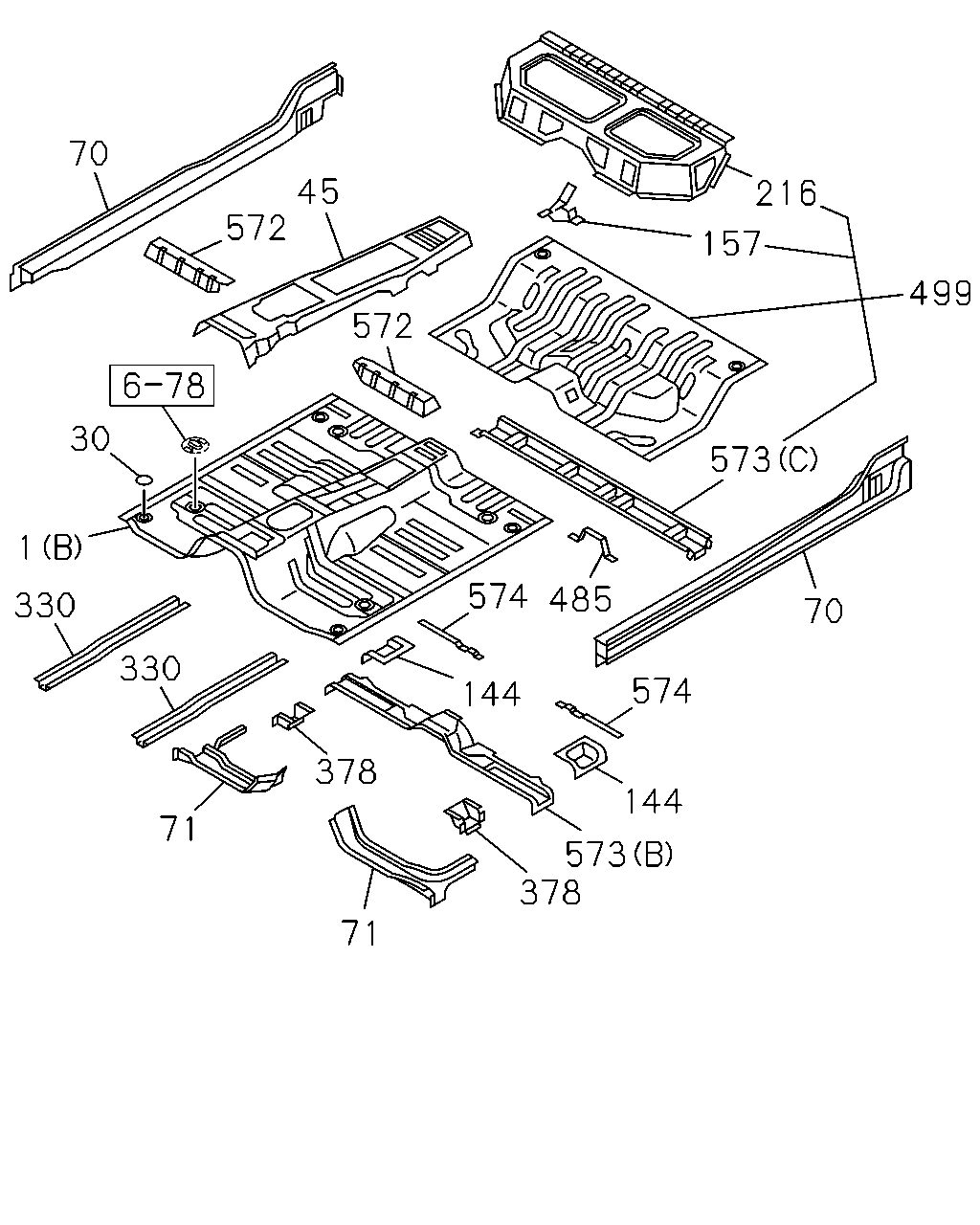

çizim 459843
45 572 572 157 216 499 573 70 574 485 144 573 378 71 71 378 144 574 330 330 1 30 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98112-030-6 01 1 1511- ●
1 16.545 PANEL; FLOOR
(A) 		8-98103-921-7 01 1 1412- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1412- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1412-1510 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1511- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1412- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-200-5 01 1 1412- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1412-1510 ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1511- ● ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1511- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1511- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1412- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1412-1510 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1511- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1412-1510 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1511- ● ● ● ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1412- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1412- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1412- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1412- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1412- ● ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1511- ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1511- ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1412- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1412-1510 ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1511- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1412-1510 ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1511- ● ● ● ● ●
485 16.800 SEAL; TAPE TYPE 8-94336-915-0 01 1 1412- ● ●
499 16.545 PANEL; FLOOR,RR 8-98116-646-9 01 1 1412-1506 ● ●
499 16.545 PANEL; FLOOR,RR 8-98322-482-0 01 1 1507- ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1412-1510 ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1511- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1412-1510 ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1511- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1412- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412-1510 ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412-1510 ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1511- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1511- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1412- ● ●
574 16.800 TAPE; ADHESIVE 8-98178-885-0 02 1 1412- ● ●

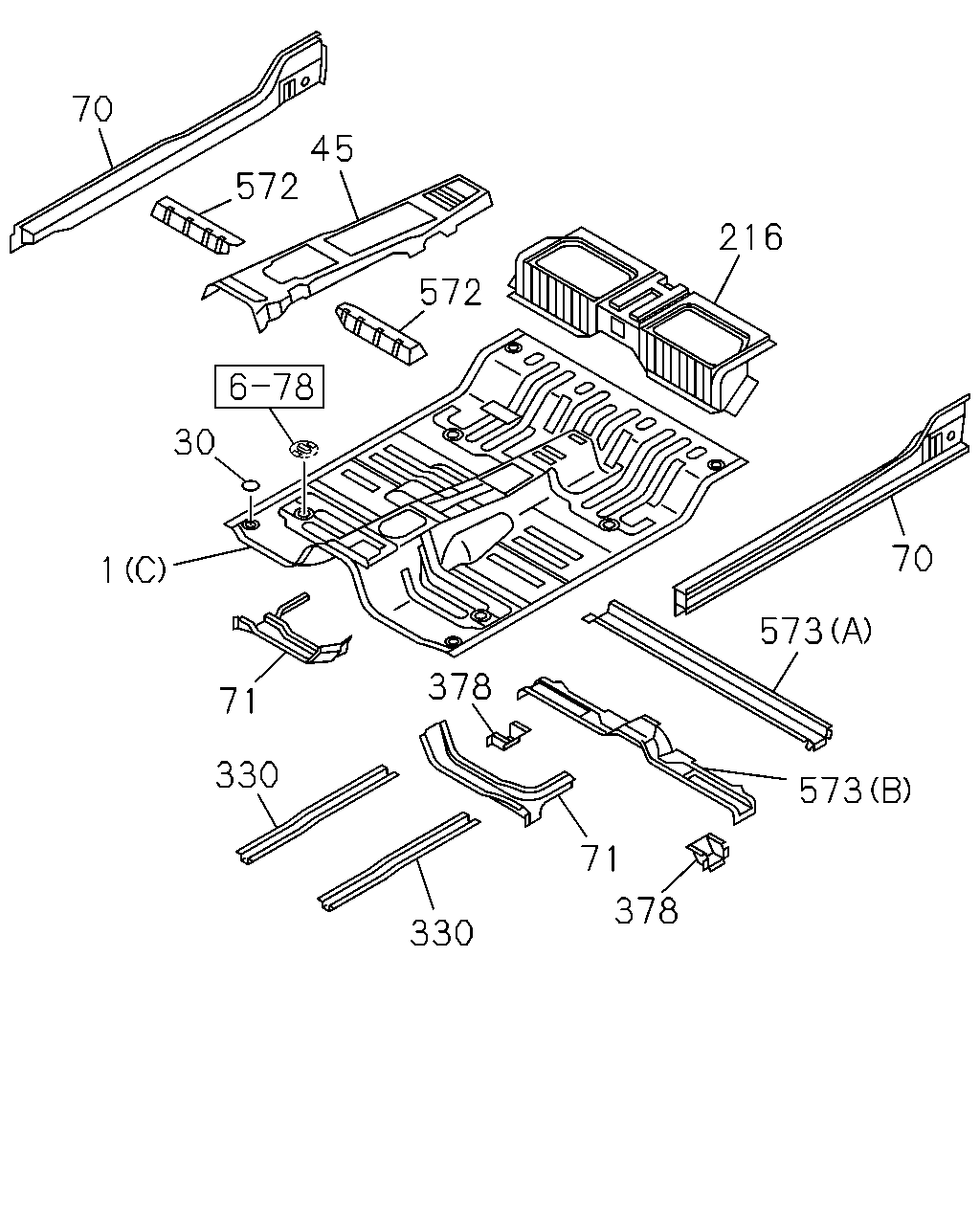

çizim 502709
45 572 572 216 70 573 573 378 71 330 330 71 1 30 378 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98112-030-6 01 1 1511- ●
1 16.545 PANEL; FLOOR
(A) 		8-98103-921-7 01 1 1412- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1412- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1412-1510 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1511- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1412- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-200-5 01 1 1412- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1412-1510 ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1511- ● ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1511- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1511- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1412- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1412-1510 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1511- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1412-1510 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1511- ● ● ● ● ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1511- ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1511- ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1412- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1412-1510 ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1511- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1412-1510 ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1511- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1412-1510 ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1511- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1412-1510 ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1511- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1412- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412-1510 ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412-1510 ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1511- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1511- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1511- ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1412- ● ●
