◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#153938) — 32 parça
çizim 459278
1 7 1 220 1 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.742 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> BLACK 		8-97460-037-5 01 1 1511- ●
1 16.742 LINING; HD
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> BLACK 		8-97460-026-5 01 1 1511- ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> BLACK 		8-97423-929-5 01 1 1511- ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> BLACK 		8-97465-568-5 01 1 1511- ●
1 16.742 LINING; HD
GRAY 		8-97417-113-3 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97416-957-5 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-955-5 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97416-956-5 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-953-5 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-954-5 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY(154) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> BLACK 		8-97429-475-5 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY(154) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> BLACK 		8-97429-474-5 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY(154) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> BLACK 		8-97423-930-5 01 1 1412- ● ●
1 16.742 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY(154) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> BLACK 		8-97429-473-5 01 1 1412- ● ●
7 16.742 RETAINER; HEADLINING RAIL
GRAY 		8-97416-696-0 02 1 1412- ● ●
7 16.742 RETAINER; HEADLINING RAIL
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-696-0 02 1 1412- ● ●
7 16.742 RETAINER; HEADLINING RAIL
INTERIOR COLOR UPR & LWR DARK GRAY(154) 16.870 BLACK 		8-97416-667-0 02 1 1412-1510 ● ●
7 16.742 RETAINER; HEADLINING RAIL
INTERIOR COLOR UPR & LWR DARK GRAY(154) 16.870 BLACK 		8-97416-667-0 02 1 1511- ● ●
7 16.742 RETAINER; HEADLINING RAIL
16.870 BLACK 		8-97416-667-0 02 1 1511- ●
220 16.165 BRACKET; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98128-570-0 02 1 1412-1510 ● ●
220 16.165 BRACKET; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98128-570-0 02 1 1511- ● ● ●

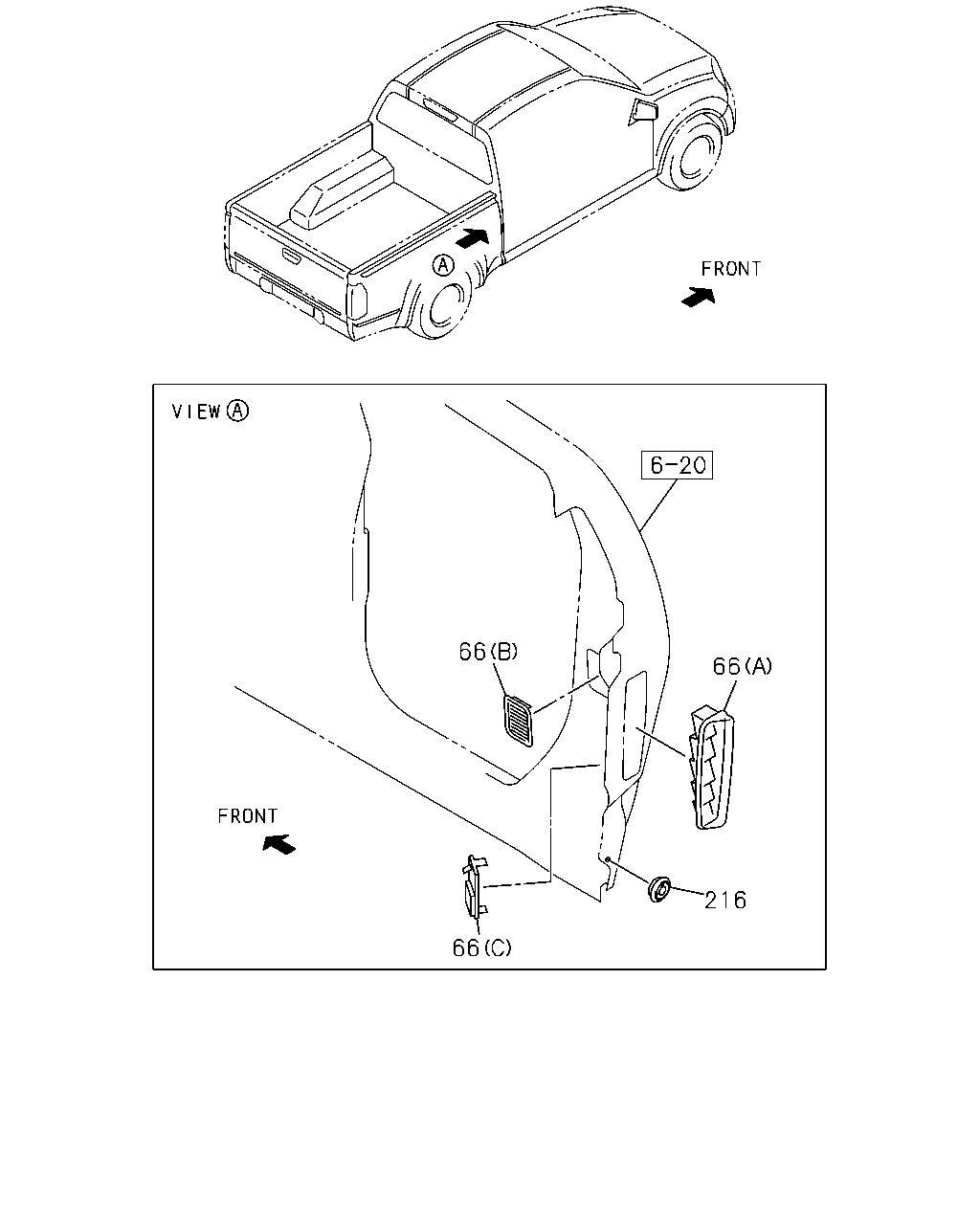

çizim 459617
66 216 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-822-2 01 1 1412-1510 ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-822-2 01 1 1511- ● ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-823-2 01 1 1412-1510 ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-823-2 01 1 1511- ● ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(C) 		8-97251-682-1 02 1 1412-1510 ● ●
66 16.576 GRILLE; AIR OUTLET
(C) 		8-97251-682-1 02 1 1511- ● ●
66 16.576 GRILLE; AIR OUTLET
(B) 		8-97365-208-0 02 1 1412-1510 ● ●
66 16.576 GRILLE; AIR OUTLET
(B) 		8-97365-208-0 02 1 1511- ● ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 10 1 1511- ●
216 16.576 GROMMET; HOLE
16.549 OD=30 		8-94107-655-0 02 1 1412- ● ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 12 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
