6-55 — REAR DOOR TRIM (#153936) — 139 parça

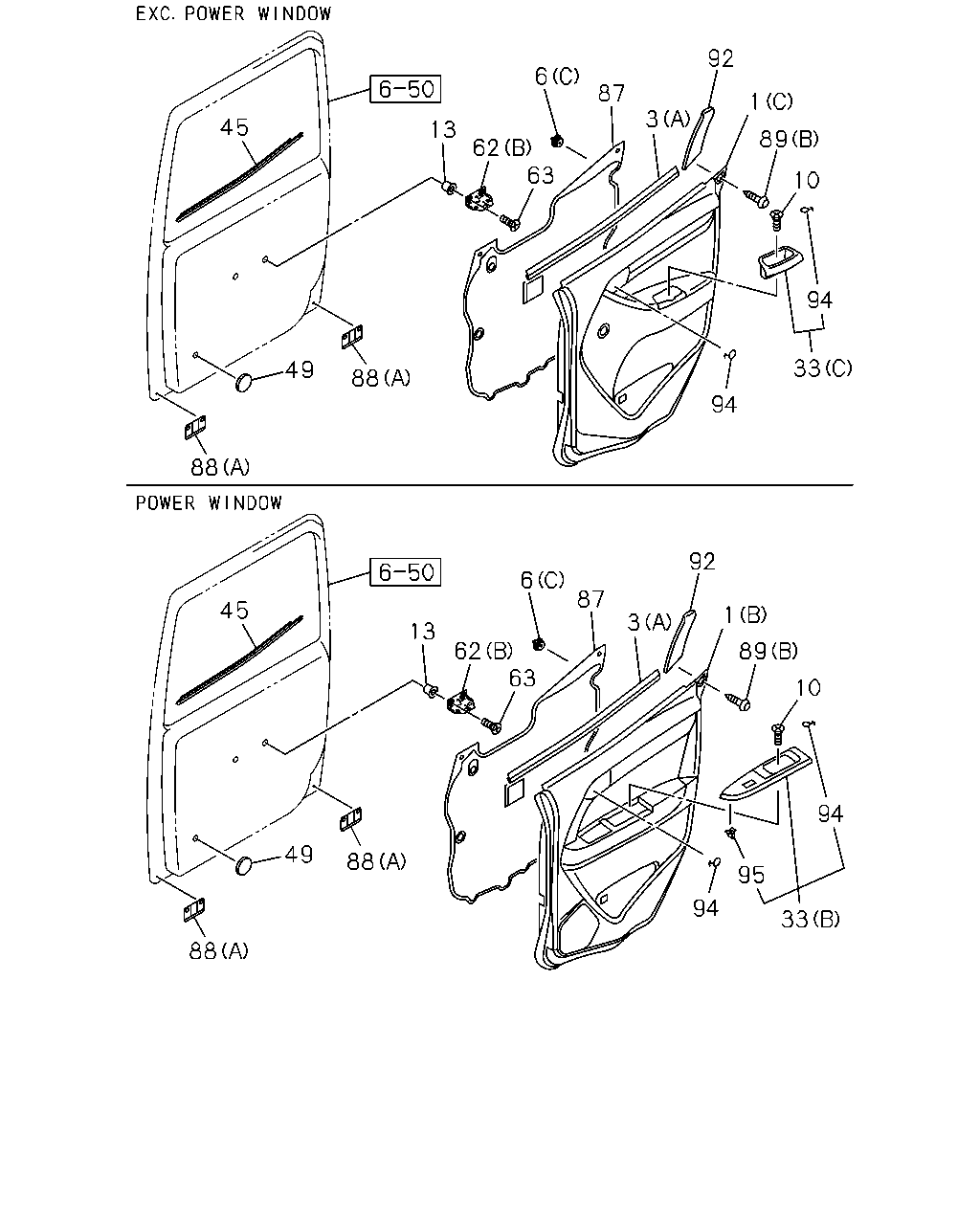

45 49 88 88 13 62 63 6 87 3 92 1 89 10 94 33 94 6 92 1 89 10 3 87 62 63 13 45 49 88 94 95 33 94 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.165 PAD; TRIM,RR DOOR (A) BLACK	8-97419-924-8	01	1	1511-	●
1	16.165 PAD; TRIM,RR DOOR (A) BLACK	8-97419-928-8	01	1	1511-	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-007-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-009-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97417-005-5	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97417-006-5	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-011-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-013-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97423-975-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97423-976-4	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (E)	8-98101-046-3	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (E)	8-98156-000-3	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (B)	8-98201-895-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (B)	8-98201-896-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (D)	8-98280-726-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (D)	8-98280-730-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (C)	8-98282-676-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (C)	8-98282-677-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (A)	8-98109-546-2	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (A)	8-98109-547-2	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR INTERIOR CUSTOM(RBD) (I)	8-98165-114-1	02	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (H)	8-98052-209-4	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (H)	8-98052-210-4	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (F)	8-98201-893-0	02	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (G)	8-98282-674-1	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (G)	8-98282-675-1	01	1	1412-		●	●
6	16.165 CLIP; DOOR PAD (A) H=16.7	8-97022-017-0	22	1	1511-	●
6	16.165 CLIP; DOOR PAD (B)	8-98164-026-0	04	1	1511-	●
6	16.165 CLIP; DOOR PAD (C)	8-98160-729-0	14	1	1412-		●	●
10	16.155 SCREW; ARM REST 16.345 M5X14 TAPPING	8-98184-363-0	02	1	1412-1510		●	●
10	16.155 SCREW; ARM REST 16.345 M5X14 TAPPING	8-98184-363-0	02	1	1511-	●	●	●
13	16.165 GROMMET; SCREW,ARM REST 10.565	8-94152-494-0	04	1	1412-1510		●	●
13	16.165 GROMMET; SCREW,ARM REST 10.565	8-94152-494-0	04	1	1511-	●	●	●
33	16.165 BOX; RR DOOR (A) BLACK	8-97416-762-5	01	1	1511-	●
33	16.165 BOX; RR DOOR (A) BLACK	8-97416-764-5	01	1	1511-	●
33	16.165 BOX; RR DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97416-989-3	01	1	1412-		●	●
33	16.165 BOX; RR DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97416-990-3	01	1	1412-		●	●
33	16.165 BOX; RR DOOR INTERIOR COLOR DARK GRAY(117) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97416-752-5	01	1	1412-		●	●
33	16.165 BOX; RR DOOR INTERIOR COLOR DARK GRAY(117) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97416-753-5	01	1	1412-		●	●
45	16.183 FINISHER; RR DOOR	8-98052-207-2	01	1	1412-		●	●
45	16.183 FINISHER; RR DOOR	8-98052-208-2	01	1	1412-		●	●
49	16.165 SEAL; DOOR 6-SPEAKER SYSTEM BASE<UW5> OD=25 BLACK	1-76798-019-0	02	1	1412-		●	●
62	16.165 BRACKET (A)	8-98190-466-0	02	1	1511-	●
62	16.165 BRACKET (B)	8-98117-091-1	02	1	1412-		●	●
63	16.165 BOLT 16.345 M5X14 TAPPING	8-98184-363-0	04	1	1412-1510		●	●
63	16.165 BOLT 16.345 M5X14 TAPPING	8-98184-363-0	04	1	1511-	●	●	●
87	16.165 DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM BASE<UW5>	8-98103-525-1	01	1	1412-		●	●
87	16.165 DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM BASE<UW5>	8-98103-526-1	01	1	1412-		●	●
87	16.165 DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM CUSTOM<UW6>, 2-SPEAKERSYSTEM BASE<U95>	8-98103-527-2	01	1	1412-		●	●
87	16.165 DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM CUSTOM<UW6>, 2-SPEAKERSYSTEM BASE<U95>	8-98103-528-2	01	1	1412-		●	●
88	16.270 PLUG; DOOR 16.155 (A)	8-98197-448-0	02	1	1511-	●
88	16.270 PLUG; DOOR INTERIOR BASIC(RBA) 16.067 (B)	8-94279-922-0	08	1	1412-		●	●
88	16.270 PLUG; DOOR 16.155 (A)	8-98197-448-0	04	1	1412-		●	●
89	16.166 RETAINER; RR DOOR (A) BLACK	8-97423-959-1	02	1	1511-	●
89	16.166 RETAINER; RR DOOR (B) BLACK	8-97419-388-0	02	1	1412-		●	●
92	16.165 PANEL; RR DOOR BLACK	8-97416-987-0	01	1	1412-		●	●
92	16.165 PANEL; RR DOOR BLACK	8-97416-988-0	01	1	1412-		●	●
94	16.165 COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1412-		●	●
94	16.165 COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1412-		●	●
95	16.165 CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98164-677-0	02	1	1412-		●	●

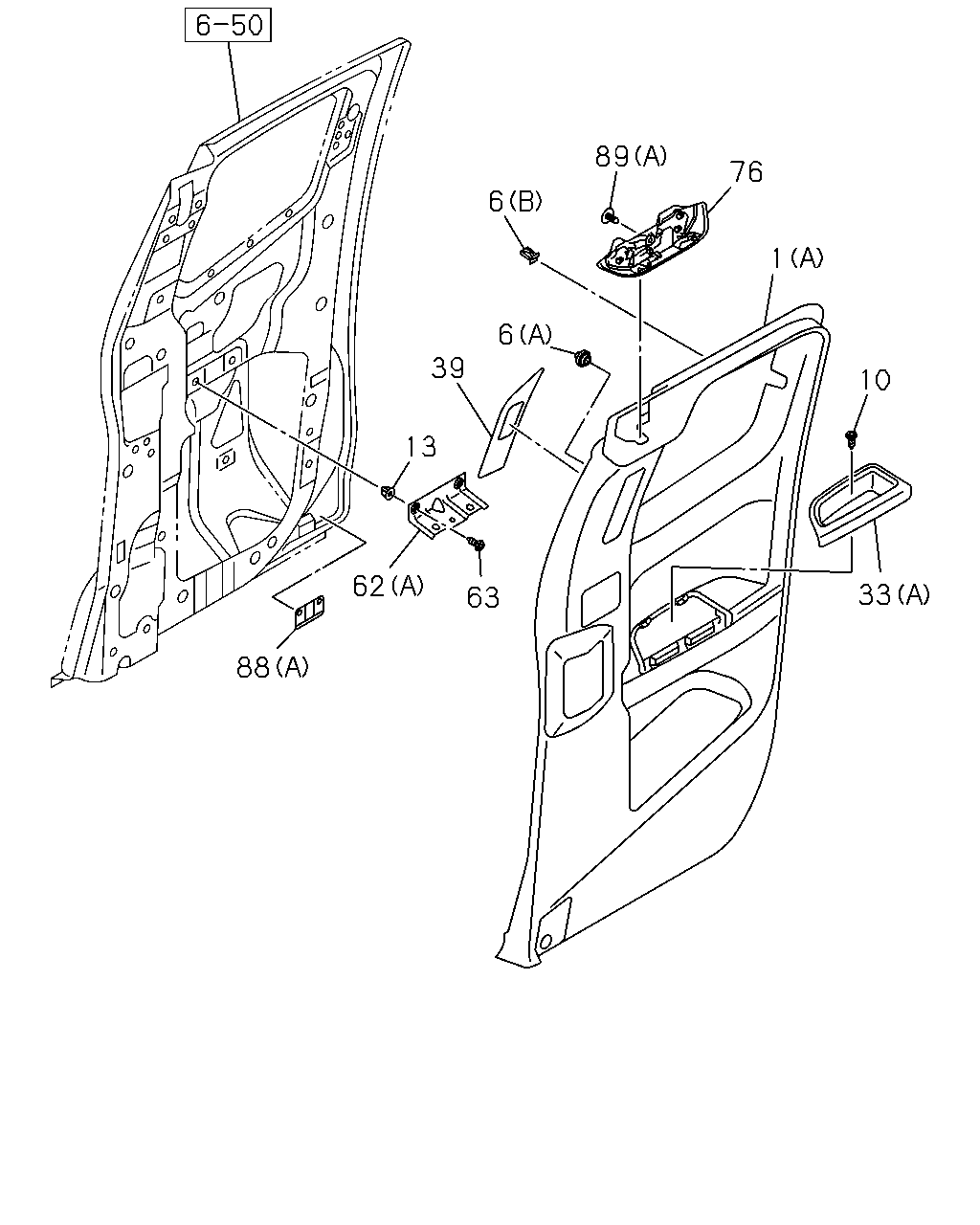

89 76 6 1 10 33 63 13 39 6 62 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.165 PAD; TRIM,RR DOOR (A) BLACK	8-97419-924-8	01	1	1511-	●
1	16.165 PAD; TRIM,RR DOOR (A) BLACK	8-97419-928-8	01	1	1511-	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-007-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-009-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97417-005-5	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR BASIC(RBA) INTERIOR COLOR DARK GRAY(117) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97417-006-5	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-011-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR CUSTOM(RBD) INTERIOR COLOR DARK GRAY(117) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97417-013-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97423-975-4	01	1	1412-		●	●
1	16.165 PAD; TRIM,RR DOOR INTERIOR CUSTOM(RBD) INTERIOR COLOR UPR & LWR DARK GRAY(154) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97423-976-4	01	1	1412-		●	●
6	16.165 CLIP; DOOR PAD (A) H=16.7	8-97022-017-0	22	1	1511-	●
6	16.165 CLIP; DOOR PAD (B)	8-98164-026-0	04	1	1511-	●
6	16.165 CLIP; DOOR PAD (C)	8-98160-729-0	14	1	1412-		●	●
10	16.155 SCREW; ARM REST 16.345 M5X14 TAPPING	8-98184-363-0	02	1	1412-1510		●	●
10	16.155 SCREW; ARM REST 16.345 M5X14 TAPPING	8-98184-363-0	02	1	1511-	●	●	●
13	16.165 GROMMET; SCREW,ARM REST 10.565	8-94152-494-0	04	1	1412-1510		●	●
13	16.165 GROMMET; SCREW,ARM REST 10.565	8-94152-494-0	04	1	1511-	●	●	●
33	16.165 BOX; RR DOOR (A) BLACK	8-97416-762-5	01	1	1511-	●
33	16.165 BOX; RR DOOR (A) BLACK	8-97416-764-5	01	1	1511-	●
33	16.165 BOX; RR DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97416-989-3	01	1	1412-		●	●
33	16.165 BOX; RR DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK	8-97416-990-3	01	1	1412-		●	●
33	16.165 BOX; RR DOOR INTERIOR COLOR DARK GRAY(117) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97416-752-5	01	1	1412-		●	●
33	16.165 BOX; RR DOOR INTERIOR COLOR DARK GRAY(117) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK	8-97416-753-5	01	1	1412-		●	●
39	16.165 COVER; DOOR TRIM BLACK	8-97419-925-2	01	1	1511-	●
39	16.165 COVER; DOOR TRIM BLACK	8-97419-929-2	01	1	1511-	●
62	16.165 BRACKET (A)	8-98190-466-0	02	1	1511-	●
62	16.165 BRACKET (B)	8-98117-091-1	02	1	1412-		●	●
63	16.165 BOLT 16.345 M5X14 TAPPING	8-98184-363-0	04	1	1412-1510		●	●
63	16.165 BOLT 16.345 M5X14 TAPPING	8-98184-363-0	04	1	1511-	●	●	●
76	16.165 COVER; RR DOOR BLACK	8-97423-957-3	01	1	1511-	●
76	16.165 COVER; RR DOOR BLACK	8-97423-958-3	01	1	1511-	●
88	16.270 PLUG; DOOR 16.155 (A)	8-98197-448-0	02	1	1511-	●
88	16.270 PLUG; DOOR INTERIOR BASIC(RBA) 16.067 (B)	8-94279-922-0	08	1	1412-		●	●
88	16.270 PLUG; DOOR 16.155 (A)	8-98197-448-0	04	1	1412-		●	●
89	16.166 RETAINER; RR DOOR (A) BLACK	8-97423-959-1	02	1	1511-	●
89	16.166 RETAINER; RR DOOR (B) BLACK	8-97419-388-0	02	1	1412-		●	●

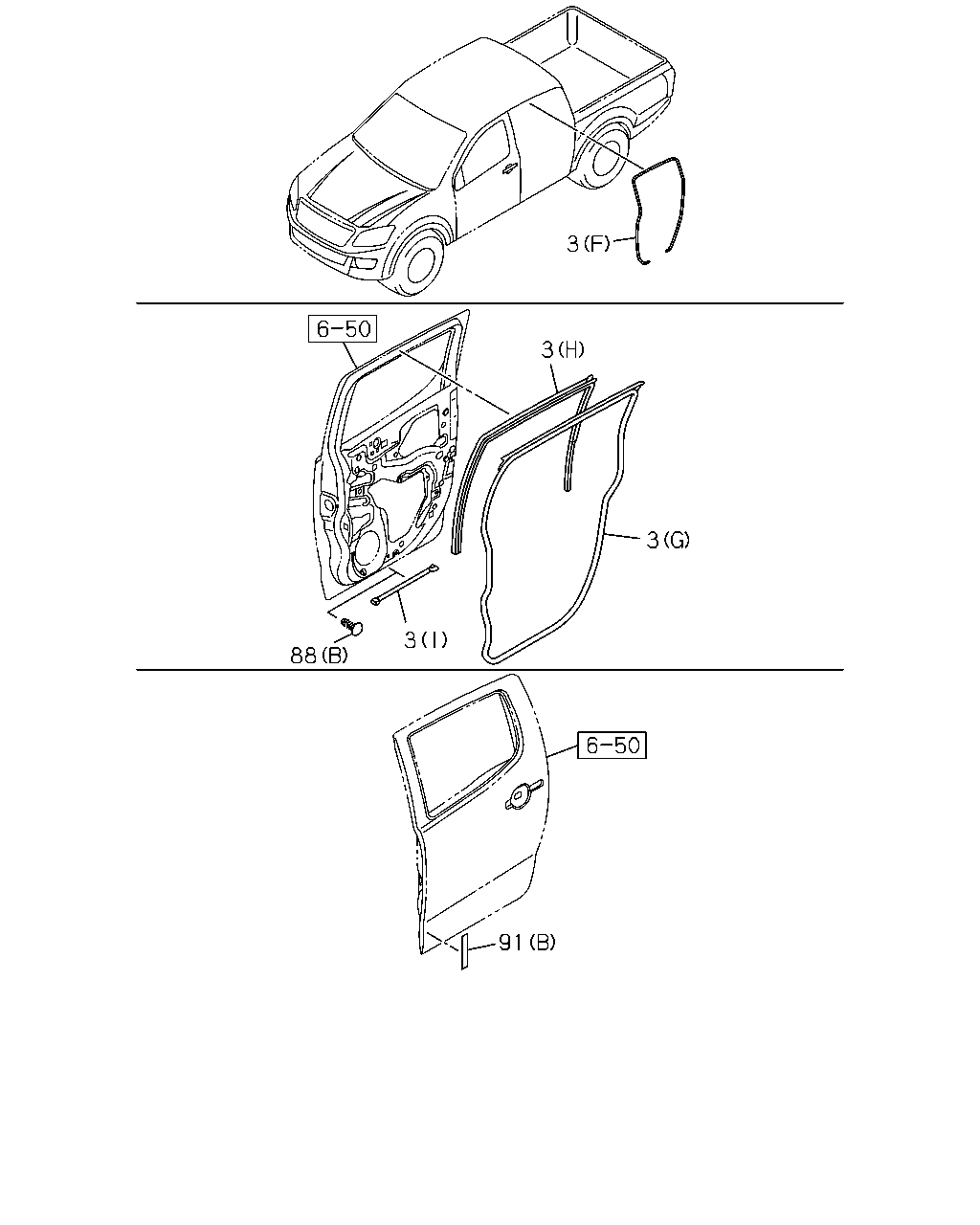

3 3 3 3 88 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	16.225 WEATHERSTRIP; RR DOOR (E)	8-98101-046-3	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (E)	8-98156-000-3	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (B)	8-98201-895-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (B)	8-98201-896-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (D)	8-98280-726-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (D)	8-98280-730-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (C)	8-98282-676-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (C)	8-98282-677-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (A)	8-98109-546-2	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (A)	8-98109-547-2	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR INTERIOR CUSTOM(RBD) (I)	8-98165-114-1	02	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (H)	8-98052-209-4	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (H)	8-98052-210-4	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (F)	8-98201-893-0	02	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (G)	8-98282-674-1	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (G)	8-98282-675-1	01	1	1412-		●	●
88	16.270 PLUG; DOOR 16.155 (A)	8-98197-448-0	02	1	1511-	●
88	16.270 PLUG; DOOR INTERIOR BASIC(RBA) 16.067 (B)	8-94279-922-0	08	1	1412-		●	●
88	16.270 PLUG; DOOR 16.155 (A)	8-98197-448-0	04	1	1412-		●	●
91	16.165 TAPE (A)	8-98165-208-1	01	1	1511-	●
91	16.165 TAPE (A)	8-98165-209-1	01	1	1511-	●
91	16.165 TAPE EXC. SIDE STEP<6TC> (B)	8-98165-205-1	01	1	1412-		●	●
91	16.165 TAPE EXC. SIDE STEP<6TC> (B)	8-98165-206-1	01	1	1412-		●	●

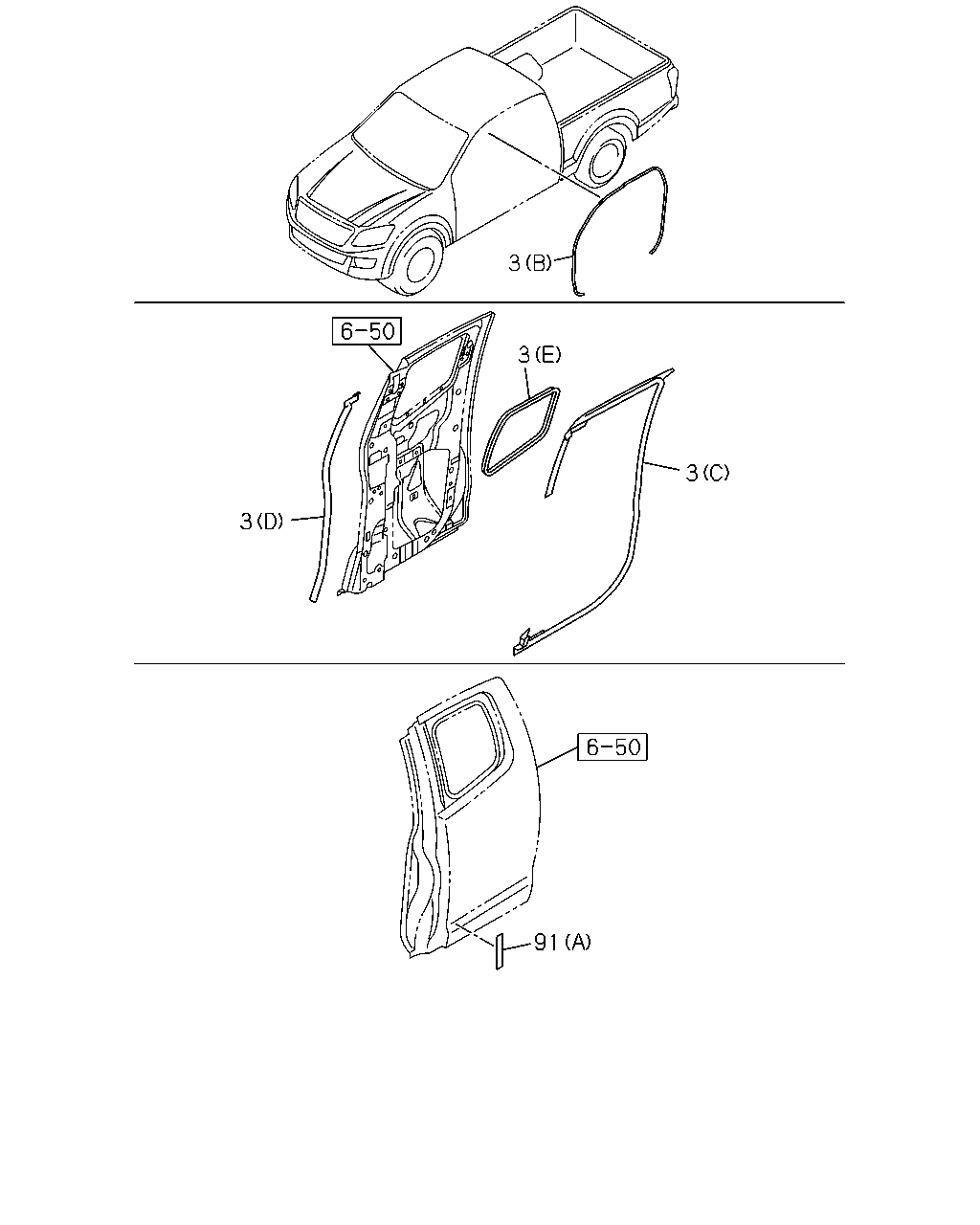

3 3 3 3 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	16.225 WEATHERSTRIP; RR DOOR (E)	8-98101-046-3	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (E)	8-98156-000-3	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (B)	8-98201-895-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (B)	8-98201-896-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (D)	8-98280-726-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (D)	8-98280-730-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (C)	8-98282-676-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (C)	8-98282-677-0	01	1	1511-	●
3	16.225 WEATHERSTRIP; RR DOOR (A)	8-98109-546-2	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (A)	8-98109-547-2	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR INTERIOR CUSTOM(RBD) (I)	8-98165-114-1	02	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (H)	8-98052-209-4	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (H)	8-98052-210-4	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (F)	8-98201-893-0	02	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (G)	8-98282-674-1	01	1	1412-		●	●
3	16.225 WEATHERSTRIP; RR DOOR (G)	8-98282-675-1	01	1	1412-		●	●
91	16.165 TAPE (A)	8-98165-208-1	01	1	1511-	●
91	16.165 TAPE (A)	8-98165-209-1	01	1	1511-	●
91	16.165 TAPE EXC. SIDE STEP<6TC> (B)	8-98165-205-1	01	1	1412-		●	●
91	16.165 TAPE EXC. SIDE STEP<6TC> (B)	8-98165-206-1	01	1	1412-		●	●
