6-47 — MUD GUARD AND INSULATOR (#153932) — 74 parça

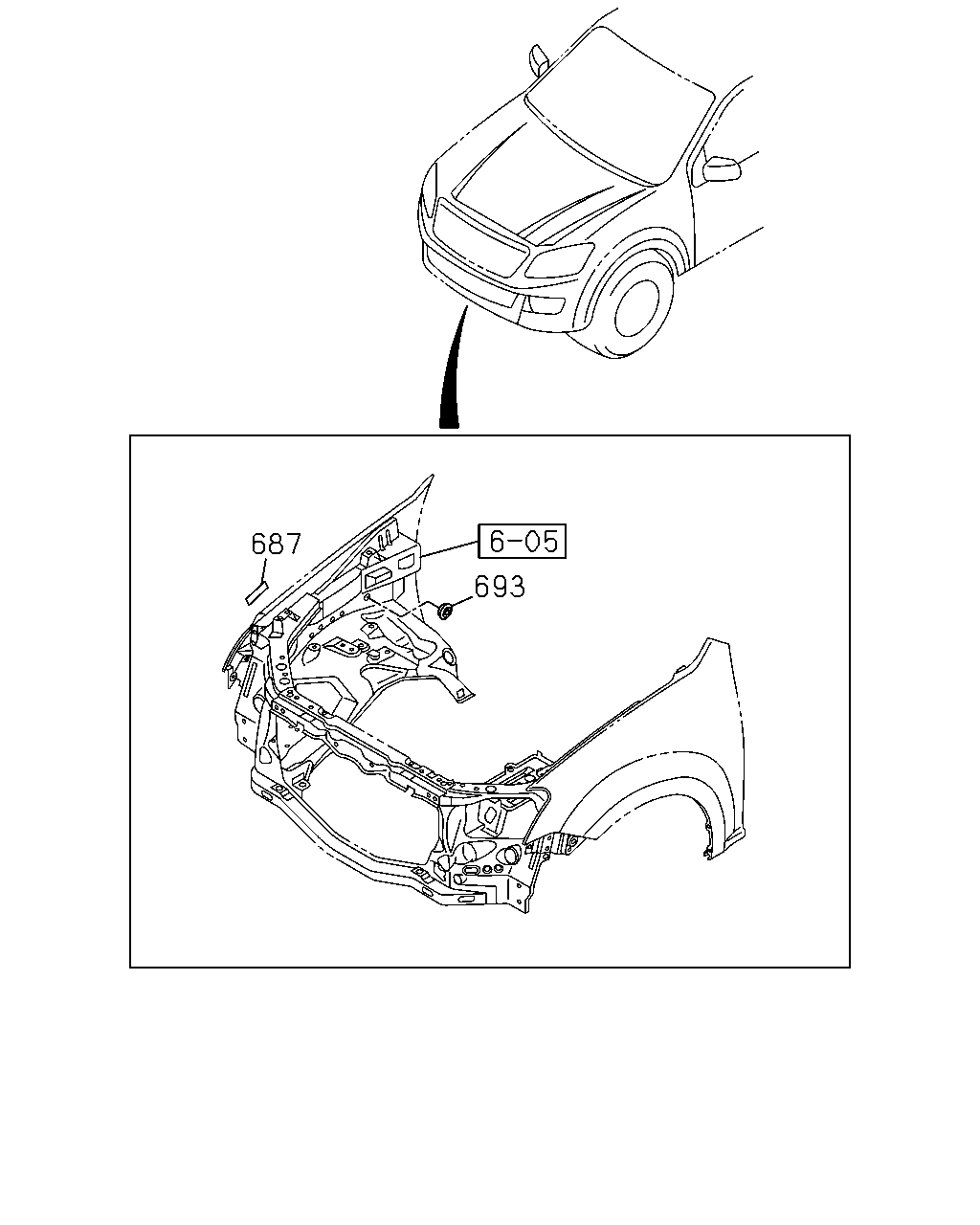

çizim 459402
693 687
BalonParca AdiParca NoAdetTipApplied Date A B C D E
687 08.155 TAPE; PROTECT 8-98191-602-1 02 1 1412-1510 ● ● ● ●
687 08.155 TAPE; PROTECT 8-98191-602-1 02 1 1511- ● ● ● ● ●
693 08.155 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1412-1510 ● ● ● ●
693 08.155 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1511- ● ● ● ● ●

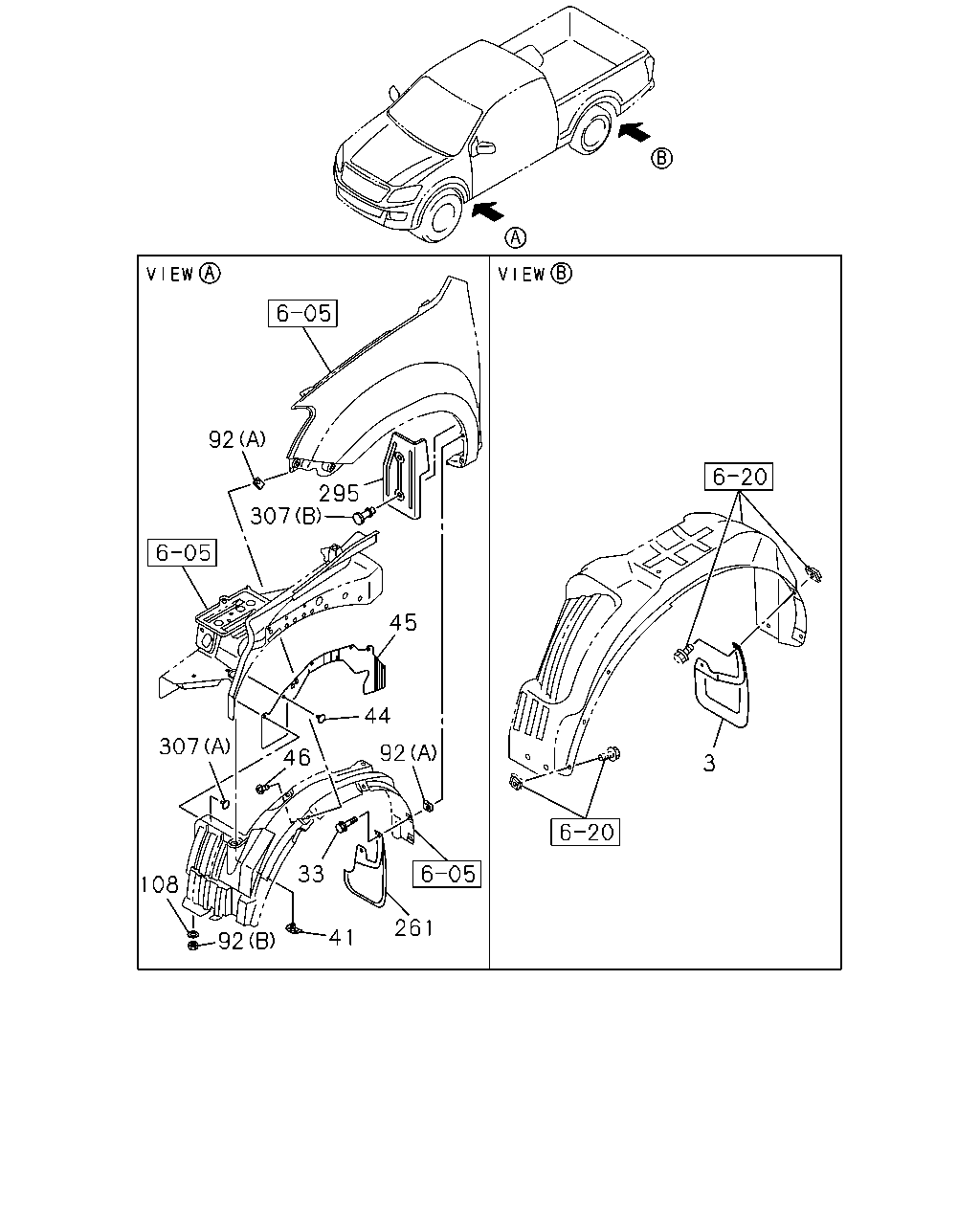

çizim 459745
92 307 44 46 92 45 33 41 261 92 108 3 307 295
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-330-2 01 1 1412-1511 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION(7YC) 		8-98119-330-2 01 1 1412-1511 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-330-2 01 1 1512- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-330-2 01 1 1512- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-331-2 01 1 1412-1511 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION(7YC) 		8-98119-331-2 01 1 1412-1511 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-331-2 01 1 1512- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-331-2 01 1 1512- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) EXC. SALES PACKAGE SPORTY<XK0> 		8-98077-276-1 01 1 1412- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-276-1 01 1 1412- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0> 		8-98077-276-1 01 1 1412- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) EXC. SALES PACKAGE SPORTY<XK0> 		8-98077-279-1 01 1 1412- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-279-1 01 1 1412- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0> 		8-98077-279-1 01 1 1412- ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1412-1510 ● ● ● ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1511- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 10 1 1412-1510 ● ● ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 10 1 1511- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> 08.154 		8-94221-150-0 06 1 1412-1510 ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> 08.154 		8-94221-150-0 06 1 1511- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
HIGH RIDE SUSPENSION(7YC) 08.154 		8-94221-150-0 02 1 1412- ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 02 1 1412- ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 10 1 1412-1510 ● ● ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 10 1 1511- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-267-1 01 1 1412-1510 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-267-1 01 1 1511- ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-269-0 01 1 1412-1510 ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-269-0 01 1 1511- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-269-0 01 1 1511- ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-268-1 01 1 1412- ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-268-1 01 1 1412- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-270-0 01 1 1412- ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-270-0 01 1 1412- ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1412-1510 ● ● ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1511- ● ● ● ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1412-1510 ● ● ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1511- ● ● ● ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 04 1 1412-1510 ● ● ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 04 1 1511- ● ● ● ● ●
92 08.155 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1412-1510 ● ● ● ●
92 08.155 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1511- ● ● ● ● ●
108 16.549 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1412-1510 ● ● ● ●
108 16.549 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1511- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98184-707-0 01 1 1412-1510 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-707-0 01 1 1412-1510 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98184-707-0 01 1 1511- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-707-0 01 1 1511- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98184-708-0 01 1 1412-1510 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-708-0 01 1 1412-1510 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98184-708-0 01 1 1511- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-708-0 01 1 1511- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-272-0 01 1 1412- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-272-0 01 1 1412- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-274-0 01 1 1412- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-274-0 01 1 1412- ● ●
295 08.153 COVER; WHEEL HOUSE 8-98187-396-1 01 1 1412-1510 ●
295 08.153 COVER; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-396-1 01 1 1412-1510 ●
295 08.153 COVER; WHEEL HOUSE 8-98187-396-1 01 1 1511- ● ●
295 08.153 COVER; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-396-1 01 1 1511- ●
295 08.153 COVER; WHEEL HOUSE 8-98187-397-1 01 1 1412-1510 ●
295 08.153 COVER; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-397-1 01 1 1412-1510 ●
295 08.153 COVER; WHEEL HOUSE 8-98187-397-1 01 1 1511- ● ●
295 08.153 COVER; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-397-1 01 1 1511- ●
307 08.155 RETAINER
(A) 		8-98050-462-0 02 1 1412-1505 ● ● ● ●
307 08.155 RETAINER
(A) 		8-98050-462-0 02 1 1506-1510 ● ● ● ●
307 08.155 RETAINER
(A) 		8-98050-462-0 02 1 1511- ● ● ● ● ●
307 08.155 RETAINER
03.602 (B) 		8-97372-006-0 04 1 1412-1510 ●
307 08.155 RETAINER
EXC. HIGH RIDE SUSPENSION(7YC) 03.602 (B) 		8-97372-006-0 04 1 1412-1510 ●
307 08.155 RETAINER
03.602 (B) 		8-97372-006-0 04 1 1511- ● ●
307 08.155 RETAINER
EXC. HIGH RIDE SUSPENSION(7YC) 03.602 (B) 		8-97372-006-0 04 1 1511- ●
