6-43 — SIDE TRIM (#153930) — 186 parça

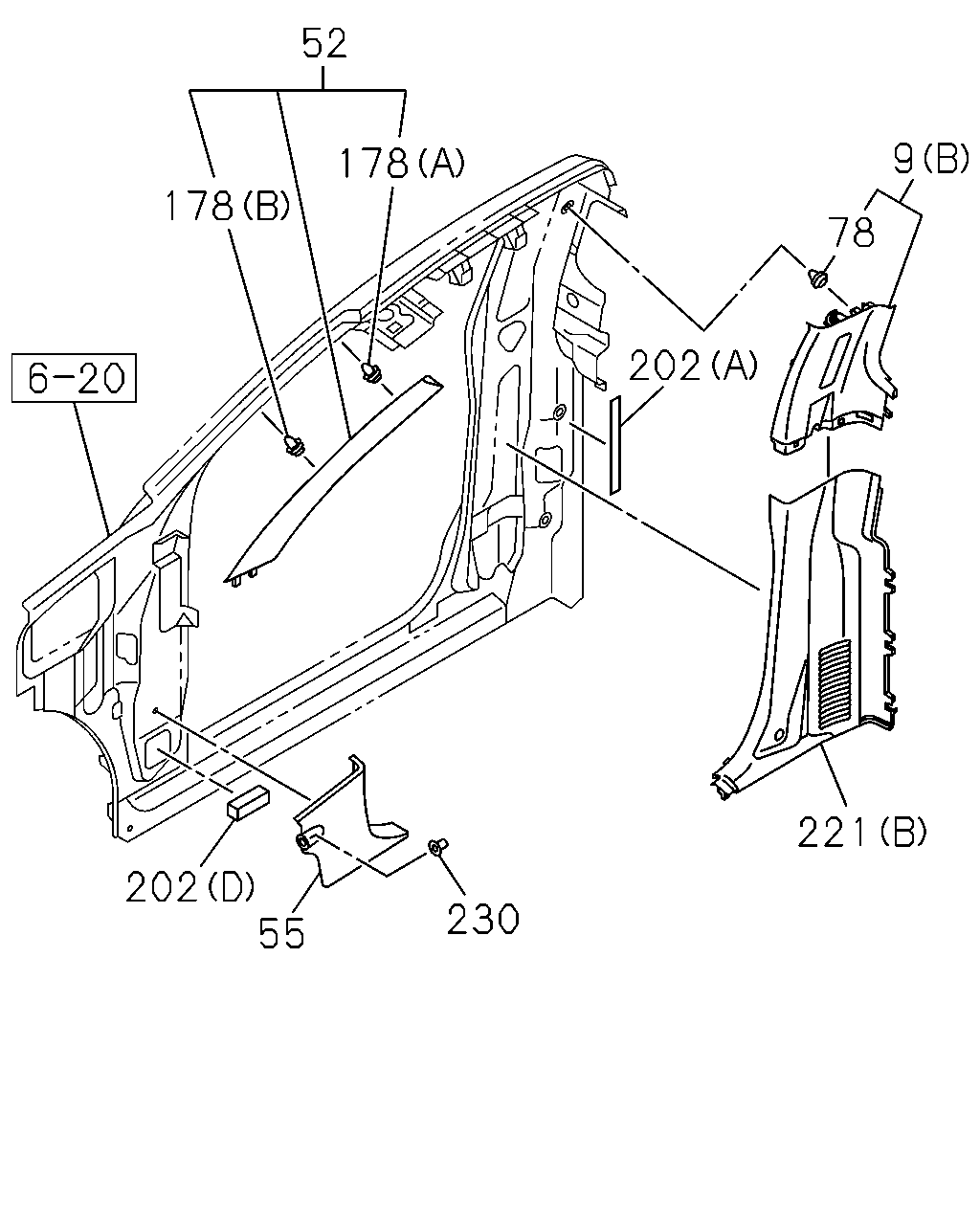

çizim 459934
52 178 178 9 78 202 221 230 55 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-707-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-709-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-711-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-713-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-118-1 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-120-1 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-969-0 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-971-0 01 1 1412- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-677-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-678-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-925-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-925-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-945-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-945-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1412-1510 ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
BLACK 		8-97423-923-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1412-1510 ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
BLACK 		8-97423-924-2 01 1 1511- ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1412-1510 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1511- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1412-1510 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1511- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 06 1 1412- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 08 1 1412- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1412-1510 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1511- ● ● ●
178 16.165 CLIP; TRIM COVER
(A) 		8-98166-326-0 02 1 1412-1510 ● ● ● ●
178 16.165 CLIP; TRIM COVER
(A) 		8-98166-326-0 02 1 1511- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
(B) 		8-98139-052-0 02 1 1412-1510 ●
178 16.165 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1412-1510 ●
178 16.165 CLIP; TRIM COVER
(B) 		8-98139-052-0 02 1 1511- ● ●
178 16.165 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 10 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1412-1505 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1506-1510 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1511- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(E) 		8-97350-306-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-384-0 01 1 1511- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-386-0 01 1 1511- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-114-3 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-116-3 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-965-1 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-967-1 01 1 1412- ● ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1412-1510 ● ● ● ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1511- ● ● ● ● ●

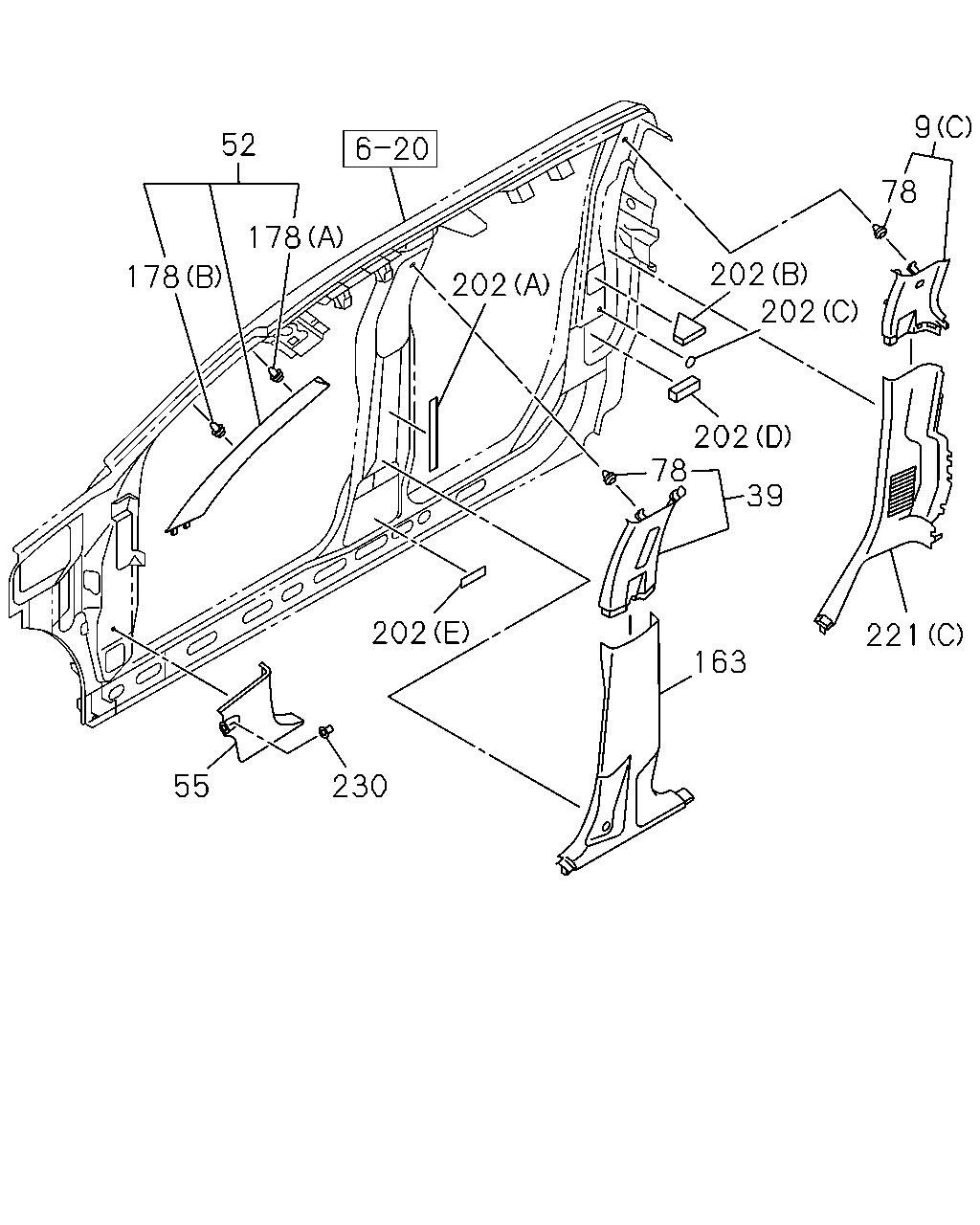

çizim 459951
221 202 202 202 202 178 52 178 55 202 230 163 78 39 9 78
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-707-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-709-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-711-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-713-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-118-1 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-120-1 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-969-0 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-971-0 01 1 1412- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-959-2 01 1 1412- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-960-2 01 1 1412- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-935-2 01 1 1412- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-936-2 01 1 1412- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-677-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-678-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-925-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-925-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-945-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-945-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1412-1510 ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
BLACK 		8-97423-923-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1412-1510 ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
BLACK 		8-97423-924-2 01 1 1511- ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1412-1510 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1511- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1412-1510 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1511- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 06 1 1412- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 08 1 1412- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1412-1510 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1511- ● ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97416-961-4 01 1 1412- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97416-963-4 01 1 1412- ● ●
178 16.165 CLIP; TRIM COVER
(A) 		8-98166-326-0 02 1 1412-1510 ● ● ● ●
178 16.165 CLIP; TRIM COVER
(A) 		8-98166-326-0 02 1 1511- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
(B) 		8-98139-052-0 02 1 1412-1510 ●
178 16.165 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1412-1510 ●
178 16.165 CLIP; TRIM COVER
(B) 		8-98139-052-0 02 1 1511- ● ●
178 16.165 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 10 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1412-1505 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1506-1510 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1511- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(E) 		8-97350-306-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-384-0 01 1 1511- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-386-0 01 1 1511- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-114-3 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-116-3 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-965-1 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-967-1 01 1 1412- ● ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1412-1510 ● ● ● ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1511- ● ● ● ● ●

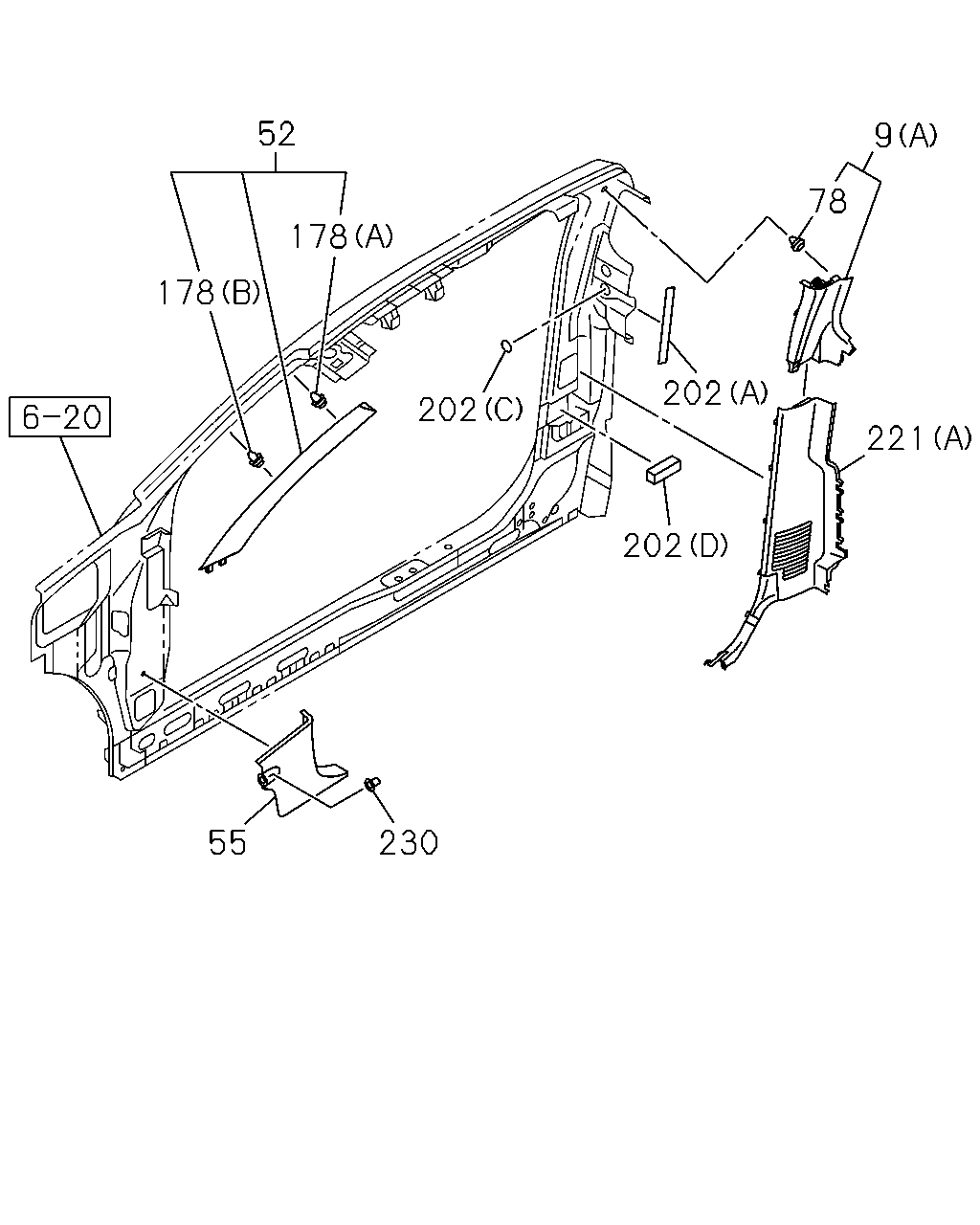

çizim 502995
221 202 202 202 178 52 178 55 230 78 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-707-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-709-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-711-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-713-2 01 1 1511- ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-118-1 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-120-1 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-969-0 01 1 1412- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-971-0 01 1 1412- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-677-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-678-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-679-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-680-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-925-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-925-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-945-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-945-2 01 1 1412- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1412-1510 ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
BLACK 		8-97423-923-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1412-1510 ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1511- ●
52 16.165 COVER; TRIM,FRT PILLAR
BLACK 		8-97423-924-2 01 1 1511- ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1412-1510 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1511- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1412-1510 ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1511- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 06 1 1412- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 08 1 1412- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1412-1510 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1511- ● ● ●
178 16.165 CLIP; TRIM COVER
(A) 		8-98166-326-0 02 1 1412-1510 ● ● ● ●
178 16.165 CLIP; TRIM COVER
(A) 		8-98166-326-0 02 1 1511- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
(B) 		8-98139-052-0 02 1 1412-1510 ●
178 16.165 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1412-1510 ●
178 16.165 CLIP; TRIM COVER
(B) 		8-98139-052-0 02 1 1511- ● ●
178 16.165 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 10 1 1511- ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1412-1505 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1506-1510 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1511- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(E) 		8-97350-306-0 02 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1412- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-384-0 01 1 1511- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-386-0 01 1 1511- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-114-3 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-116-3 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-965-1 01 1 1412- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-967-1 01 1 1412- ● ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1412-1510 ● ● ● ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1511- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
