6-30 — FRONT DOOR AND HINGE (#153926) — 28 parça

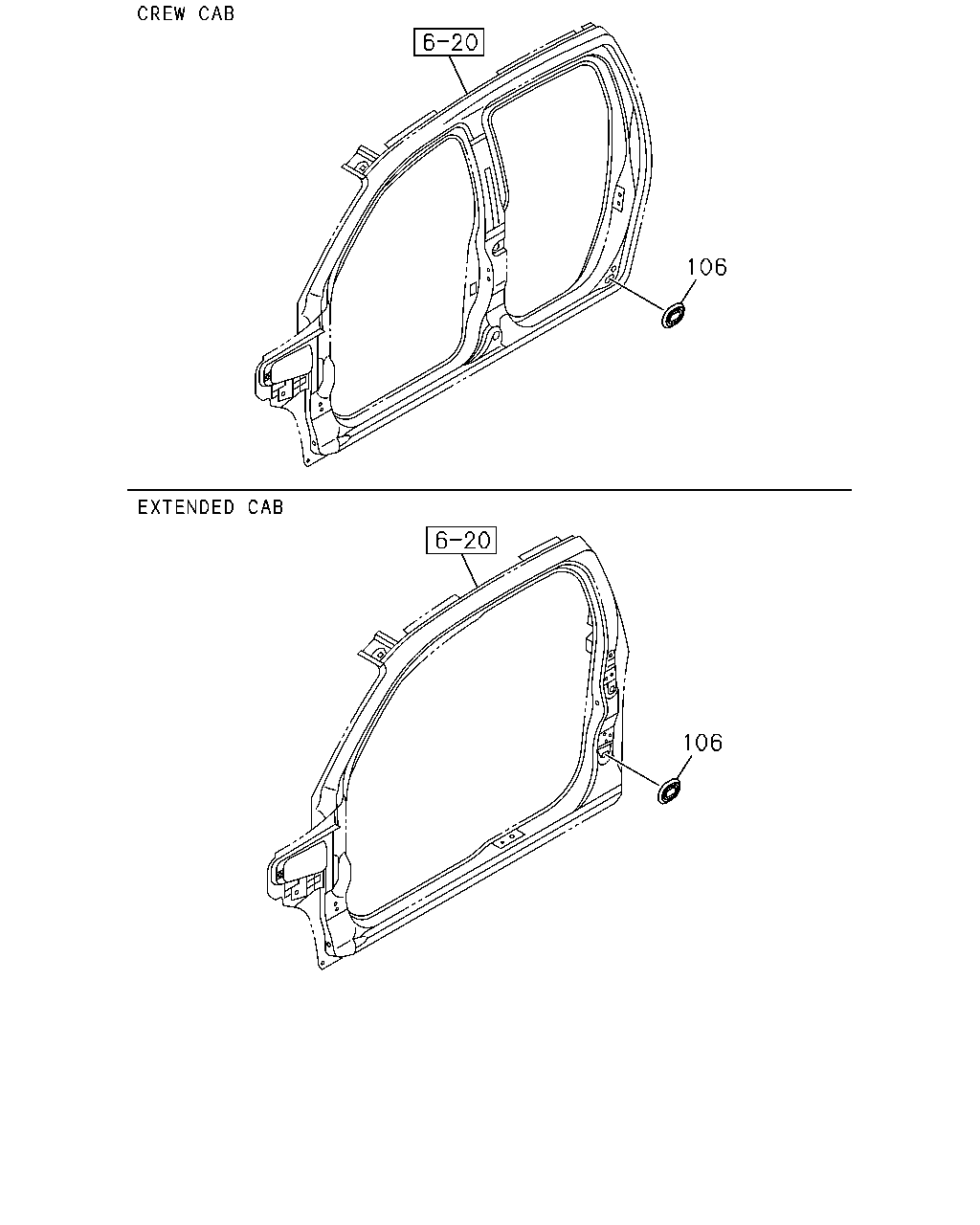

çizim 459165
106 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
106 16.165 GROMMET; PROTECTOR
16.570 		8-94279-724-0 02 1 1412-1510 ● ●
106 16.165 GROMMET; PROTECTOR
16.570 		8-94279-724-0 02 1 1511- ● ● ●

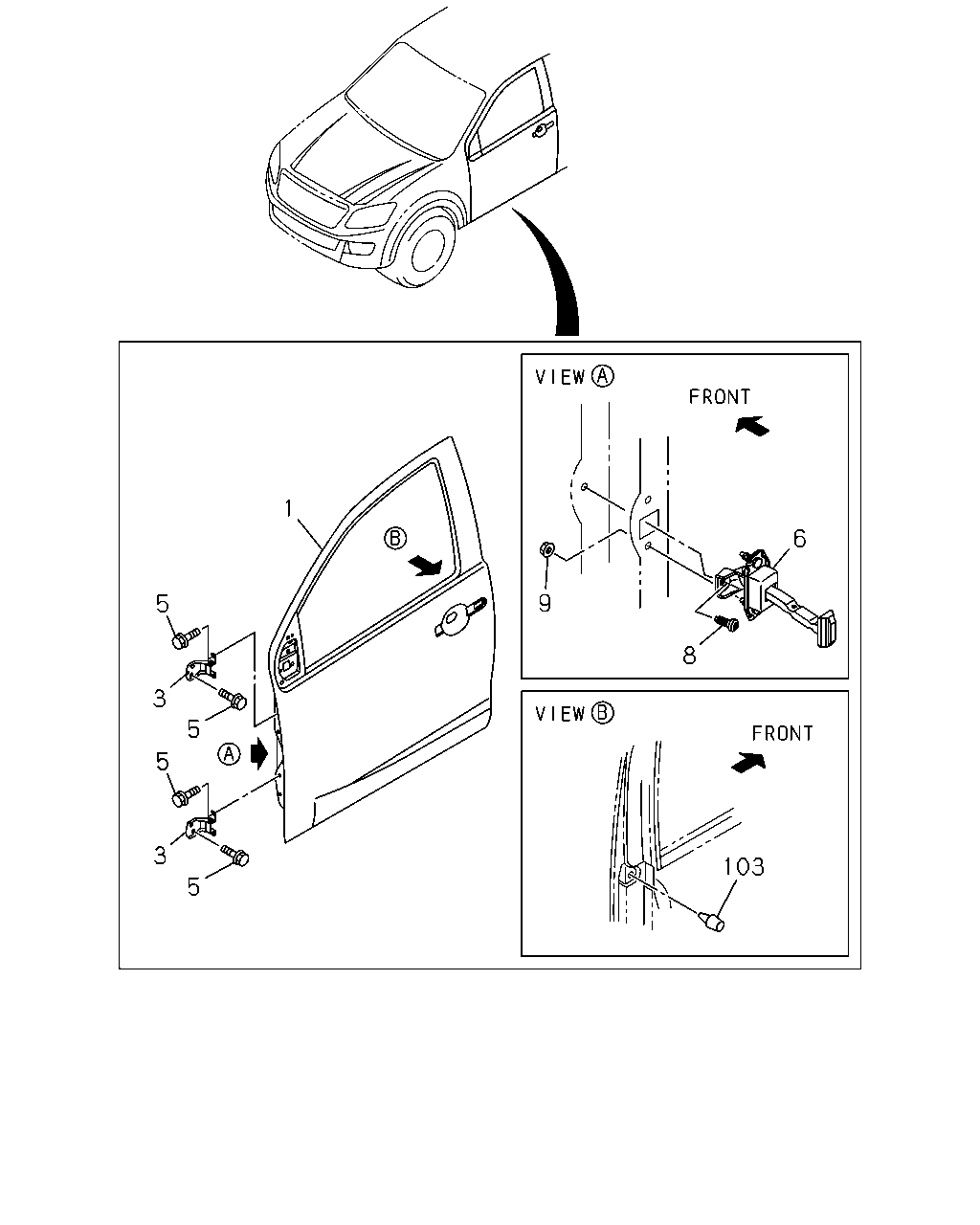

çizim 459862
9 8 6 103 1 5 3 5 5 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98268-834-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98268-835-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98268-836-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98268-837-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98268-838-0 01 1 1412-1510 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98268-838-0 01 1 1511- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98268-839-0 01 1 1412-1510 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98268-839-0 01 1 1511- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98268-840-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98268-841-0 01 1 1412- ● ●
3 16.320 HINGE; DOOR FRT
UPR RH & LWR LH 		8-98105-296-0 02 1 1412-1510 ● ● ● ●
3 16.320 HINGE; DOOR FRT
UPR RH & LWR LH 		8-98105-296-0 02 1 1511- ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
LWR RH & UPR LH 		8-98105-297-0 02 1 1412-1510 ● ● ● ●
3 16.320 HINGE; DOOR FRT
LWR RH & UPR LH 		8-98105-297-0 02 1 1511- ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1412-1510 ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1412-1510 ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1511- ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1511- ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-98103-030-5 02 1 1412-1510 ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-98103-030-5 02 1 1511- ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1412-1510 ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1511- ● ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE 		8-98049-362-0 04 1 1412-1510 ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE 		8-98049-362-0 04 1 1511- ● ● ● ● ●
103 16.165 PROTECTOR; FRT DOOR 8-98202-864-0 04 1 1412-1510 ● ● ● ●
103 16.165 PROTECTOR; FRT DOOR 8-98202-864-0 04 1 1511- ● ● ● ● ●
