6-03 — RADIATOR GRILLE (#153920) — 51 parça

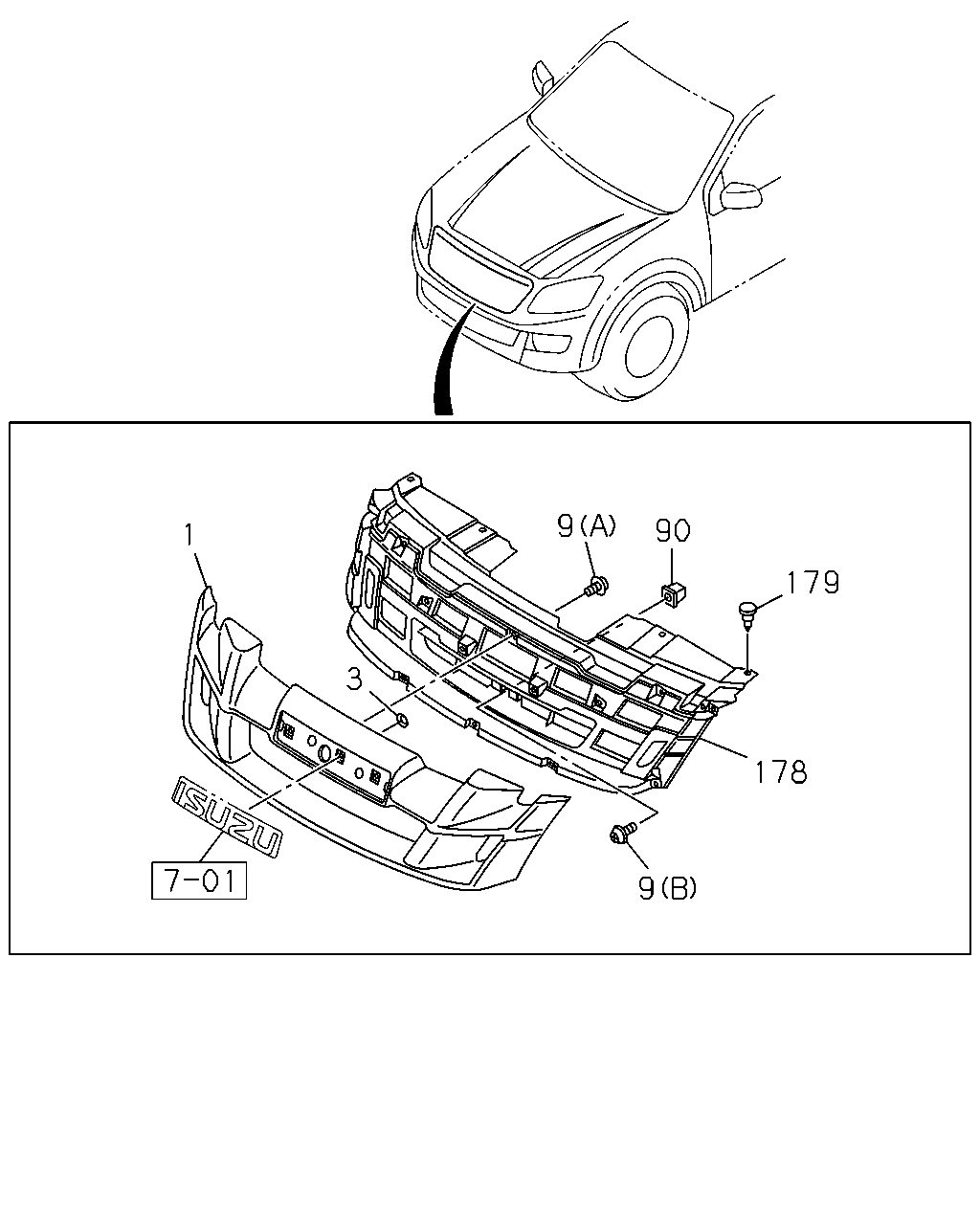

çizim 459511
178 9 179 90 9 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98193-869-0 01 1 1412- ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. SALES PACKAGE SPORTY<XK0> PLATED 		8-98193-869-0 01 1 1412- ● ●
1 01.266 GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> 		8-98193-867-0 01 1 1412-1505 ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> EXC. BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> 		8-98193-867-0 01 1 1412-1505 ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1412-1505 ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> EXC. BRIGHT RAD GRILLE<V22> 		8-98193-867-0 01 1 1506-1506 ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1506-1506 ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> EXC. BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> 		8-98193-867-0 01 1 1506-1506 ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1506-1506 ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> EXC. BRIGHT RAD GRILLE<V22> 		8-98193-867-0 01 1 1507-1510 ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1507-1510 ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1507-1510 ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> EXC. BRIGHT RAD GRILLE<V22> 		8-98193-867-0 01 1 1511- ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1511- ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1511- ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1511- ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> EXC. KD PAINT LESS SUPPLY<7TV> PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1412-1505 ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> EXC. KD PAINT LESS SUPPLY<7TV> PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1506-1510 ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> EXC. KD PAINT LESS SUPPLY<7TV> PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1511- ● ● ● ● ●
3 01.269 CLIP; GRILLE 8-98211-687-0 03 1 1412-1510 ● ● ● ●
3 01.269 CLIP; GRILLE 8-98211-687-0 03 1 1511- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1412-1510 ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1511- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1412-1510 ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1511- ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1412-1510 ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1511- ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD 8-98193-871-0 01 1 1412-1510 ● ● ● ●
178 01.269 GRILLE; INNER,RAD 8-98193-871-0 01 1 1511- ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 04 1 1412-1510 ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 04 1 1511- ● ● ● ● ●

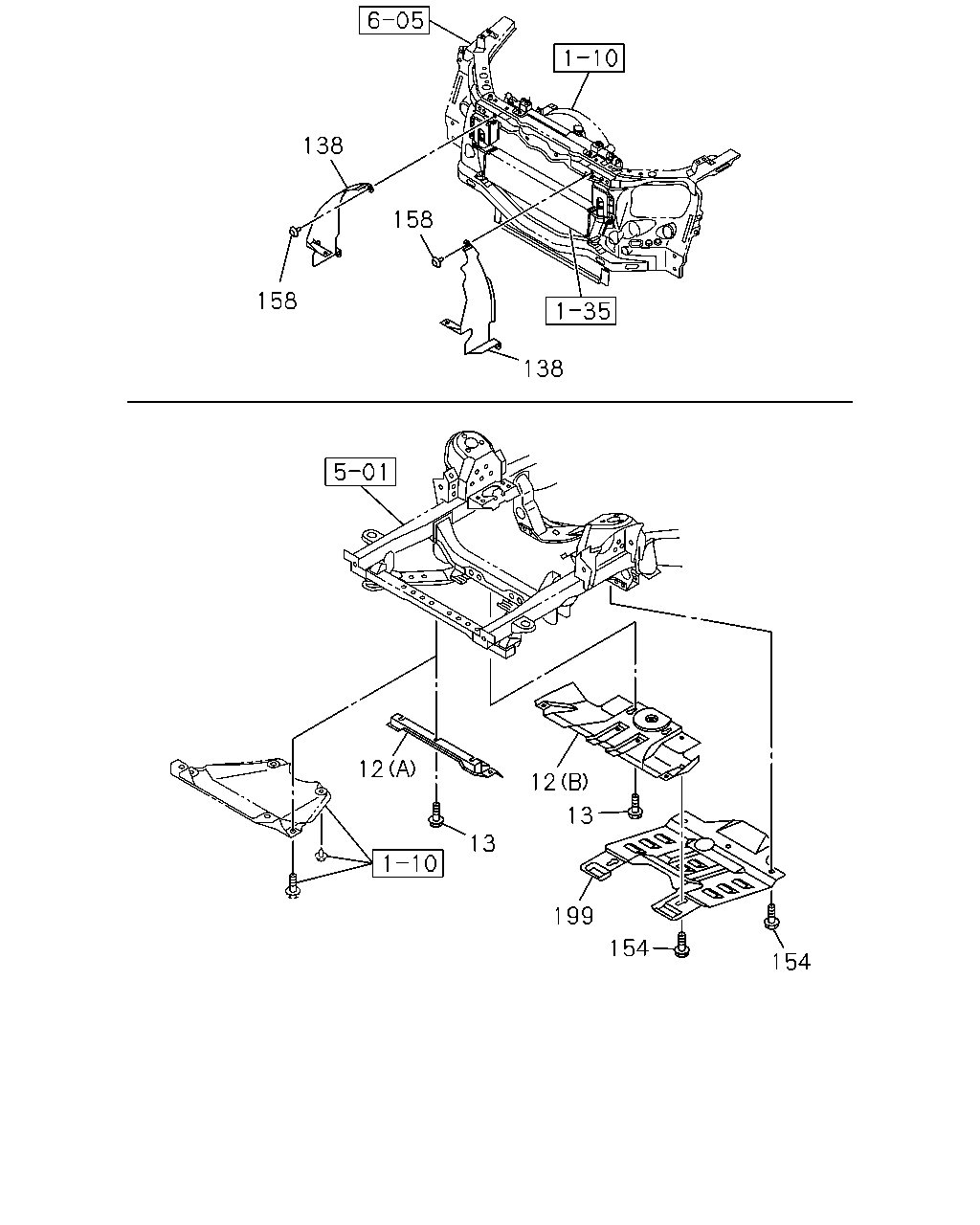

çizim 459794
154 154 199 13 13 12 12 138 158 138 158
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1412-1510 ● ●
12 01.274 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1412-1510 ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1511- ● ● ●
12 01.274 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1511- ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1412-1510 ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-98229-406-0 01 1 1412-1510 ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1511- ● ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-98229-406-0 01 1 1511- ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1412-1510 ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1412-1510 ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1511- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1511- ● ●
138 01.266 GUIDE; AIR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 		8-98137-586-1 01 1 1412-1510 ● ● ● ●
138 01.266 GUIDE; AIR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98137-586-1 01 1 1511- ● ● ● ● ●
138 01.266 GUIDE; AIR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 		8-98137-587-1 01 1 1412-1510 ● ● ● ●
138 01.266 GUIDE; AIR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98137-587-1 01 1 1511- ● ● ● ● ●
154 01.267 BOLT; COVER
01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1412- ● ●
158 01.269 CLIP; PROTECTOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1412-1510 ● ● ● ●
158 01.269 CLIP; PROTECTOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1511- ● ● ● ● ●
199 01.274 PLATE; OIL PAN
01.426 		8-98229-404-0 01 1 1412- ● ●
