5-10 — CAB MOUNTING; FRAME SIDE (#153914) — 105 parça

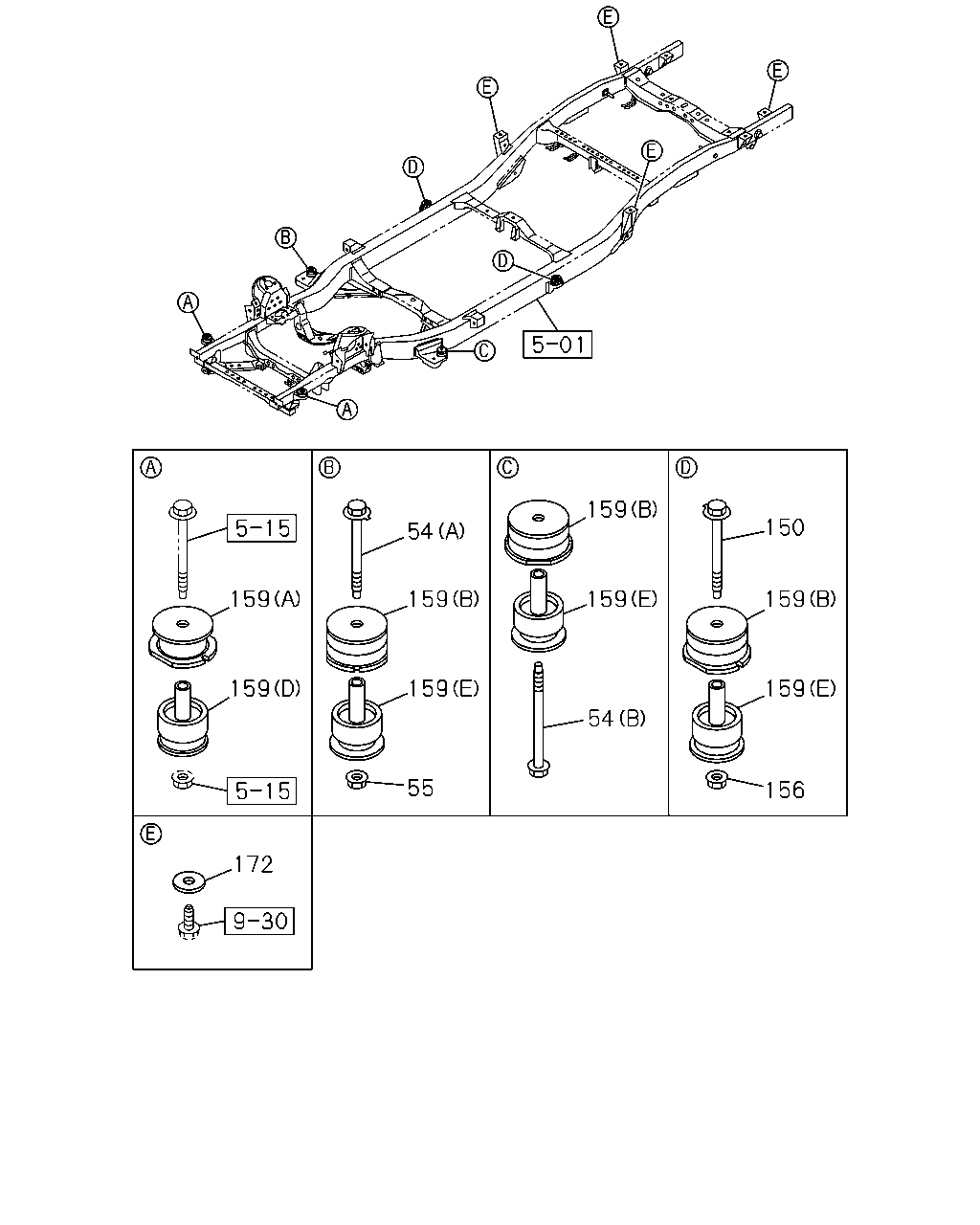

çizim 459890
150 159 159 156 54 159 159 54 159 159 55 159 159 172
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 09.008 BOLT; RUBBER
(A) M10X130 FLANGE 		8-98102-202-3 01 1 1412-1510 ● ● ● ●
54 09.008 BOLT; RUBBER
(A) M10X130 FLANGE 		8-98102-202-3 01 1 1511- ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) M10X141 FLANGE 		8-98169-670-0 01 1 1412-1510 ● ● ● ●
54 09.008 BOLT; RUBBER
(B) M10X141 FLANGE 		8-98169-670-0 01 1 1511- ● ● ● ● ●
55 09.008 NUT; RUBBER
06.672 M10 FLANGE 		0-91280-210-0 01 1 1412-1510 ● ● ● ●
55 09.008 NUT; RUBBER
06.672 M10 FLANGE 		0-91280-210-0 01 1 1511- ● ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1412-1510 ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1412-1510 ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1511- ● ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1511- ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1412-1510 ● ● ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1412-1510 ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1511- ● ● ● ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1511- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) 		8-98075-386-1 02 1 1511- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(G) 		8-98174-971-0 02 1 1511- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1511- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-97367-285-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-97367-285-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-98051-326-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-98051-326-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-98075-381-0 02 1 1412-1510 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-98075-381-0 02 1 1511- ● ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 06 1 1511- ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 08 1 1412- ● ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 04 1 1412- ● ●

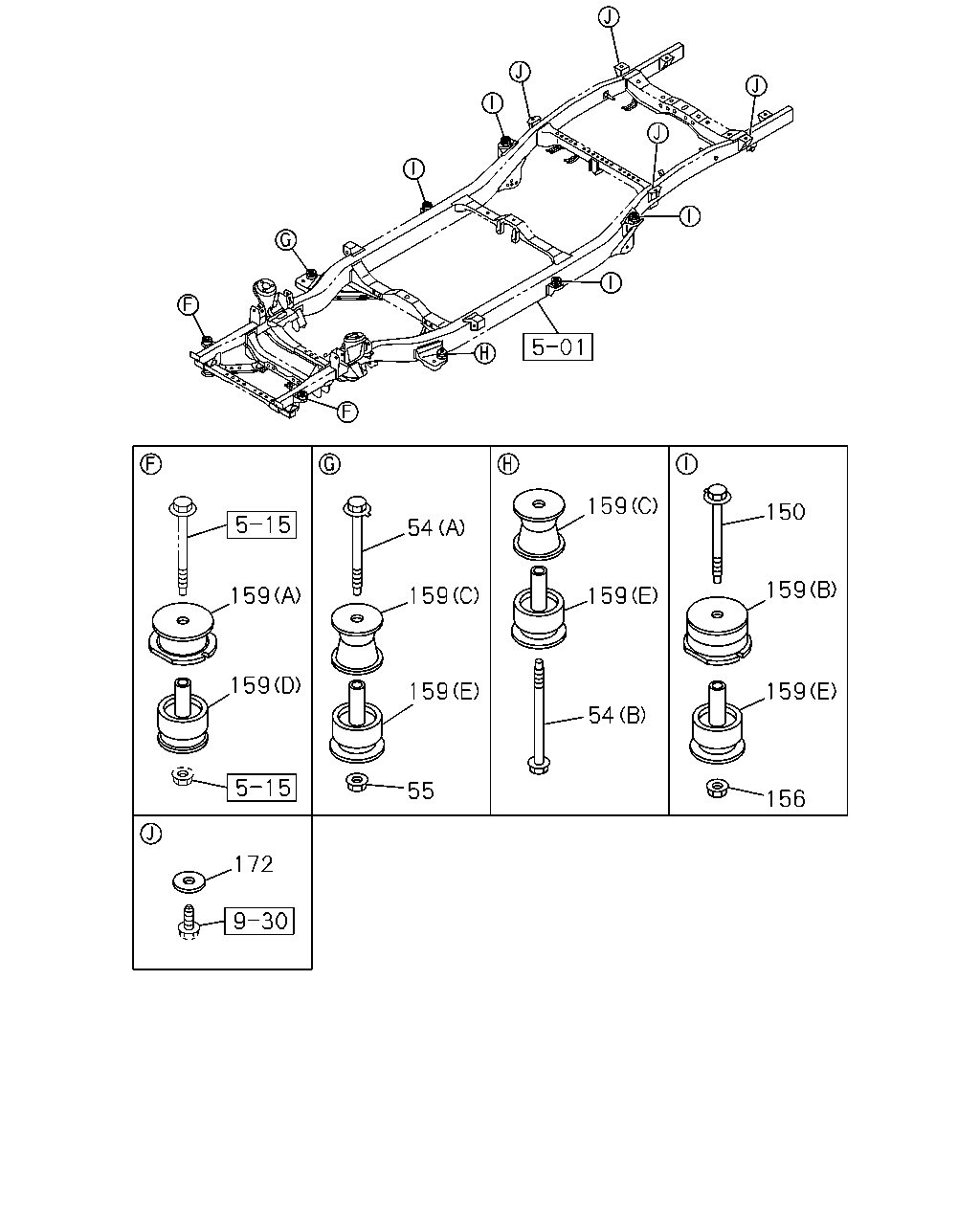

çizim 459891
159 159 150 159 159 156 54 159 55 159 54 159 159 172
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 09.008 BOLT; RUBBER
(A) M10X130 FLANGE 		8-98102-202-3 01 1 1412-1510 ● ● ● ●
54 09.008 BOLT; RUBBER
(A) M10X130 FLANGE 		8-98102-202-3 01 1 1511- ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) M10X141 FLANGE 		8-98169-670-0 01 1 1412-1510 ● ● ● ●
54 09.008 BOLT; RUBBER
(B) M10X141 FLANGE 		8-98169-670-0 01 1 1511- ● ● ● ● ●
55 09.008 NUT; RUBBER
06.672 M10 FLANGE 		0-91280-210-0 01 1 1412-1510 ● ● ● ●
55 09.008 NUT; RUBBER
06.672 M10 FLANGE 		0-91280-210-0 01 1 1511- ● ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1412-1510 ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1412-1510 ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1511- ● ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1511- ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1412-1510 ● ● ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1412-1510 ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1511- ● ● ● ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1511- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) 		8-98075-386-1 02 1 1511- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(G) 		8-98174-971-0 02 1 1511- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1511- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-97367-285-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-97367-285-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-98051-326-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-98051-326-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-98075-381-0 02 1 1412-1510 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-98075-381-0 02 1 1511- ● ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 06 1 1511- ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 08 1 1412- ● ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 04 1 1412- ● ●

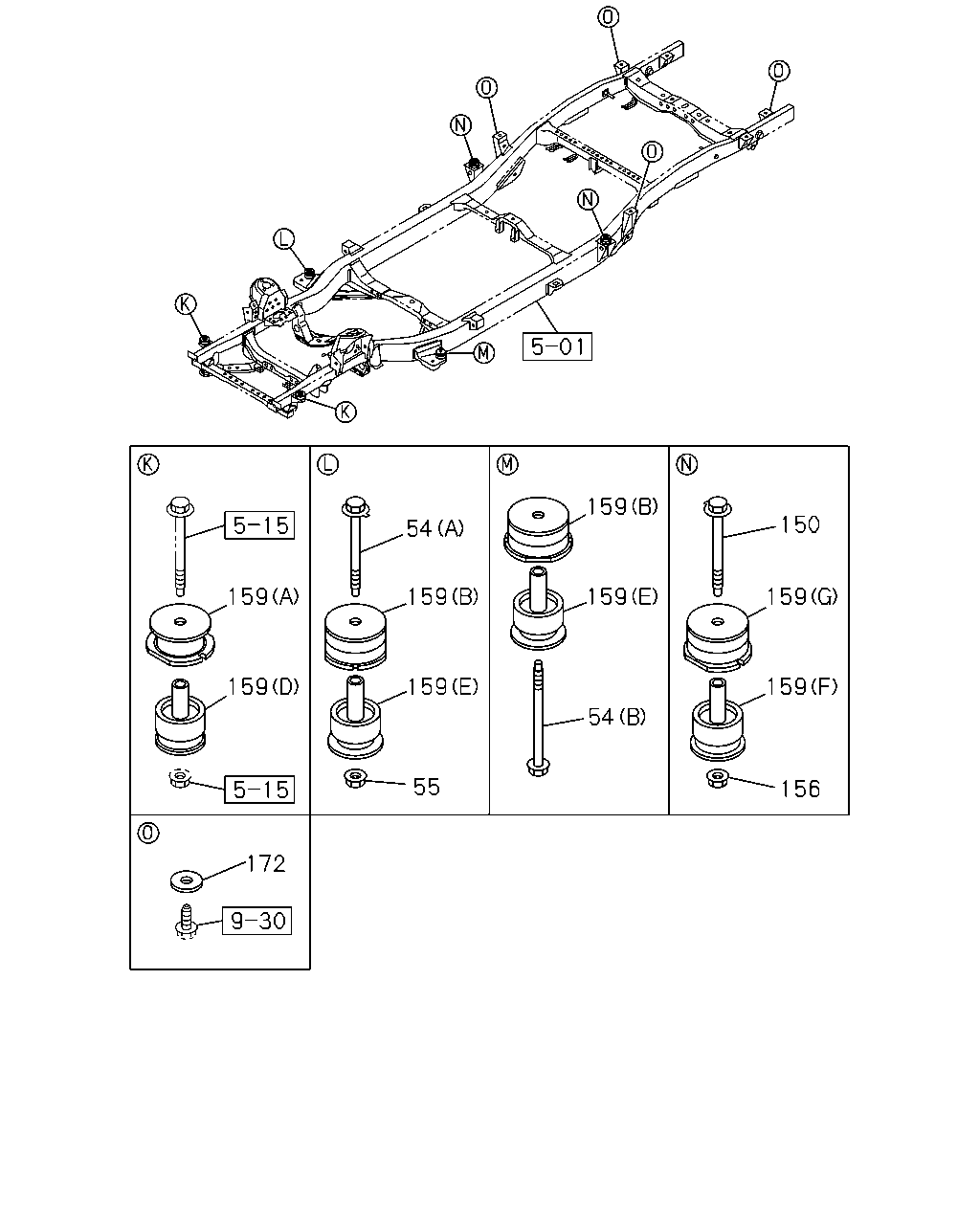

çizim 502559
159 159 172 55 159 159 54 159 159 54 150 159 159 156
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 09.008 BOLT; RUBBER
(A) M10X130 FLANGE 		8-98102-202-3 01 1 1412-1510 ● ● ● ●
54 09.008 BOLT; RUBBER
(A) M10X130 FLANGE 		8-98102-202-3 01 1 1511- ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) M10X141 FLANGE 		8-98169-670-0 01 1 1412-1510 ● ● ● ●
54 09.008 BOLT; RUBBER
(B) M10X141 FLANGE 		8-98169-670-0 01 1 1511- ● ● ● ● ●
55 09.008 NUT; RUBBER
06.672 M10 FLANGE 		0-91280-210-0 01 1 1412-1510 ● ● ● ●
55 09.008 NUT; RUBBER
06.672 M10 FLANGE 		0-91280-210-0 01 1 1511- ● ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1412-1510 ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1412-1510 ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1511- ● ● ● ● ●
150 09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE 		8-98102-202-3 02 1 1511- ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1412-1510 ● ● ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1412-1510 ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1511- ● ● ● ● ●
156 07.529 NUT; CAB MTG RR
06.672 M10 FLANGE 		0-91280-210-0 02 1 1511- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(F) 		8-98075-386-1 02 1 1511- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(G) 		8-98174-971-0 02 1 1511- ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1412-1510 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-98075-385-1 02 1 1511- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-98174-970-0 02 1 1511- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-97367-285-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-97367-285-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-98051-326-0 02 1 1412-1510 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-98051-326-0 02 1 1511- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-98075-381-0 02 1 1412-1510 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-98075-381-0 02 1 1511- ● ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 06 1 1511- ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 08 1 1412- ● ●
172 09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 04 1 1412- ● ●
