Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#153909) — 192 parça

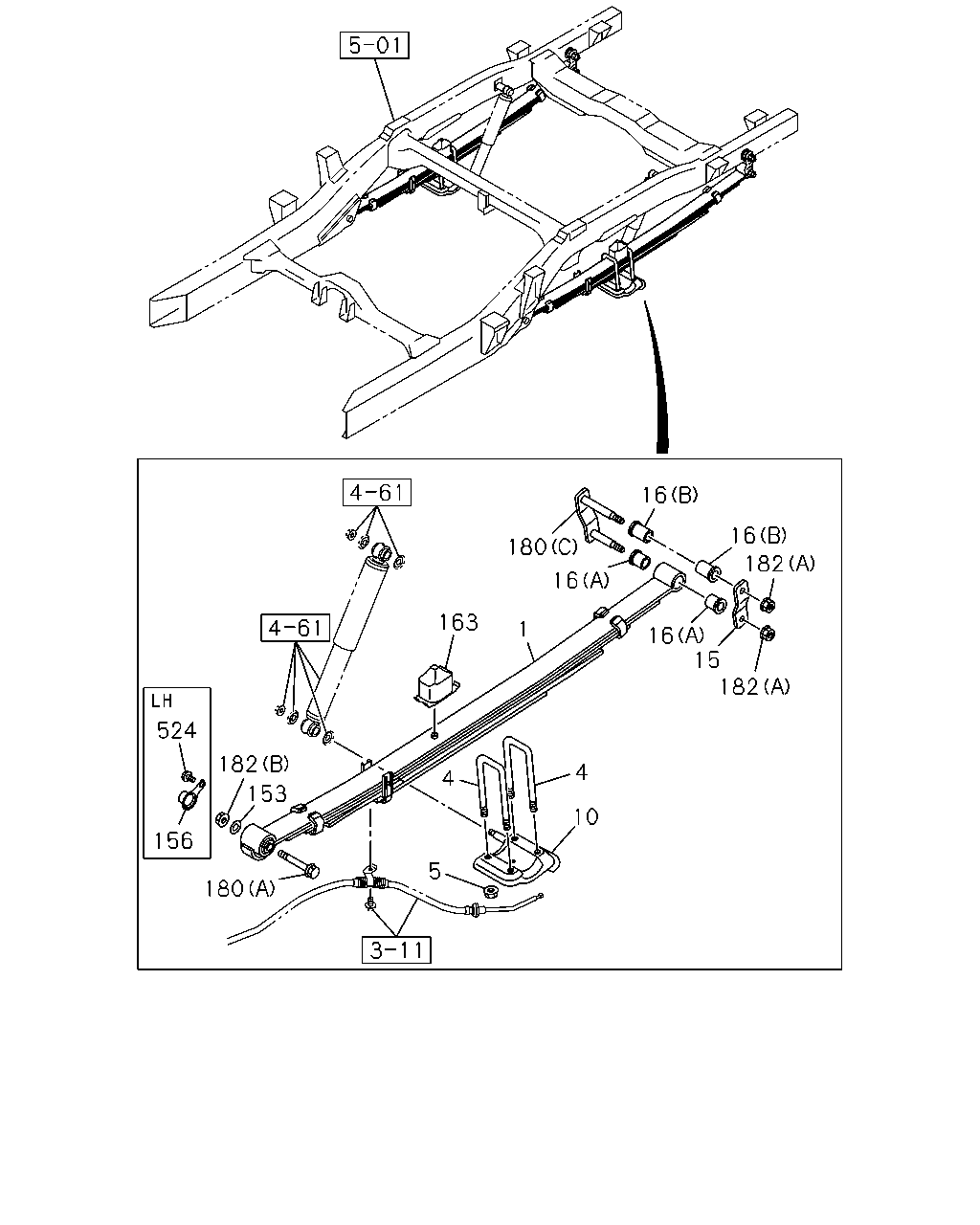

163 180 1 16 16 16 15 182 182 16 4 4 5 10 153 182 524 156 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) 6-LEAF	8-98201-544-2	02	1	1412-1412	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 6-LEAF	8-98201-544-2	02	1	1412-1412		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) 6-LEAF	8-98201-544-2	02	1	1501-1510	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 6-LEAF	8-98201-544-2	02	1	1501-1510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) 6-LEAF	8-98201-544-2	02	1	1511-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T M UA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 6-LEAF	8-98201-544-2	02	1	1511-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) REAR SPRING HEAVY DUTY(G50) 6-LEAF	8-98201-544-2	02	1	1511-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98201-543-3	02	1	1412-1412	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98201-543-3	02	1	1412-1412		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98201-543-3	02	1	1501-1510	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98201-543-3	02	1	1501-1510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98201-543-3	02	1	1511-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T M UA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98201-543-3	02	1	1511-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98201-543-3	02	1	1511-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98282-590-1	02	1	1412-1412		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-590-1	02	1	1412-1412				●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98282-590-1	02	1	1501-1510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-590-1	02	1	1501-1510				●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T M UA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98282-590-1	02	1	1511-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-590-1	02	1	1511-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-590-1	02	1	1511-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1412-1412		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1412-1412				●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1501-1510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1501-1510				●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T M UA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1511-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1511-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1511-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-589-1	02	1	1412-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-593-1	02	1	1412-					●
4	07.516 U-BOLT; RR SPR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) L=187	8-97248-621-1	04	1	1412-1510	●	●
4	07.516 U-BOLT; RR SPR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) L=187	8-97248-621-1	04	1	1511-	●	●	●
4	07.516 U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) L=175	8-97947-045-0	04	1	1412-1510	●	●
4	07.516 U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) L=175	8-97947-045-0	04	1	1511-	●	●	●
4	07.516 U-BOLT; RR SPR HIGH RIDE SUSPENSION(7YC) L=170	8-97946-550-0	04	1	1412-1510		●
4	07.516 U-BOLT; RR SPR L=170	8-97946-550-0	04	1	1412-1510				●	●
4	07.516 U-BOLT; RR SPR HIGH RIDE SUSPENSION(7YC) L=170	8-97946-550-0	04	1	1511-		●
4	07.516 U-BOLT; RR SPR L=170	8-97946-550-0	04	1	1511-				●	●
5	07.529 NUT; U-BOLT,RR SPR M14 FLANGE	8-97245-635-0	08	1	1412-1510	●	●		●	●
5	07.529 NUT; U-BOLT,RR SPR M14 FLANGE	8-97245-635-0	08	1	1511-	●	●	●	●	●
10	07.529 CLAMP; LWR,RR SPR	8-98160-070-0	01	1	1412-1510	●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-070-0	01	1	1412-1510		●
10	07.529 CLAMP; LWR,RR SPR	8-98160-070-0	01	1	1511-	●		●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-070-0	01	1	1511-		●
10	07.529 CLAMP; LWR,RR SPR	8-98160-083-0	01	1	1412-1510	●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-083-0	01	1	1412-1510		●
10	07.529 CLAMP; LWR,RR SPR	8-98160-083-0	01	1	1511-	●		●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-083-0	01	1	1511-		●
10	07.529 CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-850-1	01	1	1412-		●
10	07.529 CLAMP; LWR,RR SPR	8-98165-850-1	01	1	1412-				●	●
10	07.529 CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-851-1	01	1	1412-		●
10	07.529 CLAMP; LWR,RR SPR	8-98165-851-1	01	1	1412-				●	●
15	07.523 SHACKLE; RR SPR	8-98005-815-0	02	1	1412-1510	●
15	07.523 SHACKLE; RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-815-0	02	1	1412-1510		●
15	07.523 SHACKLE; RR SPR	8-98005-815-0	02	1	1511-	●		●
15	07.523 SHACKLE; RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-815-0	02	1	1511-		●
15	07.523 SHACKLE; RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-551-1	02	1	1412-		●
15	07.523 SHACKLE; RR SPR	8-97946-551-1	02	1	1412-				●	●
16	07.524 BUSHING; SHACKLE,RR SPR (C)	8-97357-492-0	08	1	1412-1510	●
16	07.524 BUSHING; SHACKLE,RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97357-492-0	08	1	1412-1510		●
16	07.524 BUSHING; SHACKLE,RR SPR (C)	8-97357-492-0	08	1	1511-	●		●
16	07.524 BUSHING; SHACKLE,RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97357-492-0	08	1	1511-		●
16	07.524 BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (A)	8-97357-492-0	04	1	1412-		●
16	07.524 BUSHING; SHACKLE,RR SPR (A)	8-97357-492-0	04	1	1412-				●	●
16	07.524 BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (B)	8-97946-545-0	04	1	1412-		●
16	07.524 BUSHING; SHACKLE,RR SPR (B)	8-97946-545-0	04	1	1412-				●	●
153	07.529 WASHER; PL,SPRING PIN ID=14.5 OD=30	8-98005-921-0	02	1	1412-1510	●	●		●	●
153	07.529 WASHER; PL,SPRING PIN ID=14.5 OD=30	8-98005-921-0	02	1	1511-	●	●	●	●	●
156	07.526 PROTECTOR; LEAF SPRING,RR SUSP	8-97947-363-0	01	1	1412-1510	●	●		●	●
156	07.526 PROTECTOR; LEAF SPRING,RR SUSP	8-97947-363-0	01	1	1511-	●	●	●	●	●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-803-1	02	1	1412-1510	●
163	07.529 RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-803-1	02	1	1412-1510		●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-803-1	02	1	1511-	●		●
163	07.529 RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-803-1	02	1	1511-		●
163	07.529 RUBBER; HELPER,RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-549-3	02	1	1412-		●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-549-3	02	1	1412-				●	●
180	07.529 PIN; RR SPR (A)	8-97947-078-0	02	1	1412-1510	●	●		●	●
180	07.529 PIN; RR SPR (A)	8-97947-078-0	02	1	1511-	●	●	●	●	●
180	07.529 PIN; RR SPR (B)	8-98005-814-0	02	1	1412-1510	●
180	07.529 PIN; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-814-0	02	1	1412-1510		●
180	07.529 PIN; RR SPR (B)	8-98005-814-0	02	1	1511-	●		●
180	07.529 PIN; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-814-0	02	1	1511-		●
180	07.529 PIN; RR SPR HIGH RIDE SUSPENSION(7YC) (C)	8-97946-547-1	02	1	1412-1510		●
180	07.529 PIN; RR SPR (C)	8-97946-547-1	02	1	1412-1510				●	●
180	07.529 PIN; RR SPR HIGH RIDE SUSPENSION(7YC) (C)	8-97946-547-1	02	1	1511-		●
180	07.529 PIN; RR SPR (C)	8-97946-547-1	02	1	1511-				●	●
182	07.529 NUT; PIN,RR SPR (A) M14 FLANGE	0-91180-114-0	04	1	1412-1510	●	●		●	●
182	07.529 NUT; PIN,RR SPR (A) M14 FLANGE	0-91180-114-0	04	1	1511-	●	●	●	●	●
182	07.529 NUT; PIN,RR SPR (B) M14 FLANGE	8-97245-651-0	02	1	1412-1510	●	●		●	●
182	07.529 NUT; PIN,RR SPR (B) M14 FLANGE	8-97245-651-0	02	1	1511-	●	●	●	●	●
524	07.516 BOLT; RR SPR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1412-1510	●	●		●	●
524	07.516 BOLT; RR SPR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●	●	●	●

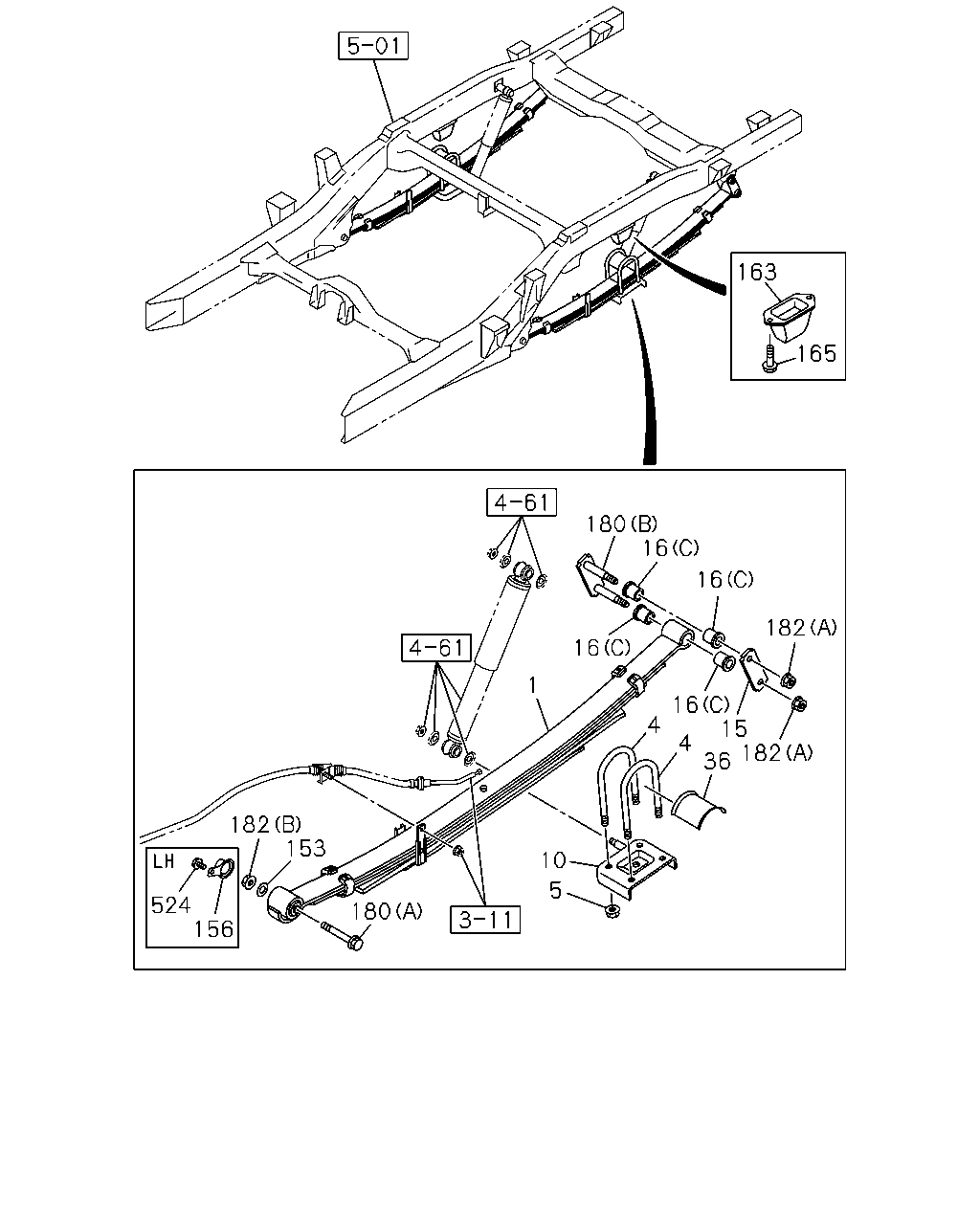

180 16 16 16 163 165 182 15 16 4 4 36 182 10 5 153 182 524 156 180 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) 6-LEAF	8-98201-544-2	02	1	1412-1412	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 6-LEAF	8-98201-544-2	02	1	1412-1412		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) 6-LEAF	8-98201-544-2	02	1	1501-1510	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 6-LEAF	8-98201-544-2	02	1	1501-1510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) 6-LEAF	8-98201-544-2	02	1	1511-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T M UA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 6-LEAF	8-98201-544-2	02	1	1511-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) REAR SPRING HEAVY DUTY(G50) 6-LEAF	8-98201-544-2	02	1	1511-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98201-543-3	02	1	1412-1412	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98201-543-3	02	1	1412-1412		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98201-543-3	02	1	1501-1510	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98201-543-3	02	1	1501-1510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98201-543-3	02	1	1511-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T M UA 5 SPEED 5G(RSP) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98201-543-3	02	1	1511-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98201-543-3	02	1	1511-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98282-590-1	02	1	1412-1412		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-590-1	02	1	1412-1412				●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98282-590-1	02	1	1501-1510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-590-1	02	1	1501-1510				●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T M UA 5 SPEED 5G(RSP) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98282-590-1	02	1	1511-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-590-1	02	1	1511-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-590-1	02	1	1511-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1412-1412		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1412-1412				●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1501-1510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1501-1510				●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T M UA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1511-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1511-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-594-1	02	1	1511-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-589-1	02	1	1412-					●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF	8-98282-593-1	02	1	1412-					●
4	07.516 U-BOLT; RR SPR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) L=187	8-97248-621-1	04	1	1412-1510	●	●
4	07.516 U-BOLT; RR SPR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) L=187	8-97248-621-1	04	1	1511-	●	●	●
4	07.516 U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) L=175	8-97947-045-0	04	1	1412-1510	●	●
4	07.516 U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) L=175	8-97947-045-0	04	1	1511-	●	●	●
4	07.516 U-BOLT; RR SPR HIGH RIDE SUSPENSION(7YC) L=170	8-97946-550-0	04	1	1412-1510		●
4	07.516 U-BOLT; RR SPR L=170	8-97946-550-0	04	1	1412-1510				●	●
4	07.516 U-BOLT; RR SPR HIGH RIDE SUSPENSION(7YC) L=170	8-97946-550-0	04	1	1511-		●
4	07.516 U-BOLT; RR SPR L=170	8-97946-550-0	04	1	1511-				●	●
5	07.529 NUT; U-BOLT,RR SPR M14 FLANGE	8-97245-635-0	08	1	1412-1510	●	●		●	●
5	07.529 NUT; U-BOLT,RR SPR M14 FLANGE	8-97245-635-0	08	1	1511-	●	●	●	●	●
10	07.529 CLAMP; LWR,RR SPR	8-98160-070-0	01	1	1412-1510	●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-070-0	01	1	1412-1510		●
10	07.529 CLAMP; LWR,RR SPR	8-98160-070-0	01	1	1511-	●		●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-070-0	01	1	1511-		●
10	07.529 CLAMP; LWR,RR SPR	8-98160-083-0	01	1	1412-1510	●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-083-0	01	1	1412-1510		●
10	07.529 CLAMP; LWR,RR SPR	8-98160-083-0	01	1	1511-	●		●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-083-0	01	1	1511-		●
10	07.529 CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-850-1	01	1	1412-		●
10	07.529 CLAMP; LWR,RR SPR	8-98165-850-1	01	1	1412-				●	●
10	07.529 CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-851-1	01	1	1412-		●
10	07.529 CLAMP; LWR,RR SPR	8-98165-851-1	01	1	1412-				●	●
15	07.523 SHACKLE; RR SPR	8-98005-815-0	02	1	1412-1510	●
15	07.523 SHACKLE; RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-815-0	02	1	1412-1510		●
15	07.523 SHACKLE; RR SPR	8-98005-815-0	02	1	1511-	●		●
15	07.523 SHACKLE; RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-815-0	02	1	1511-		●
15	07.523 SHACKLE; RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-551-1	02	1	1412-		●
15	07.523 SHACKLE; RR SPR	8-97946-551-1	02	1	1412-				●	●
16	07.524 BUSHING; SHACKLE,RR SPR (C)	8-97357-492-0	08	1	1412-1510	●
16	07.524 BUSHING; SHACKLE,RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97357-492-0	08	1	1412-1510		●
16	07.524 BUSHING; SHACKLE,RR SPR (C)	8-97357-492-0	08	1	1511-	●		●
16	07.524 BUSHING; SHACKLE,RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97357-492-0	08	1	1511-		●
16	07.524 BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (A)	8-97357-492-0	04	1	1412-		●
16	07.524 BUSHING; SHACKLE,RR SPR (A)	8-97357-492-0	04	1	1412-				●	●
16	07.524 BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (B)	8-97946-545-0	04	1	1412-		●
16	07.524 BUSHING; SHACKLE,RR SPR (B)	8-97946-545-0	04	1	1412-				●	●
36	07.529 SEAT; HELPER RUBBER,RR SPR	8-98005-878-0	02	1	1412-1510	●
36	07.529 SEAT; HELPER RUBBER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-878-0	02	1	1412-1510		●
36	07.529 SEAT; HELPER RUBBER,RR SPR	8-98005-878-0	02	1	1511-	●		●
36	07.529 SEAT; HELPER RUBBER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-878-0	02	1	1511-		●
153	07.529 WASHER; PL,SPRING PIN ID=14.5 OD=30	8-98005-921-0	02	1	1412-1510	●	●		●	●
153	07.529 WASHER; PL,SPRING PIN ID=14.5 OD=30	8-98005-921-0	02	1	1511-	●	●	●	●	●
156	07.526 PROTECTOR; LEAF SPRING,RR SUSP	8-97947-363-0	01	1	1412-1510	●	●		●	●
156	07.526 PROTECTOR; LEAF SPRING,RR SUSP	8-97947-363-0	01	1	1511-	●	●	●	●	●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-803-1	02	1	1412-1510	●
163	07.529 RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-803-1	02	1	1412-1510		●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-803-1	02	1	1511-	●		●
163	07.529 RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-803-1	02	1	1511-		●
163	07.529 RUBBER; HELPER,RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-549-3	02	1	1412-		●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-549-3	02	1	1412-				●	●
165	07.529 BOLT; HELPER RUBBER 07.068 M10X30 FLANGE	0-28661-030-0	04	1	1412-1510	●
165	07.529 BOLT; HELPER RUBBER EXC. HIGH RIDE SUSPENSION(7YC) 07.068 M10X30 FLANGE	0-28661-030-0	04	1	1412-1510		●
165	07.529 BOLT; HELPER RUBBER 07.068 M10X30 FLANGE	0-28661-030-0	04	1	1511-	●		●
165	07.529 BOLT; HELPER RUBBER EXC. HIGH RIDE SUSPENSION(7YC) 07.068 M10X30 FLANGE	0-28661-030-0	04	1	1511-		●
180	07.529 PIN; RR SPR (A)	8-97947-078-0	02	1	1412-1510	●	●		●	●
180	07.529 PIN; RR SPR (A)	8-97947-078-0	02	1	1511-	●	●	●	●	●
180	07.529 PIN; RR SPR (B)	8-98005-814-0	02	1	1412-1510	●
180	07.529 PIN; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-814-0	02	1	1412-1510		●
180	07.529 PIN; RR SPR (B)	8-98005-814-0	02	1	1511-	●		●
180	07.529 PIN; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-814-0	02	1	1511-		●
180	07.529 PIN; RR SPR HIGH RIDE SUSPENSION(7YC) (C)	8-97946-547-1	02	1	1412-1510		●
180	07.529 PIN; RR SPR (C)	8-97946-547-1	02	1	1412-1510				●	●
180	07.529 PIN; RR SPR HIGH RIDE SUSPENSION(7YC) (C)	8-97946-547-1	02	1	1511-		●
180	07.529 PIN; RR SPR (C)	8-97946-547-1	02	1	1511-				●	●
182	07.529 NUT; PIN,RR SPR (A) M14 FLANGE	0-91180-114-0	04	1	1412-1510	●	●		●	●
182	07.529 NUT; PIN,RR SPR (A) M14 FLANGE	0-91180-114-0	04	1	1511-	●	●	●	●	●
182	07.529 NUT; PIN,RR SPR (B) M14 FLANGE	8-97245-651-0	02	1	1412-1510	●	●		●	●
182	07.529 NUT; PIN,RR SPR (B) M14 FLANGE	8-97245-651-0	02	1	1511-	●	●	●	●	●
524	07.516 BOLT; RR SPR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1412-1510	●	●		●	●
524	07.516 BOLT; RR SPR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
