Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#153904) — 154 parça

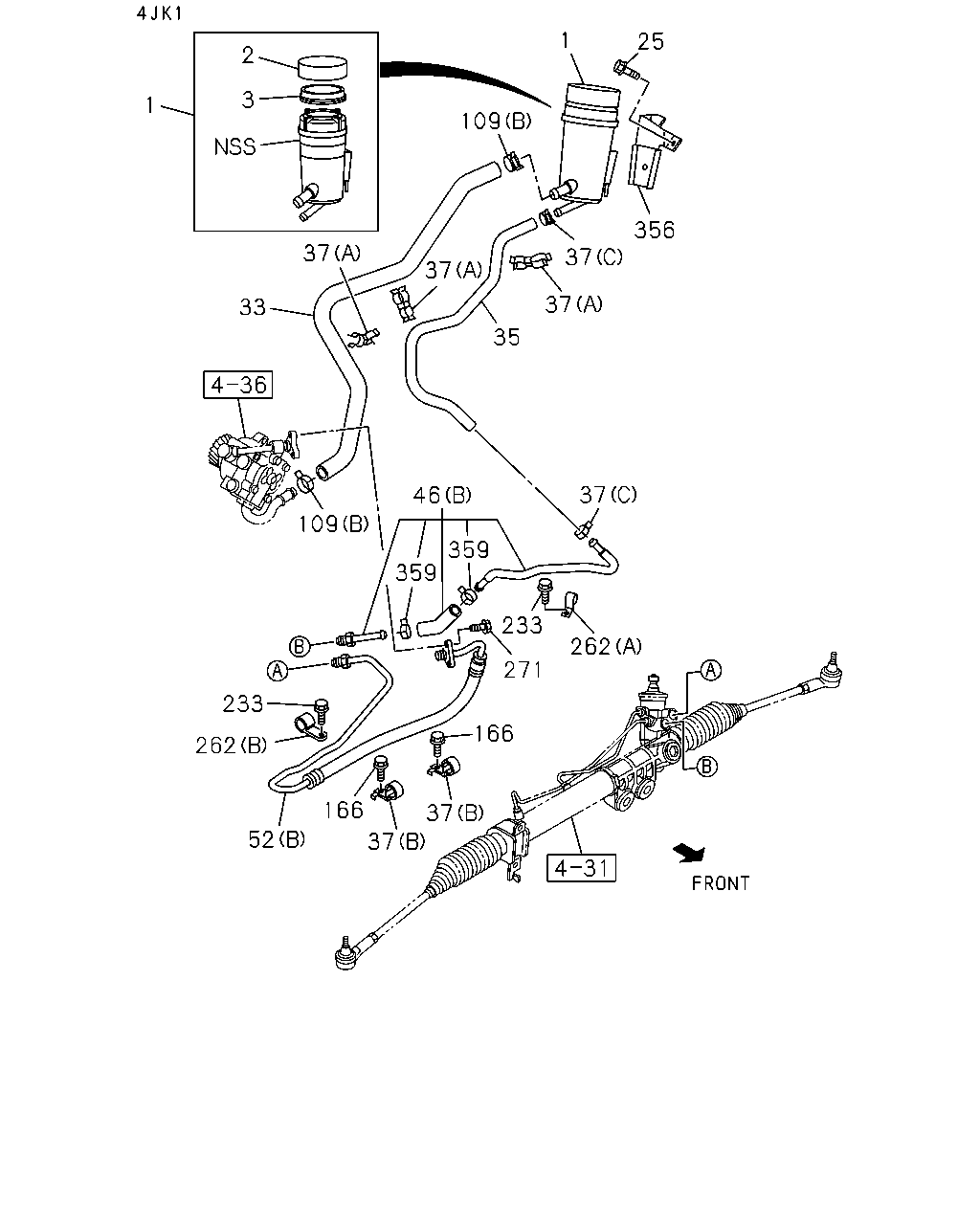

1 2 3 37 33 37 35 37 37 356 25 1 109 109 46 37 359 359 233 262 52 166 37 37 166 271 262 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1412-1510	●	●	●	●
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1511-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1412-1510	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1511-	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1412-1510	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1511-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0)	8-97946-138-2	01	1	1412-1510	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97946-138-2	01	1	1511-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1412-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1412-1510	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=21.5 L=21	8-98211-907-0	02	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1511-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1412-1510	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1511-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) (C) L=1407	8-98179-942-0	01	1	1412-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1412-1510		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1412-1510			●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1511-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1511-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1412-1510	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1511-	●	●			●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) (C)	8-98203-618-0	01	1	1412-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1412-1510		●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1412-1510			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1511-		●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1511-			●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (A)	8-98203-619-0	01	1	1412-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1412-1510	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1511-	●	●	●	●	●
166	06.672 BOLT; CLIP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
166	06.672 BOLT; CLIP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-1510	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-1510	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1412-	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1412-1510	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1511-	●	●	●	●	●
359	06.672 CLAMP; HOSE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.762 ID=16	8-98030-682-0	02	1	1412-1510	●	●
359	06.672 CLAMP; HOSE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 01.762 ID=16	8-98030-682-0	02	1	1511-	●	●			●

1 2 3 109 33 109 1 25 356 37 35 37 272 81 52 233 262 46 109 233 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1412-1510	●	●	●	●
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1511-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1412-1510	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1511-	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1412-1510	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1511-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0)	8-97946-138-2	01	1	1412-1510	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97946-138-2	01	1	1511-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1412-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1412-1510	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=21.5 L=21	8-98211-907-0	02	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1511-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1412-1510	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1511-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) (C) L=1407	8-98179-942-0	01	1	1412-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1412-1510		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1412-1510			●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1511-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1511-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1412-1510	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1511-	●	●			●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) (C)	8-98203-618-0	01	1	1412-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1412-1510		●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1412-1510			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1511-		●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1511-			●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-T ENG(LP0) ID=10X2 H=22	8-94252-455-2	01	1	1412-	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JA1-T ENG(LP0) 07.347 ID=12.2	0-91510-812-0	01	1	1412-	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (A)	8-98203-619-0	01	1	1412-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1412-1510	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1511-	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-1510	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-1510	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1412-	●	●
272	06.672 NUT; P/S OIL PIPE FIX 4JA1-T ENG(LP0) 04.439 M12	0-91111-512-0	01	1	1412-	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1412-1510	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1511-	●	●	●	●	●

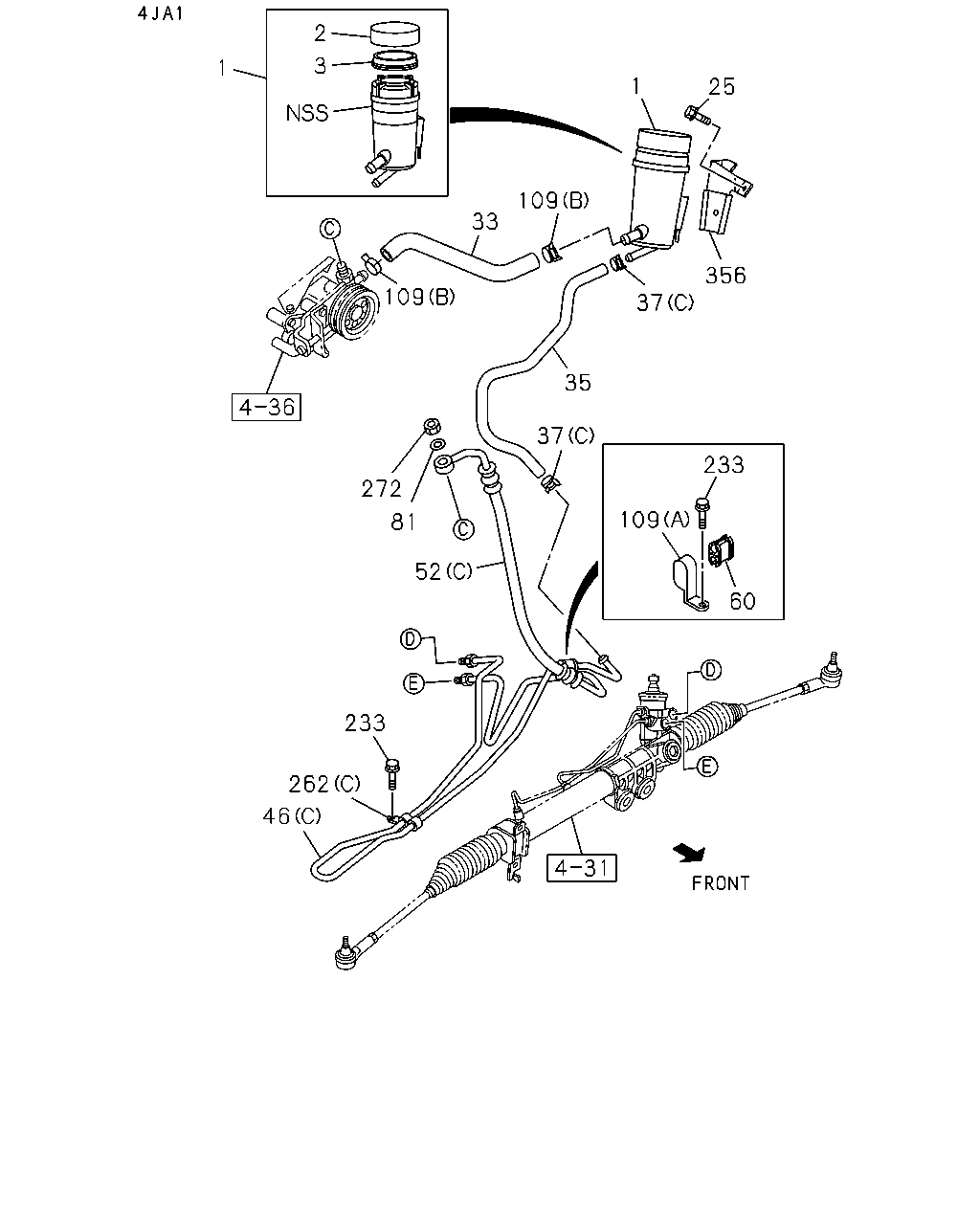

1 2 3 1 25 109 356 37 37 33 37 37 35 109 233 262 52 37 37 166 166 271 233 262 46 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1412-1510	●	●	●	●
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1511-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1412-1510	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1511-	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1412-1510	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1511-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0)	8-97946-138-2	01	1	1412-1510	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97946-138-2	01	1	1511-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1412-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1412-1510	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=21.5 L=21	8-98211-907-0	02	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1511-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1412-1510	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1511-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1412-1510	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1511-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) (C) L=1407	8-98179-942-0	01	1	1412-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1412-1510		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1412-1510			●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1511-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1511-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1412-1510	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1511-	●	●			●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) (C)	8-98203-618-0	01	1	1412-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1412-1510		●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1412-1510			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1511-		●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1511-			●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (A)	8-98203-619-0	01	1	1412-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1412-1510	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1511-	●	●	●	●	●
166	06.672 BOLT; CLIP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
166	06.672 BOLT; CLIP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-1510	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-1510	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1511-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1412-	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1510	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1412-1510	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1511-	●	●	●	●	●
