Isuzu WW
▶
PICKUP
▶
TFR
▶
51603 - TFR/TFS MIDDLE EAST
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#153893) — 16 parça
Tümü
A - TFB6SF
B - TFB6WF
C - TFS6SF
D - TFS6WF
E - TFB6CF
◀

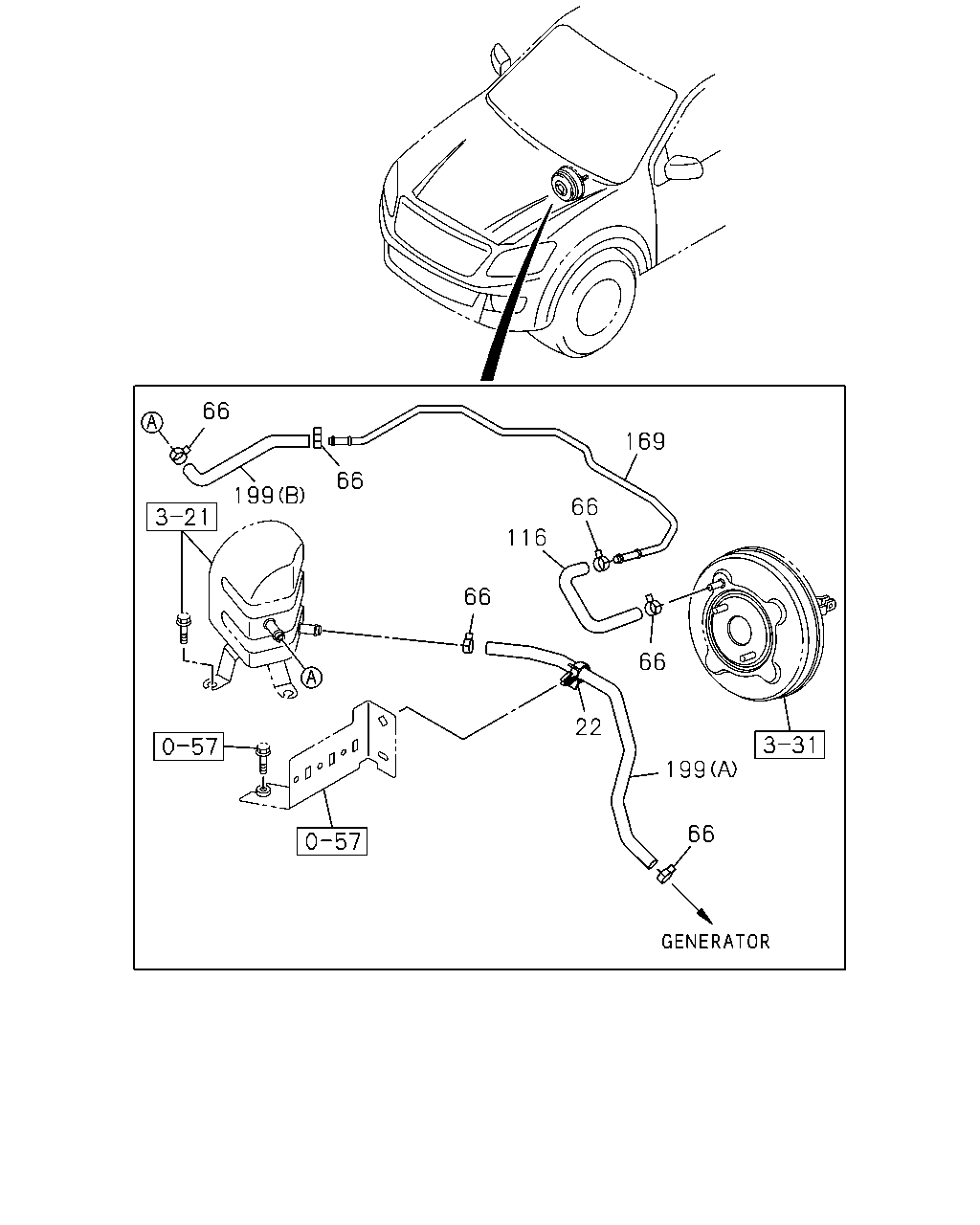

[360A] 4JA1 (10 parça)

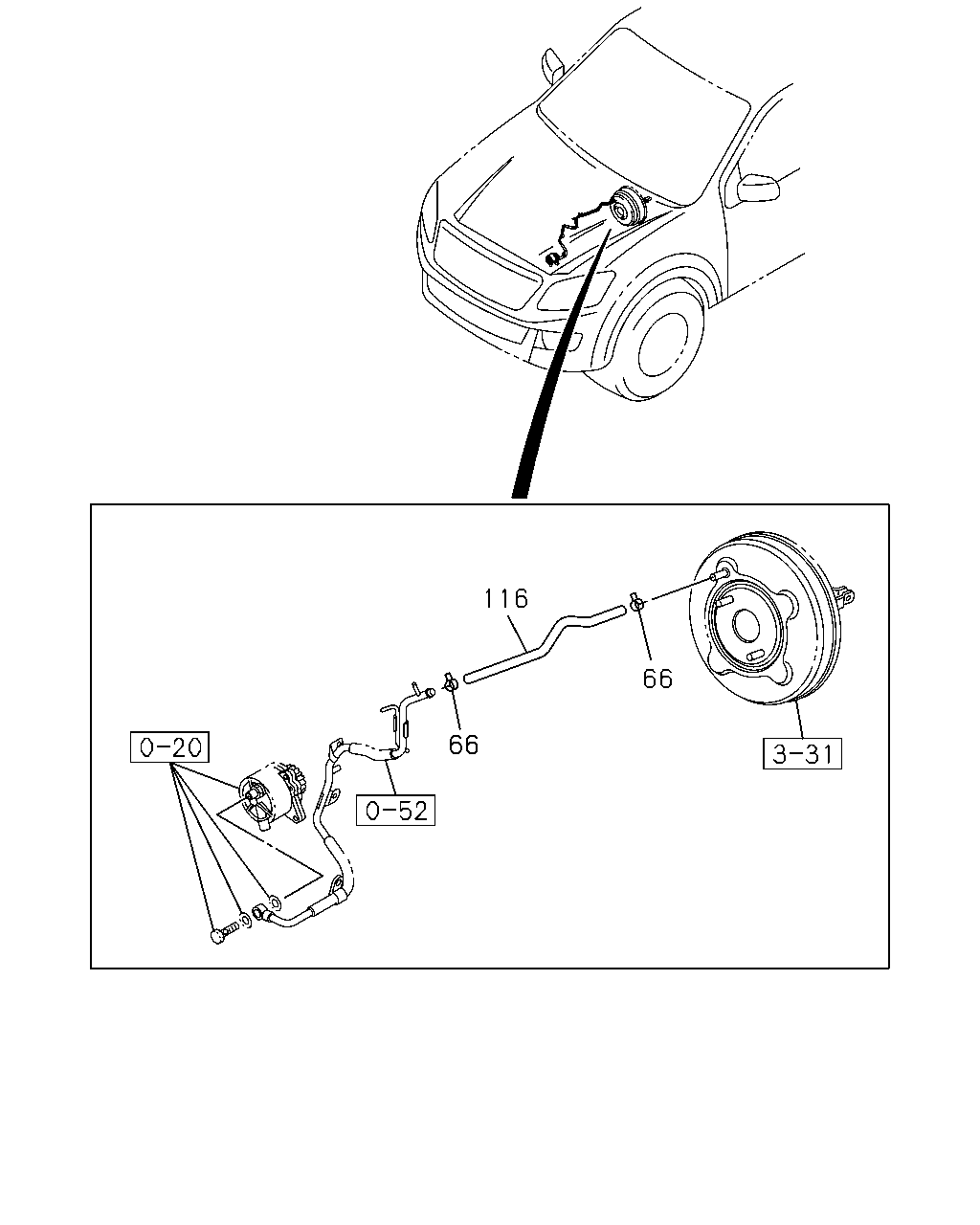

[360A] 4JK1 (6 parça)
▶
66
199
66
66
116
169
66
22
199
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
22
04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162
8-97089-536-0
01
1
1412-
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) ID=16
8-98036-539-0
02
1
1412-1510
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ID=16
8-98036-539-0
02
1
1511-
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) ID=16
8-98036-539-0
06
1
1412-
●
●
116
04.931 HOSE; VAC,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0)
8-98100-737-1
01
1
1412-1510
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)
8-98100-737-1
01
1
1511-
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0)
8-98100-741-0
01
1
1412-
●
●
169
04.930 PIPE; VAC,BOOSTER SIDE
4JA1-T ENG(LP0)
8-98100-267-1
01
1
1412-
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) (A)
8-98100-739-2
01
1
1412-
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) (B)
8-98100-740-0
01
1
1412-
●
●
66
116
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
66
04.930 CLIP; VAC HOSE,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) ID=16
8-98036-539-0
02
1
1412-1510
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ID=16
8-98036-539-0
02
1
1511-
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) ID=16
8-98036-539-0
06
1
1412-
●
●
116
04.931 HOSE; VAC,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0)
8-98100-737-1
01
1
1412-1510
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)
8-98100-737-1
01
1
1511-
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0)
8-98100-741-0
01
1
1412-
●
●
