◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#153891) — 199 parça

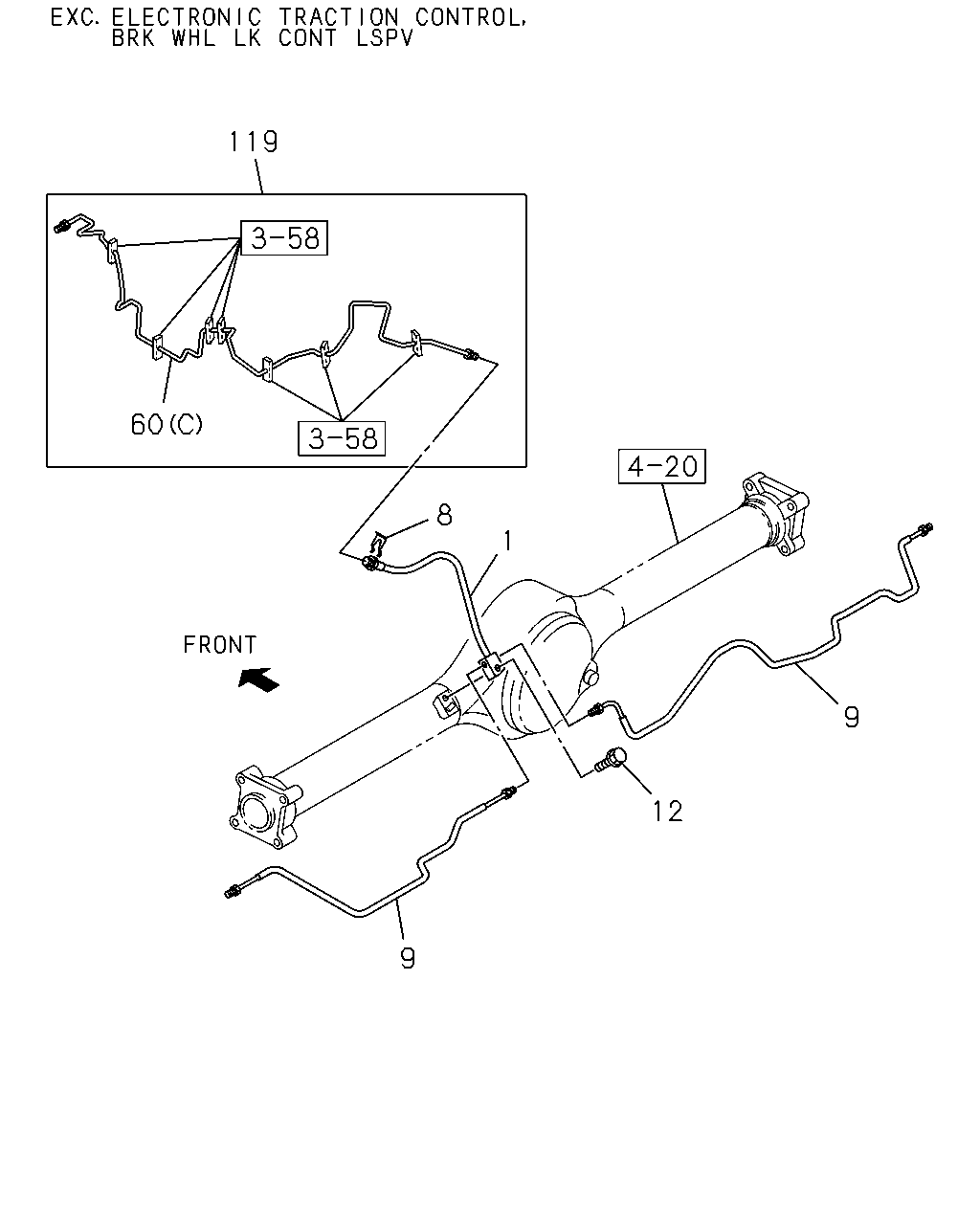

çizim 458799
119 60 8 9 12 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1412-1510 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1412-1510 ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1511- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1511- ● ●
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1412- ● ●
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1412- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 01 1 1412-1510 ● ●
8 04.686 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1412-1510 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 01 1 1511- ● ● ●
8 04.686 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1511- ● ●
8 04.686 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1412- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1511- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1511- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-455-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-456-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-580-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-581-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1412- ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1412- ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1412-1510 ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1412-1510 ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-741-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1506- ● ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-742-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1506- ● ●
60 04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1412- ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-779-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1412- ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-780-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1412- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1412-1510 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1511- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1506- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ● ●

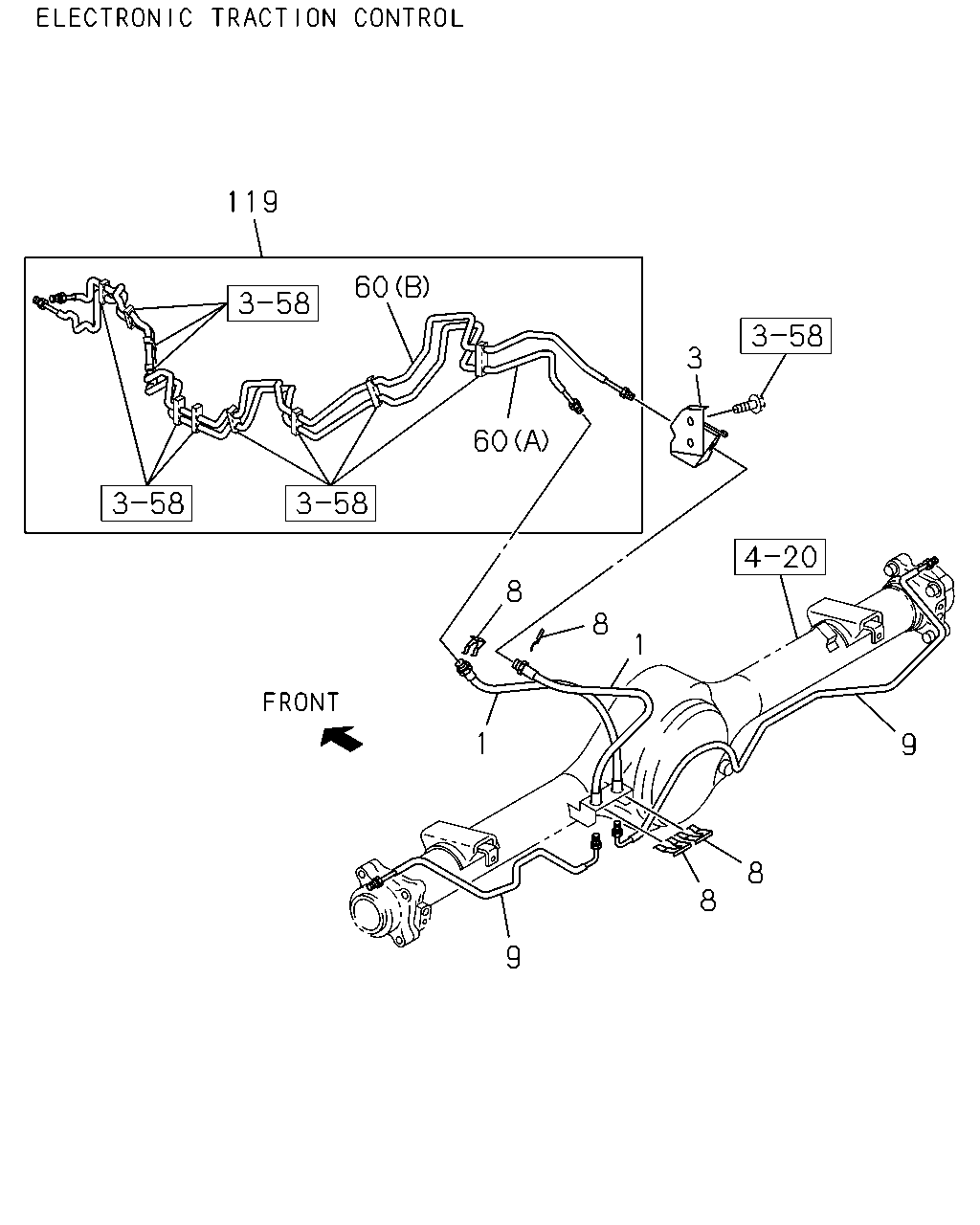

çizim 458814
119 60 60 3 8 8 9 8 8 9 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1412-1510 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1412-1510 ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1511- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1511- ● ●
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1412- ● ●
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1412- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98102-358-1 01 1 1412- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 01 1 1412-1510 ● ●
8 04.686 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1412-1510 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 01 1 1511- ● ● ●
8 04.686 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1511- ● ●
8 04.686 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1412- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1511- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1511- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-455-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-456-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-580-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-581-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1412- ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1412- ● ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-741-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1506- ● ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-742-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1506- ● ●
60 04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1412- ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-779-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1412- ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-780-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1412- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1412-1510 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1511- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1506- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ● ●

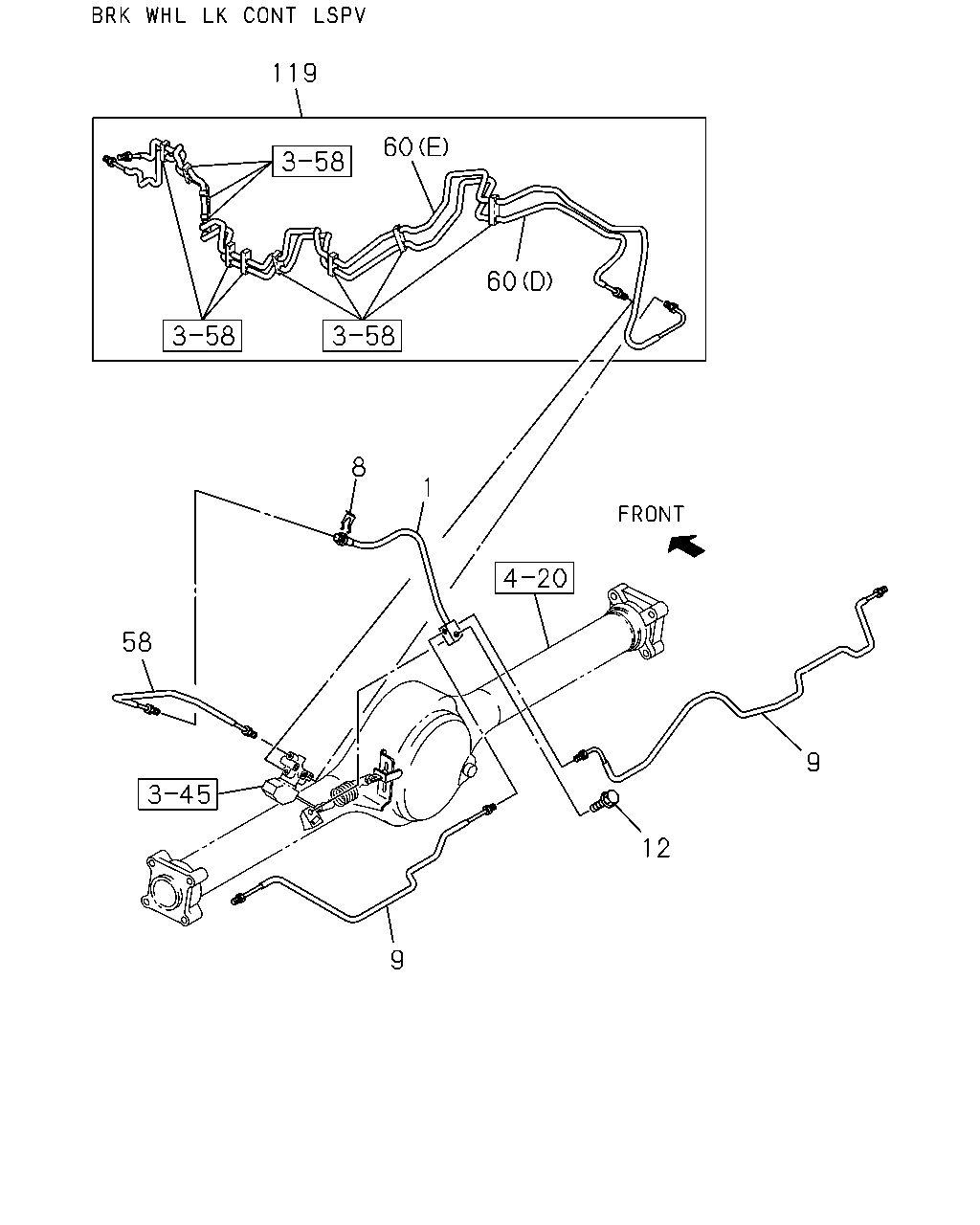

çizim 458844
60 60 119 8 1 58 12 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1412-1510 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1412-1510 ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1511- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1511- ● ●
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1412- ● ●
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1412- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 01 1 1412-1510 ● ●
8 04.686 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1412-1510 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 01 1 1511- ● ● ●
8 04.686 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1511- ● ●
8 04.686 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1412- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1511- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1412-1510 ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1511- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-455-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-456-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-580-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-581-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1412- ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1412- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1412- ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1412-1510 ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1412-1510 ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) L=295 		8-98099-765-2 01 1 1412-1510 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) L=295 		8-98099-765-2 01 1 1511- ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) L=328 		8-98099-777-1 01 1 1412- ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> L=328 		8-98099-777-1 01 1 1412- ● ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-741-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1506- ● ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-742-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1412-1505 ●
60 04.685 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1506- ● ●
60 04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1412- ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1412-1510 ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1511- ● ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-779-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1412- ● ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-780-4 01 1 1412- ●
60 04.685 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1412- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1412-1510 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1511- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1506- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ● ●

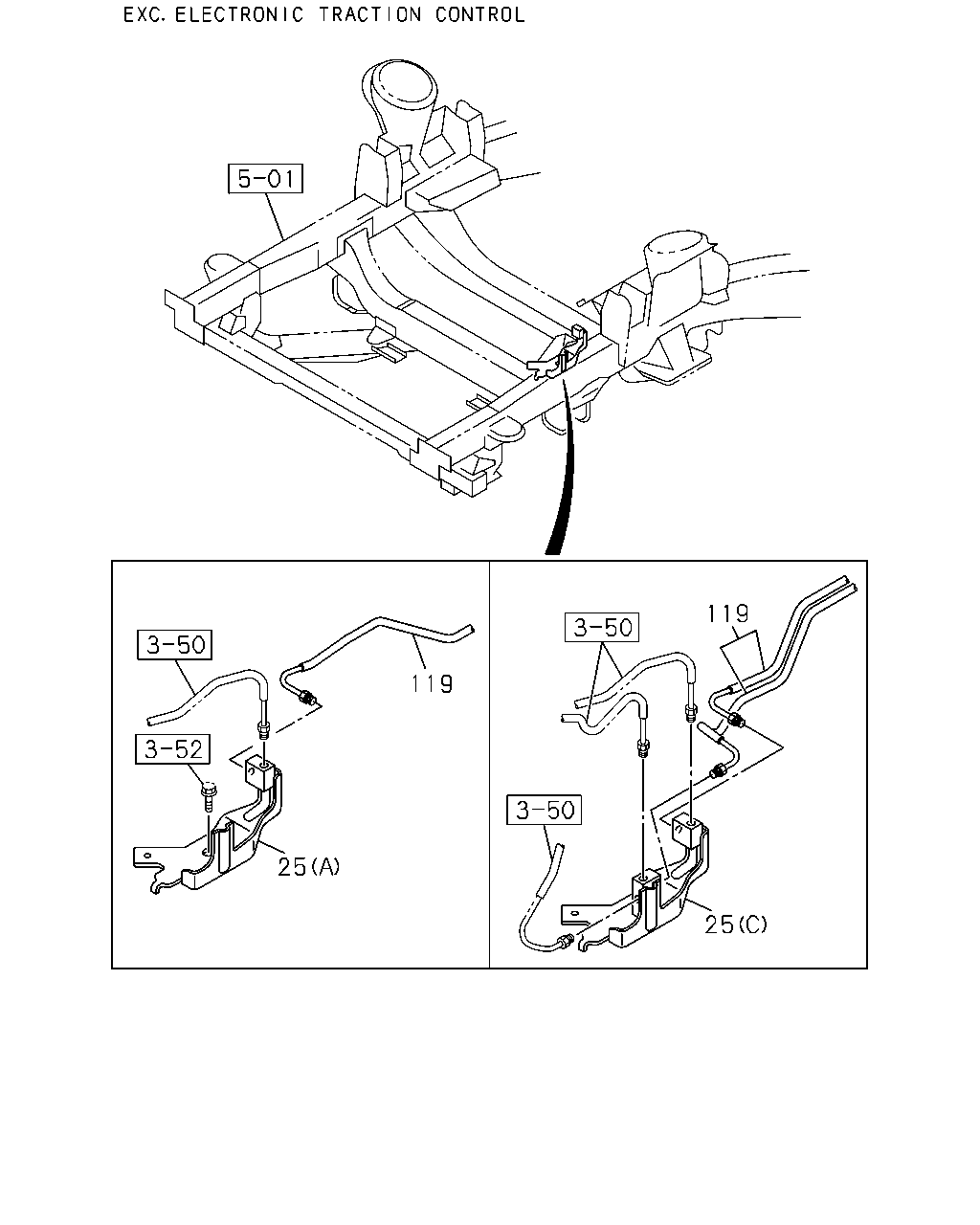

çizim 458845
119 119 25 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-783-1 01 1 1412-1510 ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-783-1 01 1 1511- ● ● ● ● ●
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-784-1 01 1 1412-1510 ● ● ● ●
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-784-1 01 1 1511- ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-785-1 01 1 1412- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1412-1510 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1511- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1506- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ● ●

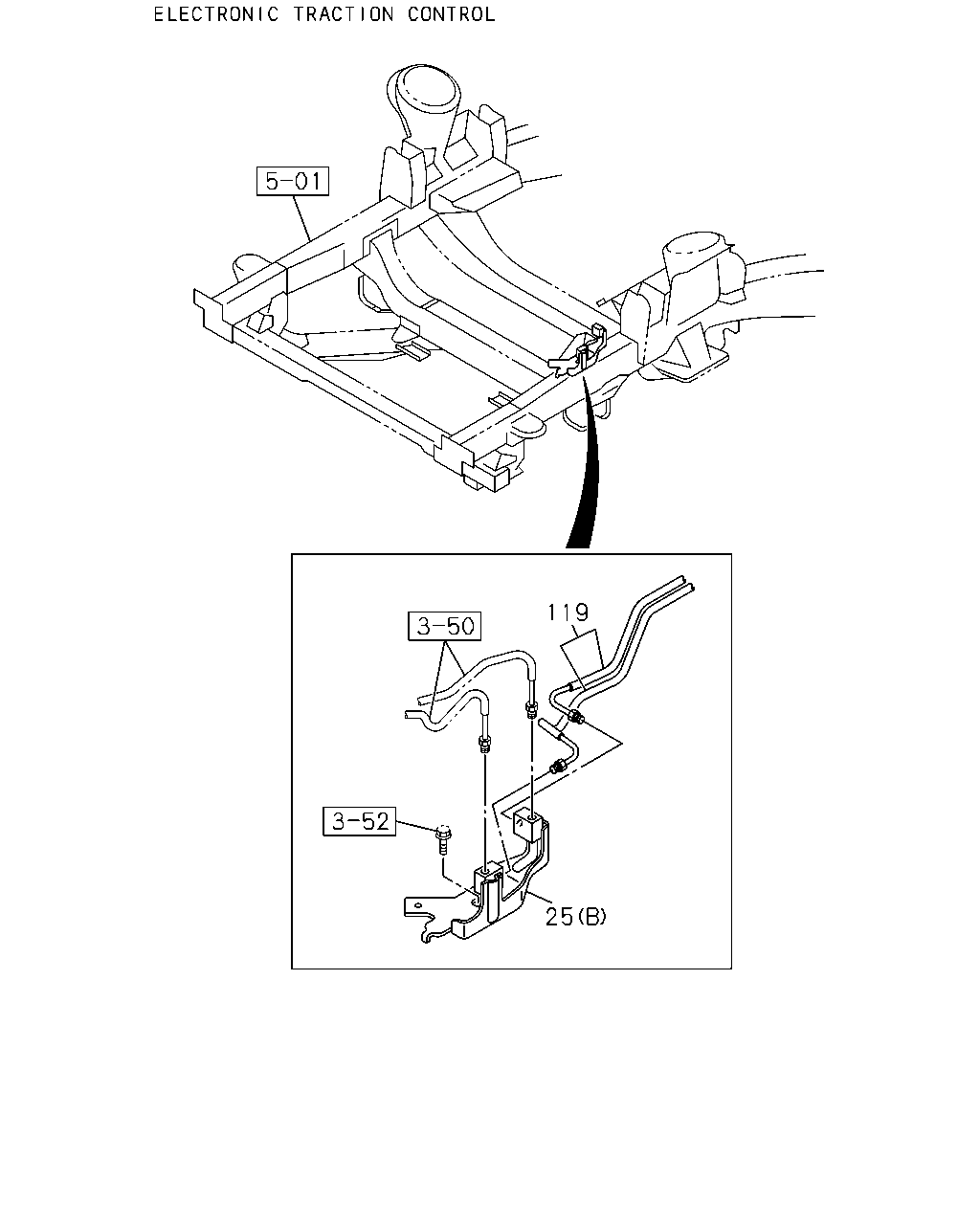

çizim 458846
119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-783-1 01 1 1412-1510 ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-783-1 01 1 1511- ● ● ● ● ●
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-784-1 01 1 1412-1510 ● ● ● ●
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-784-1 01 1 1511- ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-785-1 01 1 1412- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1412-1510 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1511- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1412-1505 ●
119 04.685 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1506- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
