4-25 — REAR FINAL DRIVE (#15389) — 223 parça

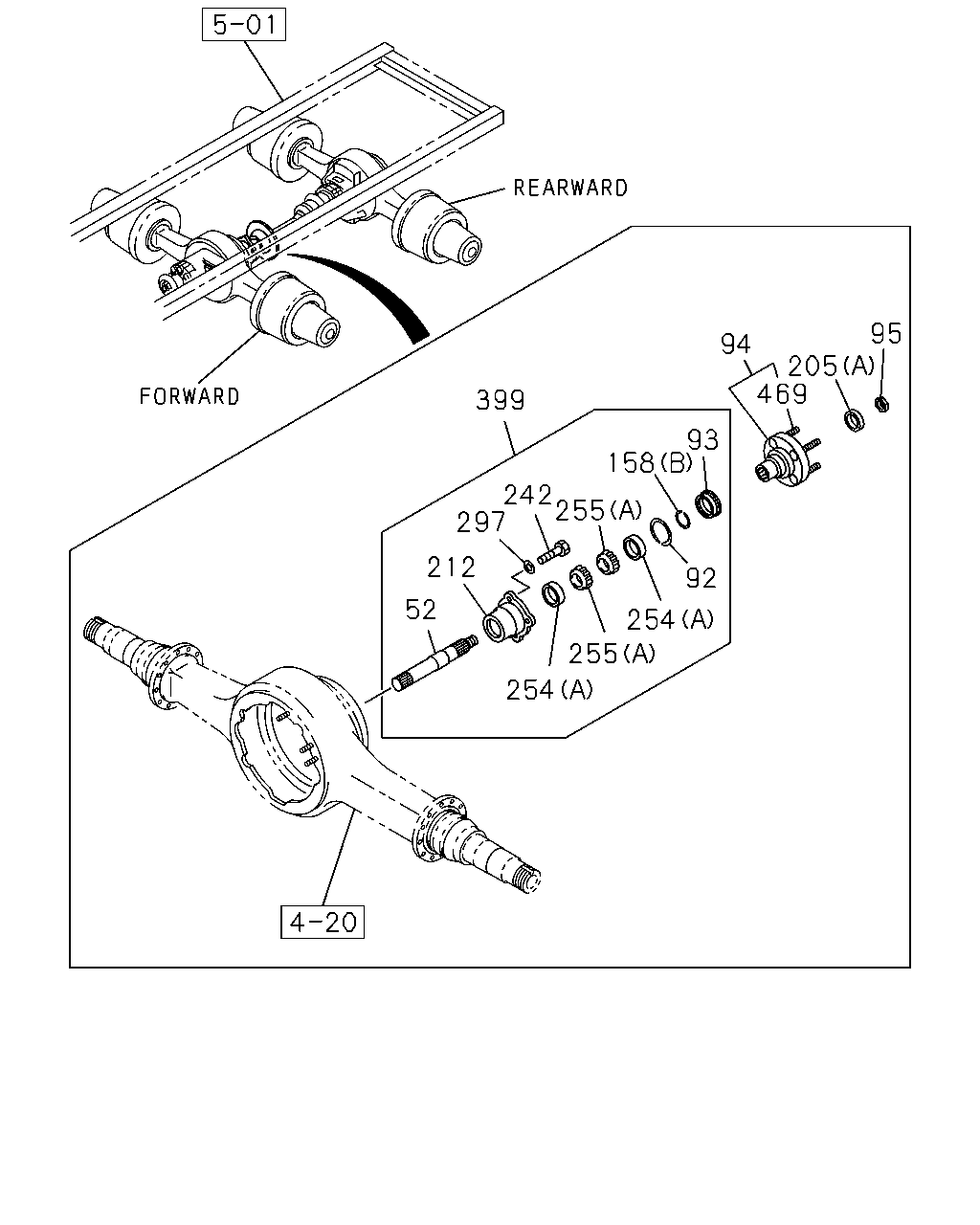

çizim 61294
95 94 205 469 399 93 158 242 255 297 212 92 52 254 255 254
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 SHAFT; OUTPUT 1-41343-031-0 01 1 0804- ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 0804- ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-191-0 01 1 0804- ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-425-0 01 1 0804- ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 0804- ● ● ● ●
158 RING; SNAP
(B) 		1-41349-162-0 01 1 0804- ● ● ● ●
158 RING; SNAP
(A) 		1-41519-085-0 01 1 0804- ● ● ● ●
205 WASHER; PL
(A) 		1-41219-040-0 01 1 0804- ● ● ● ●
205 WASHER; PL
(B) 		1-41329-016-0 06 1 0804- ● ● ● ●
212 COVER 1-41519-049-0 01 1 0804- ● ● ● ●
242 BOLT; COVER 1-42119-226-0 04 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41229-131-0 02 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-033-0 02 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-083-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41349-034-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-032-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-084-0 02 1 0804- ● ● ● ●
297 WASHER; COVER 1-41329-037-0 04 1 0804- ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-030-0 01 1 0804- ● ● ● ●
469 STUD 1-37249-204-0 04 1 0804- ● ● ● ●

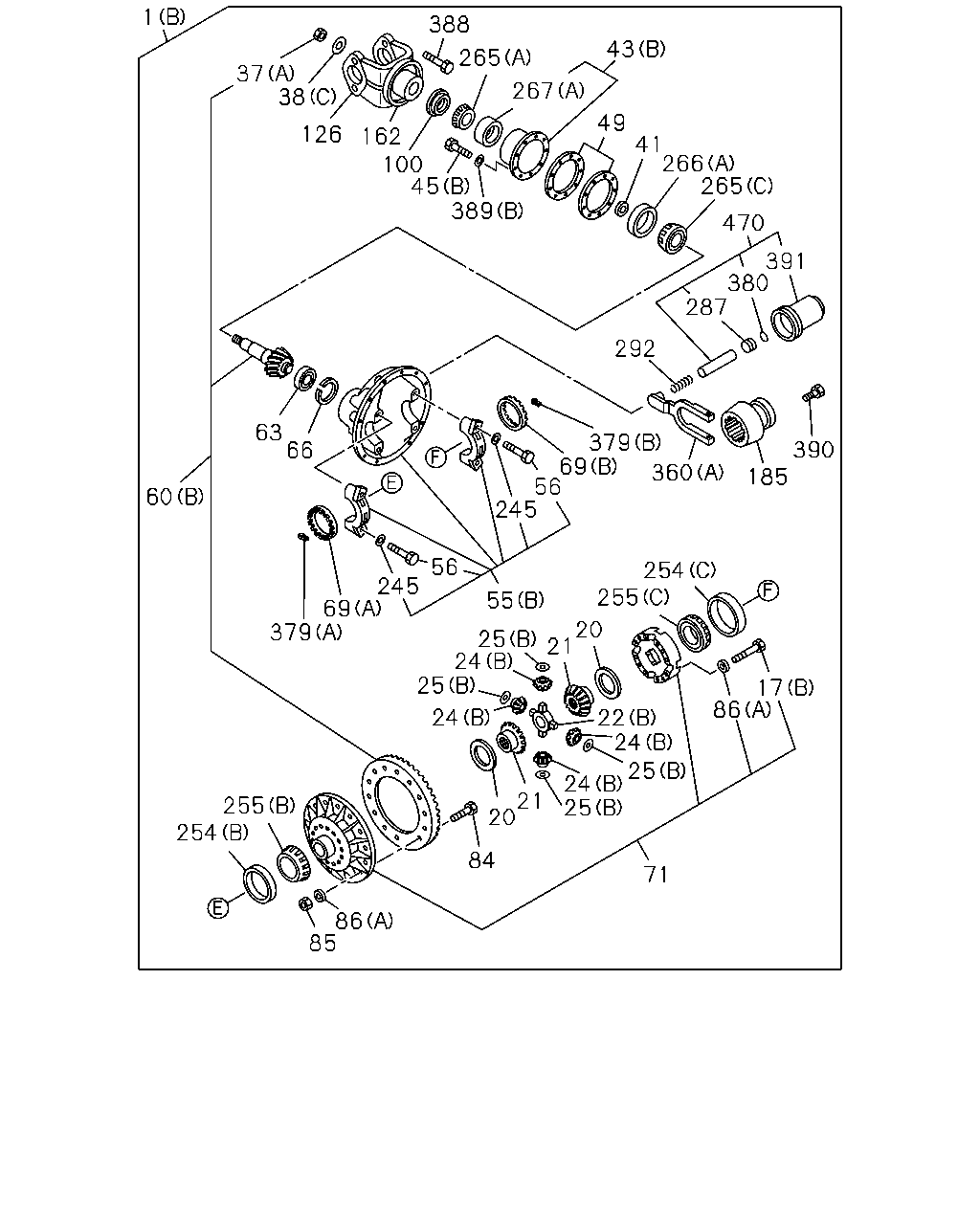

çizim 101622
1 388 43 265 37 38 267 49 41 266 265 126 162 100 45 389 470 391 380 287 292 63 66 379 69 56 245 390 185 360 60 56 254 255 245 55 69 379 20 21 25 24 25 17 86 24 22 24 25 24 25 21 20 255 254 84 71 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
(B) 43/11 		1-41002-741-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(A) 43/11 		1-41003-360-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(B) 43/10 		1-41002-742-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(A) 43/10 		1-41003-362-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(B) 41/10 		1-41003-359-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(A) 41/10 		1-41003-361-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(B) 41/9 		1-41002-900-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(A) 41/9 		1-41003-363-0 01 1 0804- ●
17 BOLT; DIFF CAGE SETTING
(B) 		1-41519-095-0 24 1 0804- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) 		1-41329-085-0 08 1 0804- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 04 1 0804- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 04 1 0804- ● ● ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-025-0 01 1 0804- ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-054-0 02 1 0804- ● ● ● ●
24 GEAR; PINION,DIFF
(A) 		1-41211-238-0 04 1 0804- ● ● ● ●
24 GEAR; PINION,DIFF
(B) 		1-41551-035-0 08 1 0804- ● ● ● ●
25 WASHER; THRUST,PINION
(B) 		1-41552-037-0 08 1 0804- ● ● ● ●
25 WASHER; THRUST,PINION
(A) 		1-41552-041-0 04 1 0804- ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0804- ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-130-0 01 1 0804- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 0804- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-129-0 01 1 0804- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-058-0 01 1 0804- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 0804- ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-098-0 01 1 0804- ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41321-028-0 01 1 0804- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0804- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0804- ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 0804- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-126-0 01 1 0804- ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-060-0 01 1 0804- ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 08 1 0804- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-648-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-655-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/10 		1-41210-649-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/10 		1-41210-657-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-656-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-42121-660-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/9 		1-41210-658-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/9 		1-41210-661-0 01 1 0804- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 0804- ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 0804- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-040-0 03 1 0804- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-049-0 01 1 0804- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 02 1 0804- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 24 1 0804- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0804- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 48 1 0804- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-037-0 08 1 0804- ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0804- ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-364-0 02 1 0804- ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 02 1 0804- ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-004-0 02 1 0804- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 08 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41229-131-0 02 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-033-0 02 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-083-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41349-034-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-032-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-084-0 02 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-033-0 01 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 02 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-128-0 01 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-088-0 01 1 0804- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0804- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-032-0 01 1 0804- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-089-0 01 1 0804- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-127-0 01 1 0804- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41349-050-0 02 1 0804- ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0804- ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 0804- ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-008-0 01 1 0804- ● ● ● ●
360 FORK; SHIFT
(C) 		1-41371-009-0 01 1 0804- ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-087-0 01 1 0804- ● ● ● ●
379 PIN; SPLIT
(A) 		1-41129-012-0 01 1 0804- ● ● ● ●
379 PIN; SPLIT
(B) 		1-41129-013-0 01 1 0804- ● ● ● ●
379 PIN; SPLIT
(C) 		1-41129-021-0 02 1 0804- ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0804- ● ● ● ●
388 BOLT; COUPLING 1-37249-204-0 08 1 0804- ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-007-0 05 1 0804- ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-084-0 08 1 0804- ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0804- ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0804- ● ● ● ●
470 SHIFT KIT 1-48269-258-0 02 1 0804- ● ● ● ●

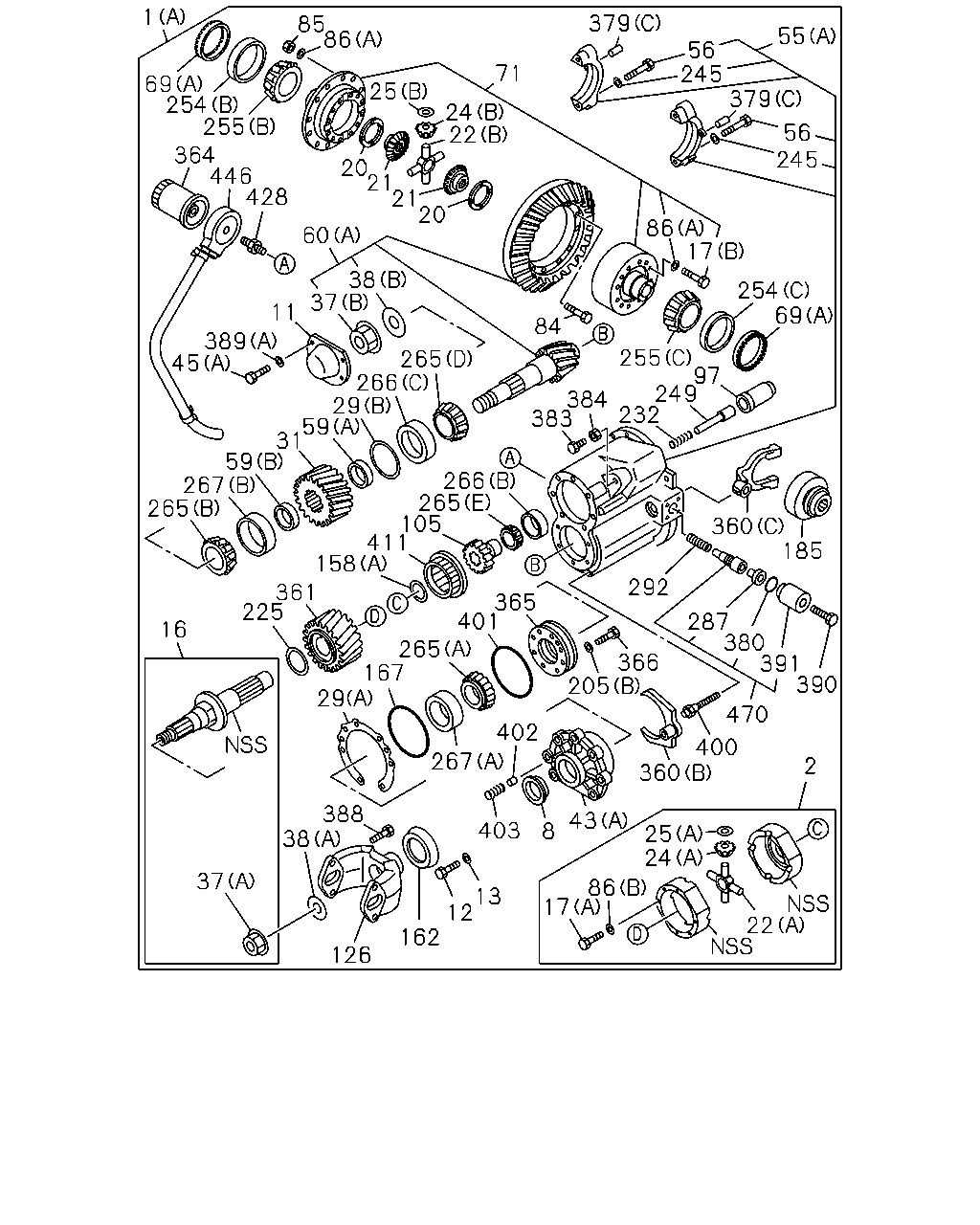

çizim 101631
1 379 85 86 55 56 245 379 71 25 69 254 255 364 446 428 24 22 20 21 21 20 56 245 86 17 60 38 37 254 69 11 84 389 45 255 97 249 232 265 266 29 59 31 59 267 265 384 383 266 265 105 411 158 360 185 292 361 225 365 401 265 167 287 380 391 390 16 366 205 29 470 402 400 360 267 2 388 38 43 403 8 25 24 37 86 17 13 12 162 2 126
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
(B) 43/11 		1-41002-741-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(A) 43/11 		1-41003-360-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(B) 43/10 		1-41002-742-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(A) 43/10 		1-41003-362-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(B) 41/10 		1-41003-359-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(A) 41/10 		1-41003-361-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(B) 41/9 		1-41002-900-0 01 1 0804- ●
1 DRIVE ASM; FINAL,RR
(A) 41/9 		1-41003-363-0 01 1 0804- ●
2 DIFF ASM; INTER,FINAL 1-41510-306-0 01 1 0804- ● ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-190-0 01 1 0804- ● ● ● ●
11 COVER; INTER AXLE DIFF 1-41329-068-0 01 1 0804- ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-058-0 07 1 0804- ● ● ● ●
13 WASHER; COVER TO CASE 1-41159-009-0 07 1 0804- ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-031-0 01 1 0804- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) 		1-41519-095-0 24 1 0804- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) 		1-41329-085-0 08 1 0804- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 04 1 0804- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 04 1 0804- ● ● ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-025-0 01 1 0804- ● ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-054-0 02 1 0804- ● ● ● ●
24 GEAR; PINION,DIFF
(A) 		1-41211-238-0 04 1 0804- ● ● ● ●
24 GEAR; PINION,DIFF
(B) 		1-41551-035-0 08 1 0804- ● ● ● ●
25 WASHER; THRUST,PINION
(B) 		1-41552-037-0 08 1 0804- ● ● ● ●
25 WASHER; THRUST,PINION
(A) 		1-41552-041-0 04 1 0804- ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 0804- ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 0804- ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 0804- ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 0804- ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 0804- ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 0804- ● ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-426-0 01 1 0804- ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0804- ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-130-0 01 1 0804- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 0804- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-129-0 01 1 0804- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-058-0 01 1 0804- ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-098-0 01 1 0804- ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41321-028-0 01 1 0804- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0804- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0804- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-126-0 01 1 0804- ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-060-0 01 1 0804- ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 08 1 0804- ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-126-0 01 1 0804- ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-362-0 01 1 0804- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-648-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-655-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/10 		1-41210-649-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/10 		1-41210-657-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-656-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-42121-660-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/9 		1-41210-658-0 01 1 0804- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/9 		1-41210-661-0 01 1 0804- ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-040-0 03 1 0804- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-049-0 01 1 0804- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 02 1 0804- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 24 1 0804- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0804- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 48 1 0804- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-037-0 08 1 0804- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0804- ● ● ● ●
105 GEAR; SIDE 1-41561-122-0 01 1 0804- ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-364-0 02 1 0804- ● ● ● ●
158 RING; SNAP
(B) 		1-41349-162-0 01 1 0804- ● ● ● ●
158 RING; SNAP
(A) 		1-41519-085-0 01 1 0804- ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 02 1 0804- ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 0804- ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-004-0 02 1 0804- ● ● ● ●
205 WASHER; PL
(A) 		1-41219-040-0 01 1 0804- ● ● ● ●
205 WASHER; PL
(B) 		1-41329-016-0 06 1 0804- ● ● ● ●
225 WASHER; THRUST 1-41349-160-0 01 1 0804- ● ● ● ●
232 SPRING; PISTON 1-41329-086-0 01 1 0804- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 08 1 0804- ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41229-131-0 02 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-033-0 02 1 0804- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-083-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41349-034-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-032-0 02 1 0804- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-084-0 02 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-033-0 01 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 02 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-128-0 01 1 0804- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-088-0 01 1 0804- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0804- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-032-0 01 1 0804- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-089-0 01 1 0804- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-127-0 01 1 0804- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41349-050-0 02 1 0804- ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0804- ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 0804- ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-008-0 01 1 0804- ● ● ● ●
360 FORK; SHIFT
(C) 		1-41371-009-0 01 1 0804- ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-087-0 01 1 0804- ● ● ● ●
361 GEAR; DRIVE 1-41351-040-0 01 1 0804- ● ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 0804- ● ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 0804- ● ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 0804- ● ● ● ●
379 PIN; SPLIT
(A) 		1-41129-012-0 01 1 0804- ● ● ● ●
379 PIN; SPLIT
(B) 		1-41129-013-0 01 1 0804- ● ● ● ●
379 PIN; SPLIT
(C) 		1-41129-021-0 02 1 0804- ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0804- ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0804- ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0804- ● ● ● ●
388 BOLT; COUPLING 1-37249-204-0 08 1 0804- ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-007-0 05 1 0804- ● ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-084-0 08 1 0804- ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0804- ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0804- ● ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 0804- ● ● ● ●
401 GASKET; OIL PUMP 1-41349-155-0 01 1 0804- ● ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 0804- ● ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 0804- ● ● ● ●
411 SLEEVE; CLU 1-41519-090-0 01 1 0804- ● ● ● ●
428 ADAPTER; OIL FILTER 1-41389-020-0 01 1 0804- ● ● ● ●
446 ADAPTER ASM; OIL RETURN 1-41389-021-0 01 1 0804- ● ● ● ●
470 SHIFT KIT 1-48269-258-0 02 1 0804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
