3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#153887) — 14 parça

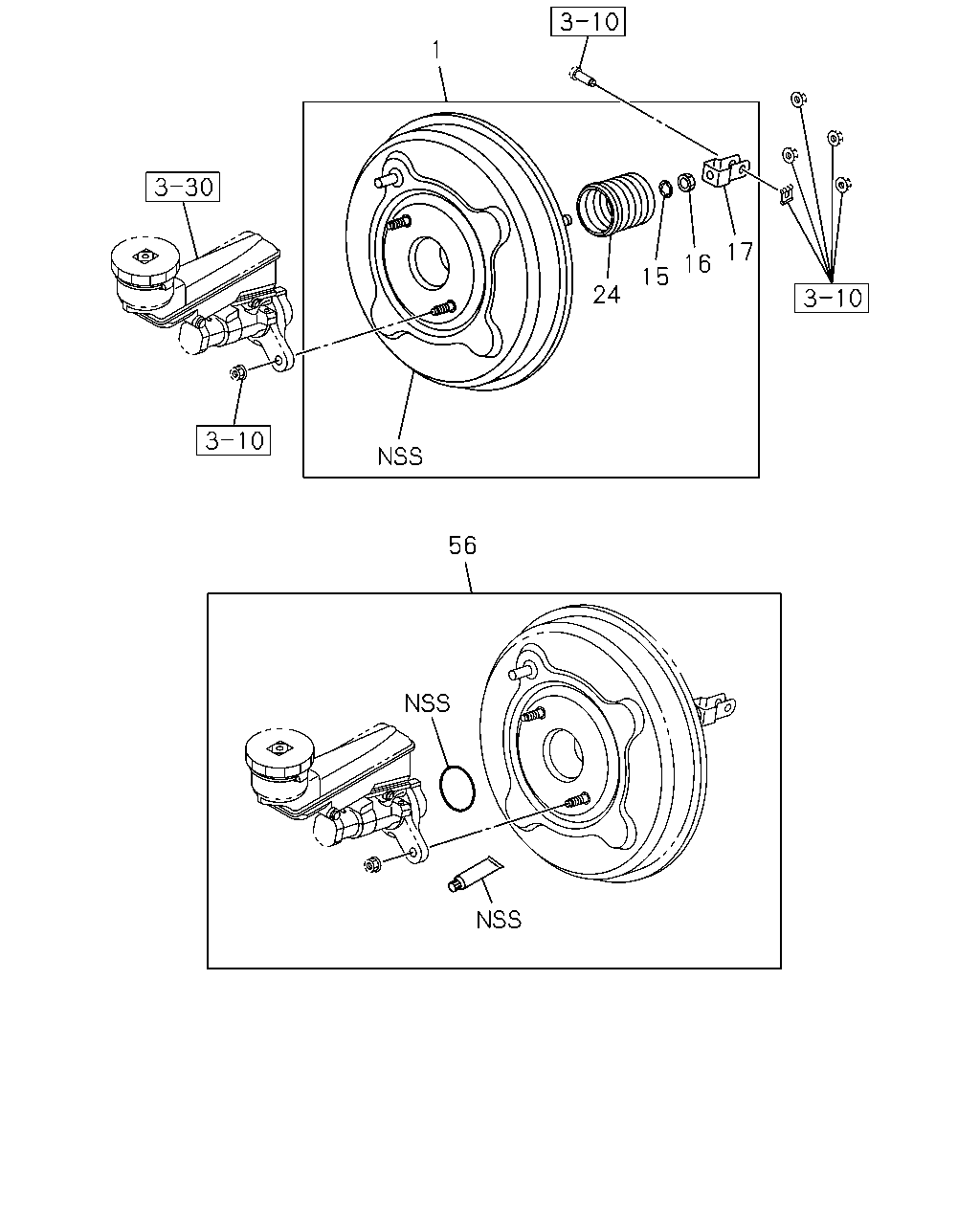

çizim 458796
24 15 16 17 56 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.901 MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-232-1 01 1 1412-1510 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-232-1 01 1 1511- ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-231-1 01 1 1412-1510 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-231-1 01 1 1511- ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-98048-040-0 01 1 1412-1510 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-98048-040-0 01 1 1511- ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC 8-98048-038-0 01 1 1412-1510 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC 8-98048-038-0 01 1 1511- ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-98048-039-0 01 1 1412-1510 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-98048-039-0 01 1 1511- ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-98185-212-0 01 1 1412-1510 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-98185-212-0 01 1 1511- ● ● ● ● ●
56 04.910 GASKET KIT; M/CYL TO SERVO UNIT 8-98185-211-0 01 1 1412-1510 ● ● ● ●
56 04.910 GASKET KIT; M/CYL TO SERVO UNIT 8-98185-211-0 01 1 1511- ● ● ● ● ●
