3-30 — BRAKE MASTER CYLINDER (#153886) — 14 parça

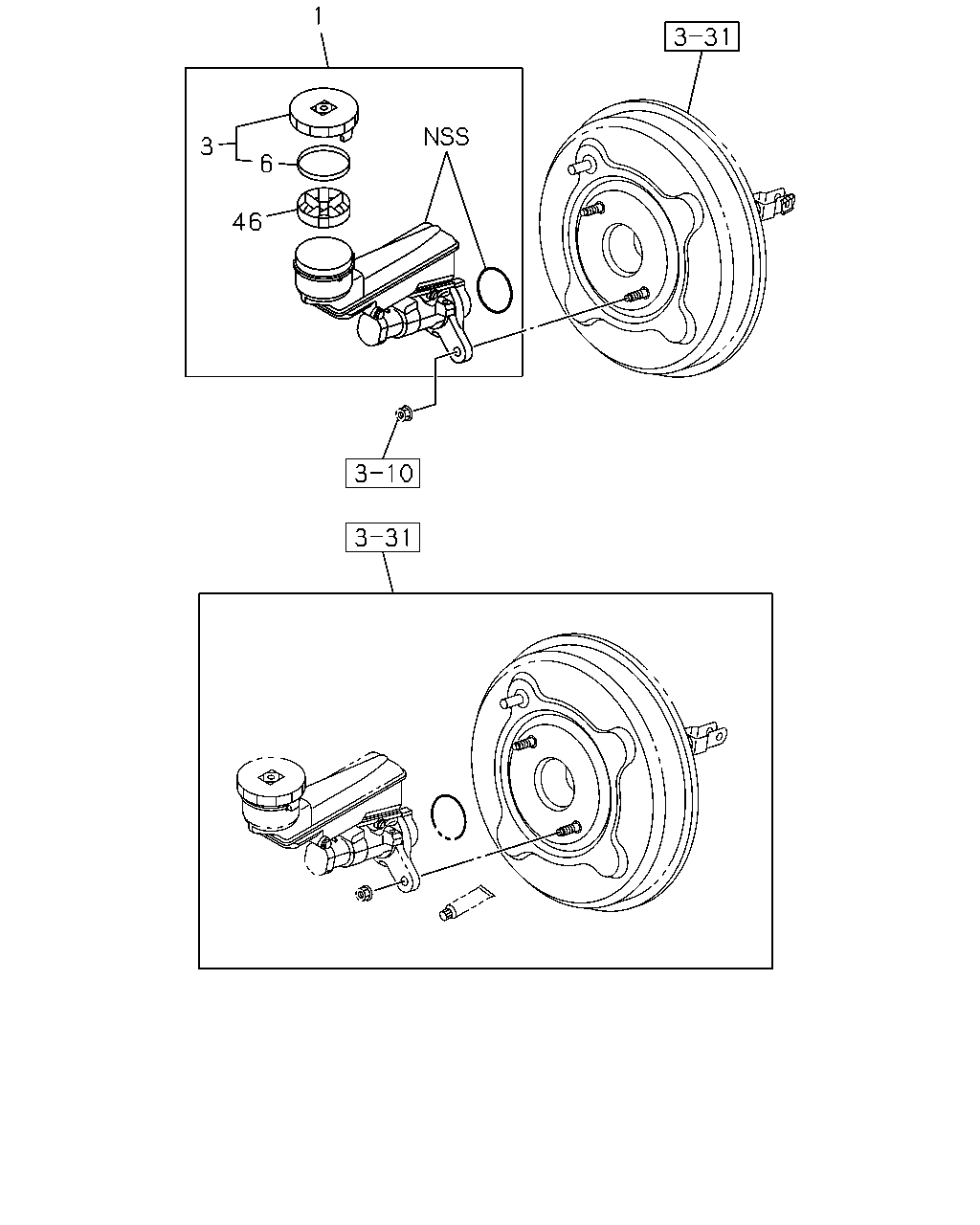

çizim 458913
3 6 46 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-227-0 01 1 1412-1412 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-227-0 01 1 1501-1510 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-227-0 01 1 1511- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-230-0 01 1 1412- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-228-0 01 1 1412- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-229-0 01 1 1412-1412 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-229-0 01 1 1501-1510 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-229-0 01 1 1511- ● ●
3 04.651 CAP; OIL TANK 8-98047-704-0 01 1 1412-1510 ● ● ● ●
3 04.651 CAP; OIL TANK 8-98047-704-0 01 1 1511- ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL 8-98047-706-0 01 1 1412-1510 ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL 8-98047-706-0 01 1 1511- ● ● ● ● ●
46 04.651 FILTER; OIL TANK,M/CYL 8-98047-702-0 01 1 1412-1510 ● ● ● ●
46 04.651 FILTER; OIL TANK,M/CYL 8-98047-702-0 01 1 1511- ● ● ● ● ●
