◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#153881) — 34 parça

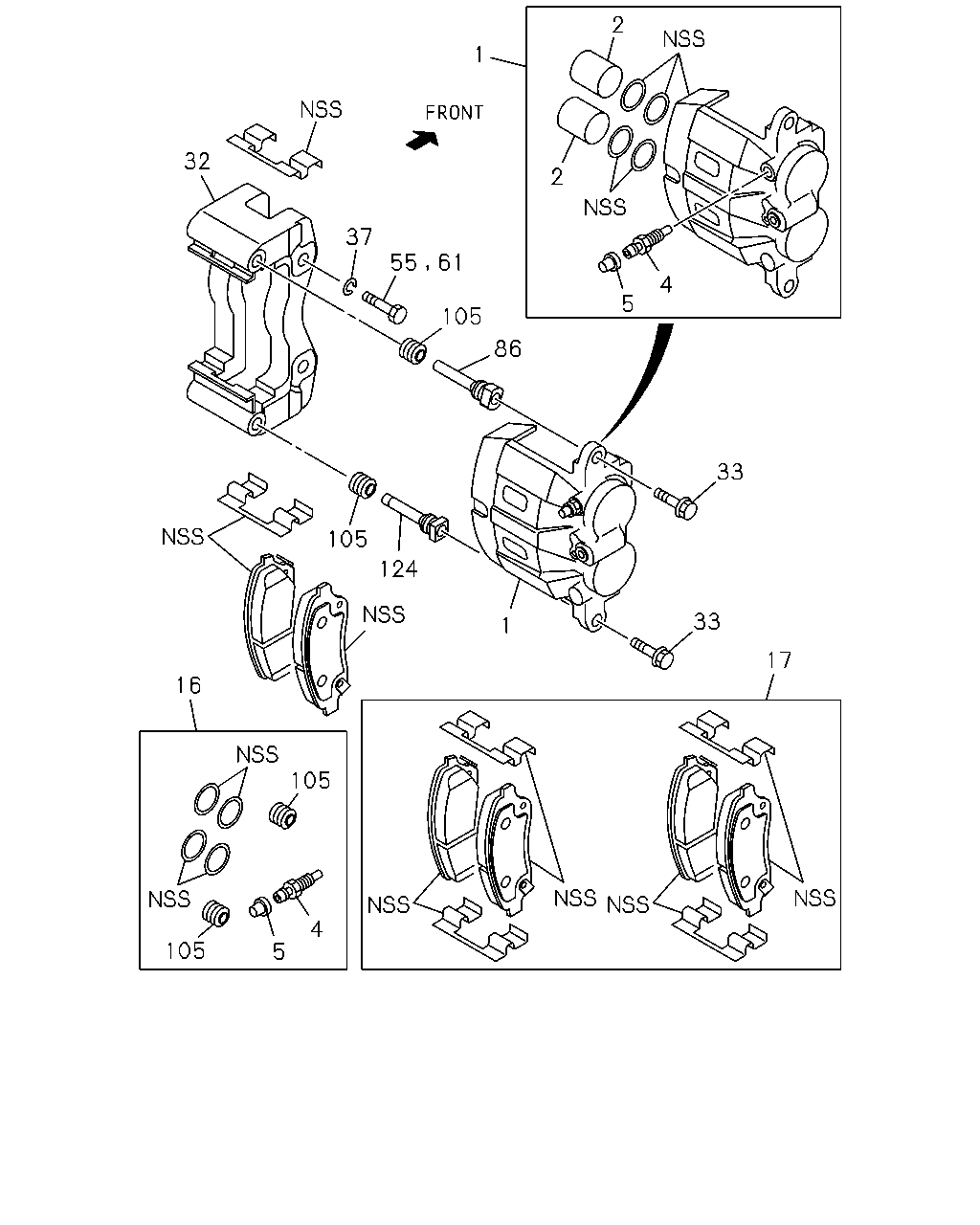

çizim 458615
17 33 33 1 124 105 16 105 4 5 105 86 105 61 55 37 1 2 2 4 5 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.665 CALIPER; FRT DISC BRK 8-98077-996-0 01 1 1412-1510 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98077-996-0 01 1 1511- ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98077-997-0 01 1 1412-1510 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98077-997-0 01 1 1511- ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-98078-000-0 04 1 1412-1510 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-98078-000-0 04 1 1511- ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1412-1510 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1511- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1412-1510 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1511- ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98079-105-0 01 1 1412-1510 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98079-105-0 01 1 1511- ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97947-466-0 01 1 1412-1510 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-466-0 01 1 1412-1510 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97947-466-0 01 1 1511- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-466-0 01 1 1511- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97947-571-0 01 1 1412- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97947-571-0 01 1 1412- ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-97947-221-0 02 1 1412-1510 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-97947-221-0 02 1 1511- ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK 8-98078-192-0 04 1 1412-1510 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK 8-98078-192-0 04 1 1511- ● ● ● ● ●
37 04.665 WASHER; LK
06.174 ID=14.2 		0-91510-814-0 04 1 1412-1510 ● ● ● ●
37 04.665 WASHER; LK
06.174 ID=14.2 		0-91510-814-0 04 1 1511- ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-98037-731-0 02 1 1412-1510 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-98037-731-0 02 1 1511- ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
04.681 		8-98037-731-0 02 1 1412-1510 ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
04.681 		8-98037-731-0 02 1 1511- ● ● ● ● ●
86 04.665 PIN; GUIDE 8-98078-175-0 02 1 1412-1510 ● ● ● ●
86 04.665 PIN; GUIDE 8-98078-175-0 02 1 1511- ● ● ● ● ●
105 04.665 BOOT; CALIPER 8-98078-193-0 04 1 1412-1510 ● ● ● ●
105 04.665 BOOT; CALIPER 8-98078-193-0 04 1 1511- ● ● ● ● ●
124 04.665 PIN ASM; W/BUSH 8-98078-176-0 02 1 1412-1510 ● ● ● ●
124 04.665 PIN ASM; W/BUSH 8-98078-176-0 02 1 1511- ● ● ● ● ●
