◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#153876) — 10 parça

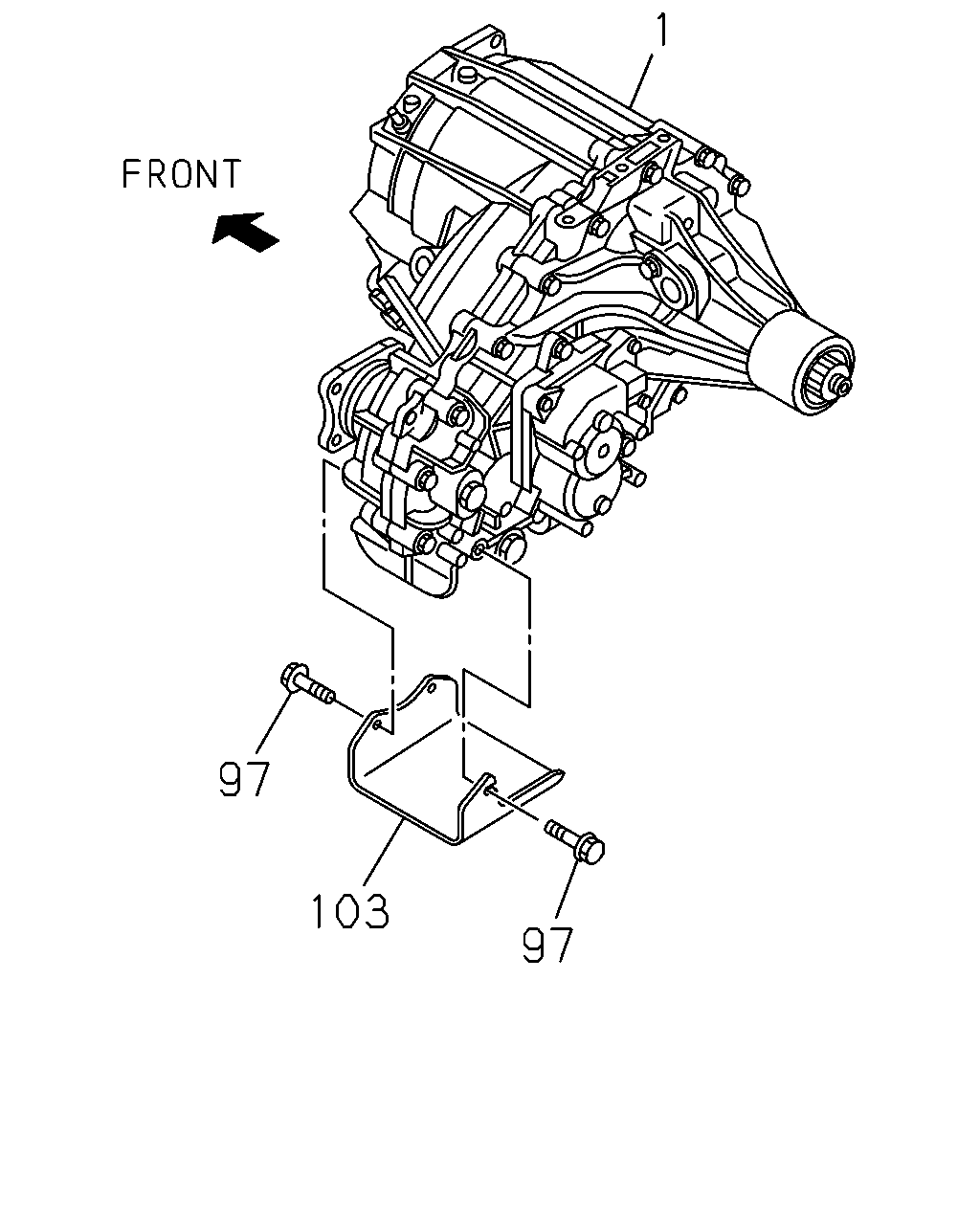

çizim 459333
97 103 97 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> 		8-98241-871-0 01 1 1412-1510 ● ●
1 04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 		8-98241-871-0 01 1 1511- ● ●
1 04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98196-934-0 01 1 1412-1510 ● ●
1 04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98196-934-0 01 1 1511- ● ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> 		8-98241-872-0 01 1 1412-1508 ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> 		8-98316-292-0 01 1 1509- ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98196-935-0 01 1 1412-1508 ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98316-291-0 01 1 1509- ●
97 04.512 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1412- ● ●
103 04.510 GUARD; TRANSFER 8-98125-254-0 01 1 1412- ● ●
