Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

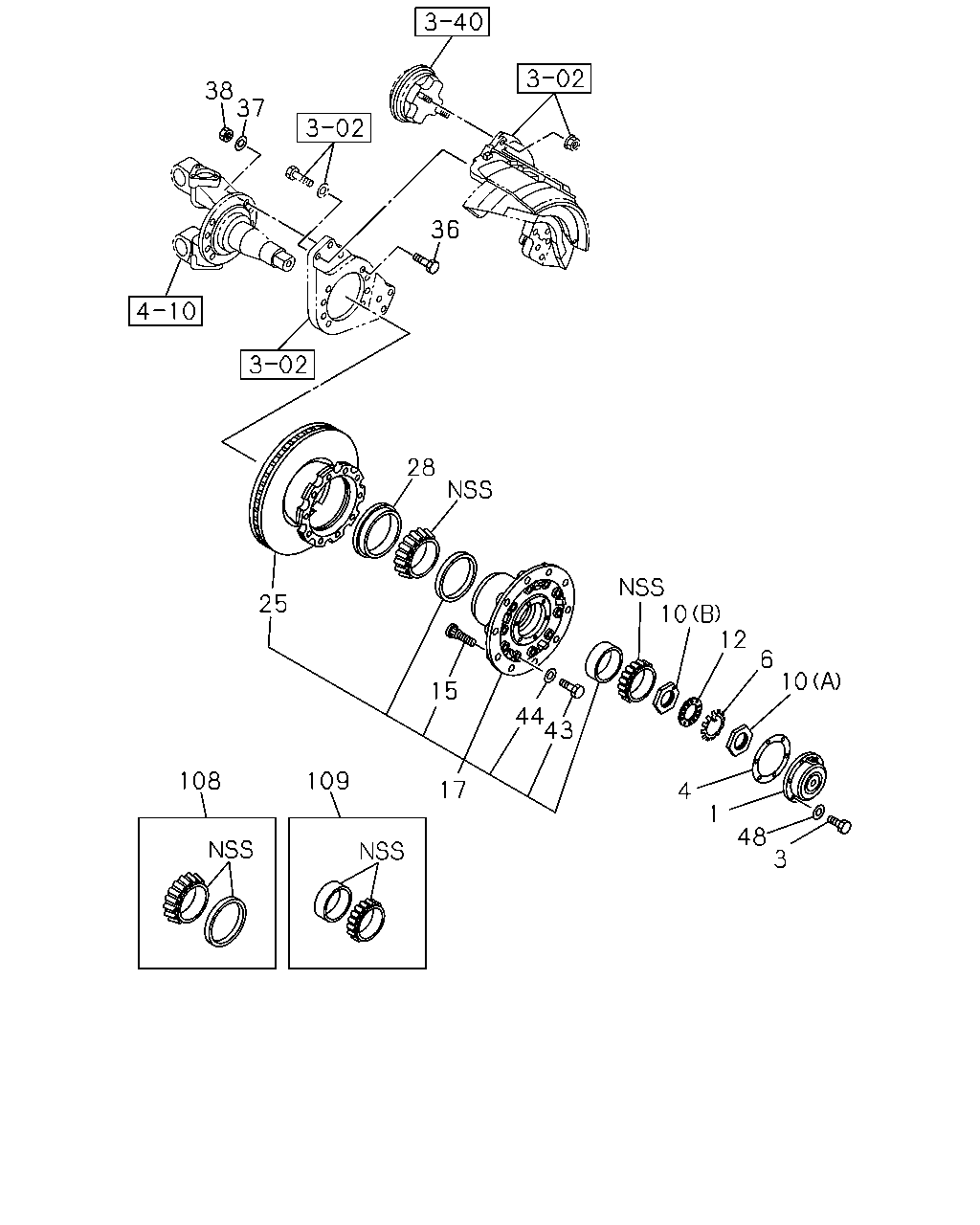

4-11 — FRONT HUB AND DRUM OR ROTOR
(#15387) — 21 parça
10
6
12
10
43
44
15
17
48
3
1
4
109
108
28
36
37
38
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-028-0
02
1
0804-
3
BOLT; HUB CAP,FRT WHEEL
1-42319-189-0
12
1
0804-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-186-0
02
1
0804-
6
WASHER; LK,FRT HUB
1-42329-020-0
02
1
0804-
10
NUT; FRT HUB BRG
(A)
1-42329-019-0
02
1
0804-
10
NUT; FRT HUB BRG
(B)
1-42329-022-0
02
1
0804-
12
WASHER; LK,FRT HUB BRG
1-42329-021-0
02
1
0804-
15
PIN; WHEEL,FRT AXLE
1-42337-085-0
20
1
0804-
17
HUB; FRT AXLE
8-98105-037-0
02
1
0804-
25
ROTOR; DISC BRK,FRT
1-42316-051-0
02
1
0804-
28
SEAL; OIL,FRT HUB
1-09625-652-0
02
1
0804-
36
BOLT; BACK PLATE
1-42319-215-0
14
1
0804-1507
36
BOLT; BACK PLATE
8-98332-125-0
14
1
1508-
37
WASHER; LK,BACK PLATE
1-42319-214-0
14
1
0804-
38
NUT; BACK PLATE
1-42319-216-0
14
1
0804-1507
38
NUT; BACK PLATE
8-98332-124-0
14
1
1508-
43
BOLT; DISC BRAKE FIX
8-98105-043-0
20
1
0804-
44
WASHER; LK,DISC BRAKE
1-41229-168-0
20
1
0804-
48
WASHER; LK,HUB CAP,FRT WHEEL
1-42319-190-0
12
1
0804-
108
BEARING SET; HUB,INNER
8-98332-061-0
02
1
0804-
109
BEARING SET; HUB,OUTER
8-98332-060-0
02
1
0804-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
