◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#153864) — 37 parça

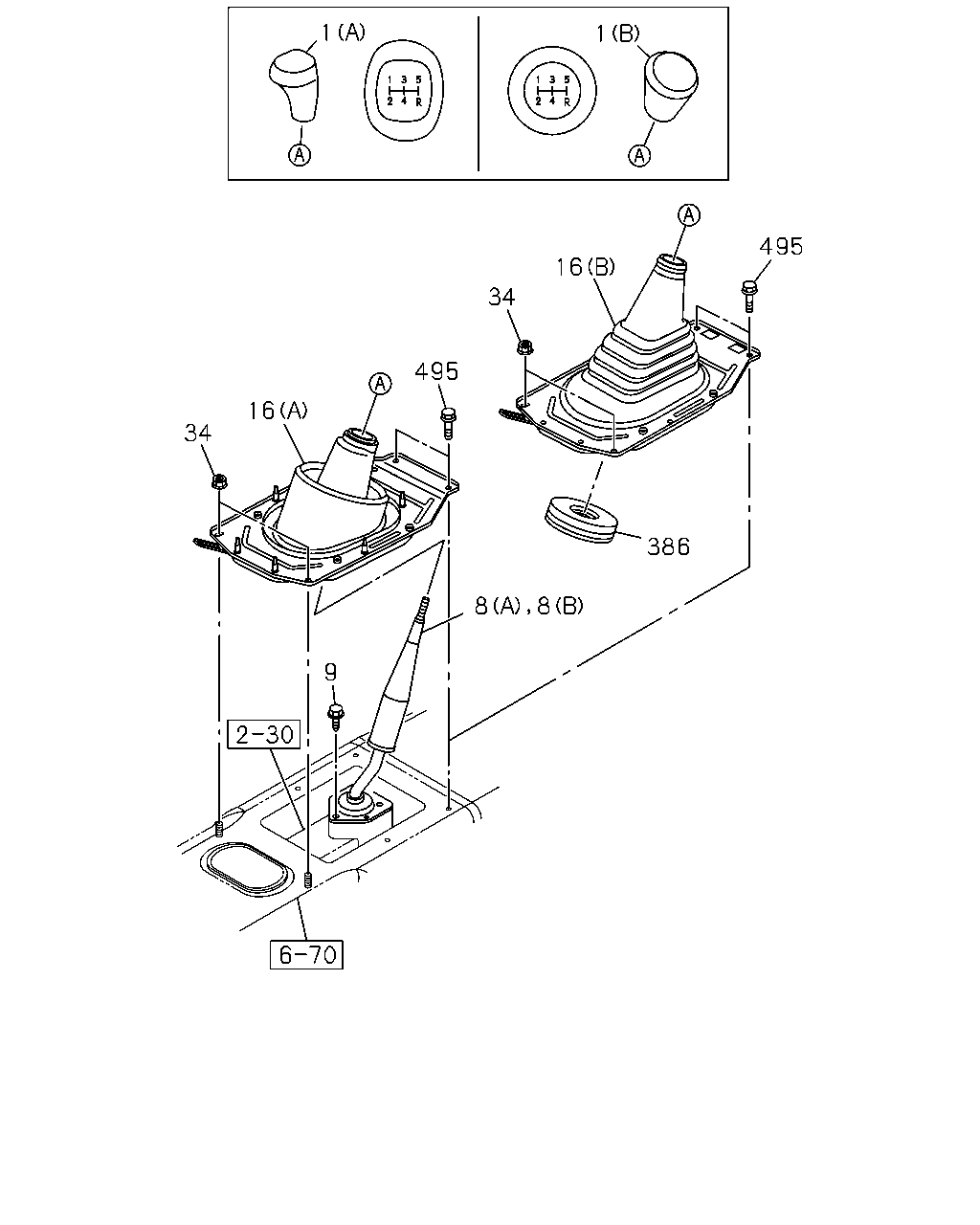

çizim 458056
1 1 495 16 34 386 8 8 9 495 16 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1412-1412 ● ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1501-1510 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1511- ● ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER 		8-97423-313-0 01 1 1412-1510 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER 		8-97423-313-0 01 1 1511- ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBSILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1412-1412 ● ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBSILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1501-1510 ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBSILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1511- ● ● ●
8 04.006 LEVER; CHANGE
(B) 		8-98106-277-0 01 1 1511- ●
8 04.006 LEVER; CHANGE
(A) 		8-98204-209-1 01 1 1412-1412 ●
8 04.006 LEVER; CHANGE
(A) 		8-98202-734-1 01 1 1412- ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1412-1412 ● ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1501- ● ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1412-1412 ● ● ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1501-1510 ● ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1511- ● ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1412-1412 ● ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1501-1510 ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1511- ● ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1412-1412 ● ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1501-1510 ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1511- ● ● ●
386 04.015 INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98191-338-0 01 1 1412-1412 ● ● ●
386 04.015 INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98191-338-0 01 1 1501-1510 ● ●
386 04.015 INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98191-338-0 01 1 1511- ● ● ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1412-1412 ● ● ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1501-1510 ● ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ● ●
çizim 458057
8 8 22 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 04.006 LEVER; CHANGE
(B) 		8-98106-277-0 01 1 1511- ●
8 04.006 LEVER; CHANGE
(A) 		8-98204-209-1 01 1 1412-1412 ●
8 04.006 LEVER; CHANGE
(A) 		8-98202-734-1 01 1 1412- ● ●
22 04.015 COVER; DUST,CHANGE LEVER 8-97945-801-0 01 1 1412-1412 ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER 8-97945-801-0 01 1 1501- ● ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 1412-1412 ● ● ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 1501-1510 ● ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
