2-30 — GEAR SHIFTER AND QUADRANT BOX (#153863) — 176 parça

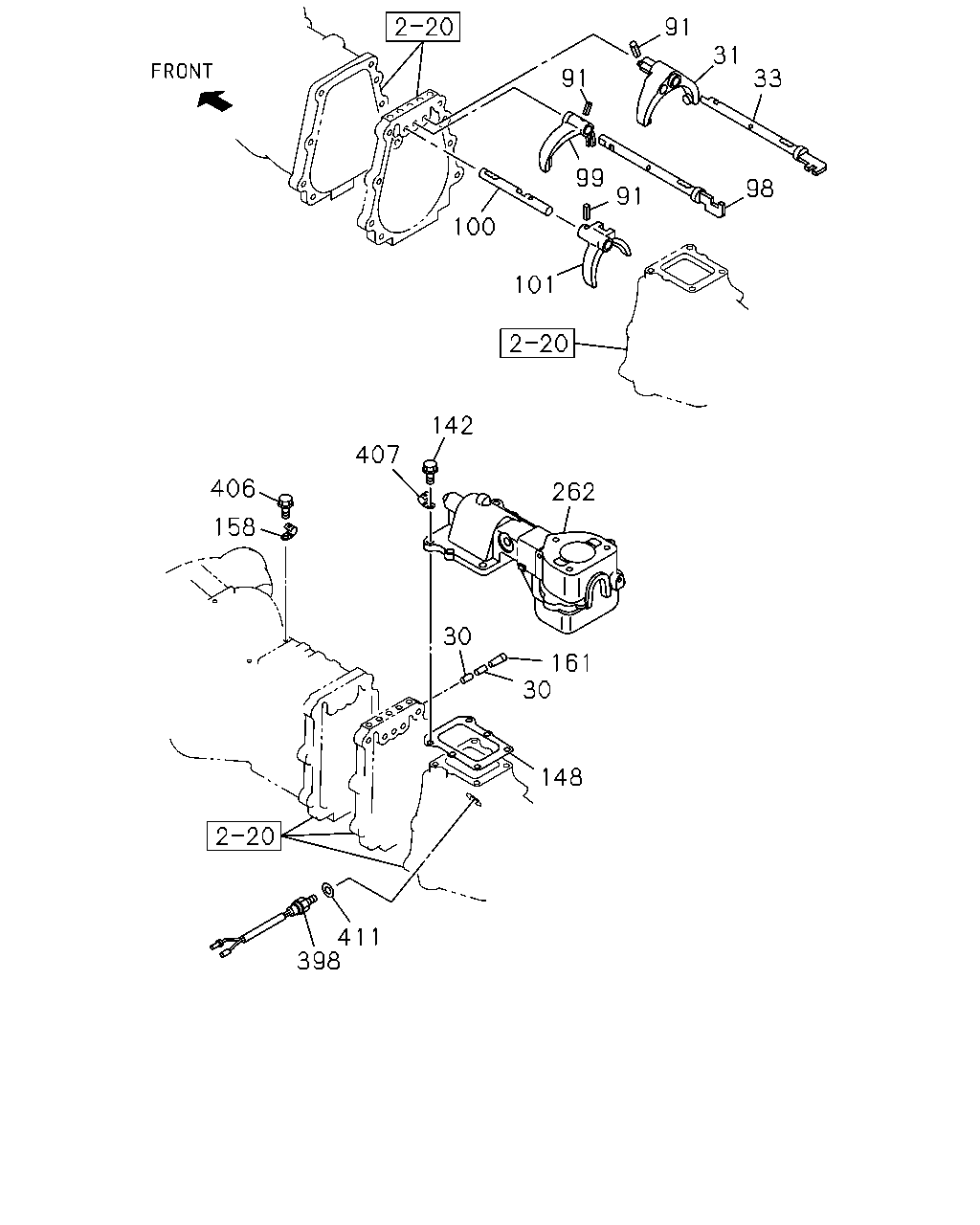

398 411 148 30 161 30 262 142 407 406 158 101 100 91 99 98 33 31 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1412-1412	●	●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1501-		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97362-435-0	01	1	1511-				●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1412-		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	1412-1412	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1511-				●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1412-		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1412-1412	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1412-1412	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1501-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1412-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	1412-1412	●
99	04.302 ARM; SHIFT,4TH & 3RD 04.303	8-97362-439-2	01	1	1511-				●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1412-		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1412-1412	●
100	04.309 ROD; SHIFT,REV & 5TH	8-97232-885-0	01	1	1412-1412	●
101	04.302 ARM; SHIFT,REV & 5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-894-0	01	1	1412-		●	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-755-2	01	1	1412-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	1412-1412	●
142	04.012 BOLT; QUAD BOX 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1511-				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1412-1412	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1501-		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1412-		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	1412-1412	●
158	04.105 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1412-1412	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1412-1412	●	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1501-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1412-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1412-1412	●
398	02.698 SWITCH; REV LAMP	8-98180-973-0	01	1	1511-				●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1412-1412	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1501-		●	●
406	02.559 BOLT; HARNESS CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-1412	●
407	02.698 CLIP; SWITCH HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1412-1412	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1412-1412	●

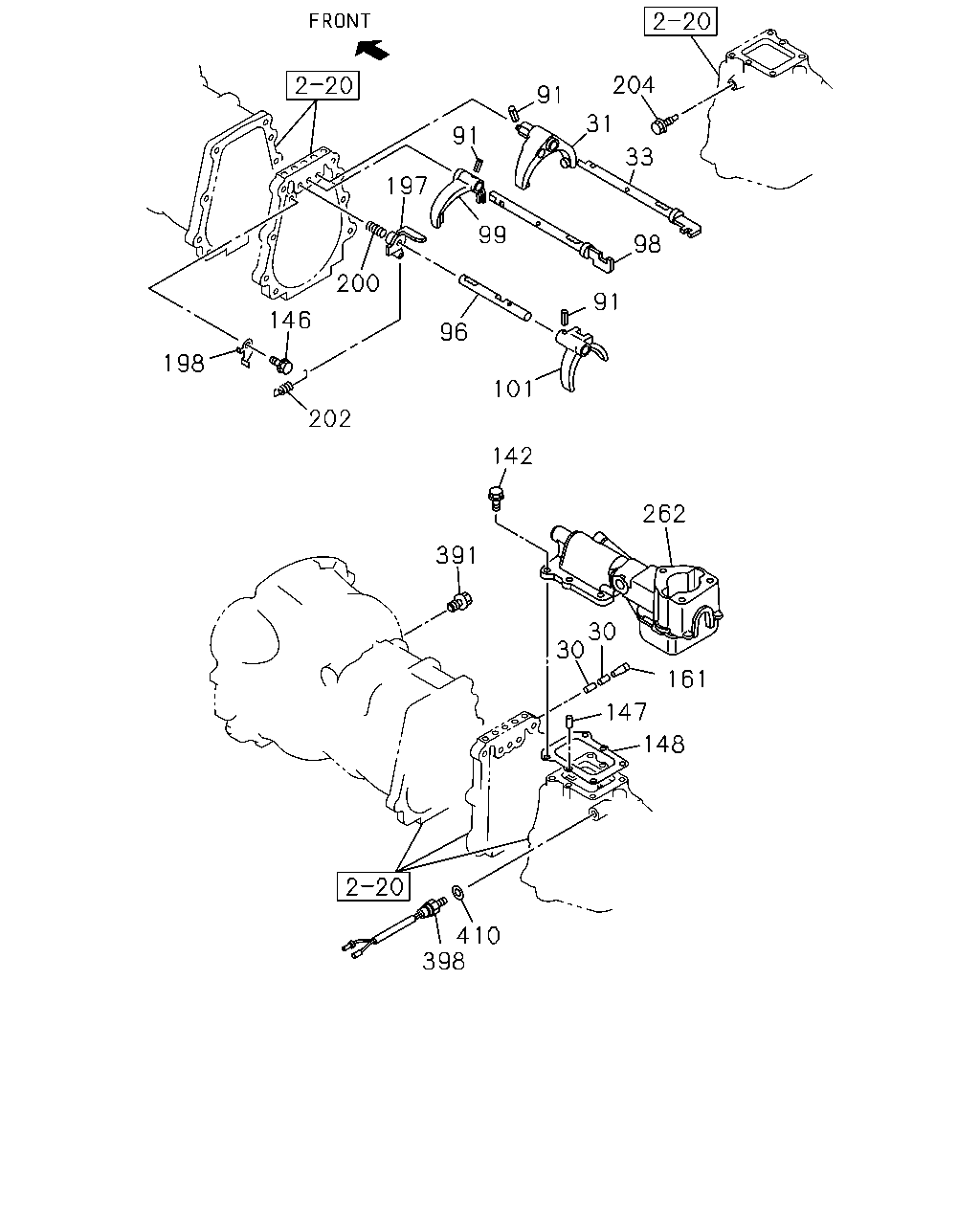

204 31 91 33 91 197 99 91 101 96 200 146 198 202 142 262 161 30 30 147 148 410 398 391 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1412-1412	●	●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1501-		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97362-435-0	01	1	1511-				●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1412-		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	1412-1412	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1511-				●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1412-		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1412-1412	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1412-1412	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1501-		●	●
96	04.309 ROD; SHIFT,5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-886-0	01	1	1412-		●	●
96	04.309 ROD; SHIFT,5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94440-079-1	01	1	1412-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1412-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	1412-1412	●
99	04.302 ARM; SHIFT,4TH & 3RD 04.303	8-97362-439-2	01	1	1511-				●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1412-		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1412-1412	●
101	04.302 ARM; SHIFT,REV & 5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-894-0	01	1	1412-		●	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-755-2	01	1	1412-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	1412-1412	●
142	04.012 BOLT; QUAD BOX 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1511-				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1412-1412	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1501-		●	●
146	04.032 BOLT; REV INHIBITOR IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1412-		●	●
146	04.032 BOLT; REV INHIBITOR EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1412-		●	●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	1412-		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1412-		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	1412-1412	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1412-1412	●	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1501-		●	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	1412-		●	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	1412-		●	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	1412-		●	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	1412-		●	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	1412-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1412-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1412-1412	●
391	04.104 PLUG; SW HOLE M14X11	8-98035-674-0	01	1	1412-			●
398	02.698 SWITCH; REV LAMP	8-98180-973-0	01	1	1511-				●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1412-1412	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1501-		●	●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1412-		●	●

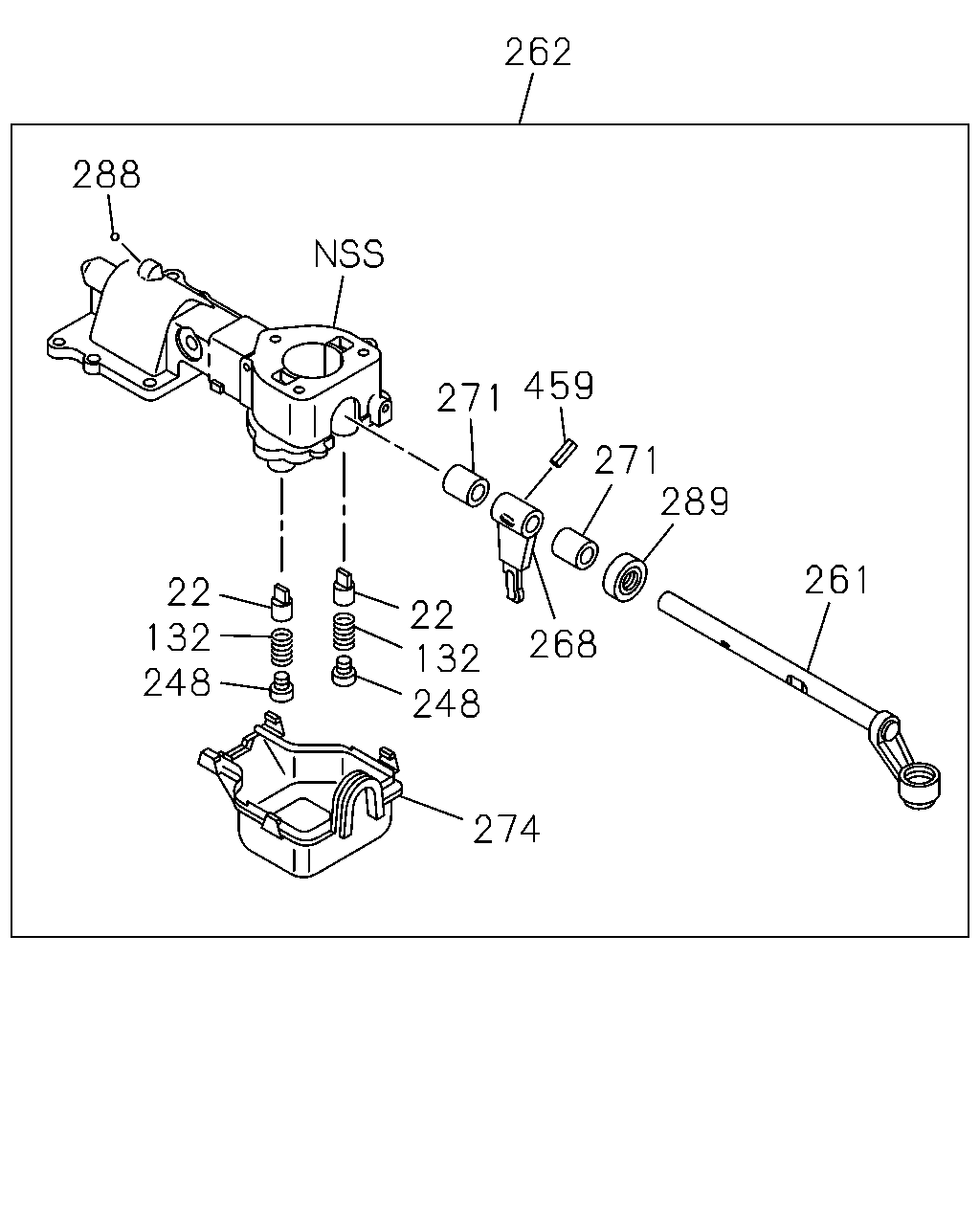

262 268 289 261 459 248 132 22 22 132 248 172 171 274 288 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1412-1412	●	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1501-		●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1412-1412	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1501-		●	●
171	04.054 SWITCH; NEUTRAL	8-98180-974-0	01	1	1511-				●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1412-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1412-		●	●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1412-1412	●	●	●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1501-		●	●
261	04.309 ROD; GEAR CONT	8-97362-444-0	01	1	1511-				●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1412-		●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1412-1412	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1412-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1412-1412	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1412-		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	1412-1412	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1412-1412	●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1501-		●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1412-1412	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1501-		●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1412-1412	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1501-		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1412-1412	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1501-		●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1412-1412	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1501-		●	●

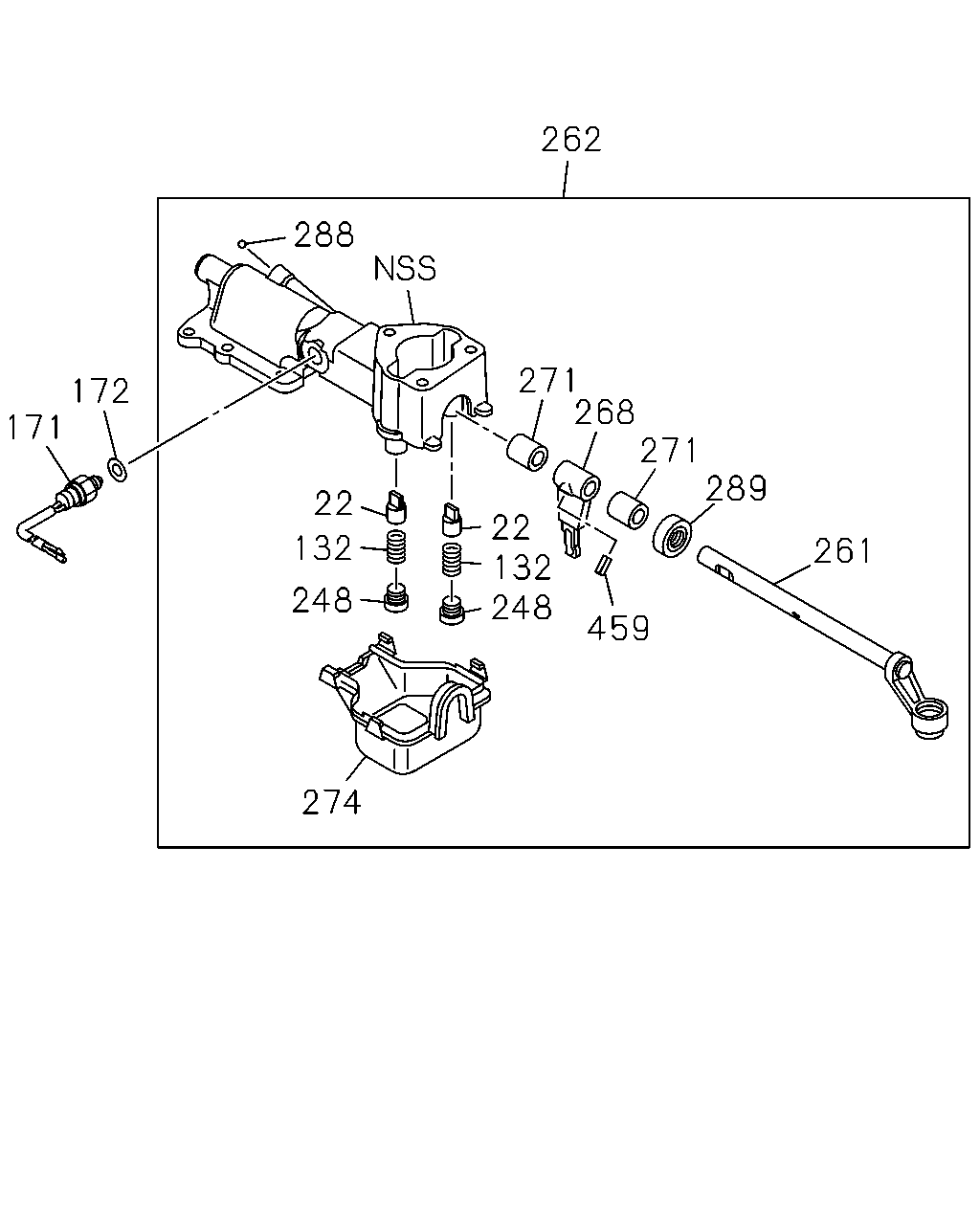

274 268 261 132 248 22 22 132 248 289 271 459 271 288 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1412-1412	●	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1501-		●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1412-1412	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1501-		●	●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1412-1412	●	●	●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1501-		●	●
261	04.309 ROD; GEAR CONT	8-97362-444-0	01	1	1511-				●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1412-		●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1412-1412	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1412-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1412-1412	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1412-		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	1412-1412	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1412-1412	●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1501-		●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1412-1412	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1501-		●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1412-1412	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1501-		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1412-1412	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1501-		●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1412-1412	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1501-		●	●

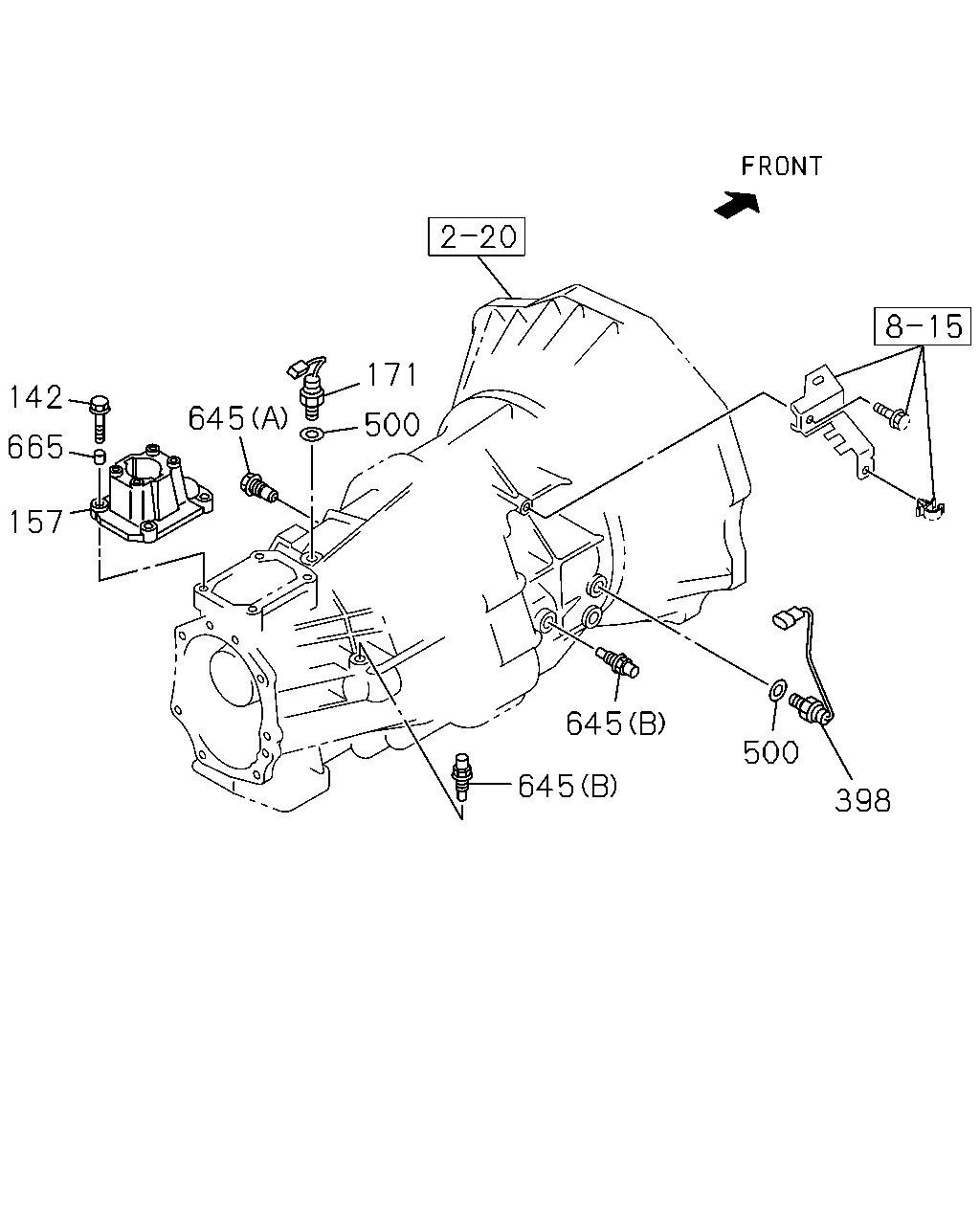

142 645 171 500 665 157 645 645 500 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
142	04.012 BOLT; QUAD BOX 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1511-				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1412-1412	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1501-		●	●
157	04.105 BOX; QUAD,TRANS	8-98094-798-1	01	1	1511-				●
171	04.054 SWITCH; NEUTRAL	8-98180-974-0	01	1	1511-				●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1412-		●
398	02.698 SWITCH; REV LAMP	8-98180-973-0	01	1	1511-				●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1412-1412	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1501-		●	●
500	04.075 GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1511-				●
645	04.311 DETENT ASM (A)	8-97362-469-2	01	1	1511-				●
645	04.311 DETENT ASM 04.307 (B)	8-98019-536-0	02	1	1511-				●
665	00.206 DOWEL OD=11 L=8	9-11229-058-1	02	1	1511-				●

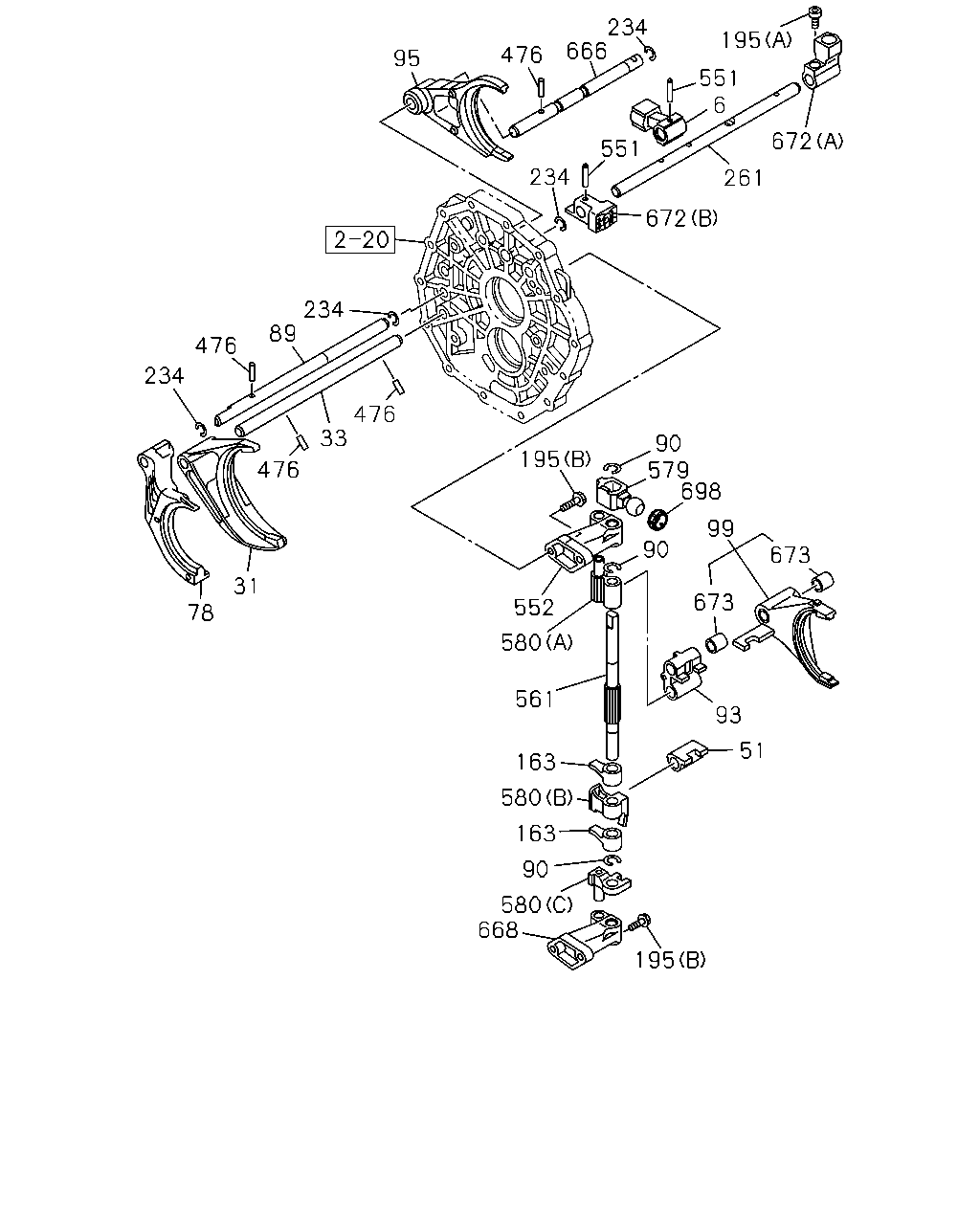

234 666 476 195 551 672 261 672 551 234 95 234 89 476 234 476 33 476 31 78 552 580 561 195 90 698 579 99 673 673 93 51 163 580 163 90 580 668 195 6 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	04.302 LEVER; RELAY	8-98095-658-1	01	1	1511-				●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97362-435-0	01	1	1511-				●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1412-		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	1412-1412	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1511-				●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1412-		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1412-1412	●
51	04.303 BLOCK; SHIFT,1ST & 2ND 04.302	8-98186-703-0	01	1	1511-				●
78	04.302 ARM; SHIFT,REV	8-97362-434-1	01	1	1511-				●
89	04.309 ROD; SHIFT,REV	8-98106-032-0	01	1	1511-				●
90	04.307 RING; SNAP,SHIFT ROD ID=12	8-94460-357-0	03	1	1511-				●
93	04.303 BLOCK; SHIFT,REV & 5TH	8-98106-035-0	01	1	1511-				●
95	04.302 ARM; SHIFT,5TH	8-97362-436-1	01	1	1511-				●
99	04.302 ARM; SHIFT,4TH & 3RD 04.303	8-97362-439-2	01	1	1511-				●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1412-		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1412-1412	●
163	04.302 LEVER; SELECT,INTERNAL	8-98052-461-0	02	1	1511-				●
195	04.105 BOLT (A) M8X8.5 TAPER	8-97250-975-0	01	1	1511-				●
195	04.105 BOLT (B) M8X30 FLANGE	8-98034-764-0	04	1	1511-				●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	04	1	1511-				●
261	04.309 ROD; GEAR CONT	8-97362-444-0	01	1	1511-				●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1412-		●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1412-1412	●
476	04.311 PIN; SHIFT ROD 04.303 D=4.2 L=25	8-94171-541-0	04	1	1511-				●
551	04.303 PIN; SPRING D=4.2 L=25	8-94171-541-0	02	1	1511-				●
552	04.105 BRACKET	8-97362-465-1	01	1	1511-				●
561	04.309 ROD; SHIFT	8-98095-659-1	01	1	1511-				●
579	04.303 BLOCK; SHIFT,ROD GUIDE	8-98095-657-0	01	1	1511-				●
580	04.303 BLOCK; INTERLOCK (A)	8-97362-461-1	01	1	1511-				●
580	04.303 BLOCK; INTERLOCK (B)	8-98052-462-0	01	1	1511-				●
580	04.303 BLOCK; INTERLOCK (C)	8-98186-700-0	01	1	1511-				●
666	04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH	8-97362-442-2	01	1	1511-				●
668	04.309 BRACKET; SHIFT ROD 04.105	8-97362-465-1	01	1	1511-				●
672	04.303 BLOCK; SHIFT,T/M CONTROL (A)	8-97362-467-0	01	1	1511-				●
672	04.303 BLOCK; SHIFT,T/M CONTROL (B)	8-98095-689-1	01	1	1511-				●
673	04.309 BEARING; SHIFT ARM 00.683	8-97362-853-0	02	1	1511-				●
698	04.303 SEAT; SHIFT CONT 04.307	8-98073-812-0	01	1	1511-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
