Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#153862) — 601 parça

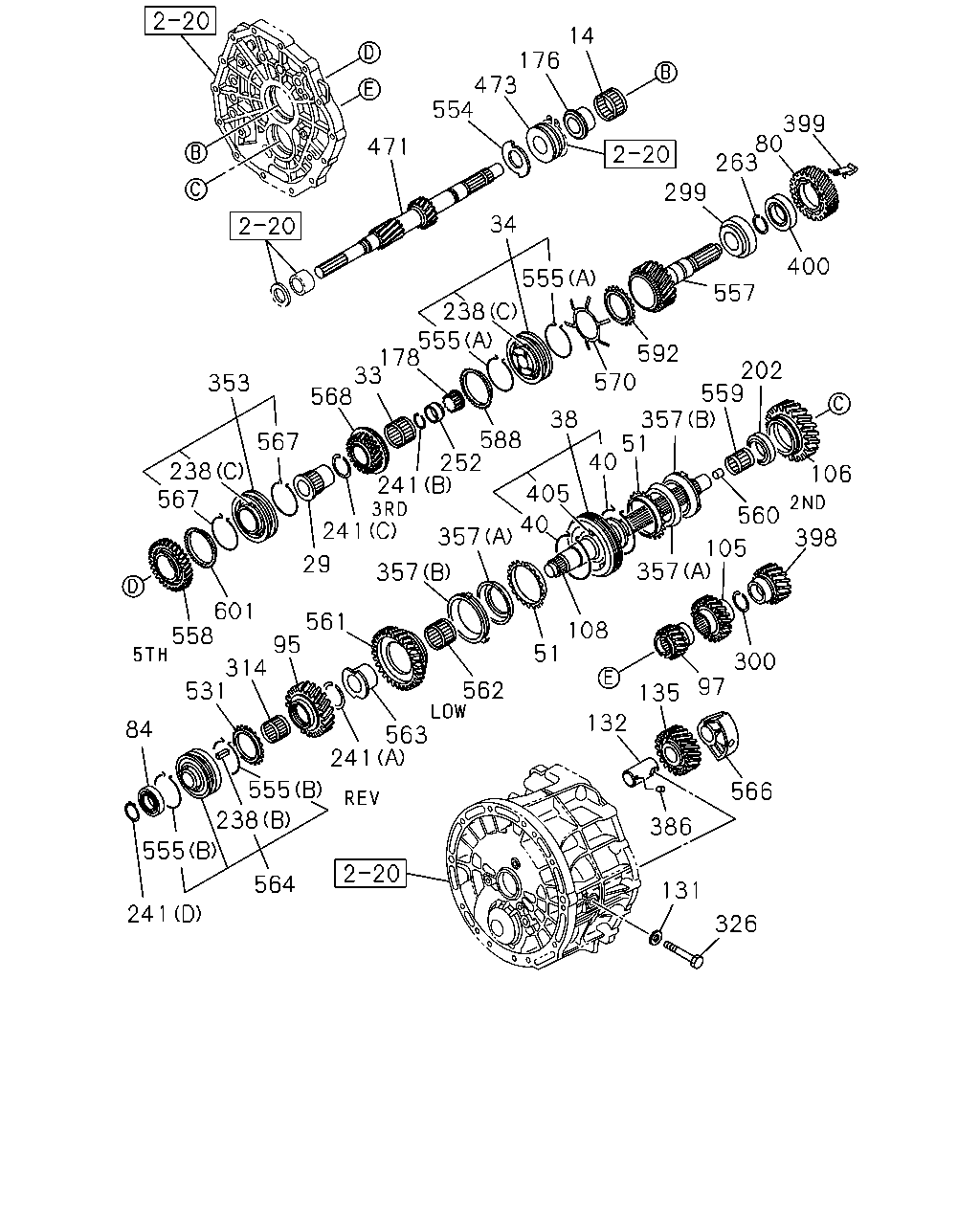

471 554 473 176 14 34 238 555 592 557 400 399 80 263 299 555 178 33 568 567 353 238 567 558 531 84 314 29 561 95 601 555 238 555 241 564 241 562 563 51 357 357 241 241 252 588 38 570 40 405 40 51 357 559 202 106 398 560 105 357 108 300 97 135 132 386 131 566 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	04.419 BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1511-	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1412-		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1412-1412				●
29	04.416 COLLAR; 3RD GEAR	8-97362-568-1	01	1	1511-	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1412-1510		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1511-	●	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1511-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1412-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1412-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1412-1412				●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1511-	●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1412-		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1412-		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1412-1412				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1412-1510		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1511-	●	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1412-1412				●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1412-1510		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1511-	●	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1412-1412				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7	8-98123-463-0	01	1	1511-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1412-		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1412-			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1412-1412				●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-97362-724-0	01	1	1511-	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	1412-1412				●
95	04.417 GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1511-	●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-1412				●
97	04.415 GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1511-	●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1412-1412				●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-			●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-			●
105	04.415 GEAR; 3RD,COUNTER Z=31	8-98233-612-0	01	1	1511-	●
106	04.395 GEAR; 2ND,COUNTER Z=38	8-98210-236-0	01	1	1511-	●
108	04.428 SHAFT; COUNTER Z=26-34-26-26	8-98023-108-1	01	1	1511-	●
131	04.435 GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=12.2	9-09571-412-0	01	1	1511-	●
132	04.433 SHAFT; REV	8-98023-113-0	01	1	1511-	●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-		●	●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-		●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-1412				●
135	04.430 GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1511-	●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-		●	●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-		●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-1412				●
176	04.415 COLLAR; 5TH GEAR	8-97362-567-0	01	1	1511-	●
178	04.352 BEARING; NEEDLE,MAINSHAFT	8-97362-869-0	01	1	1511-	●
202	04.422 BEARING; COUNTER GEAR	8-97362-725-0	01	1	1511-	●
238	04.384 INSERT (B)	8-94249-576-2	03	1	1511-	●
238	04.384 INSERT (C)	8-98004-522-0	06	1	1511-	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	1412-		●	●
241	04.416 RING; SNAP 04.422 (A) ID=34.4 T=1.9	8-97254-735-0	01	1	1511-	●
241	04.416 RING; SNAP (B) ID=27.1 T=1.9	8-97362-871-0	01	1	1511-	●
241	04.416 RING; SNAP (B) ID=27.1 T=2.1	8-97362-872-0	01	1	1511-	●
241	04.416 RING; SNAP (B) ID=27.1 T=2.3	8-97362-873-0	01	1	1511-	●
241	04.416 RING; SNAP (C) ID=37 T=1.95	8-98004-523-1	01	1	1511-	●
241	04.416 RING; SNAP (C) ID=37 T=2.1	8-98004-524-1	01	1	1511-	●
241	04.416 RING; SNAP (D) ID=27.9	9-09180-030-0	01	1	1511-	●
252	04.412 SPACER	8-98024-456-0	01	1	1511-	●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.1	8-98004-525-0	01	1	1511-	●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.2	8-98004-526-0	01	1	1511-	●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.3	8-98004-527-0	01	1	1511-	●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.4	8-98004-528-0	01	1	1511-	●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.5	8-98004-529-0	01	1	1511-	●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.6	8-98004-530-0	01	1	1511-	●
299	04.422 BEARING; OUTPUT SHAFT FRT	8-97362-722-0	01	1	1511-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.3	8-98024-222-1	01	1	1511-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.5	8-98024-223-1	01	1	1511-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.7	8-98024-224-1	01	1	1511-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	1511-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1412-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1412-		●	●
326	04.412 BOLT; REV SHAFT 04.439 M12X70	9-92621-270-0	01	1	1511-	●
353	04.380 SYNCHRONIZER; 5TH	8-98004-511-1	01	1	1511-	●
357	04.383 RING (B) OD=95.8	8-94363-056-0	02	1	1511-	●
357	04.383 RING (A) OD=90.0	8-98115-793-0	02	1	1511-	●
386	04.435 PIN; REV SHAFT 00.662 OD=4 L=8	9-08160-408-0	01	1	1511-	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1412-		●	●
398	04.421 GEAR; COUNTER Z=23	8-98106-584-0	01	1	1511-	●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1412-		●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1412-		●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1412-1412				●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1412-1510		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1412-1510			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1511-		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1511-			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94310-229-0	01	1	1511-	●
400	04.408 BEARING; OUTPUT SHAFT RR	8-97362-723-0	01	1	1511-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-1510		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1511-	●	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-1412				●
471	04.530 SHAFT; INPUT Z=24-14-20-27	8-98106-034-0	01	1	1511-	●
473	04.352 BEARING; INPUT SHAFT	8-97362-721-1	01	1	1511-	●
531	04.383 RING; BLOCK,REV OD=74	8-98037-846-0	01	1	1511-	●
554	04.422 IMPELLER; OIL	8-97362-730-0	01	1	1511-	●
555	04.384 SPRING; INSERT (A)	5-33264-012-0	02	1	1511-	●
555	04.384 SPRING; INSERT (B)	8-97109-690-0	02	1	1511-	●
557	04.535 GEAR; OUTPUT 4X2(TFB***) Z=31-27	8-98210-238-0	01	1	1511-	●
557	04.535 GEAR; OUTPUT 4X4(TFS***) Z=31-27	8-98210-239-0	01	1	1511-	●
558	04.415 GEAR; 5TH,INPUT SHAFT Z=46	8-98233-610-0	01	1	1511-	●
559	04.352 BEARING; NEEDLE,LOW & 2ND	8-97362-727-0	01	1	1511-	●
560	04.416 RING; DUM	8-97078-729-1	01	1	1511-	●
561	04.395 GEAR; LOW,COUNTER Z=45	8-98210-235-0	01	1	1511-	●
562	04.422 BEARING; NEEDLE,LOW & 2ND 04.352	8-97362-727-0	01	1	1511-	●
563	04.419 COLLAR; 1ST GEAR	8-97362-569-1	01	1	1511-	●
564	04.380 SYNCHRONIZER; REV	8-97362-496-1	01	1	1511-	●
566	04.342 BRACKET; REV IDLER	8-97362-516-0	01	1	1511-	●
567	04.384 SPRING; INSERT,5TH	5-33264-012-0	02	1	1511-	●
568	04.415 GEAR; 3RD,INPUT SHAFT Z=28	8-98233-608-0	01	1	1511-	●
570	04.422 SPRING; PLATE	8-98072-467-2	01	1	1511-	●
588	04.383 RING; BLOCK,3RD Z=36	8-98052-559-0	01	1	1511-	●
592	04.383 RING; BLOCK,4TH	8-98197-460-0	01	1	1511-	●
601	04.383 RING; BLOCK,5TH	8-98283-241-0	01	1	1511-	●

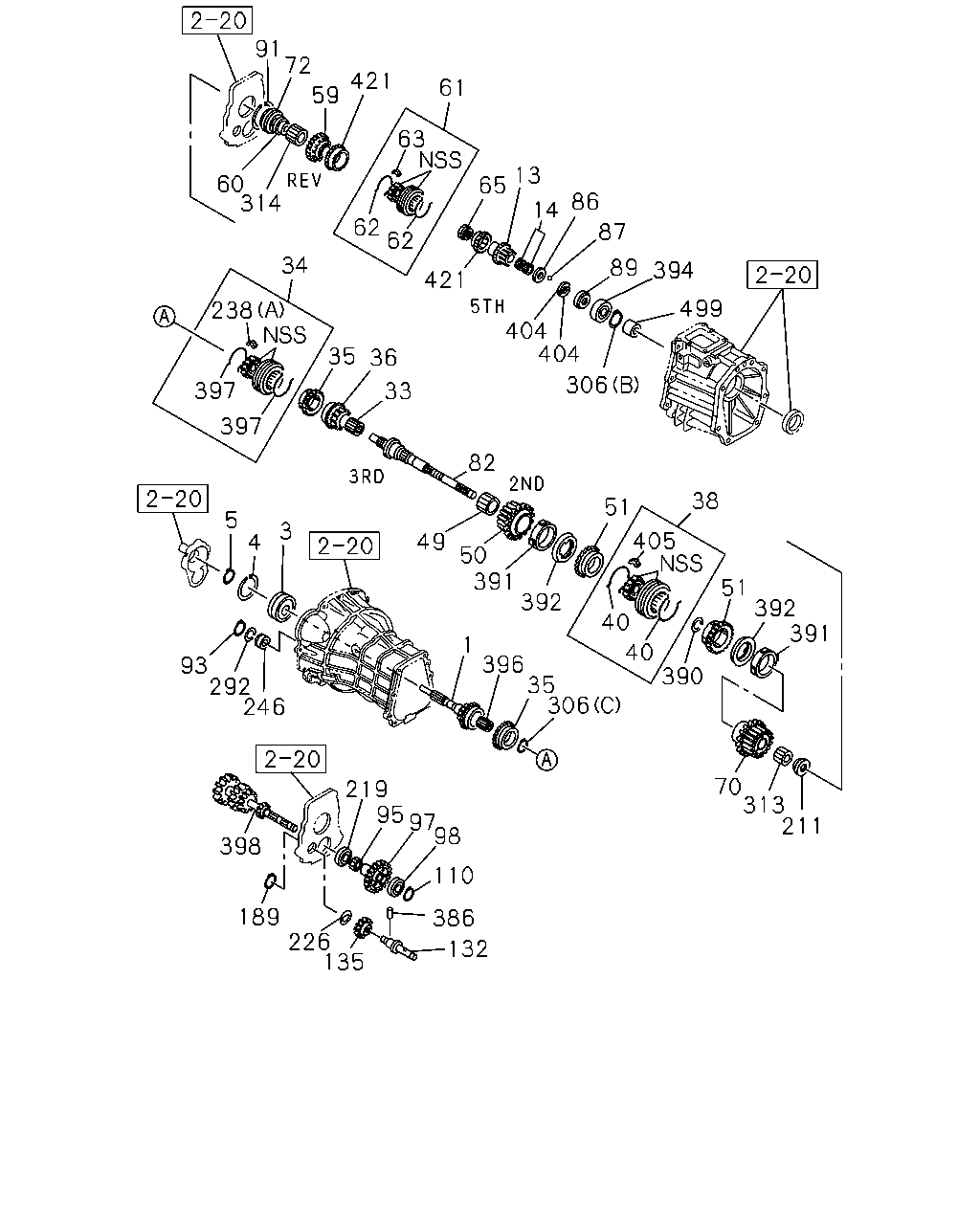

135 229 95 189 398 219 97 98 110 386 132 82 33 36 35 397 397 306 396 34 238 35 1 246 292 93 3 4 5 50 49 392 391 40 40 405 51 65 421 61 13 87 86 399 89 404 149 306 90 80 390 306 391 51 313 70 404 14 62 63 421 62 59 60 72 314 91 38 211 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1412-1412				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1412-		●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1412-		●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1412-		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1412-1412				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1412-		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1412-1412				●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1412-		●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1412-1412				●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1412-1412				●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-			●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1511-	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1412-		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1412-1412				●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1412-1510		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1511-	●	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1511-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1412-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1412-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1412-1412				●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1412-		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1412-1412				●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1412-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1412-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1412-1412				●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1511-	●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1412-		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1412-		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1412-1412				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1412-1510		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1511-	●	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1412-1412				●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1412-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1412-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1412-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1412-1412				●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1412-1510		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1511-	●	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1412-1412				●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-		●	●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1412-1412				●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1412-		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1412-		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1412-1412				●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1412-		●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1412-1412				●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1412-		●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1412-1412				●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1412-		●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1412-1412				●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1412-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1412-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1412-1412				●
72	04.352 BEARING; BALL,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1412-		●	●
72	04.352 BEARING; BALL,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1412-		●	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7	8-98123-463-0	01	1	1511-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1412-		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1412-			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1412-1412				●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1412-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1412-			●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1412-1412				●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1412-		●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1412-1412				●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1412-1412		●	●	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1501-		●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1412-		●	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	1412-		●
90	04.416 RING; SNAP,THRUST RING 04.422 ID=29.6	9-09180-032-0	01	1	1412-			●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	1412-1412				●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1412-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1511-	●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-1412				●
97	04.415 GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1511-	●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1412-1412				●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-			●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-			●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-		●	●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-		●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1412-1412				●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1412-		●	●
132	04.433 SHAFT; REV	8-98023-113-0	01	1	1511-	●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-		●	●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-		●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-1412				●
135	04.430 GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1511-	●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-		●	●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-		●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-1412				●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1412-		●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1412-			●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1412-		●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1412-			●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1412-		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1412-		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1412-		●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1412-		●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1412-		●	●
238	04.384 INSERT (B)	8-94249-576-2	03	1	1511-	●
238	04.384 INSERT (C)	8-98004-522-0	06	1	1511-	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	1412-		●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1412-		●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1412-		●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1412-		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1412-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	1511-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1412-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1412-		●	●
386	04.435 PIN; REV SHAFT 00.662 OD=4 L=8	9-08160-408-0	01	1	1511-	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1412-		●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1412-		●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1412-		●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1412-		●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1412-		●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1412-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1412-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1412-1412				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1412-		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1412-1412				●
398	04.421 GEAR; COUNTER Z=23	8-98106-584-0	01	1	1511-	●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1412-		●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1412-		●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1412-1412				●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1412-1510		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1412-1510			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1511-		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1511-			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94310-229-0	01	1	1511-	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1412-		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-1510		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1511-	●	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-1412				●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1412-		●	●

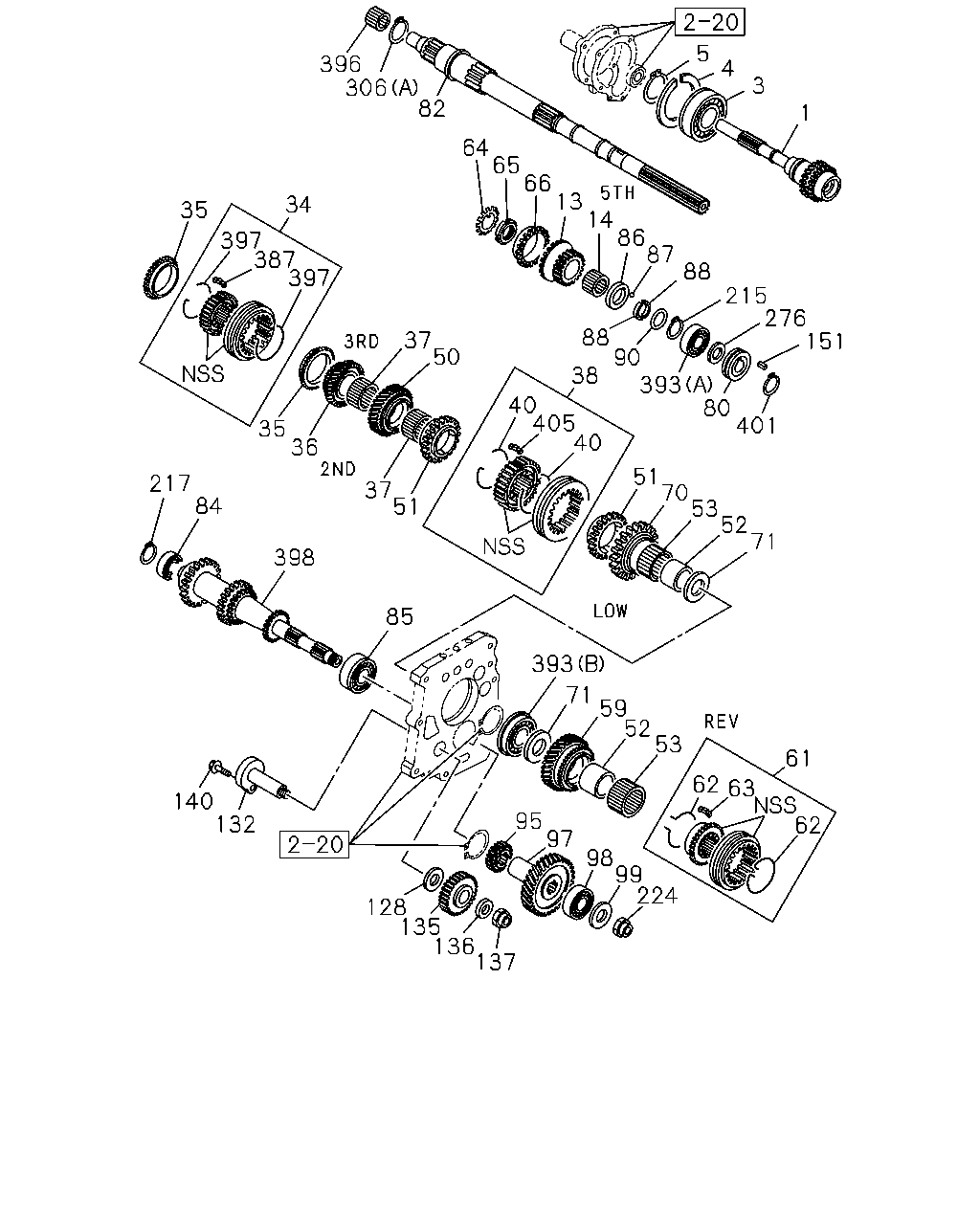

224 99 98 97 95 137 136 135 128 132 140 85 398 84 217 71 393 59 52 53 62 63 62 61 71 52 53 70 51 40 405 40 50 51 37 37 36 397 387 34 397 35 35 65 64 82 306 396 13 66 86 14 88 87 88 215 401 151 276 80 393 90 38 1 3 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1412-1412				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1412-		●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1412-		●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1412-		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1412-1412				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1412-		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1412-1412				●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1412-		●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1412-1412				●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1412-1412				●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-			●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1511-	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1412-		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1412-1412				●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1511-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1412-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1412-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1412-1412				●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1412-		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1412-1412				●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1412-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1412-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1412-1412				●
37	04.352 BEARING; NEEDLE,2ND & 3RD NTN	8-94161-988-2	02	1	1412-1412				●
37	04.352 BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	1412-1412				●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1511-	●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1412-		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1412-		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1412-1412				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1412-1510		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1511-	●	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1412-1412				●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1412-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1412-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1412-1412				●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1412-1510		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1511-	●	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1412-1412				●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-97238-834-0	02	1	1412-1412				●
53	04.419 BEARING; NEEDLE,LOW & REV NTN	8-94161-990-2	02	1	1412-1412				●
53	04.419 BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	1412-1412				●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-		●	●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1412-1412				●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1412-		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1412-1412				●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1412-		●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1412-1412				●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1412-		●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1412-1412				●
64	04.419 WASHER; LK,LOW 04.412	8-94238-095-0	01	1	1412-1412				●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1412-		●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1412-1412				●
66	04.383 RING; BLOCK,SYN Z=30	8-94463-830-1	01	1	1412-1412				●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1412-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1412-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1412-1412				●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	1412-1412				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7	8-98123-463-0	01	1	1511-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1412-		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1412-			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1412-1412				●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1412-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1412-			●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1412-1412				●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1412-		●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-97362-724-0	01	1	1511-	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	1412-1412				●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1412-1412				●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1412-1412		●	●	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1501-		●	●
88	04.416 RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	1412-1412				●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	1412-		●
90	04.416 RING; SNAP,THRUST RING 04.422 ID=29.6	9-09180-032-0	01	1	1412-			●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	1412-1412				●
95	04.417 GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1511-	●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-1412				●
97	04.415 GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1511-	●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1412-1412				●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-			●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-			●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-		●	●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-		●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1412-1412				●
99	04.429 WASHER; PL,COUNTER 5TH GEAR ID=17 OD=30	0-91610-516-0	01	1	1412-1412				●
128	04.437 WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	1412-1412				●
132	04.433 SHAFT; REV	8-98023-113-0	01	1	1511-	●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-		●	●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-		●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-1412				●
135	04.430 GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1511-	●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-		●	●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-		●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-1412				●
136	04.437 WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	1412-1412				●
137	04.429 NUT; REV GEAR M16	8-98035-678-0	01	1	1412-1412				●
140	04.435 BOLT; LK PIECE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-1412				●
151	04.345 KEY; FEATHER,SPD DRIVE GEAR 08.960	9-08020-510-0	01	1	1412-1412				●
215	04.416 RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	1412-1412				●
217	04.376 RING; SNAP,COUNTER FRT BRG 04.422 ID=18.5	9-09180-020-0	01	1	1412-1412				●
224	04.429 NUT; SELF LK,COUNTER M16	8-98035-678-0	01	1	1412-1412				●
276	04.419 SPACER; BRG TO DRIVE GEAR 04.423	8-94161-087-0	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1412-		●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1412-		●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	1412-1412				●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	1412-1412				●
393	04.352 BEARING; MAINSHAFT END 04.422 (A) NSK	8-94173-863-0	01	1	1412-1412				●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1412-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1412-1412				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1412-		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1412-1412				●
398	04.421 GEAR; COUNTER Z=23	8-98106-584-0	01	1	1511-	●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1412-		●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1412-		●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1412-1412				●
401	04.345 RING; SNAP,SPD DRIVE GEAR 04.416 ID=27.9	9-09180-030-0	01	1	1412-1412				●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-1510		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1511-	●	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-1412				●

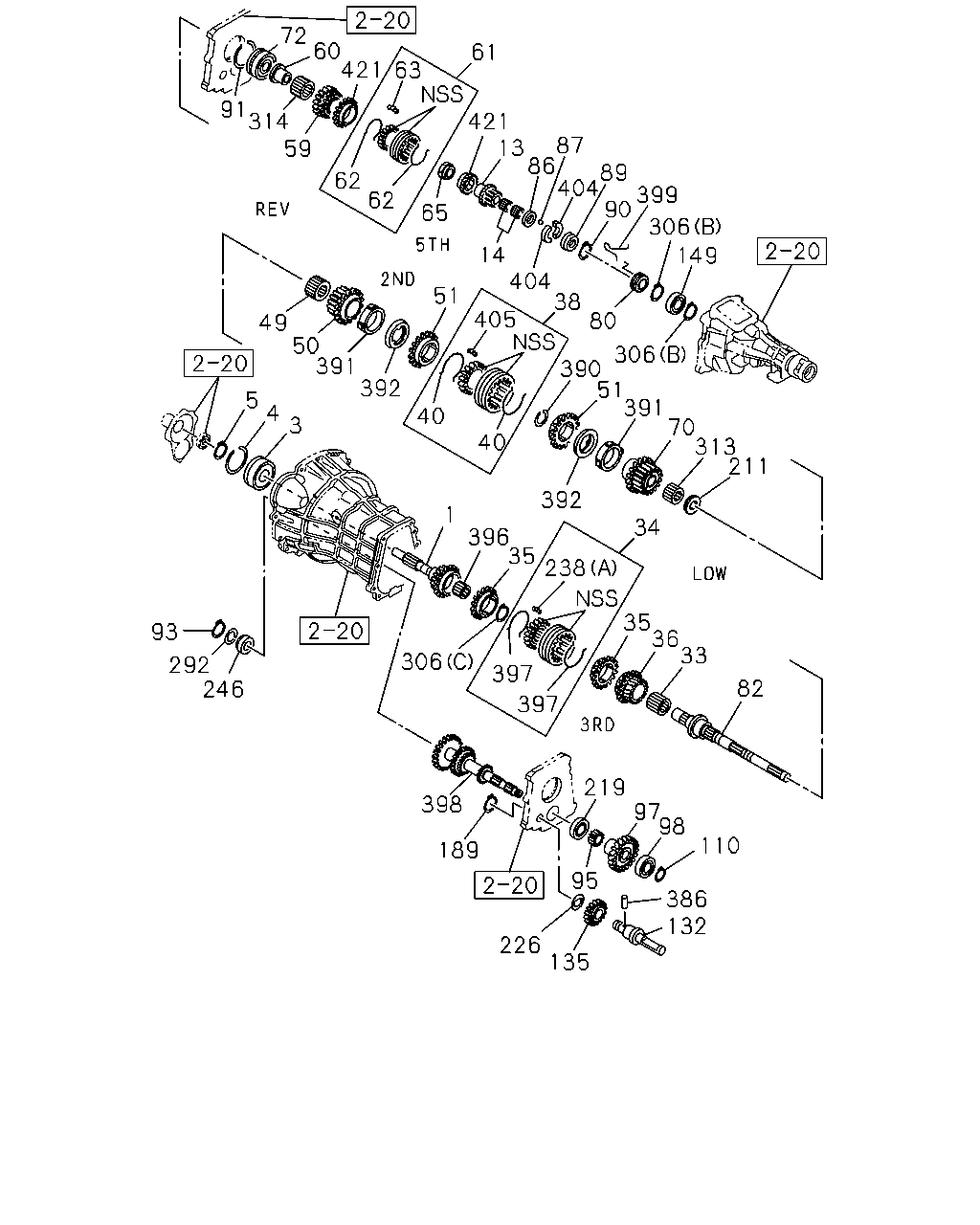

132 110 386 98 97 95 219 135 226 189 398 246 292 93 3 4 5 397 397 238 34 35 36 82 49 392 391 50 1 396 35 306 40 40 390 51 392 391 211 313 70 38 405 51 306 404 404 89 394 87 86 14 13 65 421 62 62 63 61 421 50 72 91 60 314 499 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1412-1412				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1412-		●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1412-		●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1412-		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1412-1412				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1412-		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1412-1412				●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1412-		●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1412-1412				●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1412-1412				●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-			●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1511-	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1412-		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1412-1412				●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1412-1510		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1511-	●	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1511-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1412-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1412-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1412-1412				●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1412-		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1412-1412				●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1412-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1412-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1412-1412				●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1511-	●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1412-		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1412-		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1412-1412				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1412-1510		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1511-	●	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1412-1412				●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1412-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1412-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1412-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1412-1412				●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1412-1510		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1511-	●	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1412-1412				●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1412-		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1412-		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1412-1412				●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1412-		●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1412-1412				●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1412-		●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1412-1412				●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1412-		●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1412-1412				●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1412-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1412-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1412-1412				●
72	04.352 BEARING; BALL,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1412-		●	●
72	04.352 BEARING; BALL,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1412-		●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1412-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1412-			●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1412-1412				●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1412-		●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1412-		●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1412-1412				●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1412-1412				●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1412-1412		●	●	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1501-		●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1412-		●	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1412-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1511-	●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-		●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-1412				●
97	04.415 GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1511-	●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1412-1412				●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-			●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-			●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-		●	●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-		●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1412-1412				●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1412-		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1412-		●	●
132	04.433 SHAFT; REV	8-98023-113-0	01	1	1511-	●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-		●	●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-		●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-1412				●
135	04.430 GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1511-	●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-		●	●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-		●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-1412				●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1412-		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1412-		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1412-		●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1412-		●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1412-		●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1412-		●	●
238	04.384 INSERT (B)	8-94249-576-2	03	1	1511-	●
238	04.384 INSERT (C)	8-98004-522-0	06	1	1511-	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	1412-		●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1412-		●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1412-		●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1412-		●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1412-1412				●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1412-		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1412-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	1511-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1412-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1412-		●	●
386	04.435 PIN; REV SHAFT 00.662 OD=4 L=8	9-08160-408-0	01	1	1511-	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1412-		●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1412-		●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1412-		●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1412-		●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1412-		●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1412-		●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK	8-97018-921-1	01	1	1412-		●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK	8-97018-921-1	01	1	1412-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1412-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1412-1412				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1412-		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1412-1412				●
398	04.421 GEAR; COUNTER Z=23	8-98106-584-0	01	1	1511-	●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1412-		●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1412-		●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1412-1412				●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1412-		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-1510		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1511-	●	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-1412				●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1412-		●	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>	8-97300-954-0	01	1	1412-		●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97300-954-0	01	1	1412-		●

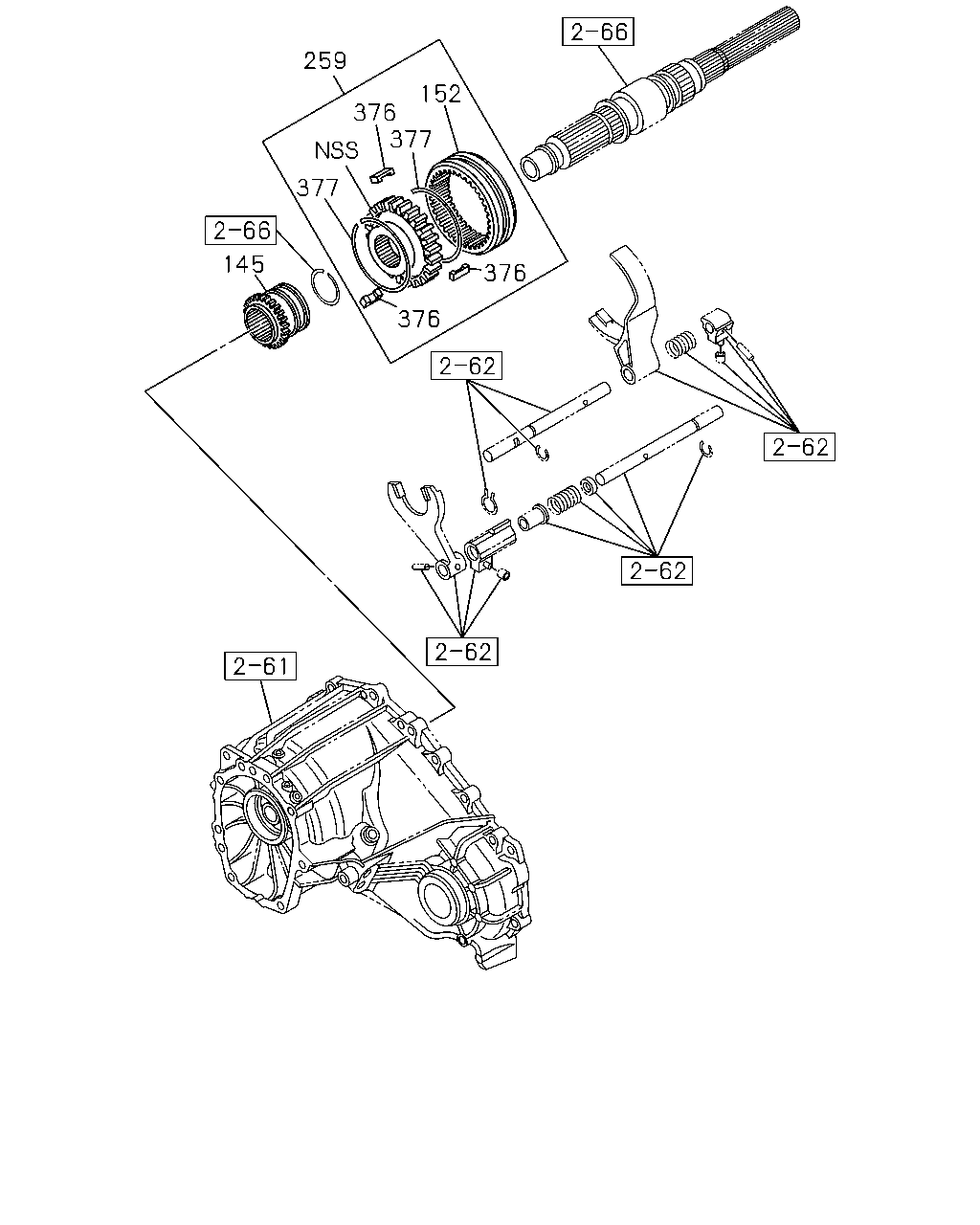

259 377 377 376 152 376 376 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1412-1510		●	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1511-	●	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1412-1510		●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1511-	●	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1412-1510		●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1511-	●	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1412-1510		●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1511-	●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1412-1510		●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1511-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
