Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#153860) — 660 parça

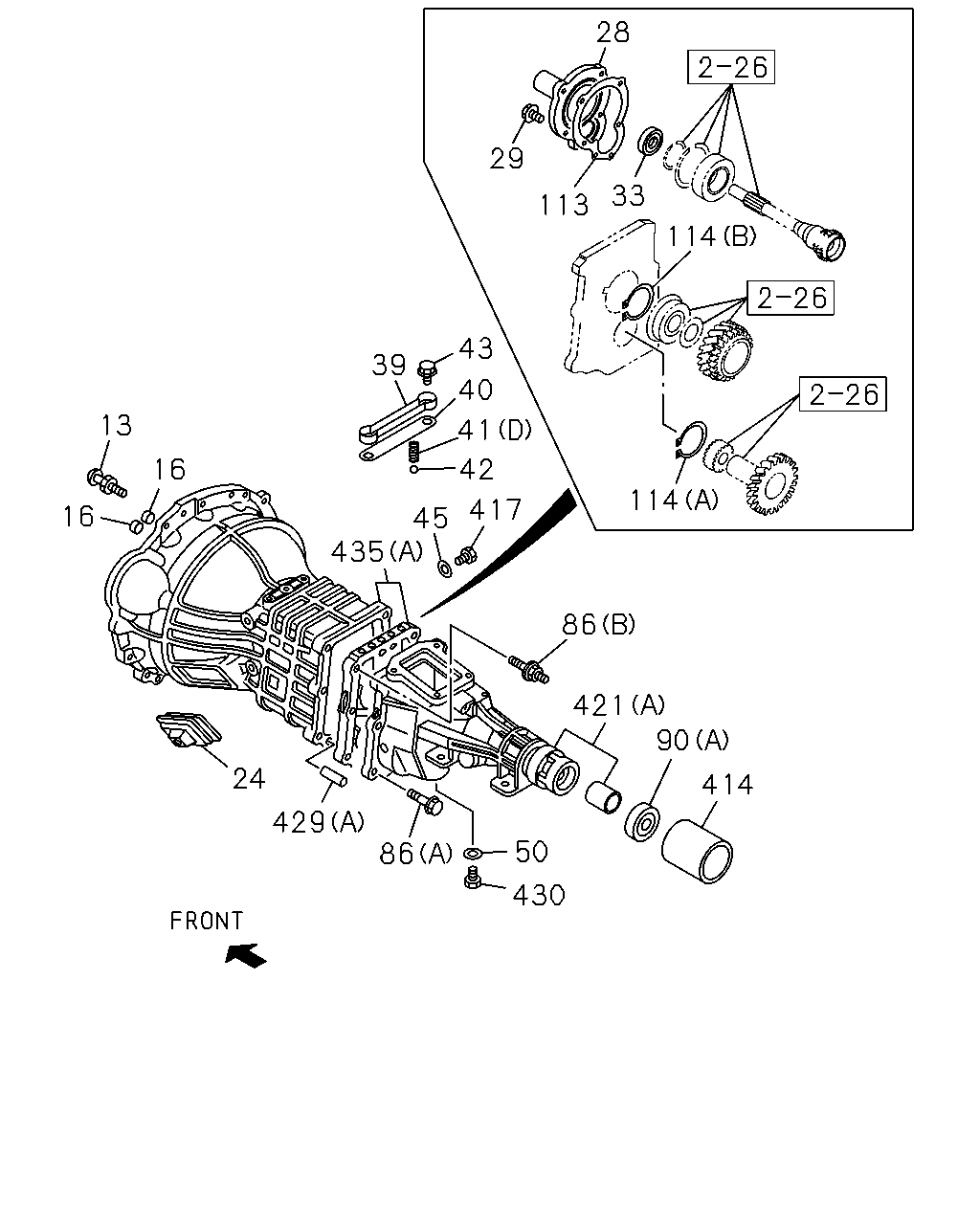

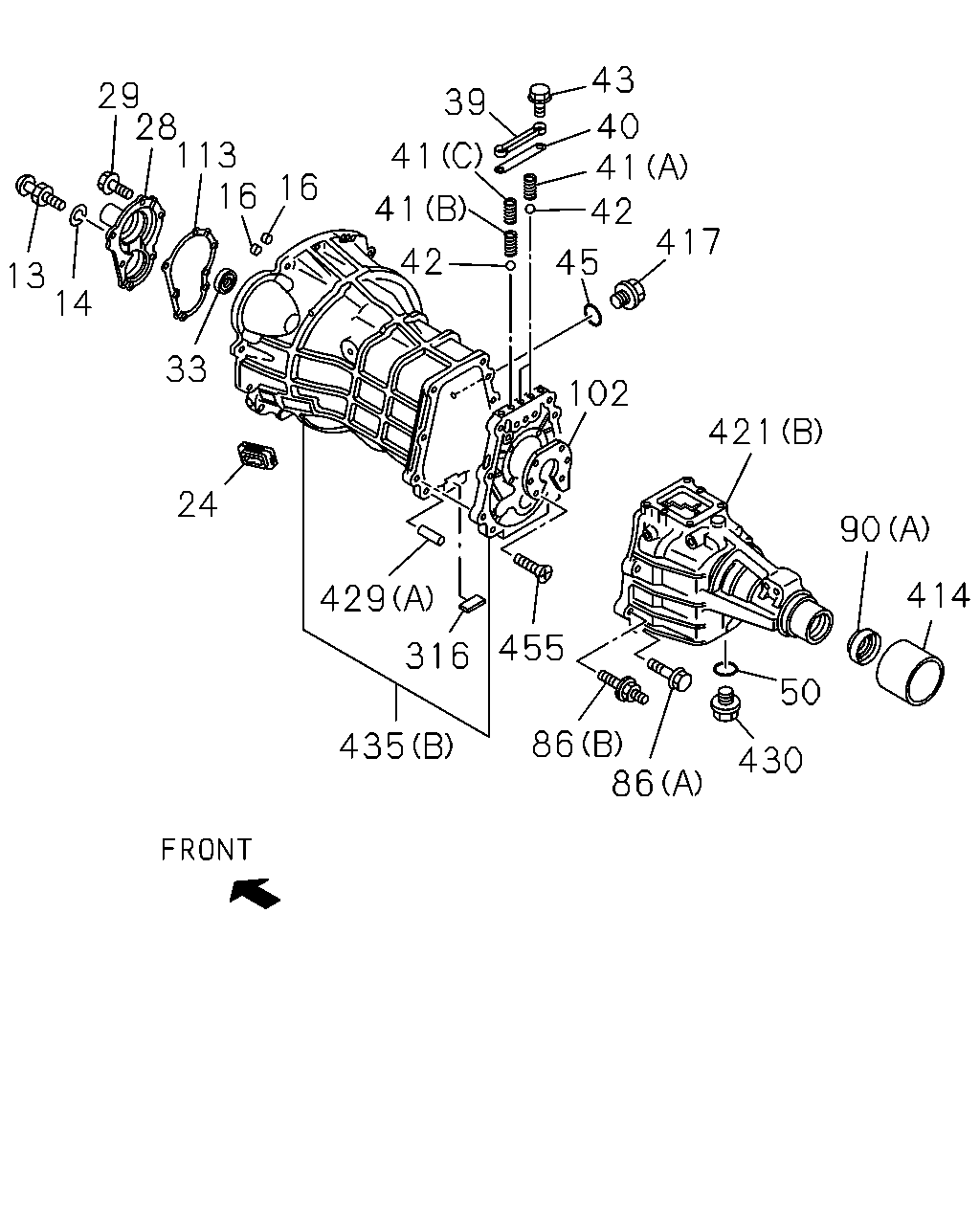

43 41 40 42 45 102 417 421 90 414 50 430 86 86 455 316 435 429 24 33 14 13 113 28 29 16 16 41 41 42 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-1412	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1501-1510		●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1511-		●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1412-		●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1412-1412	●	●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1501-		●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1412-1412	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-1412		●	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1501-		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1511-				●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-1412	●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1511-				●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-1412	●	●	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1501-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-1510		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1511-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1511-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-1412	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1412-1412	●	●	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1501-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1412-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1412-1412	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1412-1412	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1412-1412	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1501-		●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1412-		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-1412	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-1412	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-1510		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-1412	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-1412		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1501-1510		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1501-1510		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1511-		●		●	●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	1511-				●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	1511-				●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1412-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-1412	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1412-1412	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1412-1510		●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) JTEKT	8-98004-531-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1412-1412	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-1510		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1412-		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1412-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1412-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1412-1412	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-1510		●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1511-		●	●	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1412-1412	●		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1412-1412		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1501-1510		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1501-1510			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1511-		●		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1511-			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1412-1412	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1412-1412		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-1510		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-1510		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1511-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1511-		●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (D)	8-98108-318-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98108-411-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97382-905-2	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (G)	8-97362-423-1	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (F)	8-98108-319-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1412-1412	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-1412	●	●	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1501-		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1412-1510		●			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1511-		●		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1412-1412	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1412-1412		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-1510		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-1510		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1511-		●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1511-		●		●	●
435	04.103 CASE; TRANS (C)	8-98108-317-1	01	1	1511-				●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1412-		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1412-1412	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1412-		●	●

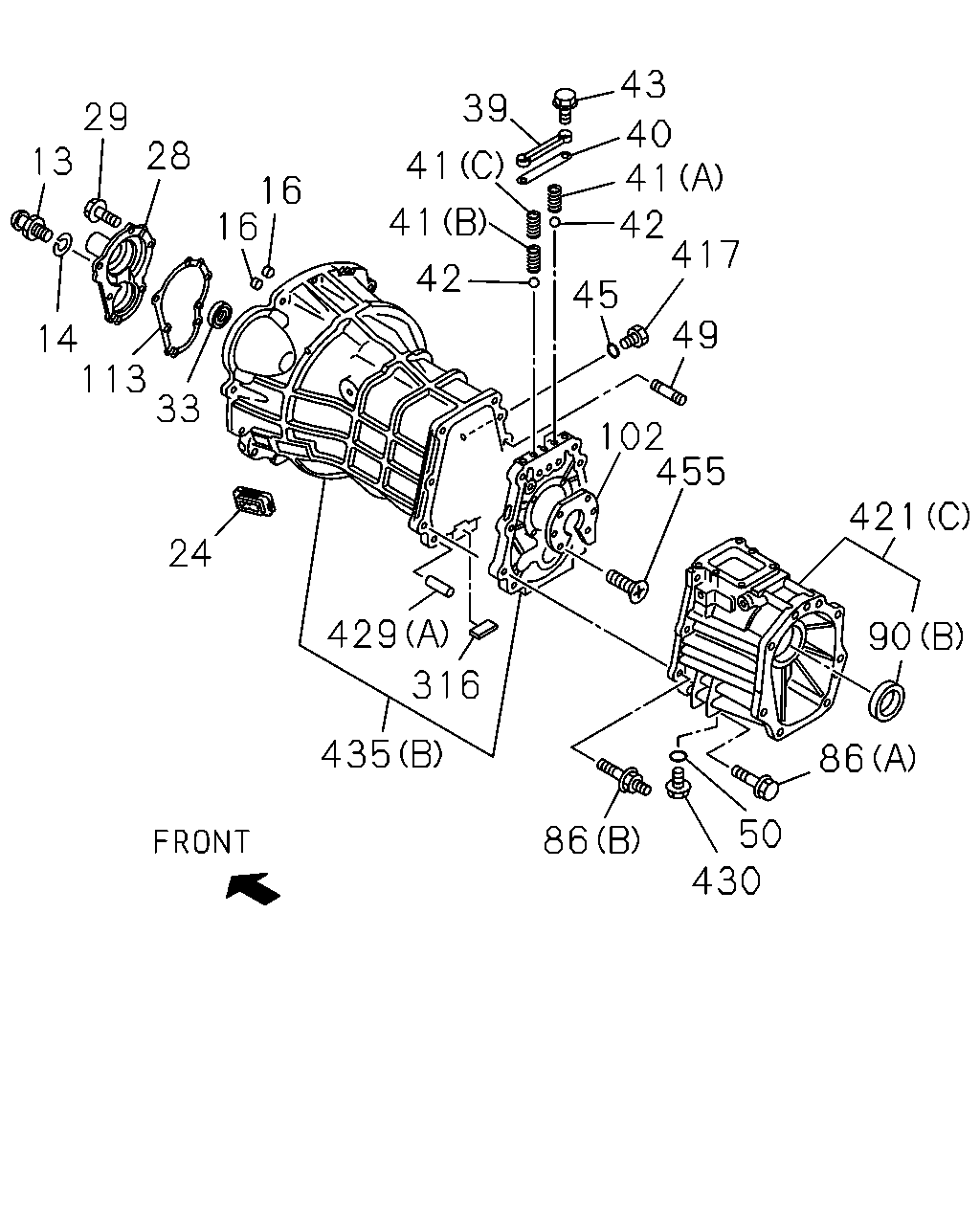

43 40 41 42 45 417 49 102 455 421 90 86 50 430 86 435 316 429 24 33 113 14 13 29 28 16 16 39 41 41 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-1412	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1501-1510		●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1511-		●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1412-		●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1412-1412	●	●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1501-		●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1412-1412	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-1412		●	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1501-		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1511-				●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-1412	●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1511-				●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-1412	●	●	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1501-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-1510		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1511-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1511-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-1412	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1412-1412	●	●	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1501-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1412-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1412-1412	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1412-1412	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1412-1412	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1501-		●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1412-		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-1412	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-1412	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-1510		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1511-		●	●	●

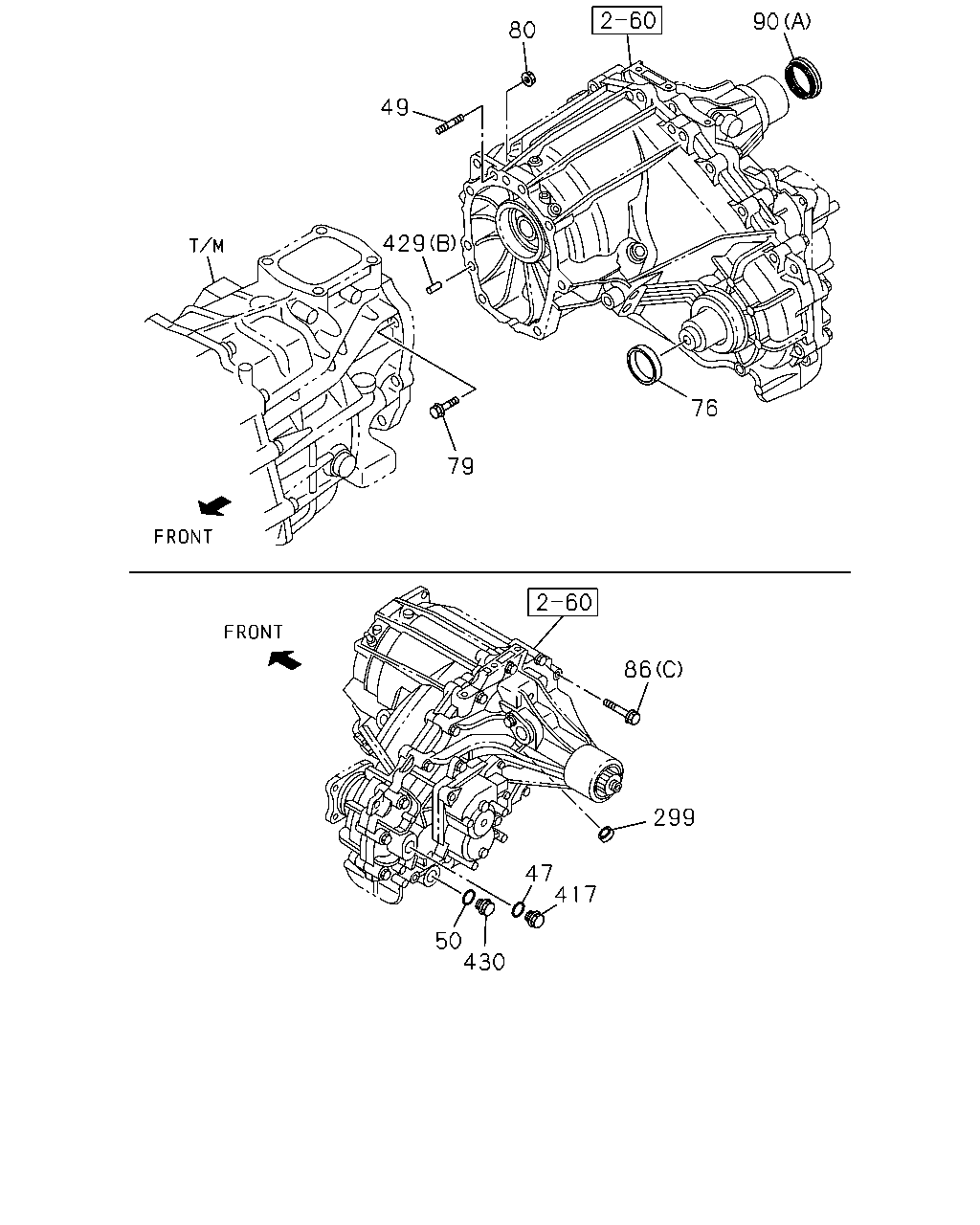

49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1412-1510		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1511-		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1511-				●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1412-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-1412	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-1412		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1501-1510		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1501-1510		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1511-		●		●	●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	1511-				●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	1511-				●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1412-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-1412	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1412-1412	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1412-1510		●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) JTEKT	8-98004-531-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1412-1412	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-1510		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1412-		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1412-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1412-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1412-1412	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-1510		●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1511-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1412-1412	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1412-1412		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-1510		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-1510		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1511-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1511-		●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (D)	8-98108-318-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98108-411-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97382-905-2	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (G)	8-97362-423-1	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (F)	8-98108-319-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1412-1412	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-1412	●	●	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1501-		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1412-1510		●			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1511-		●		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1412-1412	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1412-1412		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-1510		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-1510		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1511-		●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1511-		●		●	●
435	04.103 CASE; TRANS (C)	8-98108-317-1	01	1	1511-				●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1412-		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1412-1412	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1412-		●	●

28 29 113 33 114 114 43 39 45 42 417 41 40 13 16 16 435 86 421 90 414 50 430 86 429 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-1412	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1501-1510		●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1511-		●	●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1412-1412	●	●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1501-		●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1412-1412	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-1412		●	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1501-		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1511-				●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-1412	●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1511-				●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-1412	●	●	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1501-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-1510		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1511-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1511-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-1412	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1412-1412	●	●	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1501-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1412-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1412-1412	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1412-		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1412-1412	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1412-1412	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1501-		●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1412-		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-1412	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-1412	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-1510		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-1412	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-1412		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1501-1510		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1501-1510		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1511-		●		●	●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	1511-				●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	1511-				●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1412-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-1412	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1412-1412	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1412-1510		●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) JTEKT	8-98004-531-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1412-1412	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-1510		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1412-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1412-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1412-1412	●
114	04.105 RING; SNAP,BALL BRG (C) OD=77	8-98024-221-0	01	1	1511-				●
114	04.105 RING; SNAP,BALL BRG (D) OD=60.2	9-09180-156-0	01	1	1511-				●
114	04.105 RING; SNAP,BALL BRG 04.422 (A) ID=49.6	5-09589-004-0	01	1	1412-1412	●
114	04.105 RING; SNAP,BALL BRG 04.412 (B) ID=71.7	5-09589-005-0	01	1	1412-1412	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1412-1412	●		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1412-1412		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1501-1510		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1501-1510			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1511-		●		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1511-			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1412-1412	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1412-1412		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-1510		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-1510		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1511-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1511-		●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (D)	8-98108-318-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98108-411-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97382-905-2	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (G)	8-97362-423-1	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (F)	8-98108-319-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1412-1412	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-1412	●	●	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1501-		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1412-1510		●			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1511-		●		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1412-1412	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1412-1412		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-1510		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-1510		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1511-		●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1511-		●		●	●
435	04.103 CASE; TRANS (C)	8-98108-317-1	01	1	1511-				●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1412-		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1412-1412	●

1 434 315 13 29 34 680 33 28 435 674 676 603 677 675 675 510 682 608 679 678 608 114 679 608 315 421 86 90 414 86 25 419 50 430 114 680 326 680 421 45 417 316 608 679 675 675

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98087-608-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98102-485-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98102-382-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-178-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-188-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98145-931-0	01	1	1412-1412	●
1	04.003 TRANSMISSION ASM; MANUAL IDENTIFICATION LABEL FOR KD<6UT>	8-98211-726-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98161-475-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-462-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98172-464-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-180-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-196-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-959-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98172-465-0	01	1	1412-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-1412	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1501-1510		●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1511-		●	●	●
25	00.686 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-98004-774-0	01	1	1511-				●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1511-				●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-1412	●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1511-				●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-1412	●	●	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1501-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-1510		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1511-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1511-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-1412	●
34	00.686 COVER; DUST,SHIFT FORK 00.859	8-98097-470-0	01	1	1511-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-1412	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-1510		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-1412	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-1412		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1501-1510		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1501-1510		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1511-		●		●	●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	1511-				●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	1511-				●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1412-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-1412	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1412-1412	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1412-1510		●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) JTEKT	8-98004-531-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1412-1412	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-1510		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1412-		●
114	04.105 RING; SNAP,BALL BRG (C) OD=77	8-98024-221-0	01	1	1511-				●
114	04.105 RING; SNAP,BALL BRG (D) OD=60.2	9-09180-156-0	01	1	1511-				●
114	04.105 RING; SNAP,BALL BRG 04.422 (A) ID=49.6	5-09589-004-0	01	1	1412-1412	●
114	04.105 RING; SNAP,BALL BRG 04.412 (B) ID=71.7	5-09589-005-0	01	1	1412-1412	●
315	04.104 BOLT; CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	14	1	1511-				●
315	04.104 BOLT; CASE 16.069 (B) M8X35 FLANGE	8-98046-876-0	11	1	1511-				●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-1510		●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1511-		●	●	●
326	04.020 NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	1511-				●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1412-1412	●		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1412-1412		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1501-1510		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1501-1510			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1511-		●		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1511-			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1412-1412	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1412-1412		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-1510		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-1510		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1511-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1511-		●		●	●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (D)	8-98108-318-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98108-411-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97382-905-2	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (G)	8-97362-423-1	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (F)	8-98108-319-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1412-1412	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1412-1412	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1412-1412		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-1510		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-1510		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1511-		●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1511-		●		●	●
434	00.683 HOUSING; CLU	8-98108-316-0	01	1	1511-				●
435	04.103 CASE; TRANS (C)	8-98108-317-1	01	1	1511-				●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1412-		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1412-1412	●
510	00.683 BEARING	8-97362-853-0	01	1	1511-				●
603	04.317 RING; SNAP	8-98039-270-0	01	1	1511-				●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	1511-				●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	1511-				●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	1511-				●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	1511-				●
674	00.886 PLATE; INTERMEDIATE	8-98042-863-0	01	1	1511-				●
675	00.206 DOWEL OD=11 L=8	9-11229-058-1	04	1	1511-				●
676	04.439 INHIBITOR	8-98037-604-1	01	1	1511-				●
677	00.683 SPRING; INHIBITOR	8-97362-852-0	01	1	1511-				●
678	04.317 PIN	9-08160-436-0	01	1	1511-				●
679	04.104 BOLT; GUTTER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1511-				●
680	00.683 BEARING (A)	8-97362-720-1	01	1	1511-				●
680	00.683 BEARING (C)	8-97362-853-0	01	1	1511-				●
680	00.683 BEARING (B)	8-98024-431-0	01	1	1511-				●
682	00.683 BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	1511-				●

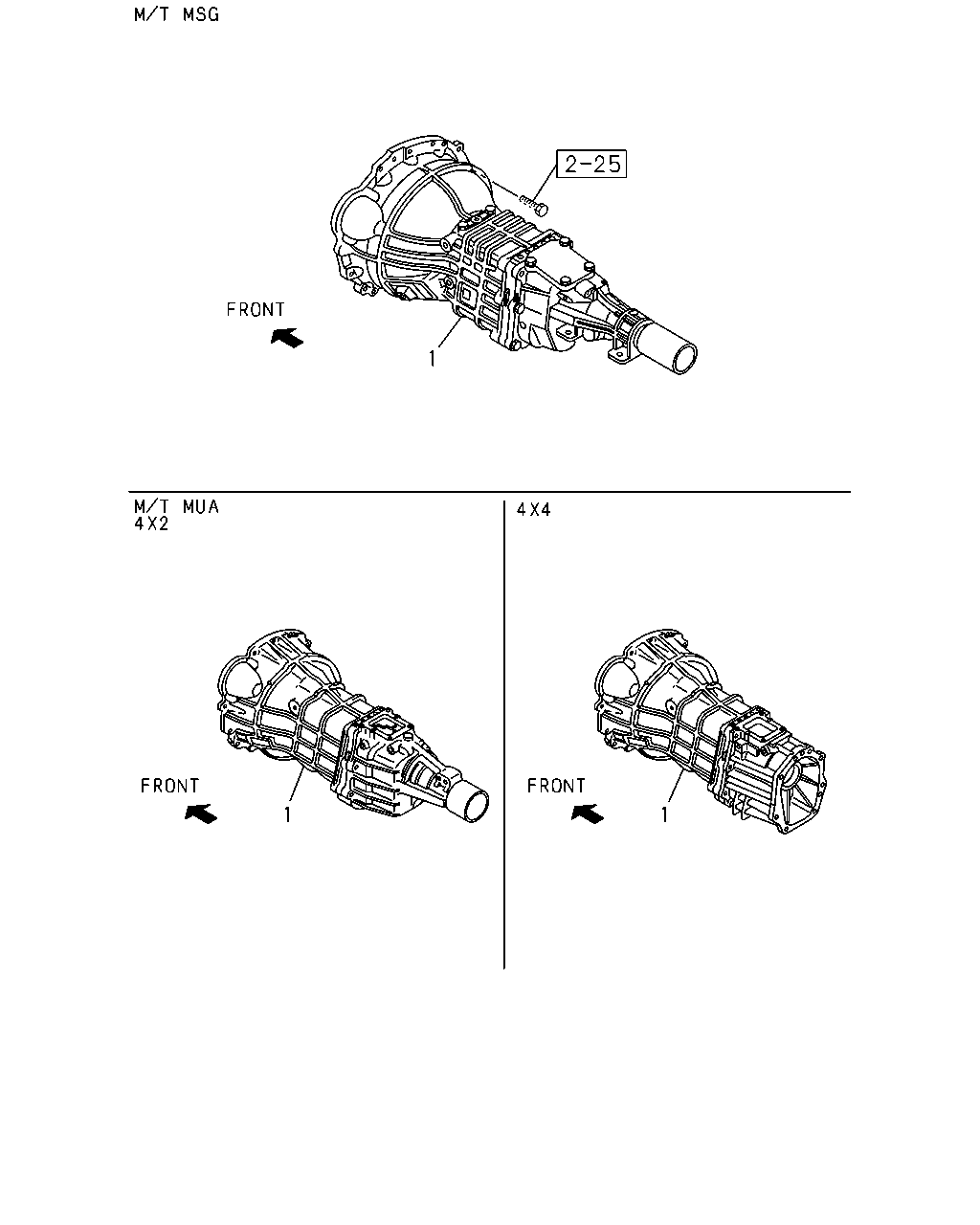

1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98087-608-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98102-485-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98102-382-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-178-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-188-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98145-931-0	01	1	1412-1412	●
1	04.003 TRANSMISSION ASM; MANUAL IDENTIFICATION LABEL FOR KD<6UT>	8-98211-726-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98161-475-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-462-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98172-464-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-180-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-196-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-959-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98172-465-0	01	1	1412-		●

80 49 429 79 76 86 299 47 417 50 430 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1412-1510		●			●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1511-		●		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1412-1510		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1511-		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1511-				●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1412-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-1412	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-1412		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1501-1510		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1501-1510		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1511-		●		●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1412-1510		●			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1511-		●		●	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1412-1510		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1511-		●		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 00.685 M10X45 FLANGE	0-28051-045-0	07	1	1412-					●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1412-1510		●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-		●		●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	1511-				●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	1511-				●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1412-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-1412	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1412-1412	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1412-1510		●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) JTEKT	8-98004-531-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1412-1412	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-1510		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1412-		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 OD=15.6	8-94173-641-0	02	1	1412-1510		●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 OD=15.6	8-94173-641-0	02	1	1511-		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1412-1412	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1412-1412		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-1510		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-1510		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1511-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1511-		●		●	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-1412	●	●	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1501-		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1412-1510		●			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1511-		●		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1412-1412	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1412-1412		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-1510		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-1510		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1511-		●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1511-		●		●	●

1 435 28 33 680 29 34 114 608 679 608 315 86 90 86 421 419 50 430 114 680 326 680 421 45 417 316 608 679 679 608 682 510 675 675 677 676 603 678 675 675 674 13 434 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98087-608-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98102-485-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98102-382-0	01	1	1511-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-178-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-188-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98145-931-0	01	1	1412-1412	●
1	04.003 TRANSMISSION ASM; MANUAL IDENTIFICATION LABEL FOR KD<6UT>	8-98211-726-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98161-475-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-462-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98172-464-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-180-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-196-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-959-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98172-465-0	01	1	1412-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-1412	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1501-1510		●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1511-		●	●	●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1511-				●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-1412	●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1511-				●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-1412	●	●	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1501-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-1510		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1511-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1511-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-1412	●
34	00.686 COVER; DUST,SHIFT FORK 00.859	8-98097-470-0	01	1	1511-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-1412	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-1510		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-1412	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-1412		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1501-1510		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1501-1510		●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1511-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1511-		●		●	●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	1511-				●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	1511-				●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1412-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-1412	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1412-1412	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1412-1510		●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) JTEKT	8-98004-531-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1412-1412	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-1412			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1501-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1511-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-1510		●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-1510			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1511-		●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1511-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1412-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1412-		●
114	04.105 RING; SNAP,BALL BRG (C) OD=77	8-98024-221-0	01	1	1511-				●
114	04.105 RING; SNAP,BALL BRG (D) OD=60.2	9-09180-156-0	01	1	1511-				●
114	04.105 RING; SNAP,BALL BRG 04.422 (A) ID=49.6	5-09589-004-0	01	1	1412-1412	●
114	04.105 RING; SNAP,BALL BRG 04.412 (B) ID=71.7	5-09589-005-0	01	1	1412-1412	●
315	04.104 BOLT; CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	14	1	1511-				●
315	04.104 BOLT; CASE 16.069 (B) M8X35 FLANGE	8-98046-876-0	11	1	1511-				●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-1510		●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1511-		●	●	●
326	04.020 NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	1511-				●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1412-1412	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1412-1412		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-1510		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-1510		●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1511-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1511-		●		●	●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (D)	8-98108-318-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98108-411-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97382-905-2	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (G)	8-97362-423-1	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (F)	8-98108-319-0	01	1	1511-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1412-1412	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1412-1412	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1412-1412		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-1510		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-1510		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1511-		●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1511-		●		●	●
434	00.683 HOUSING; CLU	8-98108-316-0	01	1	1511-				●
435	04.103 CASE; TRANS (C)	8-98108-317-1	01	1	1511-				●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1412-		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1412-1412	●
510	00.683 BEARING	8-97362-853-0	01	1	1511-				●
603	04.317 RING; SNAP	8-98039-270-0	01	1	1511-				●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	1511-				●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	1511-				●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	1511-				●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	1511-				●
674	00.886 PLATE; INTERMEDIATE	8-98042-863-0	01	1	1511-				●
675	00.206 DOWEL OD=11 L=8	9-11229-058-1	04	1	1511-				●
676	04.439 INHIBITOR	8-98037-604-1	01	1	1511-				●
677	00.683 SPRING; INHIBITOR	8-97362-852-0	01	1	1511-				●
678	04.317 PIN	9-08160-436-0	01	1	1511-				●
679	04.104 BOLT; GUTTER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1511-				●
680	00.683 BEARING (A)	8-97362-720-1	01	1	1511-				●
680	00.683 BEARING (C)	8-97362-853-0	01	1	1511-				●
680	00.683 BEARING (B)	8-98024-431-0	01	1	1511-				●
682	00.683 BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	1511-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
