Isuzu WW
▶
PICKUP
▶
TFR
▶
51603 - TFR/TFS MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶

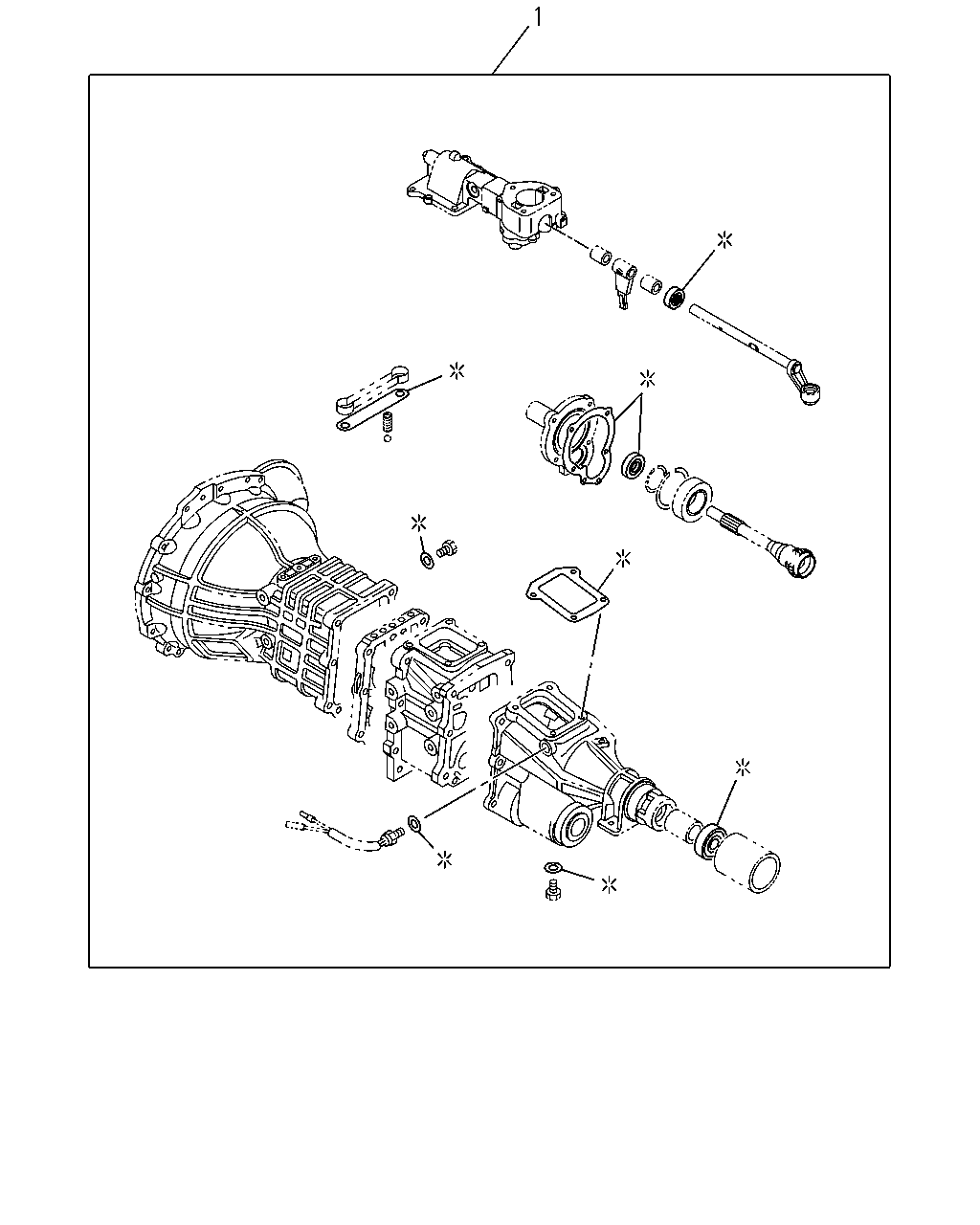

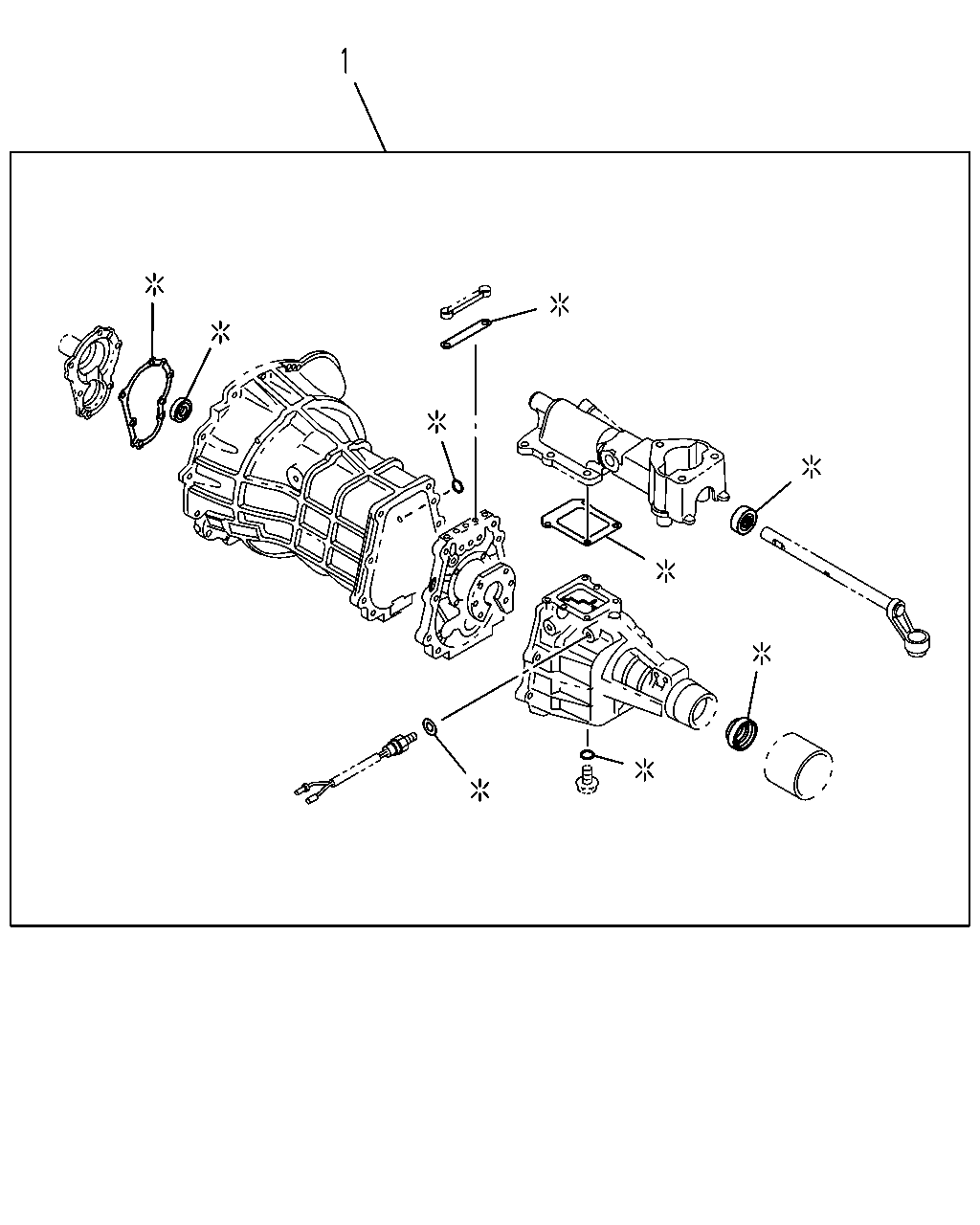

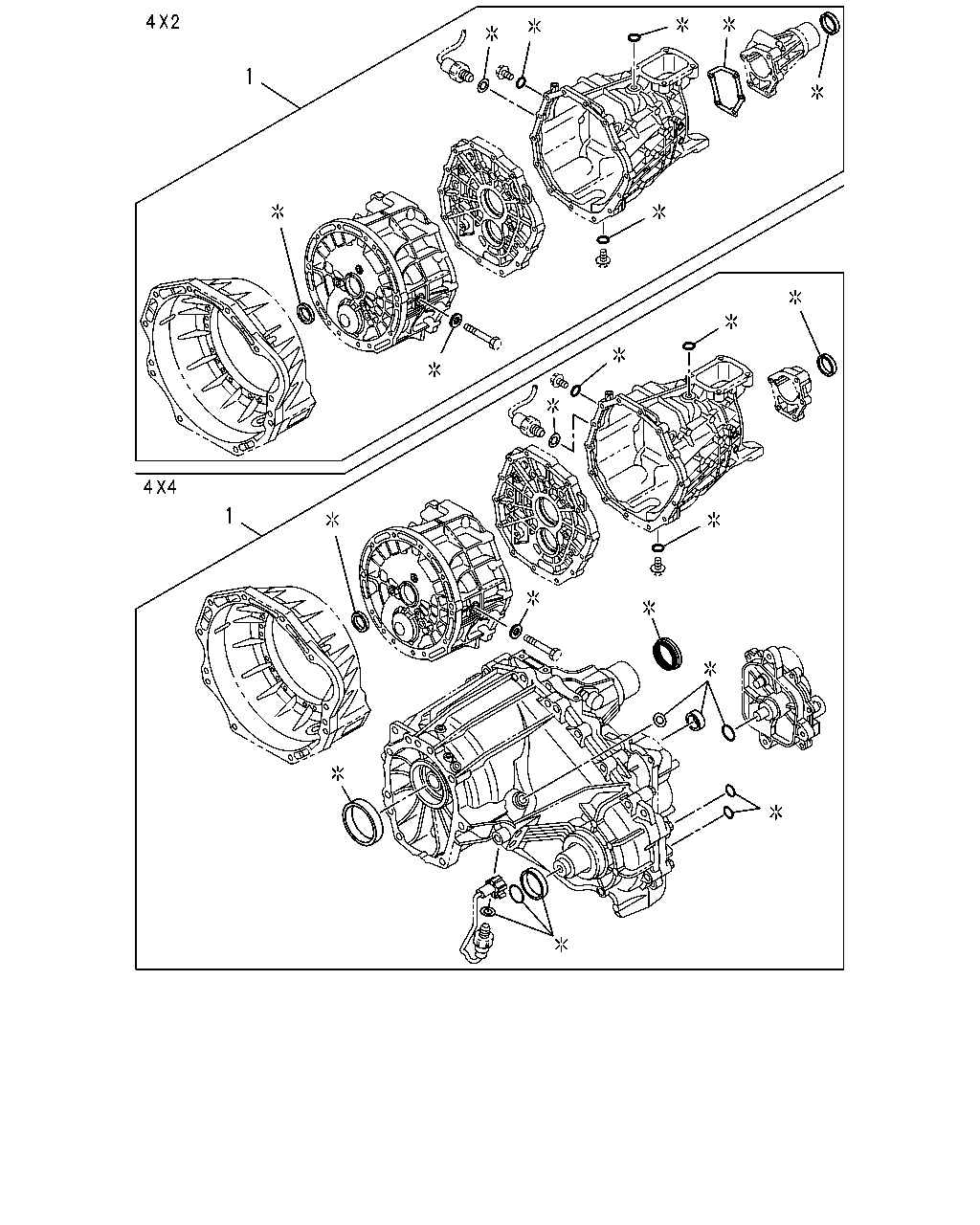

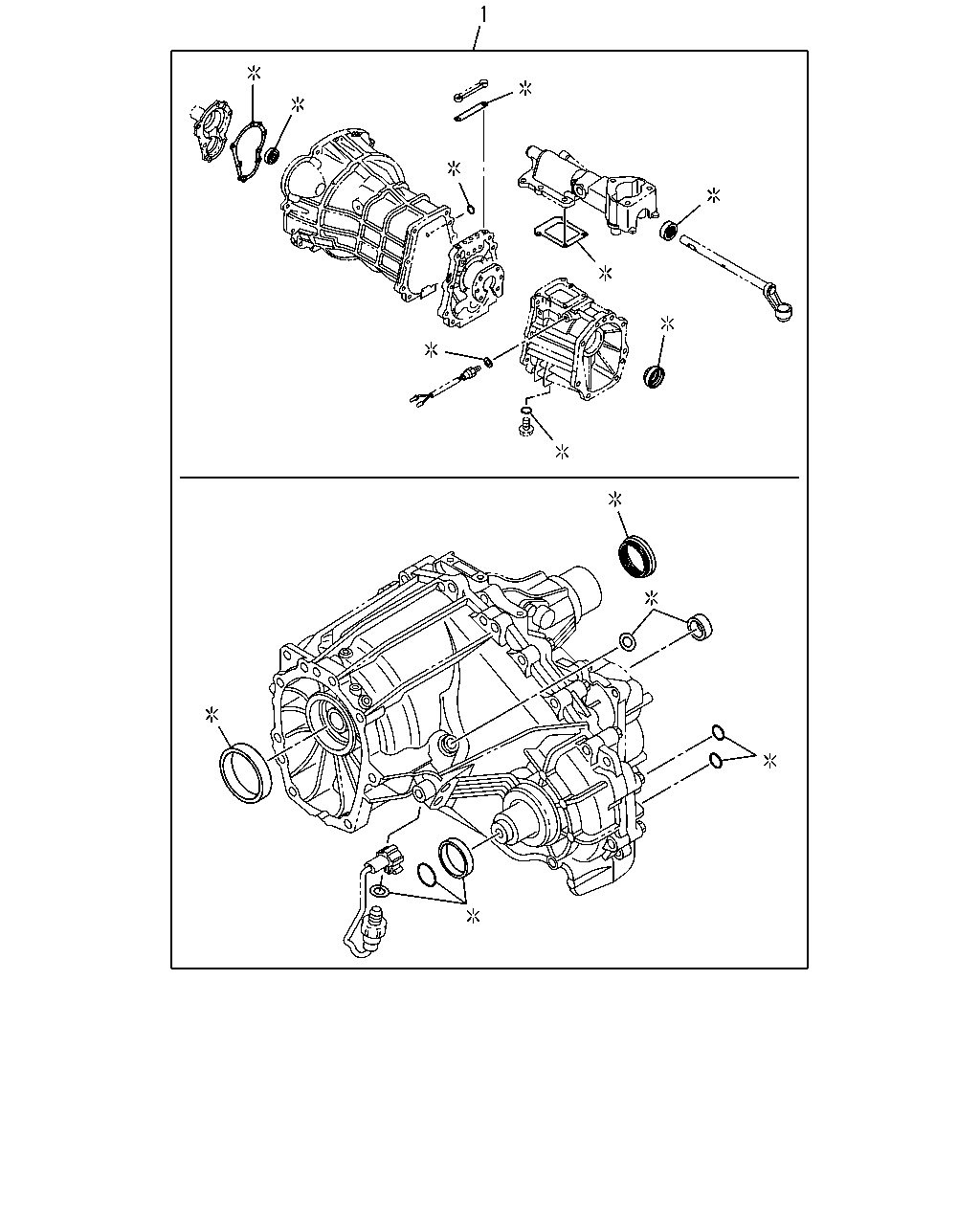

2-10 - REPAIR KIT; TRANSMISSION OVERHAUL
▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL
(#153859) — 36 parça
Tümü
A - M/T MUA 5 SPEED 5H
B - M/T MUX 5 SPEED 5S
C - M/T MUA 5 SPEED 5G
D - M/T MSG 5 SPEED
◀
[210A] M/T MSG (9 parça)
[210A] M/T MUA;4X4 (9 parça)
[210A] M/T MUA;4X2 (9 parça)
[210A] M/T MUX (9 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-371-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***)
5-87832-262-0
01
1
1511-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***)
5-87832-263-0
01
1
1511-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-204-2
01
1
1412-1412
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-231-0
01
1
1412-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-371-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***)
5-87832-262-0
01
1
1511-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***)
5-87832-263-0
01
1
1511-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-204-2
01
1
1412-1412
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-231-0
01
1
1412-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-371-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***)
5-87832-262-0
01
1
1511-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***)
5-87832-263-0
01
1
1511-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-204-2
01
1
1412-1412
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-231-0
01
1
1412-
●
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-371-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***)
5-87832-262-0
01
1
1511-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***)
5-87832-263-0
01
1
1511-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1412-
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-204-2
01
1
1412-1412
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-231-0
01
1
1412-
●
