1-50 — EXHAUST PIPE AND SILENCER (#153853) — 41 parça
çizim 458420
329 70 58 271 1 2 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH 8-98065-530-1 01 1 1412- ●
1 03.609 PIPE; EXH 8-98205-429-2 01 1 1412- ●
1 03.609 PIPE; EXH 8-98276-228-1 01 1 1412-1503 ●
1 03.609 PIPE; EXH 8-98288-052-0 01 1 1504-1510 ●
1 03.609 PIPE; EXH 8-98288-052-0 01 1 1511- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1412-1510 ● ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 1511- ● ● ● ●
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 1412-1510 ● ● ●
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 1511- ● ● ● ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 1412-1510 ● ● ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 1511- ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1412-1510 ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1511- ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1412-1510 ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1511- ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1412-1510 ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1511- ● ● ● ●

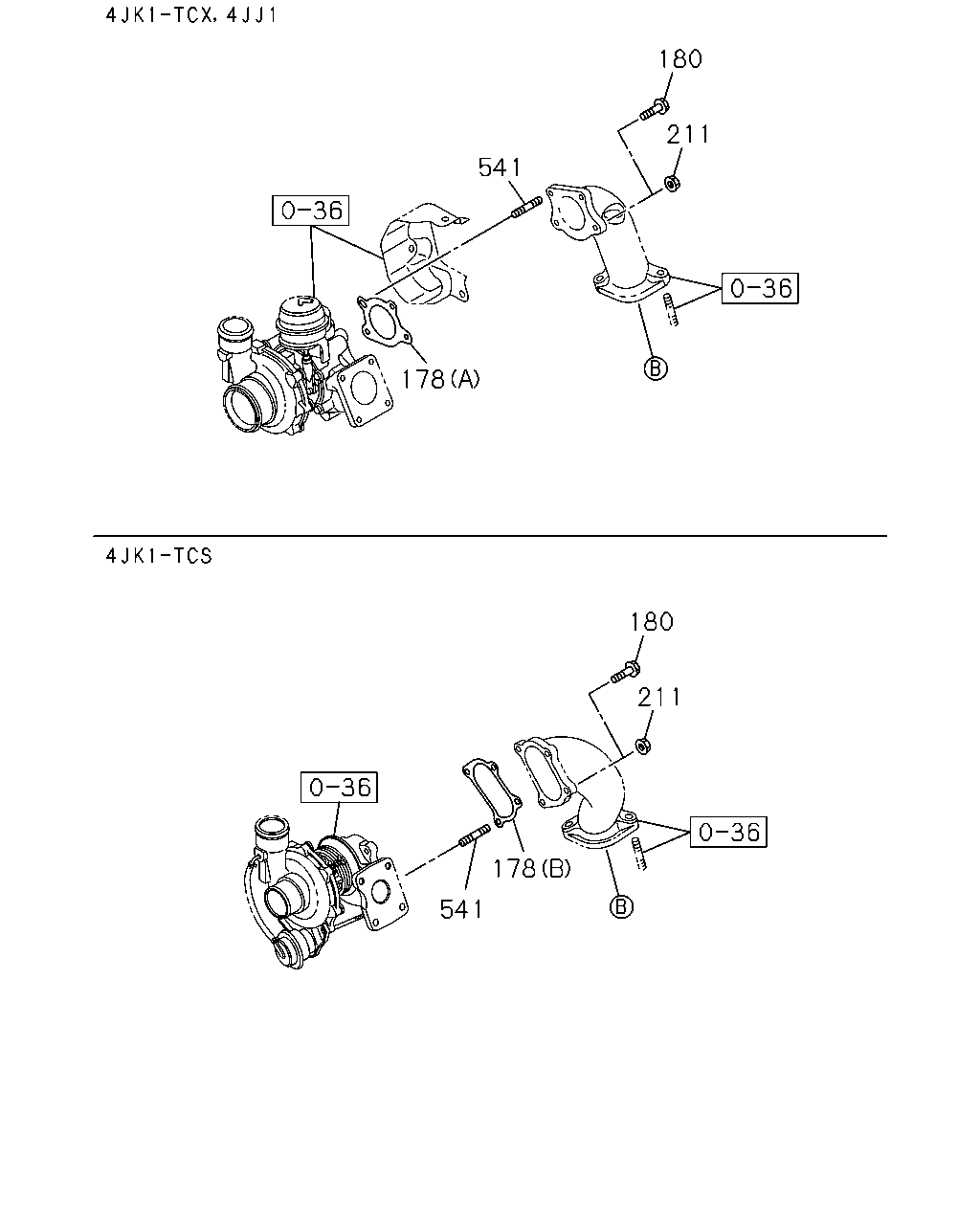

çizim 458427
180 211 541 178 180 211 178 541
BalonParca AdiParca NoAdetTipApplied Date A B C D
178 03.611 GASKET; CONV TO MANIF
(B) 		8-97312-284-1 01 1 1412- ●
178 03.611 GASKET; CONV TO MANIF
(A) 		8-98132-538-0 01 1 1412-1510 ●
178 03.611 GASKET; CONV TO MANIF
(A) 		8-98132-538-0 01 1 1511- ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1412-1510 ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1511- ● ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1412-1510 ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1511- ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1412-1510 ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1511- ● ● ●
çizim 458447
12 115 337 59 115 84 428
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 03.701 SILENCER ASM; EXH 8-98302-091-0 01 1 1511- ●
12 03.701 SILENCER ASM; EXH 8-98125-376-3 01 1 1412- ● ●
12 03.701 SILENCER ASM; EXH 8-98065-538-3 01 1 1412- ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1412-1510 ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1511- ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1412-1510 ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1511- ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
03.706 (A) 		8-97289-169-0 01 1 1412-1510 ● ● ●
115 03.704 RUBBER; MTG,SILENCER
03.706 (A) 		8-97289-169-0 01 1 1511- ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-98124-470-0 02 1 1412-1510 ● ● ●
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-98124-470-0 02 1 1511- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1412-1510 ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1511- ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE 8-98124-470-0 01 1 1412-1510 ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE 8-98124-470-0 01 1 1511- ● ● ● ●
