◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#153837) — 34 parça

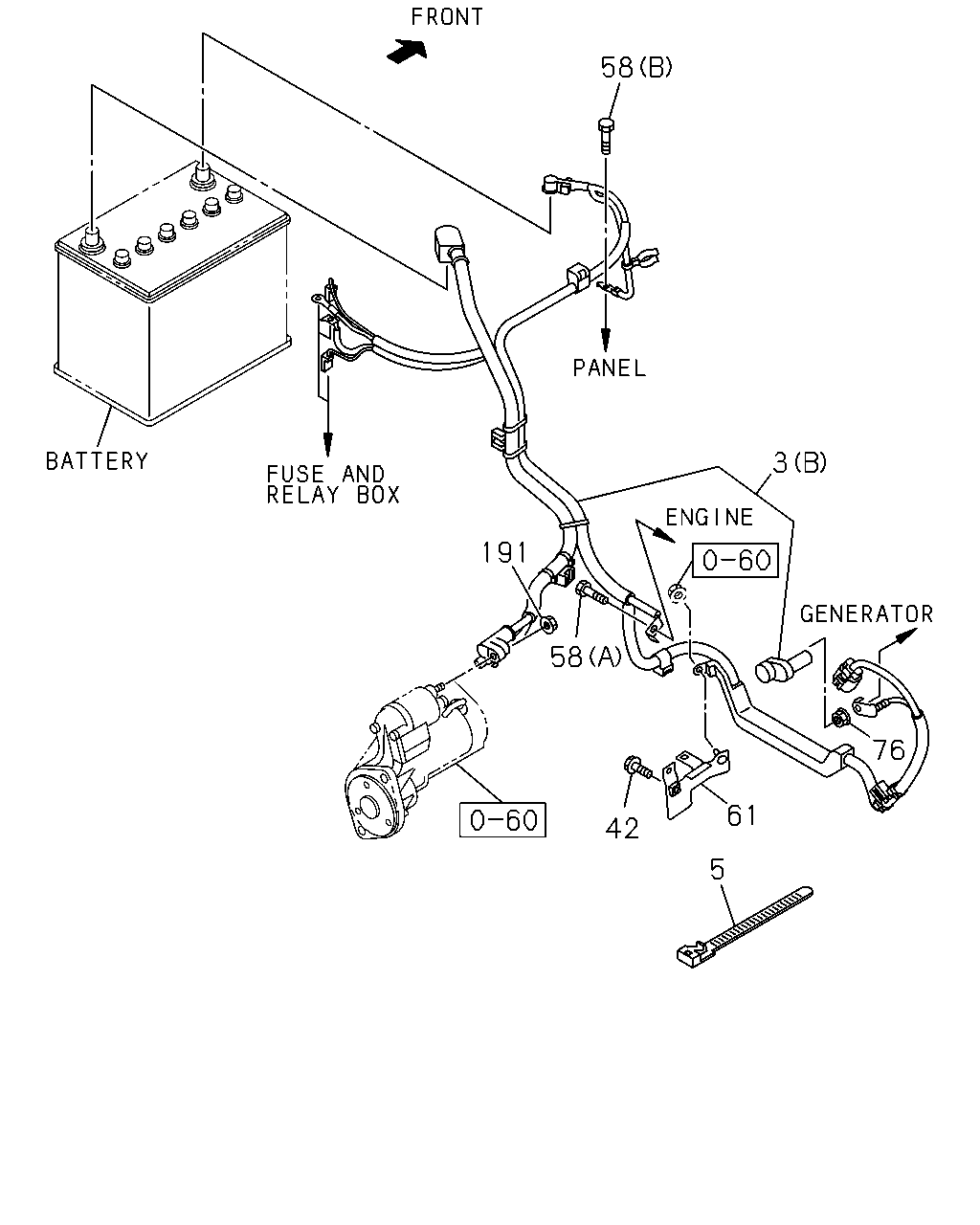

çizim 458394
3 58 191 58 42 5 61 76
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) (A) 		8-98238-380-2 01 1 1412-1510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) (A) 		8-98238-380-2 01 1 1511- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) (A) 		8-98160-809-3 01 1 1412-1510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) (A) 		8-98160-809-3 01 1 1511- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98238-430-1 01 1 1412- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98160-808-3 01 1 1412- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) HIGH RIDE SUSPENSION(7YC) (B) 		8-98238-431-1 01 1 1412- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B) 		8-98230-233-1 01 1 1412- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
HIGH RIDE SUSPENSION(7YC) 03.162 L=140 		5-09707-031-1 01 1 1412- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1412- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1412-1510 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1511- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1412-1501 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-1510 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1511- ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 1412- ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1412- ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1412-1510 ● ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1511- ● ● ● ●

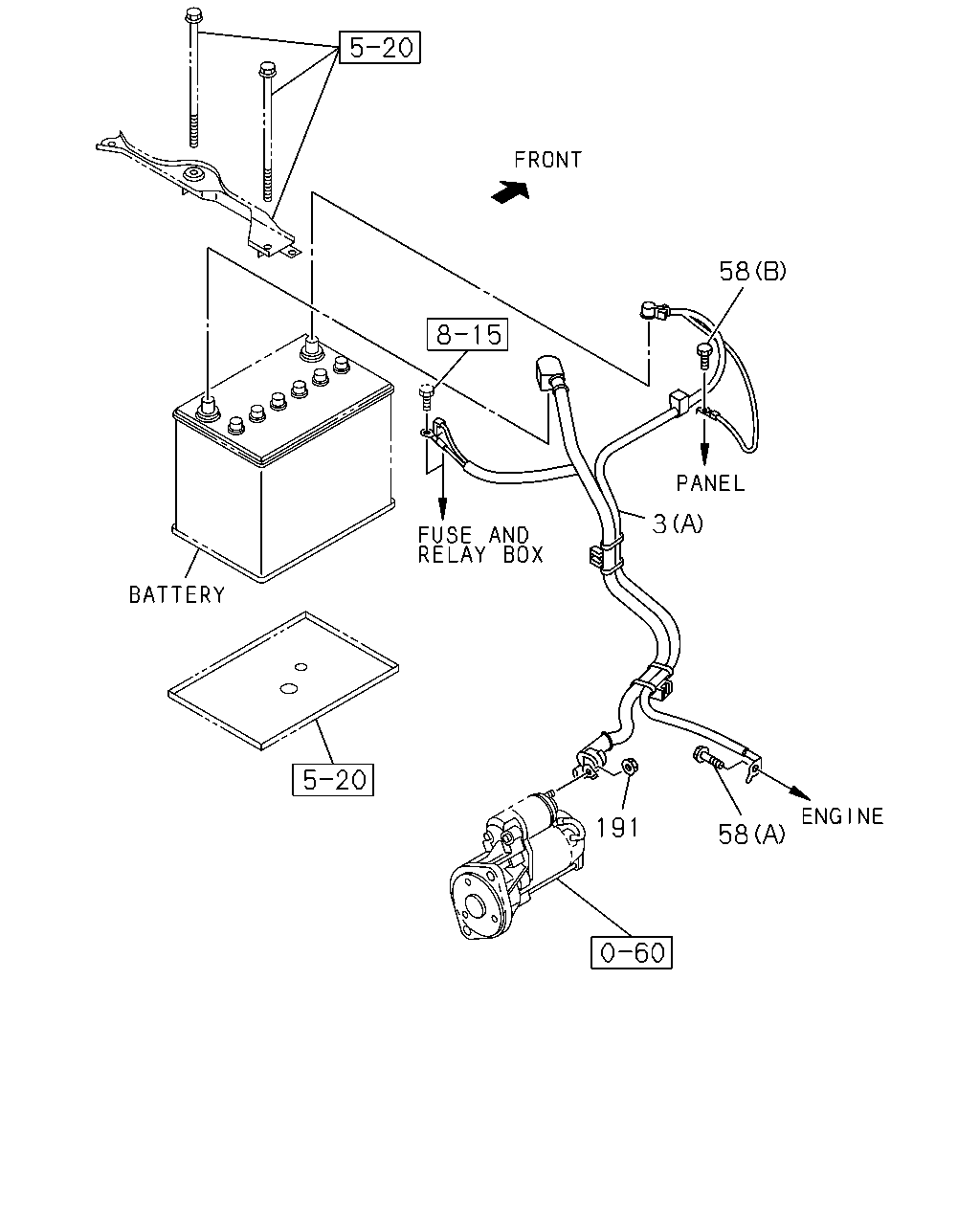

çizim 459084
3 58 191 58
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) (A) 		8-98238-380-2 01 1 1412-1510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) (A) 		8-98238-380-2 01 1 1511- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) (A) 		8-98160-809-3 01 1 1412-1510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) (A) 		8-98160-809-3 01 1 1511- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98238-430-1 01 1 1412- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98160-808-3 01 1 1412- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) HIGH RIDE SUSPENSION(7YC) (B) 		8-98238-431-1 01 1 1412- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B) 		8-98230-233-1 01 1 1412- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1412-1510 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1511- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1412-1501 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-1510 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1511- ● ● ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1412-1510 ● ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1511- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
