◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#153836) — 201 parça

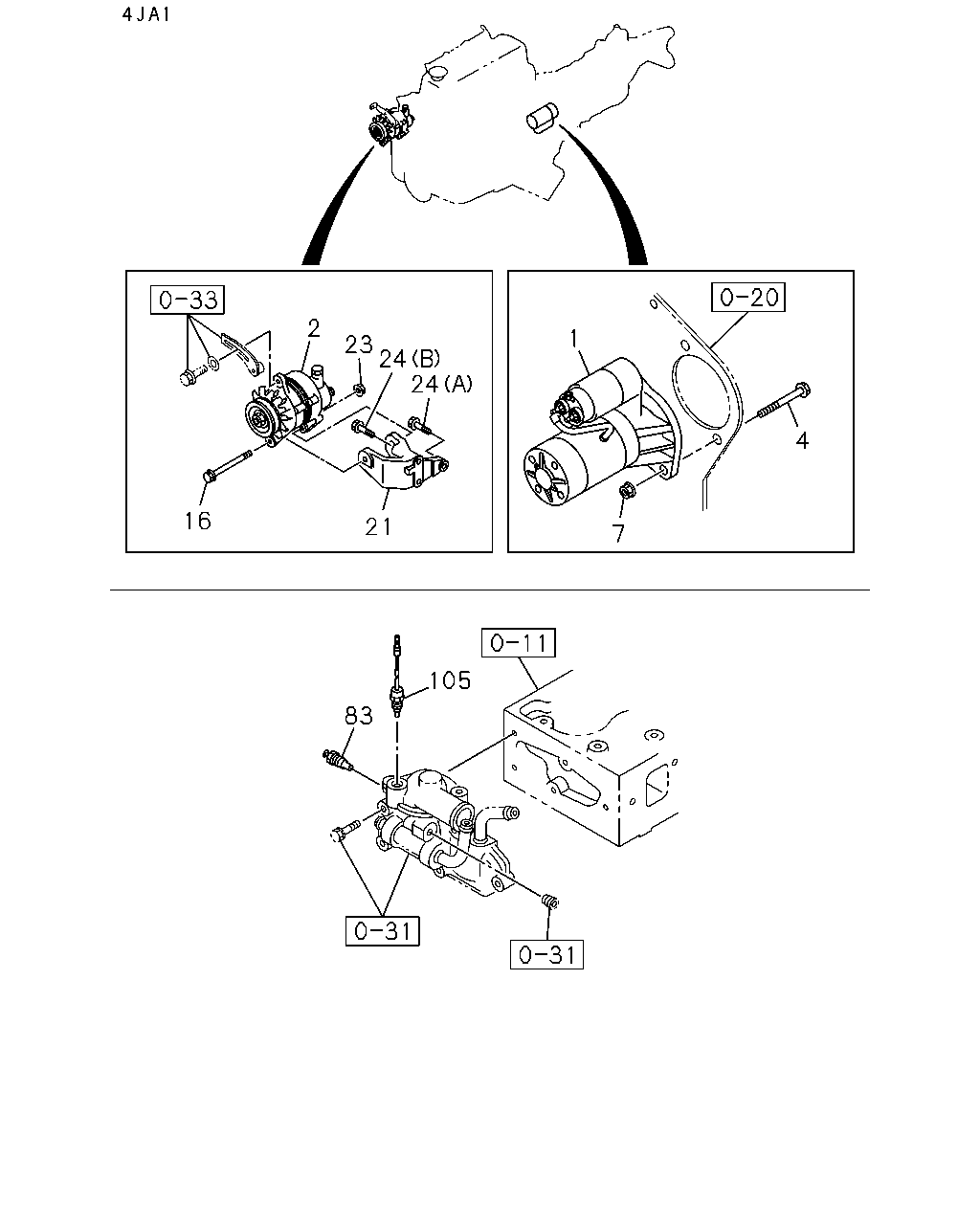

çizim 458317
1 4 7 24 24 23 2 16 21 105 83
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1412- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1412-1510 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1511- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1412-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97245-850-2 01 1 1412- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1412-1412 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1501-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1501-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1505-1510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1511- ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1412-1510 ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1511- ● ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1412-1510 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1510 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1511- ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1511- ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1412-1510 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1511- ● ● ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1412- ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1412-1510 ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1511- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1412- ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1412- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 1412- ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1412-1510 ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1511- ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1412-1510 ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1511- ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1412- ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 1412- ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 1412- ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1412-1510 ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1511- ● ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 1412-1510 ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1412- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1412- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 1412- ●

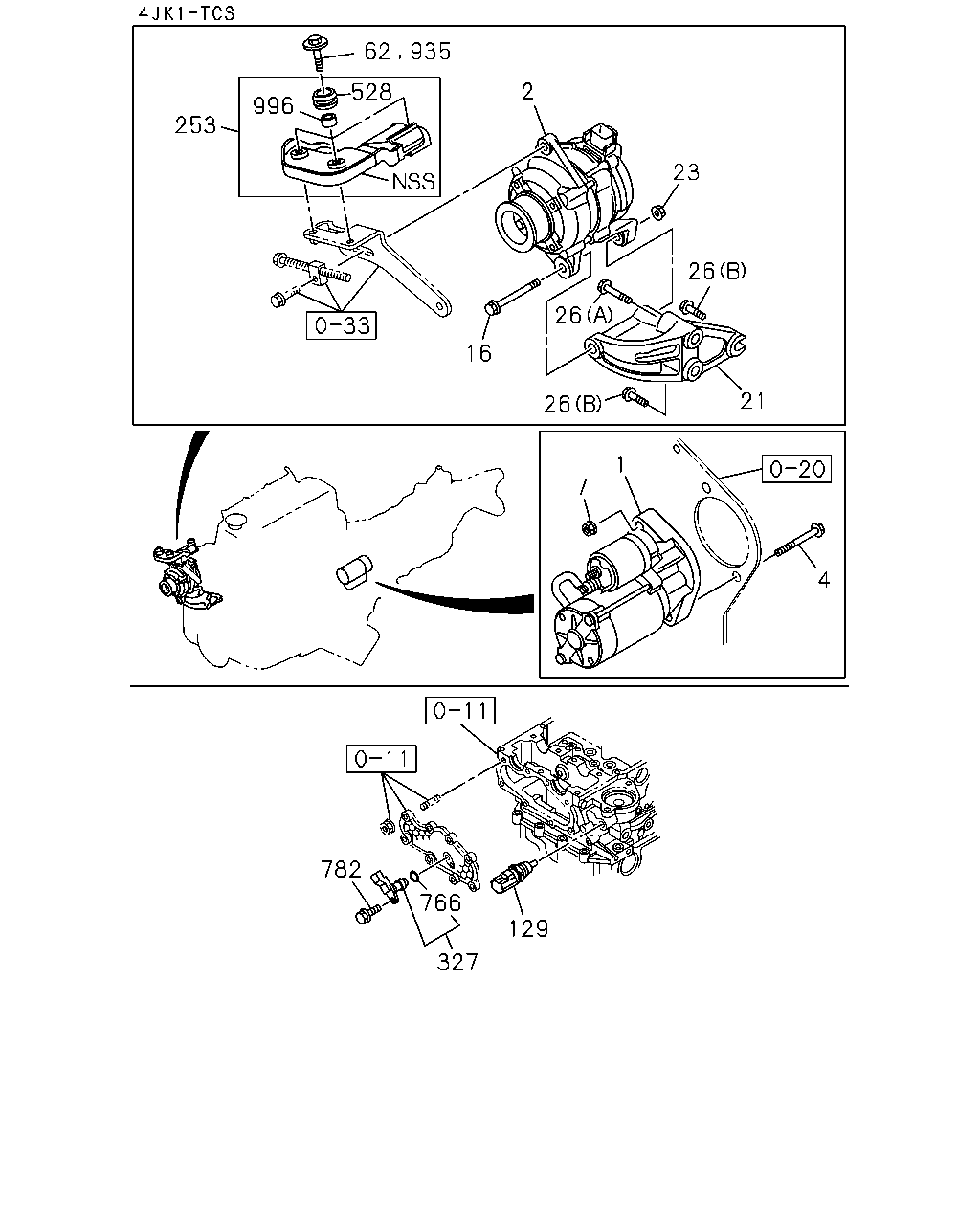

çizim 458391
1 7 21 26 26 26 16 23 2 935 62 528 996 253 782 129 766 327 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1412- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1412-1510 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1511- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1412-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97245-850-2 01 1 1412- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1412-1412 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1501-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1501-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1505-1510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1511- ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1412-1510 ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1511- ● ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1412-1510 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1510 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1511- ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1511- ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1412-1510 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1511- ● ● ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1412- ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1412-1510 ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1511- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1412- ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1412- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 1412- ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1412-1510 ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1511- ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1412-1510 ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1511- ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1412- ● ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1412- ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1412- ●
26 02.277 BOLT; GEN BRKT
09.171 (C) M10X25 FLANGE 		0-28051-025-0 01 1 1412-1510 ●
26 02.277 BOLT; GEN BRKT
09.171 (C) M10X25 FLANGE 		0-28051-025-0 01 1 1511- ● ●
26 02.277 BOLT; GEN BRKT
04.510 (D) M10X35 FLANGE 		0-28051-035-0 01 1 1412-1510 ●
26 02.277 BOLT; GEN BRKT
04.510 (D) M10X35 FLANGE 		0-28051-035-0 01 1 1511- ● ●
26 02.277 BOLT; GEN BRKT
00.685 (E) M10X45 FLANGE 		0-28051-045-0 01 1 1412-1510 ●
26 02.277 BOLT; GEN BRKT
00.685 (E) M10X45 FLANGE 		0-28051-045-0 01 1 1511- ● ●
62 02.277 BOLT; PROTECTOR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-407-0 03 1 1412- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1412-1412 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1501-1510 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1511- ● ● ●
253 02.277 PROTECTOR; HEAT,GEN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98157-835-2 01 1 1412-1510 ● ●
253 02.277 PROTECTOR; HEAT,GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-835-2 01 1 1412-1510 ●
253 02.277 PROTECTOR; HEAT,GEN
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98157-835-2 01 1 1511- ● ● ●
253 02.277 PROTECTOR; HEAT,GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-835-2 01 1 1511- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1412- ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1412-1510 ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1511- ● ●
528 02.270 BUSHING
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98158-298-0 03 1 1412-1510 ● ●
528 02.270 BUSHING
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98158-298-0 03 1 1412-1510 ●
528 02.270 BUSHING
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98158-298-0 03 1 1511- ● ● ●
528 02.270 BUSHING
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98158-298-0 03 1 1511- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1412-1510 ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1511- ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1412-1510 ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1511- ● ● ●
935 02.042 BOLT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 02.277 		8-97383-407-0 03 1 1412-1510 ● ●
935 02.042 BOLT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 02.277 		8-97383-407-0 03 1 1511- ● ● ●
996 02.042 MOUNT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98158-299-0 03 1 1412-1510 ● ●
996 02.042 MOUNT; PROTECTOR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98158-299-0 03 1 1412-1510 ●
996 02.042 MOUNT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC(BCC) 		8-98158-299-0 03 1 1511- ● ● ●
996 02.042 MOUNT; PROTECTOR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98158-299-0 03 1 1511- ●

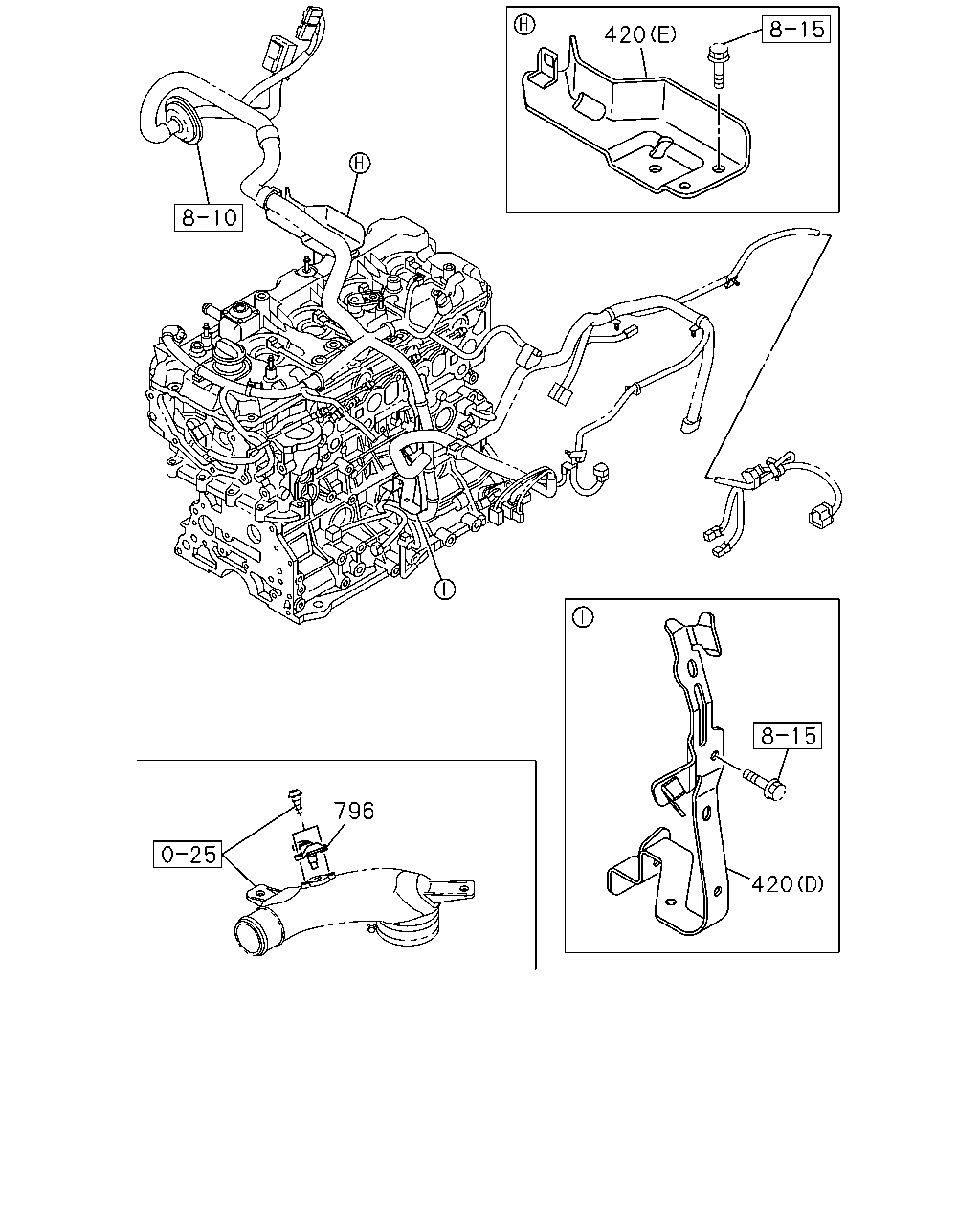

çizim 458393
420 420 796
BalonParca AdiParca NoAdetTipApplied Date A B C D
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1412- ●
420 02.183 BRACKET; HARNESS
(C) 		8-98132-063-0 01 1 1412- ●
420 02.183 BRACKET; HARNESS
(B) 		8-98165-075-0 01 1 1412- ●
420 02.183 BRACKET; HARNESS
(D) 		8-98226-846-1 01 1 1412-1510 ●
420 02.183 BRACKET; HARNESS
(D) 		8-98226-846-1 01 1 1511- ● ●
420 02.183 BRACKET; HARNESS
(E) 		8-98228-383-0 01 1 1412-1510 ●
420 02.183 BRACKET; HARNESS
(E) 		8-98228-383-0 01 1 1511- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1412-1510 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1511- ● ●

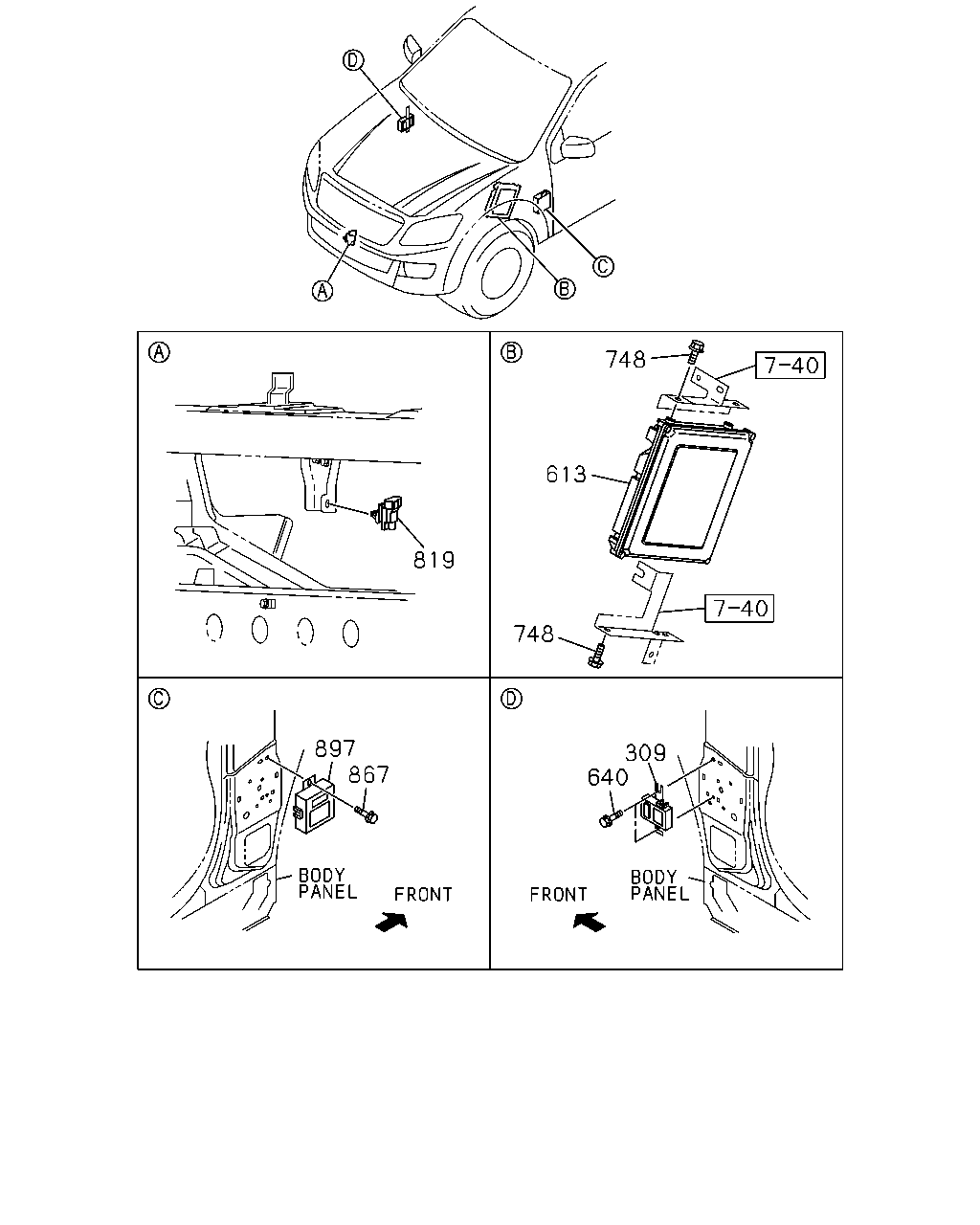

çizim 458413
748 613 748 819 897 867 309 640
BalonParca AdiParca NoAdetTipApplied Date A B C D
309 02.510 TIMER; AFTER GLOW,QOS 8-97361-319-3 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98304-375-1 01 1 1511- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) 		8-98304-377-1 01 1 1511- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98288-113-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98223-045-6 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 		8-98288-112-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) 		8-98288-112-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98223-038-6 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-98223-044-6 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) 		8-98223-044-6 01 1 1412- ●
640 02.510 BOLT; BRKT,QOS GLOW TIMER
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1412- ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1412-1510 ● ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98008-687-0 01 1 1412-1510 ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98008-687-0 01 1 1511- ● ● ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1412-1510 ● ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ● ●
897 02.510 DRM 8-98221-054-4 01 1 1412-1510 ● ●
897 02.510 DRM 8-98221-054-4 01 1 1511- ● ● ●

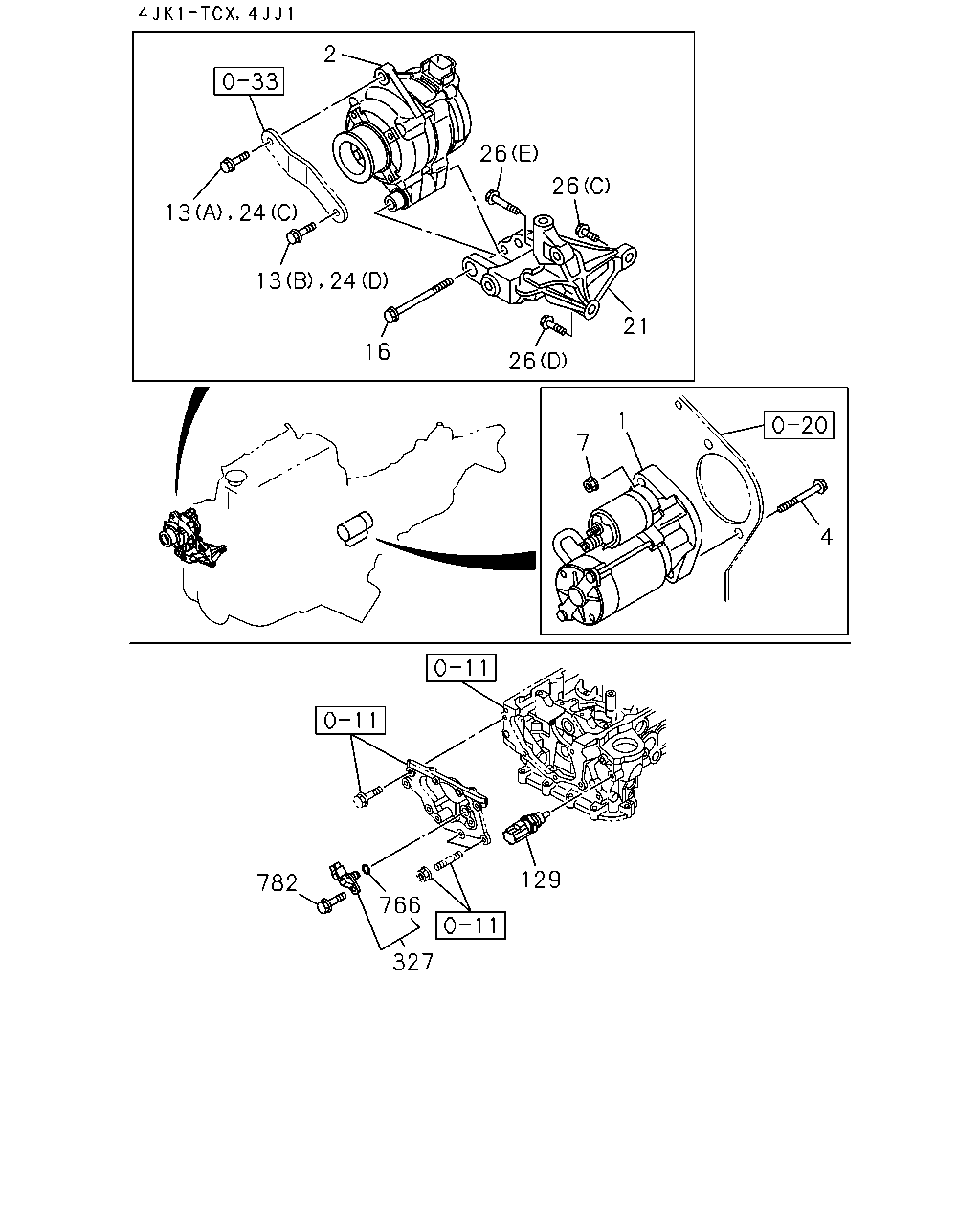

çizim 458455
26 24 13 13 24 2 26 26 21 7 1 766 782 327 129 16 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1412- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1412-1510 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1511- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1412-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97245-850-2 01 1 1412- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1412-1412 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98225-813-0 01 1 1501-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1501-1504 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1505-1510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98225-813-0 01 1 1511- ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1412-1510 ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1511- ● ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1412-1510 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1412-1510 ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1511- ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1511- ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1412-1510 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1511- ● ● ● ●
13 02.100 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1412-1510 ●
13 02.100 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1511- ● ●
13 02.100 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1412-1510 ●
13 02.100 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1412- ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1412-1510 ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1511- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1412- ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1412- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 1412- ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1412-1510 ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1511- ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 1412- ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 1412- ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1412-1510 ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1511- ● ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 1412-1510 ●
24 02.277 BOLT; GEN BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1412- ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1412- ●
26 02.277 BOLT; GEN BRKT
09.171 (C) M10X25 FLANGE 		0-28051-025-0 01 1 1412-1510 ●
26 02.277 BOLT; GEN BRKT
09.171 (C) M10X25 FLANGE 		0-28051-025-0 01 1 1511- ● ●
26 02.277 BOLT; GEN BRKT
04.510 (D) M10X35 FLANGE 		0-28051-035-0 01 1 1412-1510 ●
26 02.277 BOLT; GEN BRKT
04.510 (D) M10X35 FLANGE 		0-28051-035-0 01 1 1511- ● ●
26 02.277 BOLT; GEN BRKT
00.685 (E) M10X45 FLANGE 		0-28051-045-0 01 1 1412-1510 ●
26 02.277 BOLT; GEN BRKT
00.685 (E) M10X45 FLANGE 		0-28051-045-0 01 1 1511- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1412-1412 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1501-1510 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1511- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1412- ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1412-1510 ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1511- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1412-1510 ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1511- ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1412-1510 ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1511- ● ● ●

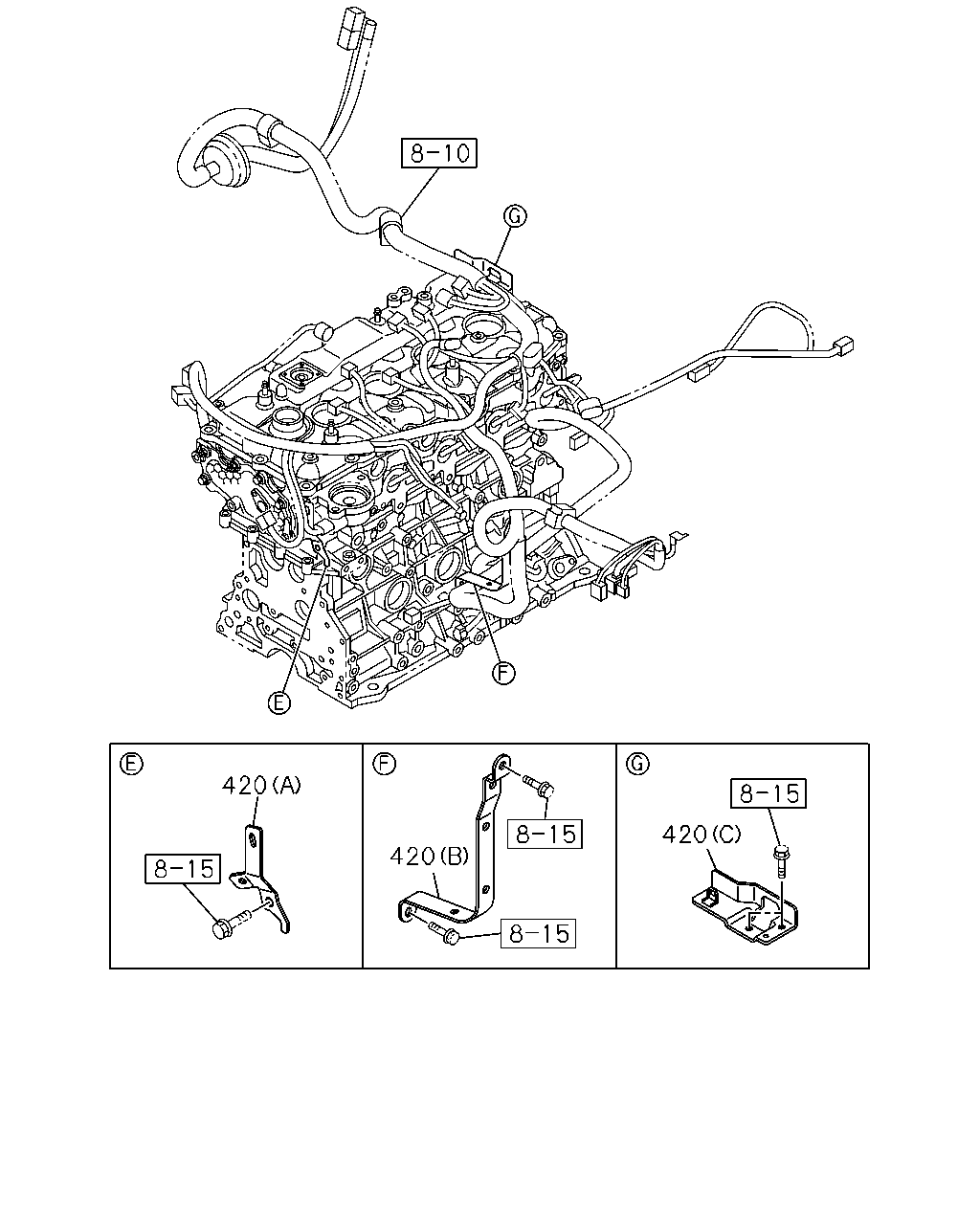

çizim 459456
420 420 420
BalonParca AdiParca NoAdetTipApplied Date A B C D
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1412- ●
420 02.183 BRACKET; HARNESS
(C) 		8-98132-063-0 01 1 1412- ●
420 02.183 BRACKET; HARNESS
(B) 		8-98165-075-0 01 1 1412- ●
420 02.183 BRACKET; HARNESS
(D) 		8-98226-846-1 01 1 1412-1510 ●
420 02.183 BRACKET; HARNESS
(D) 		8-98226-846-1 01 1 1511- ● ●
420 02.183 BRACKET; HARNESS
(E) 		8-98228-383-0 01 1 1412-1510 ●
420 02.183 BRACKET; HARNESS
(E) 		8-98228-383-0 01 1 1511- ● ●

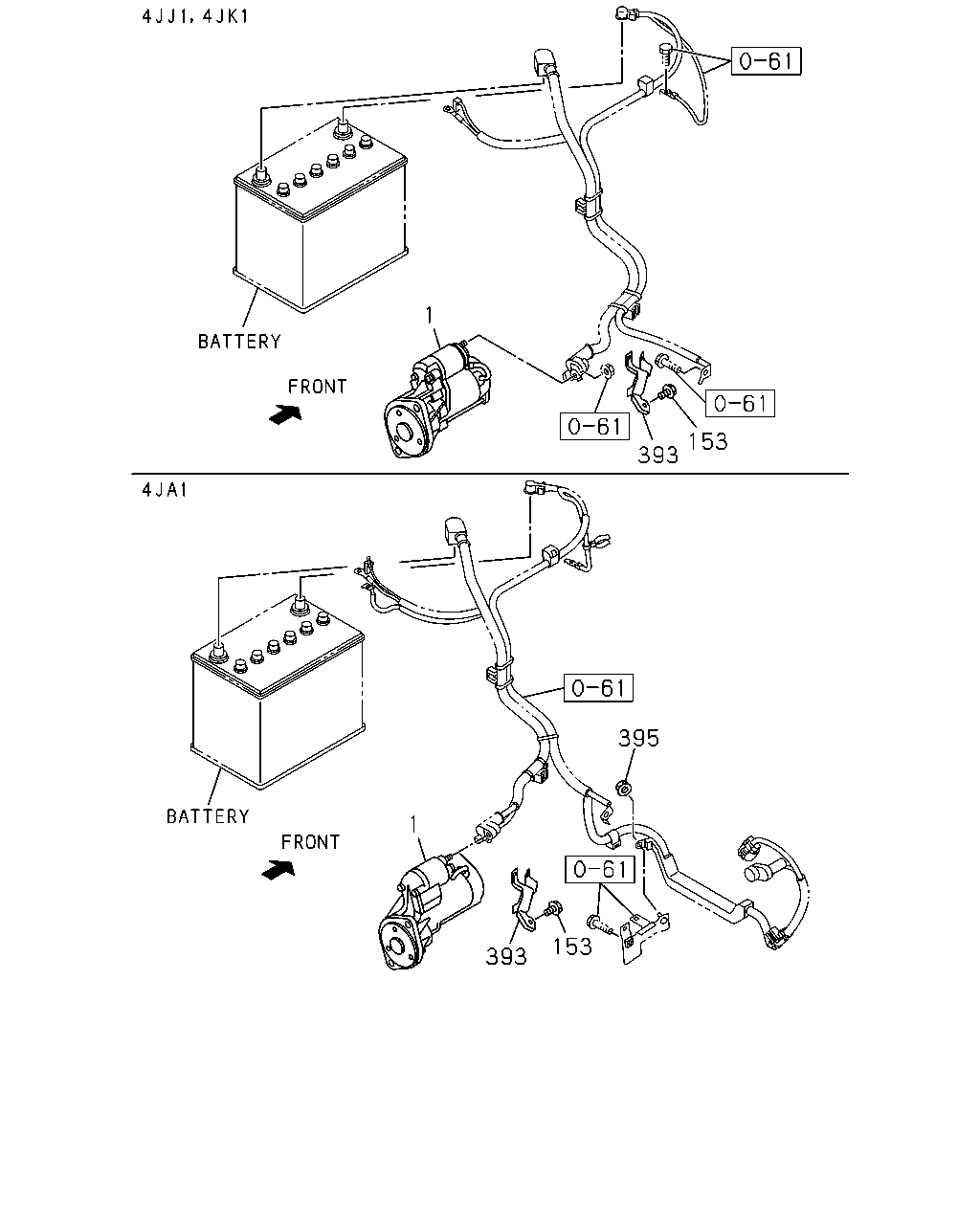

çizim 459469
153 393 1 395 153 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1412- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1412-1510 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1511- ● ● ●
153 02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1412- ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1412-1510 ● ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1511- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1412-1510 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1511- ● ● ● ●
395 02.343 NUT; BRKT FIX
16.320 M6 FLANGE 		8-98049-362-0 01 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
