Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#153834) — 248 parça

331 330 331 47 47 332 47 44 46 47 47 567 458

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1412-	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 FLANGE	8-98137-710-0	01	1	1412-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1412-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1412-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1412-	●
330	03.278 HOSE; VAC PUMP,RETURN	8-98189-794-0	01	1	1412-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	1412-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	1412-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1412-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1412-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1412-1510			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1511-			●	●
458	01.426 CAP; RUBBER HEATER & DEFROSTER(C42) 01.780 ID=4	8-94217-809-0	01	1	1412-	●
567	01.531 CLIP; PIPE HEATER & DEFROSTER(C42) 03.145 ID=8	8-94107-762-0	01	1	1412-	●

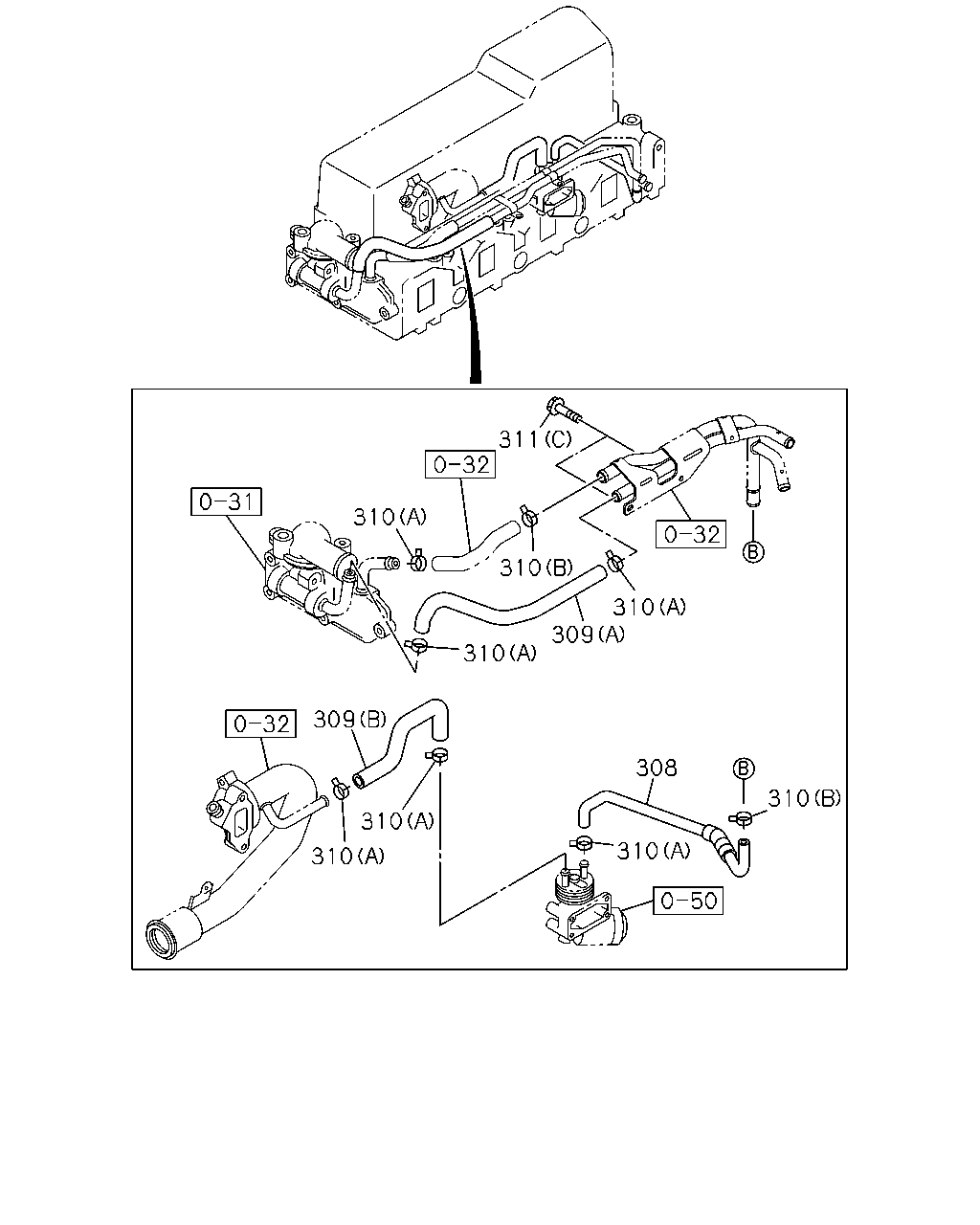

311 310 310 310 309 310 309 310 310 310 310 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
308	01.540 HOSE; OIL COOLER FEED	8-97362-329-3	01	1	1412-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97213-919-2	01	1	1412-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97256-047-1	01	1	1412-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	1412-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	1412-	●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-		●
311	01.531 BOLT; PIPE FIX 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1412-	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1412-1510			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-			●	●

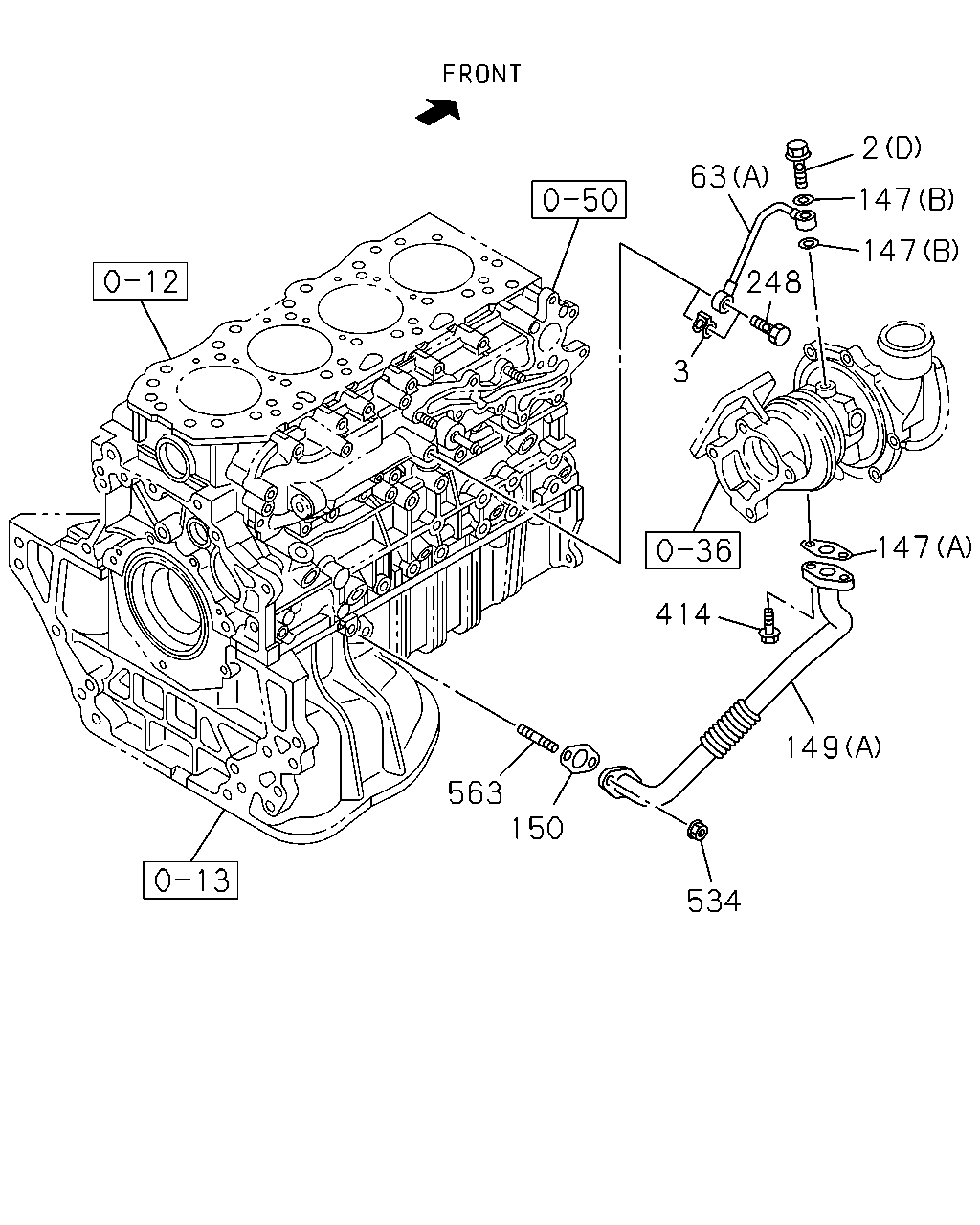

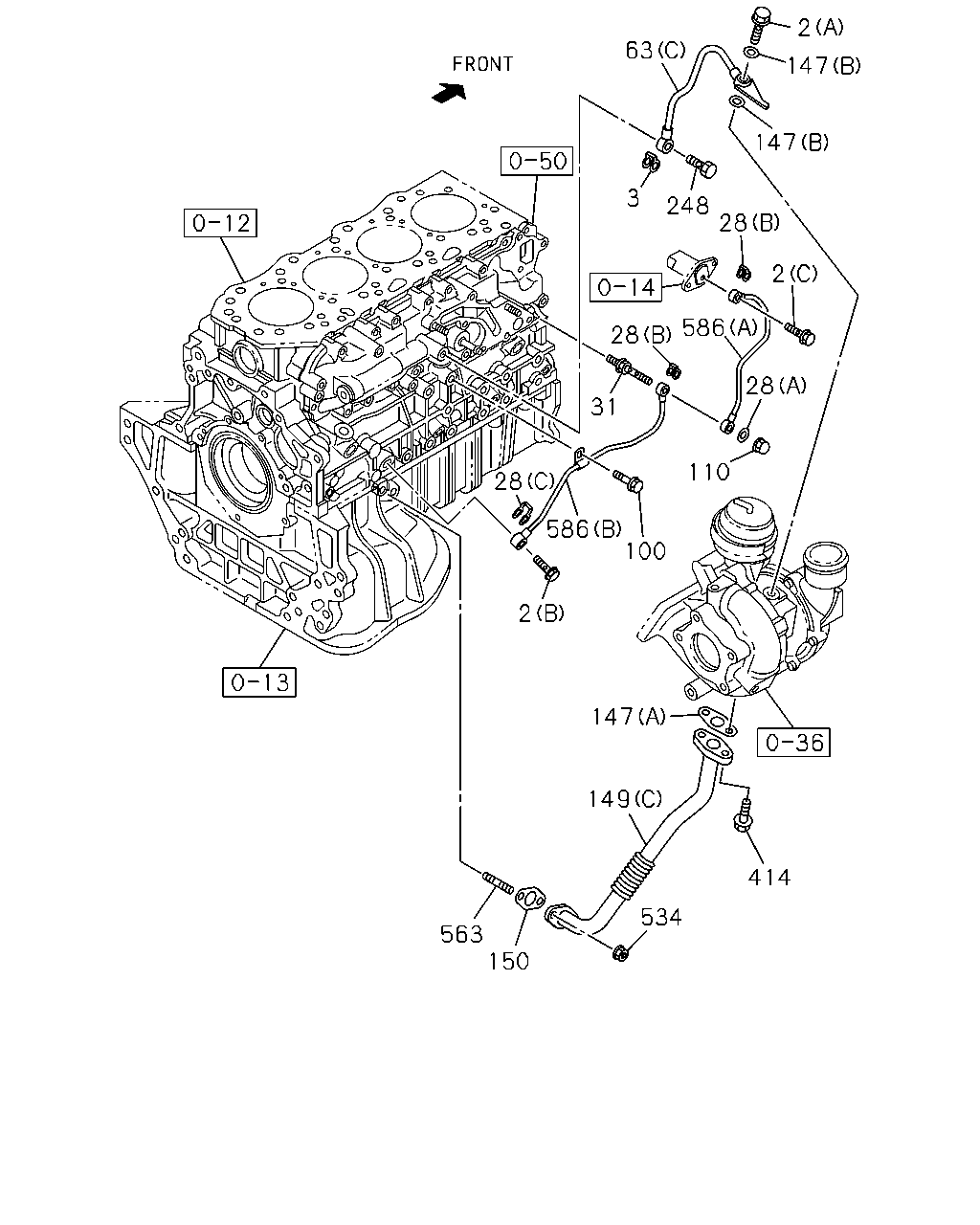

63 2 147 147 248 3 563 150 534 149 147 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE (D) M10X27 FLANGE	8-94443-535-0	01	1	1412-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1511-			●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M8X23 FLANGE	8-98108-689-0	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE (C) M8X23 FLANGE	8-98108-689-0	01	1	1511-			●	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X25 FLANGE	8-98151-063-1	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X25 FLANGE	8-98151-063-1	01	1	1511-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1412-1510		●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1511-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1412-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1412-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97350-308-0	01	1	1412-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98132-014-1	01	1	1412-1510			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98132-014-1	01	1	1511-			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1412-1510	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1511-	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1412-1510		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1511-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (C)	8-94362-672-1	01	1	1412-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98189-782-0	01	1	1412-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-97333-749-1	01	1	1412-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98156-381-0	01	1	1412-1510			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98156-381-0	01	1	1511-			●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1412-1510		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1511-		●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1412-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1412-1510		●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1511-		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1412-	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1412-1510		●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1511-		●	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1510		●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1511-		●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1412-1510		●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1511-		●	●	●

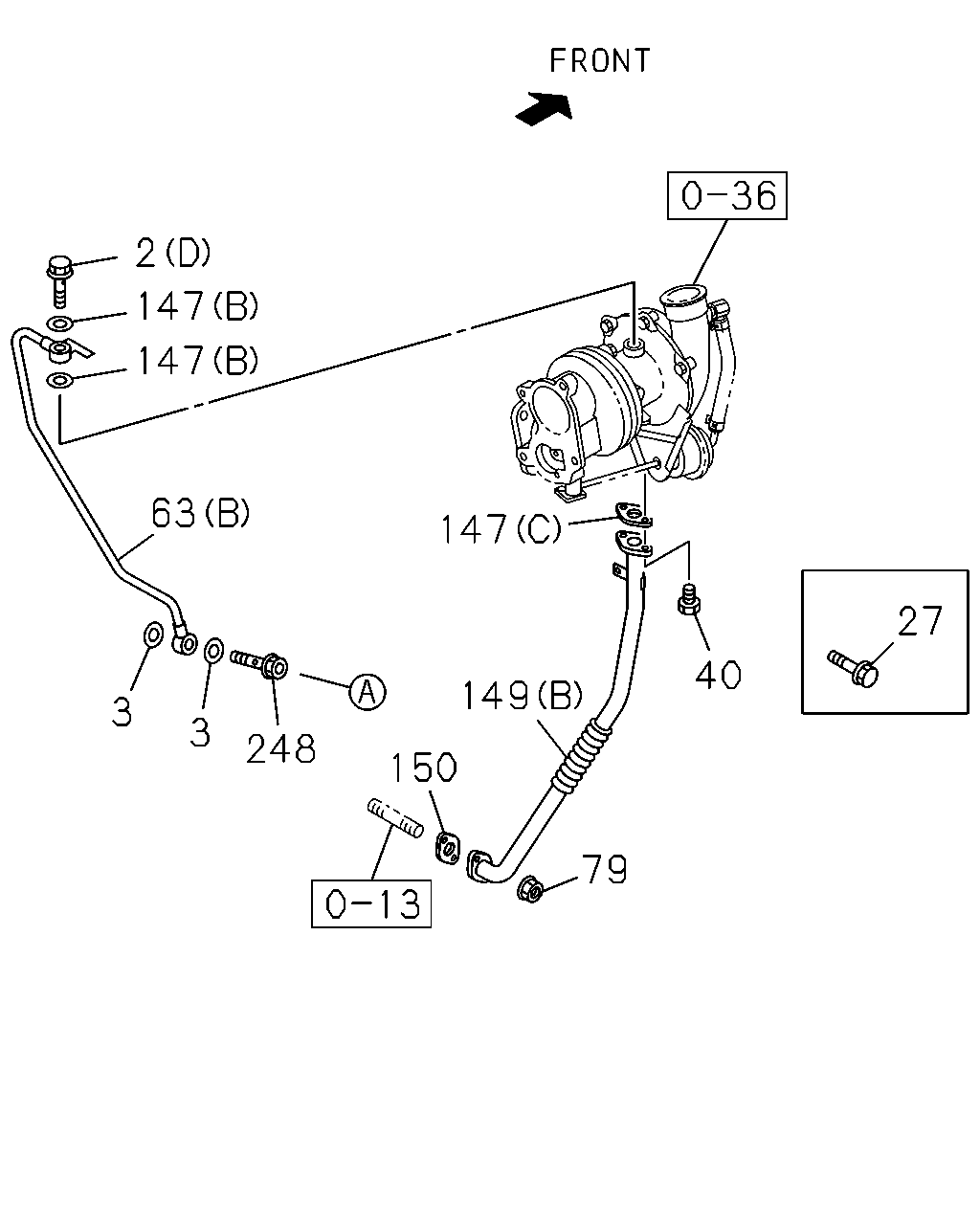

2 147 147 63 147 40 27 79 150 149 248 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE (D) M10X27 FLANGE	8-94443-535-0	01	1	1412-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1511-			●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M8X23 FLANGE	8-98108-689-0	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE (C) M8X23 FLANGE	8-98108-689-0	01	1	1511-			●	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X25 FLANGE	8-98151-063-1	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X25 FLANGE	8-98151-063-1	01	1	1511-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1412-1510		●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1511-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1412-	●
27	01.531 BOLT; OIL PIPE FIX 03.407 M8X10 FLANGE	0-28050-810-0	01	1	1412-	●
40	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1412-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1412-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97350-308-0	01	1	1412-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98132-014-1	01	1	1412-1510			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98132-014-1	01	1	1511-			●	●
79	01.531 NUT; OIL DRAIN PIPE 04.634 M8 FLANGE	8-97581-233-0	02	1	1412-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1412-1510	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1511-	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1412-1510		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1511-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (C)	8-94362-672-1	01	1	1412-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98189-782-0	01	1	1412-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-97333-749-1	01	1	1412-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98156-381-0	01	1	1412-1510			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98156-381-0	01	1	1511-			●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1412-1510		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1511-		●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1412-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1412-1510		●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1511-		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1412-	●

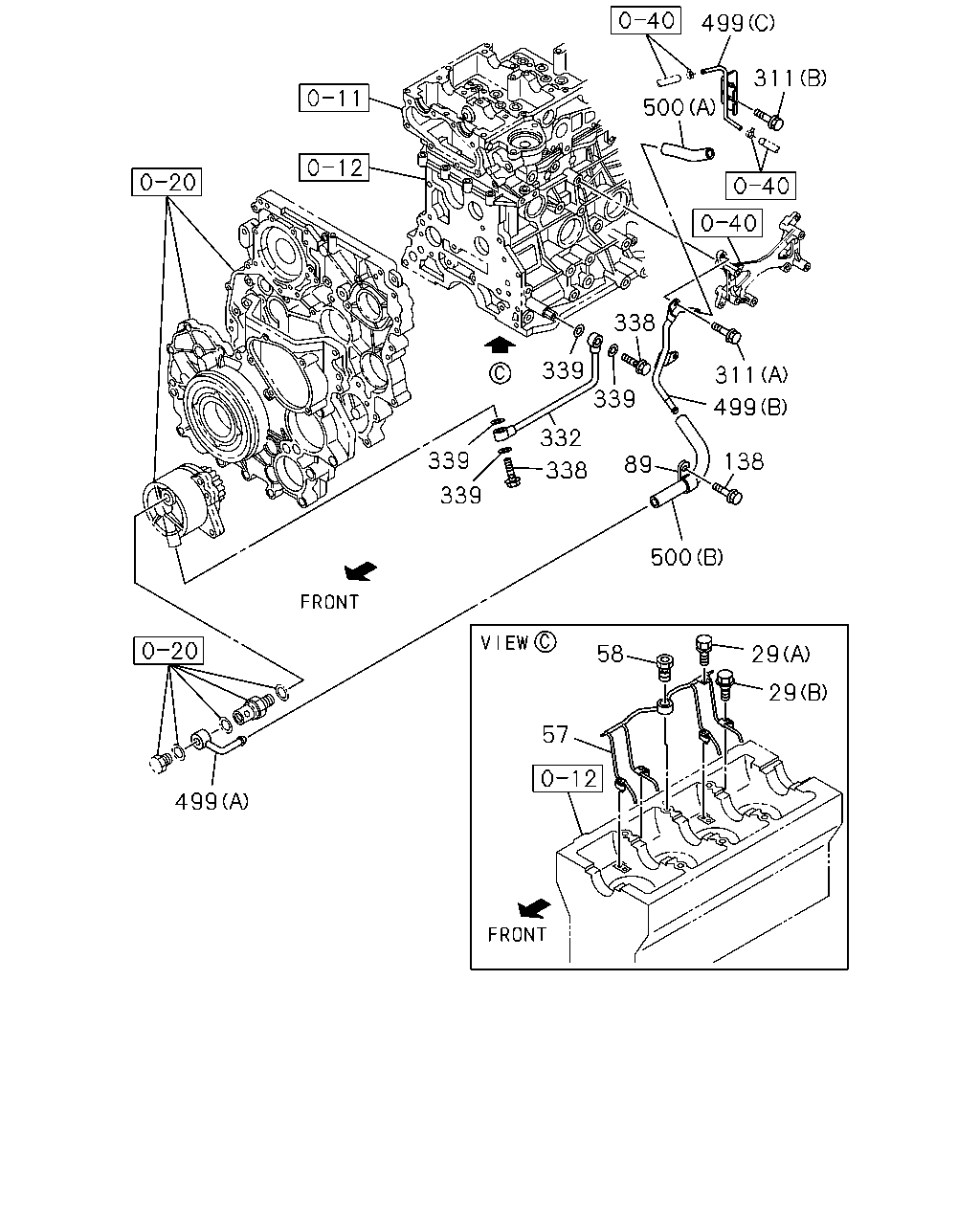

499 311 500 338 339 339 311 499 138 89 332 338 339 339 499 57 58 29 29 500

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1412-1510	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1511-	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1412-1510		●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1511-		●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1412-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1412-1510		●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1511-		●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1412-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1412-1510		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1511-		●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1412-	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1412-1510		●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1511-		●	●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-1510		●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1511-		●	●	●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-		●
311	01.531 BOLT; PIPE FIX 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1412-	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1412-1510			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-			●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1412-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1412-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1412-1510			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1511-			●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1412-1510		●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1511-		●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1412-1510		●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1511-		●	●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1412-1510		●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1511-		●	●	●
499	04.681 PIPE; VACUUM (C)	8-98132-059-3	01	1	1412-		●
499	04.681 PIPE; VACUUM (B)	8-98187-442-0	01	1	1412-		●
499	04.681 PIPE; VACUUM (E)	8-98132-058-2	01	1	1412-1510			●
499	04.681 PIPE; VACUUM (E)	8-98132-058-2	01	1	1511-			●	●
499	04.681 PIPE; VACUUM (D)	8-98258-938-0	01	1	1412-1510			●
499	04.681 PIPE; VACUUM (D)	8-98258-938-0	01	1	1511-			●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1412-1510		●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1511-		●	●	●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1412-		●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1412-1510			●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1511-			●	●

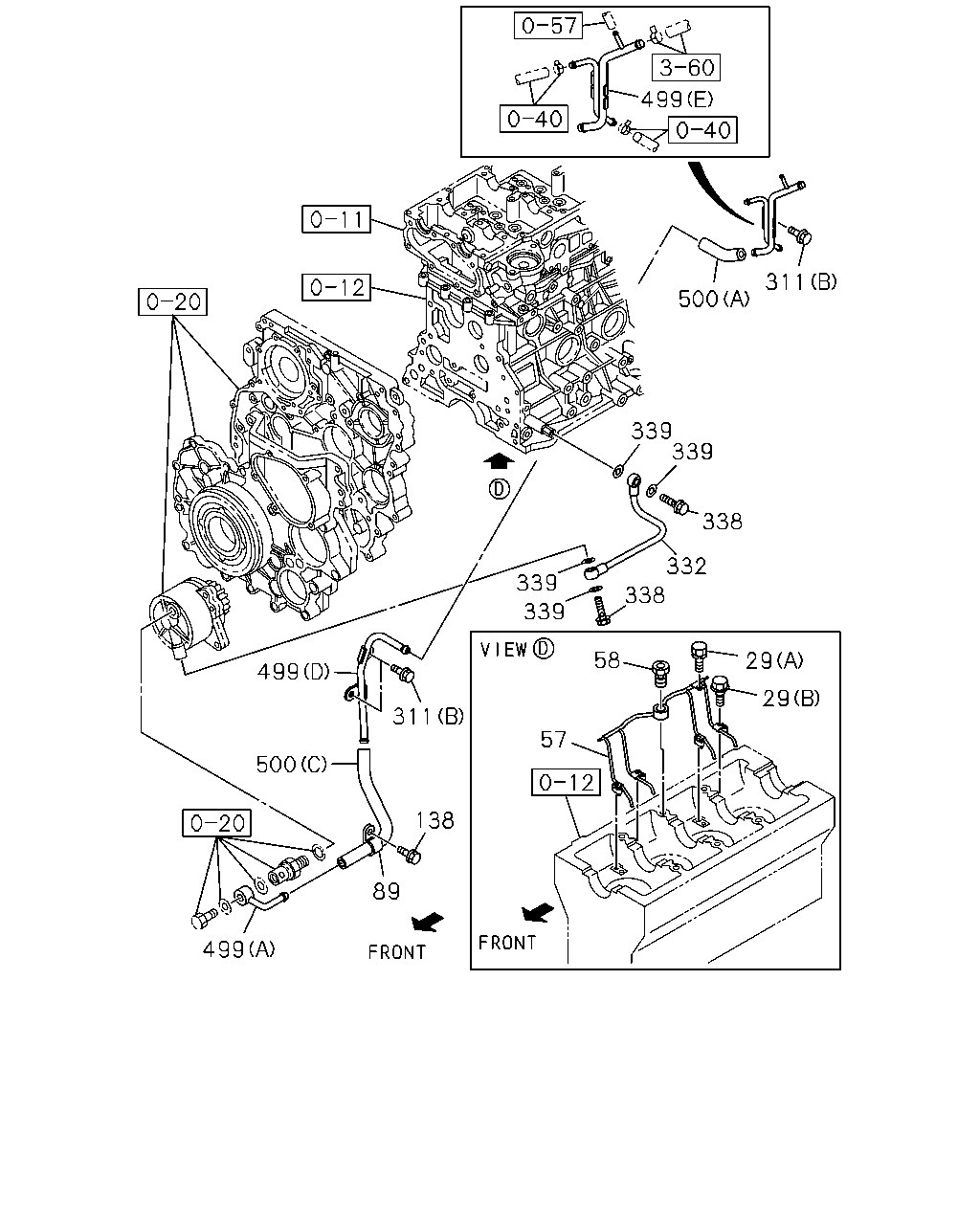

499 311 500 339 339 338 332 338 339 339 58 29 29 57 311 138 89 499 500 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1412-1510	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1511-	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1412-1510		●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1511-		●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1412-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1412-1510		●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1511-		●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1412-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1412-1510		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1511-		●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1412-	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1412-1510		●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1511-		●	●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-1510		●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1511-		●	●	●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-		●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-		●
311	01.531 BOLT; PIPE FIX 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1412-	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1412-1510			●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-			●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1412-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1412-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1412-1510			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1511-			●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1412-1510		●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1511-		●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1412-1510		●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1511-		●	●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1412-1510		●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1511-		●	●	●
499	04.681 PIPE; VACUUM (C)	8-98132-059-3	01	1	1412-		●
499	04.681 PIPE; VACUUM (B)	8-98187-442-0	01	1	1412-		●
499	04.681 PIPE; VACUUM (E)	8-98132-058-2	01	1	1412-1510			●
499	04.681 PIPE; VACUUM (E)	8-98132-058-2	01	1	1511-			●	●
499	04.681 PIPE; VACUUM (D)	8-98258-938-0	01	1	1412-1510			●
499	04.681 PIPE; VACUUM (D)	8-98258-938-0	01	1	1511-			●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1412-1510		●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1511-		●	●	●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1412-		●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1412-1510			●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1511-			●	●

63 2 147 147 248 3 31 28 586 28 110 100 586 2 147 149 414 534 150 563 28 28 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE (D) M10X27 FLANGE	8-94443-535-0	01	1	1412-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1511-			●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M8X23 FLANGE	8-98108-689-0	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE (C) M8X23 FLANGE	8-98108-689-0	01	1	1511-			●	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X25 FLANGE	8-98151-063-1	01	1	1412-1510			●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X25 FLANGE	8-98151-063-1	01	1	1511-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1412-1510		●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1511-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1412-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11	5-09623-002-0	02	1	1412-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1412-1510			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1511-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0	8-98113-762-0	01	1	1412-1510			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0	8-98113-762-0	01	1	1511-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1412-1510			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1511-			●	●
31	01.540 NIPPLE; OIL PIPE	8-98186-104-0	01	1	1412-1510			●
31	01.540 NIPPLE; OIL PIPE	8-98186-104-0	01	1	1511-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1412-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97350-308-0	01	1	1412-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98132-014-1	01	1	1412-1510			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98132-014-1	01	1	1511-			●	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1510			●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1511-			●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1412-1510			●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1511-			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1412-1510	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1511-	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1412-1510		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1511-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (C)	8-94362-672-1	01	1	1412-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98189-782-0	01	1	1412-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-97333-749-1	01	1	1412-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98156-381-0	01	1	1412-1510			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98156-381-0	01	1	1511-			●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1412-1510		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1511-		●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1412-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1412-1510		●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1511-		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1412-	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1412-1510		●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1511-		●	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1510		●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1511-		●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1412-1510		●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1511-		●	●	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98228-274-0	01	1	1412-1510			●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98228-274-0	01	1	1511-			●	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98251-165-0	01	1	1412-1510			●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98251-165-0	01	1	1511-			●	●

29 58 29 26 57 28 28 118 313 48 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1412-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11	5-09623-002-0	02	1	1412-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1412-1510			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1511-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0	8-98113-762-0	01	1	1412-1510			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0	8-98113-762-0	01	1	1511-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1412-1510			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1511-			●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1412-1510	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1511-	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1412-1510		●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1511-		●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1412-	●
48	01.531 CLIP; OIL PIPE ID=7 & 9 L=25	1-09701-228-3	01	1	1412-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1412-1510		●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1511-		●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1412-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1412-1510		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1511-		●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1412-	●
118	01.531 BRACKET; CLIP,OIL PIPE	8-97350-307-2	01	1	1412-	●
219	01.531 BOLT; CLIP FIX,OIL PIPE 03.162 M6X35 FLANGE	0-28650-635-0	01	1	1412-	●
313	01.540 BOLT; PIPE BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
