0-51 — OIL PUMP AND OIL STRAINER (#153833) — 37 parça
çizim 458330
1 1 29 45 2 5 121 19 35 42 49 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1412-1510 ● ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1511- ● ● ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 1412- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 1412- ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 1412- ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 1412- ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1412-1510 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1511- ● ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1412-1510 ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1511- ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 1412- ●
35 01.657 COVER; OIL PUMP 8-97203-876-0 01 1 1412- ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97089-824-0 01 1 1412- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 1412- ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1412-1510 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 1412- ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (C) M8X35 FLANGE 		0-28050-835-0 02 1 1412- ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 1412- ●

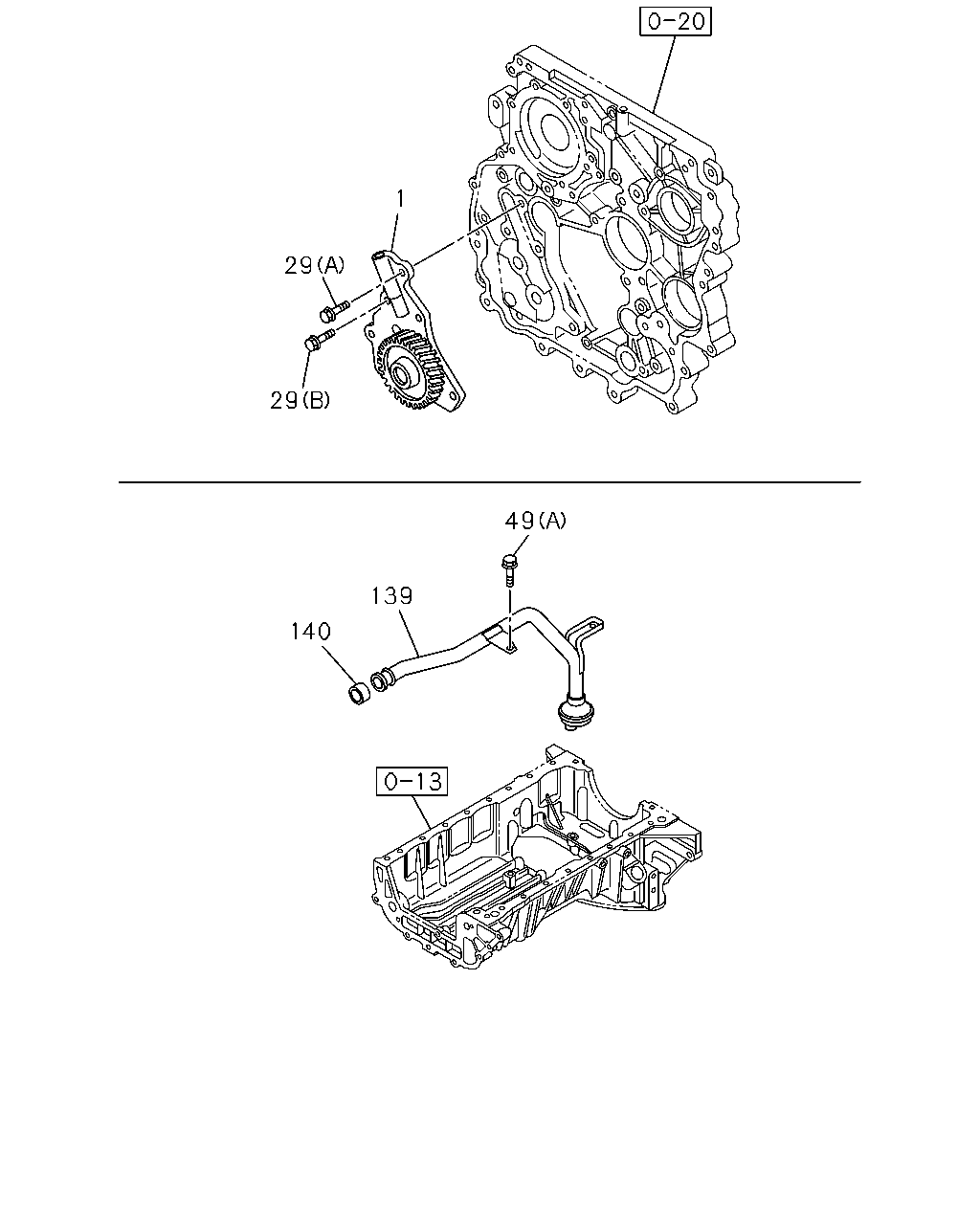

çizim 458998
29 1 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1412-1510 ● ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1511- ● ● ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 1412- ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1412-1510 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1511- ● ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1412-1510 ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1511- ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 1412- ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1412-1510 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 1412- ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (C) M8X35 FLANGE 		0-28050-835-0 02 1 1412- ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-98127-247-0 01 1 1412-1510 ● ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-98127-247-0 01 1 1511- ● ● ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-98132-012-0 01 1 1412-1510 ● ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-98132-012-0 01 1 1511- ● ● ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1412-1510 ● ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1511- ● ● ●
