◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11149 - EXY SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#15383) — 23 parça

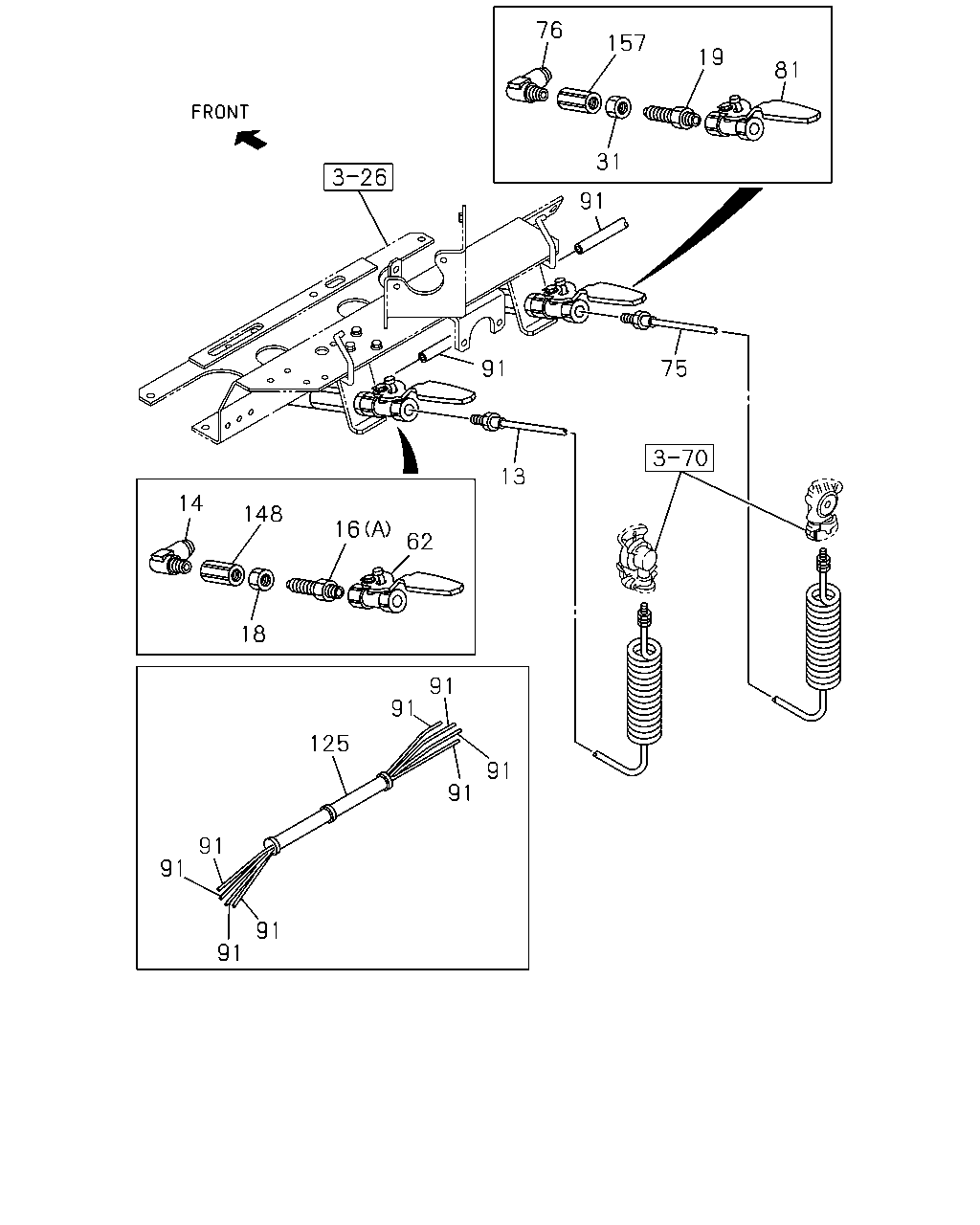

çizim 61282
76 157 19 81 31 91 75 91 13 14 148 16 62 18 91 91 125 91 91 91 91 91 91
BalonParca AdiParca NoAdetTipApplied Date
13 HOSE; FLEX,TRAILER SERVICE
SPIRAL TUBE BRK SEA TRAILER<NBD> 		1-49215-539-1 01 1 0804-
14 CONNECTOR; AIR PIPE
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
16 UNION; AIR PIPE
(A) 		1-09650-121-1 01 1 0804-
16 UNION; AIR PIPE
(B) 		1-09654-258-2 01 1 0804-
18 NUT; UNION
M16 		0-91111-516-0 01 1 0804-
19 UNION; AIR PIPE 1-09650-121-1 01 1 0804-
31 NUT; UNION
M16 		0-91111-516-0 01 1 0804-
62 COCK; AIR PIPE
YELLOW 		1-09680-093-0 01 1 0804-
75 HOSE; FLEX,TRAILER EMERGENCY
SPIRAL TUBE BRK SEA TRAILER<NBD> 		1-49215-539-1 01 1 0804-
76 NIPPLE; AIR PIPE
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
81 COCK; AIR COUPLING
RED 		1-09680-091-0 01 1 0804-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0804-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0804-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0804-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0804-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0804-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0804-
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0804-
157 ADAPTER
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0804-

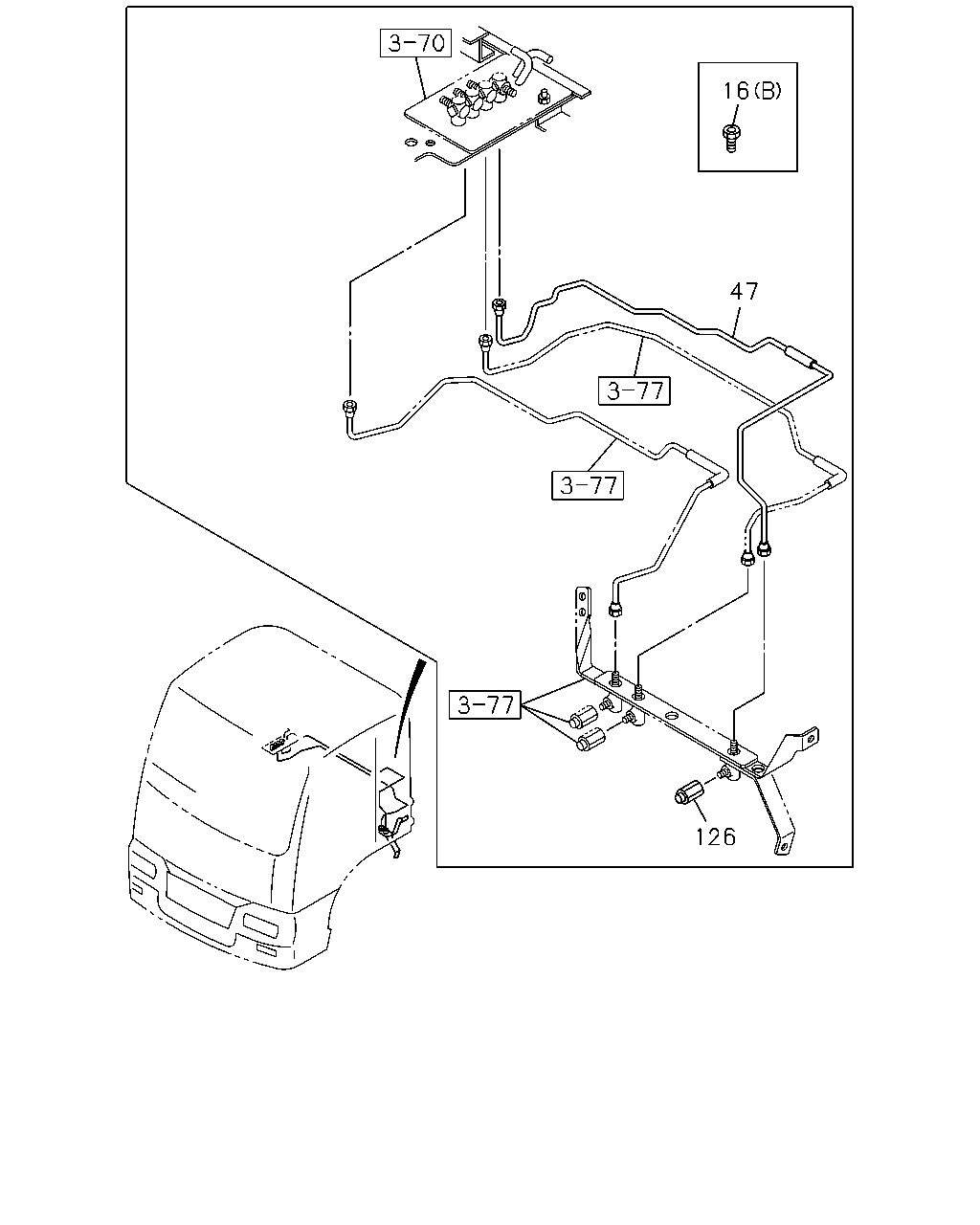

çizim 101885
16 47 126
BalonParca AdiParca NoAdetTipApplied Date
16 UNION; AIR PIPE
(A) 		1-09650-121-1 01 1 0804-
16 UNION; AIR PIPE
(B) 		1-09654-258-2 01 1 0804-
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-1 01 1 0804-
126 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0804-
