◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#153828) — 115 parça

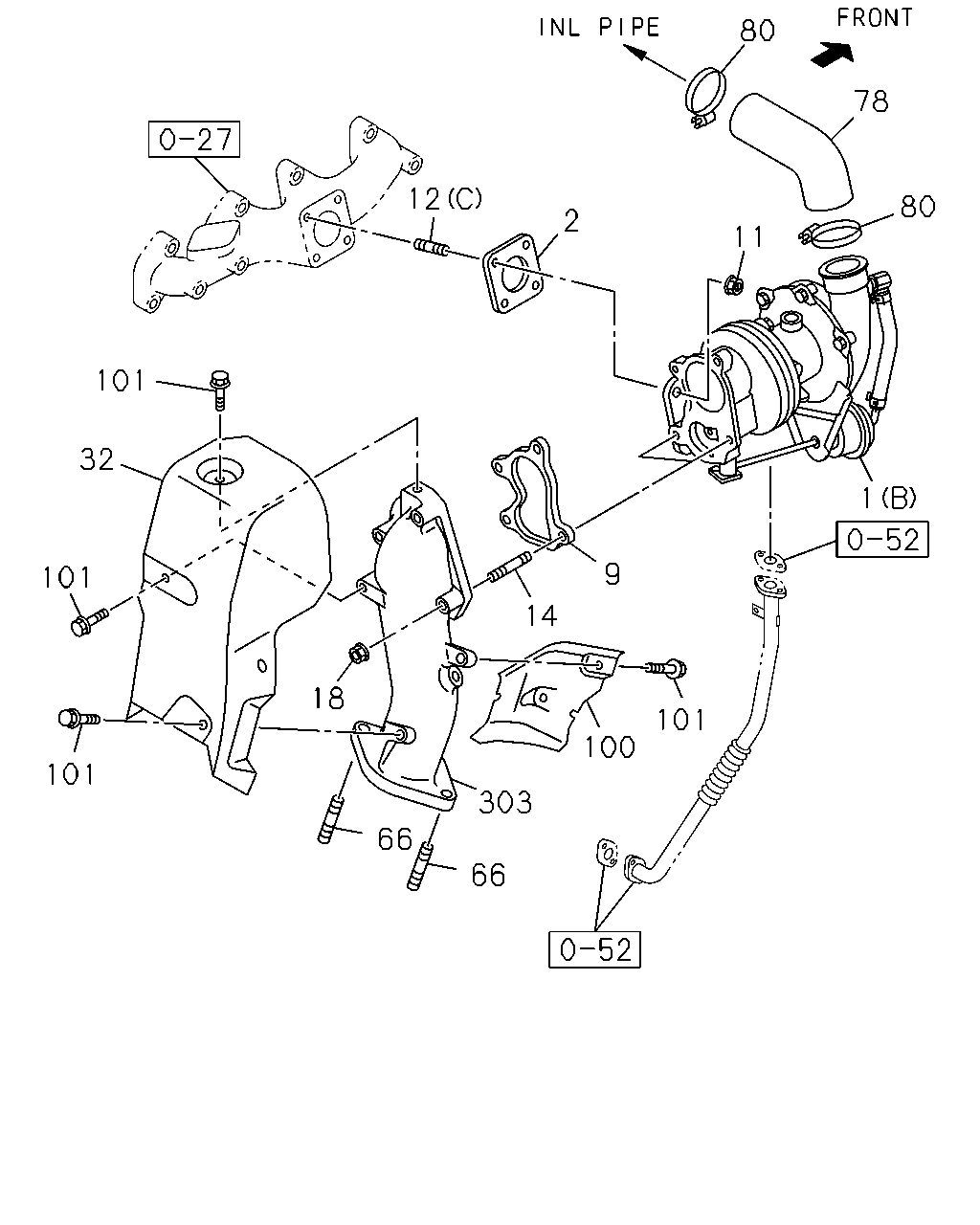

çizim 458267
80 78 80 11 1 2 12 101 32 101 101 18 66 100 14 101 303 66 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
(C) 		8-98235-627-1 01 1 1511- ●
1 03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98132-072-0 01 1 1412- ●
1 03.342 TURBOCHARGER ASM
(B) 		8-97240-210-2 01 1 1412- ●
1 03.342 TURBOCHARGER ASM
(C) 		8-98235-628-1 01 1 1412- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98132-073-0 01 1 1412-1510 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98132-073-0 01 1 1511- ● ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97315-266-0 01 1 1412- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97139-726-0 01 1 1412- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1412-1510 ● ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1511- ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1412- ●
12 03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36 		8-97378-062-0 02 1 1412-1510 ● ●
12 03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36 		8-97378-062-0 02 1 1511- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41 		8-97378-064-0 02 1 1412-1510 ● ●
12 03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41 		8-97378-064-0 02 1 1511- ● ● ●
12 03.342 STUD; TURBOCHARGER
(C) M8X20 L=31 		8-97378-060-0 04 1 1412- ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 1412- ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 1412- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-97087-029-0 01 1 1412- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1412-1510 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1511- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1412-1510 ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1511- ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 1412- ●
78 03.342 HOSE; INL PIPE,TURBOCHARGER 8-97096-628-3 01 1 1412- ●
80 03.407 CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5 		8-97131-943-0 02 1 1412- ●
100 03.417 PROTECTOR; HEAT,EXH MANIF 8-97038-109-1 01 1 1412- ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 1412- ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1412-1510 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1511- ● ●
303 03.440 ADAPTER; THROTTLE BODY,EXH 8-98189-770-0 01 1 1412- ●

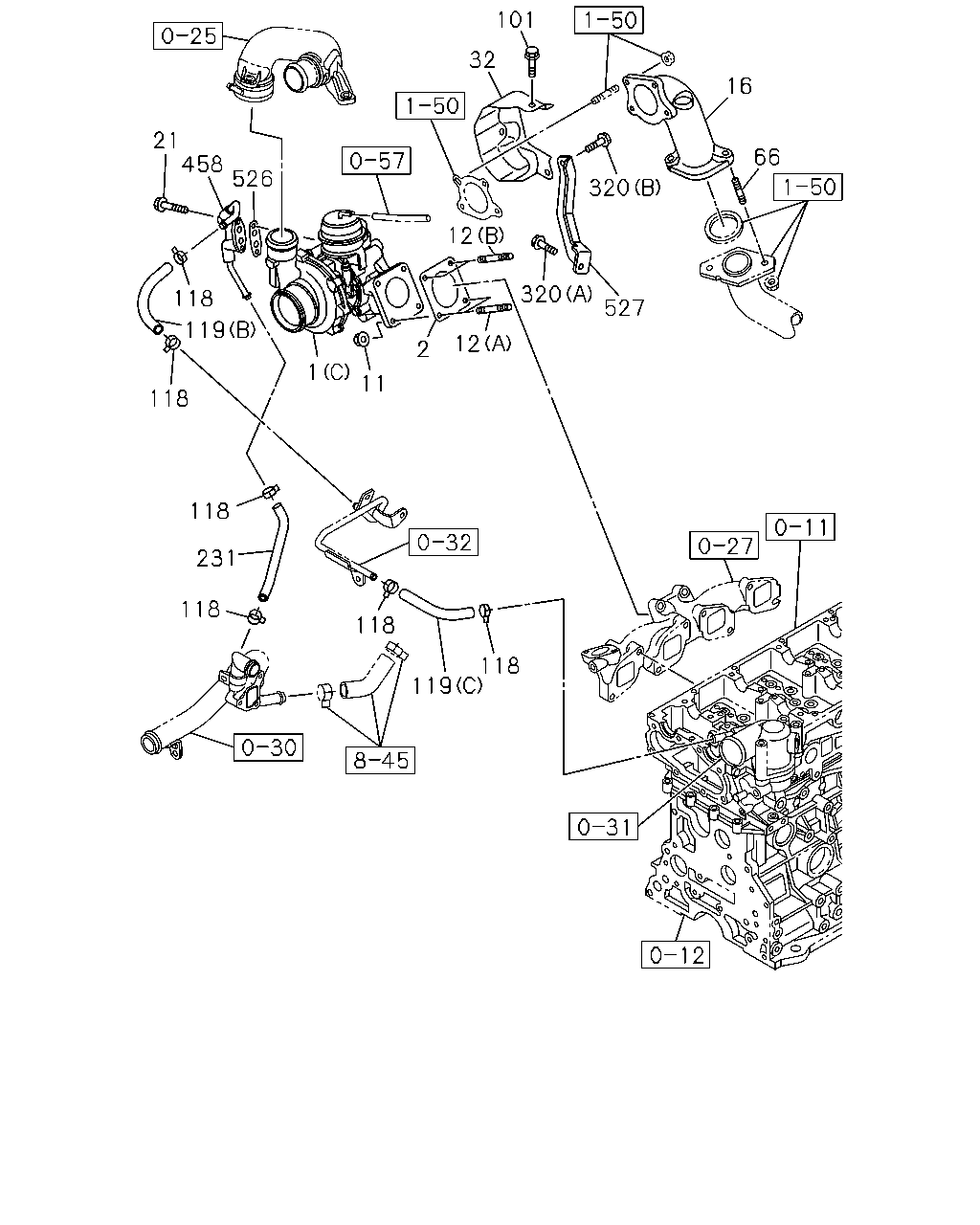

çizim 458271
119 118 118 118 231 118 118 11 1 2 12 320 527 12 526 458 21 101 32 16 320 118 119 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
(C) 		8-98235-627-1 01 1 1511- ●
1 03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98132-072-0 01 1 1412- ●
1 03.342 TURBOCHARGER ASM
(B) 		8-97240-210-2 01 1 1412- ●
1 03.342 TURBOCHARGER ASM
(C) 		8-98235-628-1 01 1 1412- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98132-073-0 01 1 1412-1510 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98132-073-0 01 1 1511- ● ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97315-266-0 01 1 1412- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1412-1510 ● ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1511- ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1412- ●
12 03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36 		8-97378-062-0 02 1 1412-1510 ● ●
12 03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36 		8-97378-062-0 02 1 1511- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41 		8-97378-064-0 02 1 1412-1510 ● ●
12 03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41 		8-97378-064-0 02 1 1511- ● ● ●
12 03.342 STUD; TURBOCHARGER
(C) M8X20 L=31 		8-97378-060-0 04 1 1412- ●
16 03.609 ADAPTER; EXH PIPE 8-98132-080-0 01 1 1412- ●
16 03.609 ADAPTER; EXH PIPE 8-98250-275-0 01 1 1412-1510 ●
16 03.609 ADAPTER; EXH PIPE 8-98250-275-0 01 1 1511- ● ●
21 03.358 BOLT; PIPE
01.652 M6X45 FLANGE 		0-28050-645-0 02 1 1412-1510 ●
21 03.358 BOLT; PIPE
01.652 M6X45 FLANGE 		0-28050-645-0 02 1 1511- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-97087-029-0 01 1 1412- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1412-1510 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1511- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1412-1510 ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1511- ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 1412- ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 1412- ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1412-1510 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1511- ● ●
118 03.342 CLIP; WATER HOSE
ID=15.1 		8-98179-581-0 06 1 1412-1510 ● ●
118 03.342 CLIP; WATER HOSE
ID=15.1 		8-98179-581-0 06 1 1511- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) 		8-98179-580-0 01 1 1412-1510 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) 		8-98179-580-0 01 1 1511- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-98179-510-0 01 1 1412- ●
119 03.342 HOSE; WATER,TURBOCHARGER
(C) 		8-98239-061-0 01 1 1412-1510 ●
119 03.342 HOSE; WATER,TURBOCHARGER
(C) 		8-98239-061-0 01 1 1511- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98168-392-2 01 1 1412- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98228-462-0 01 1 1412-1510 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98228-462-0 01 1 1511- ● ●
320 03.342 BOLT; BRKT,TURBOCHARGER
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1412-1510 ●
320 03.342 BOLT; BRKT,TURBOCHARGER
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
320 03.342 BOLT; BRKT,TURBOCHARGER
03.670 (B) M8X18 FLANGE 		8-97378-076-0 01 1 1412-1510 ●
320 03.342 BOLT; BRKT,TURBOCHARGER
03.670 (B) M8X18 FLANGE 		8-97378-076-0 01 1 1511- ● ●
458 03.373 PIPE; WATER,TURBOCHARGER 8-98184-505-0 01 1 1412-1510 ●
458 03.373 PIPE; WATER,TURBOCHARGER 8-98184-505-0 01 1 1511- ● ●
526 03.342 GASKET; PLATE
01.519 		8-97352-985-0 01 1 1412-1510 ●
526 03.342 GASKET; PLATE
01.519 		8-97352-985-0 01 1 1511- ● ●
527 03.373 BRACKET; TURBOCHARGER 8-98156-388-0 01 1 1412-1510 ●
527 03.373 BRACKET; TURBOCHARGER 8-98156-388-0 01 1 1511- ● ●

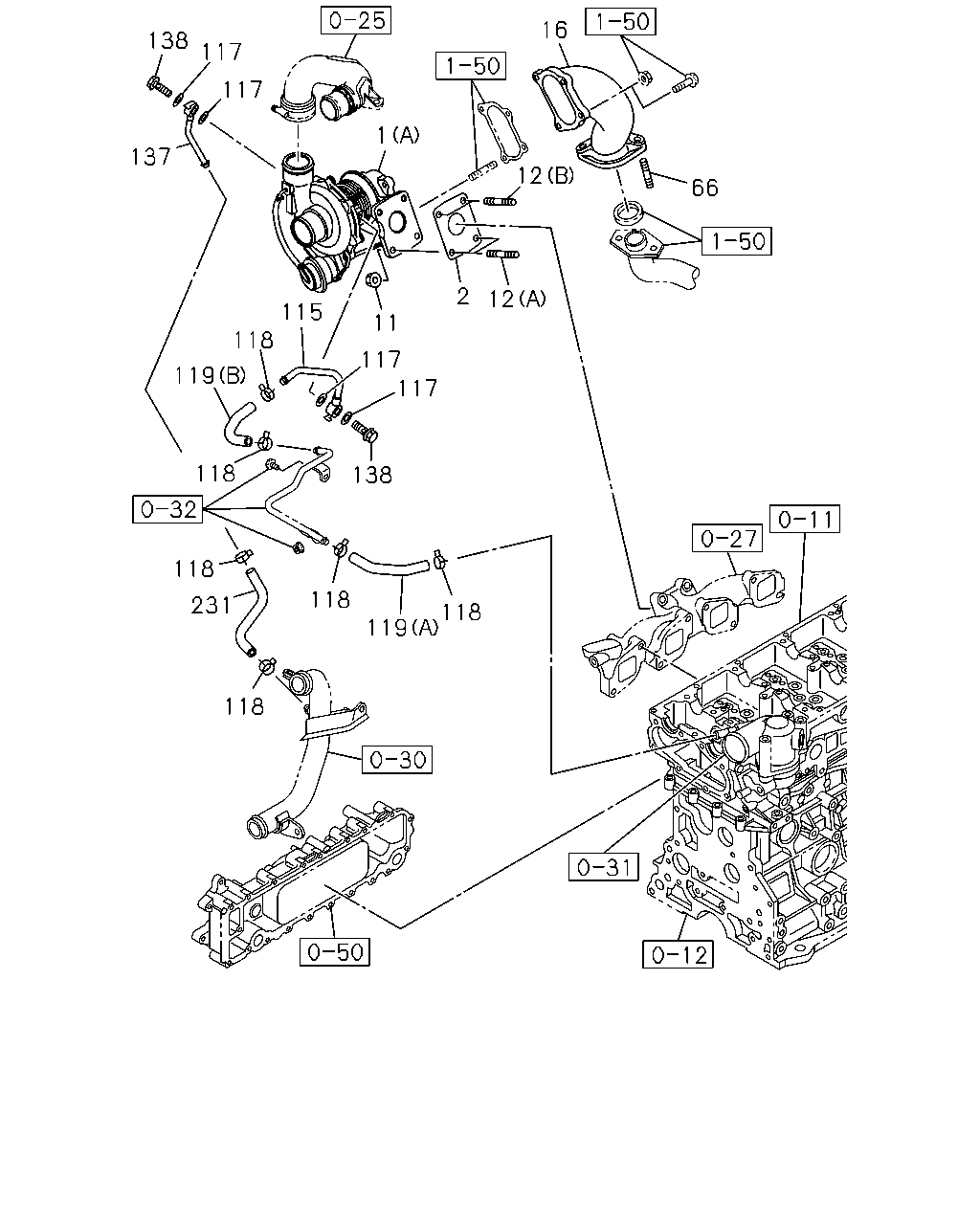

çizim 458274
118 231 118 119 118 118 138 117 2 12 11 115 118 119 12 66 16 1 117 117 137 138 117 118
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
(C) 		8-98235-627-1 01 1 1511- ●
1 03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98132-072-0 01 1 1412- ●
1 03.342 TURBOCHARGER ASM
(B) 		8-97240-210-2 01 1 1412- ●
1 03.342 TURBOCHARGER ASM
(C) 		8-98235-628-1 01 1 1412- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98132-073-0 01 1 1412-1510 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98132-073-0 01 1 1511- ● ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97315-266-0 01 1 1412- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1412-1510 ● ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1511- ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1412- ●
12 03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36 		8-97378-062-0 02 1 1412-1510 ● ●
12 03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36 		8-97378-062-0 02 1 1511- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41 		8-97378-064-0 02 1 1412-1510 ● ●
12 03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41 		8-97378-064-0 02 1 1511- ● ● ●
12 03.342 STUD; TURBOCHARGER
(C) M8X20 L=31 		8-97378-060-0 04 1 1412- ●
16 03.609 ADAPTER; EXH PIPE 8-98132-080-0 01 1 1412- ●
16 03.609 ADAPTER; EXH PIPE 8-98250-275-0 01 1 1412-1510 ●
16 03.609 ADAPTER; EXH PIPE 8-98250-275-0 01 1 1511- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1412-1510 ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1511- ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 1412- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98132-443-0 01 1 1412- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 04 1 1412- ●
118 03.342 CLIP; WATER HOSE
ID=15.1 		8-98179-581-0 06 1 1412-1510 ● ●
118 03.342 CLIP; WATER HOSE
ID=15.1 		8-98179-581-0 06 1 1511- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) 		8-98179-580-0 01 1 1412-1510 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) 		8-98179-580-0 01 1 1511- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-98179-510-0 01 1 1412- ●
119 03.342 HOSE; WATER,TURBOCHARGER
(C) 		8-98239-061-0 01 1 1412-1510 ●
119 03.342 HOSE; WATER,TURBOCHARGER
(C) 		8-98239-061-0 01 1 1511- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-98132-444-1 01 1 1412- ●
138 03.342 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT 		8-98037-067-0 02 1 1412- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98168-392-2 01 1 1412- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98228-462-0 01 1 1412-1510 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98228-462-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
