Sayfa 0-32 - Isuzu EPC

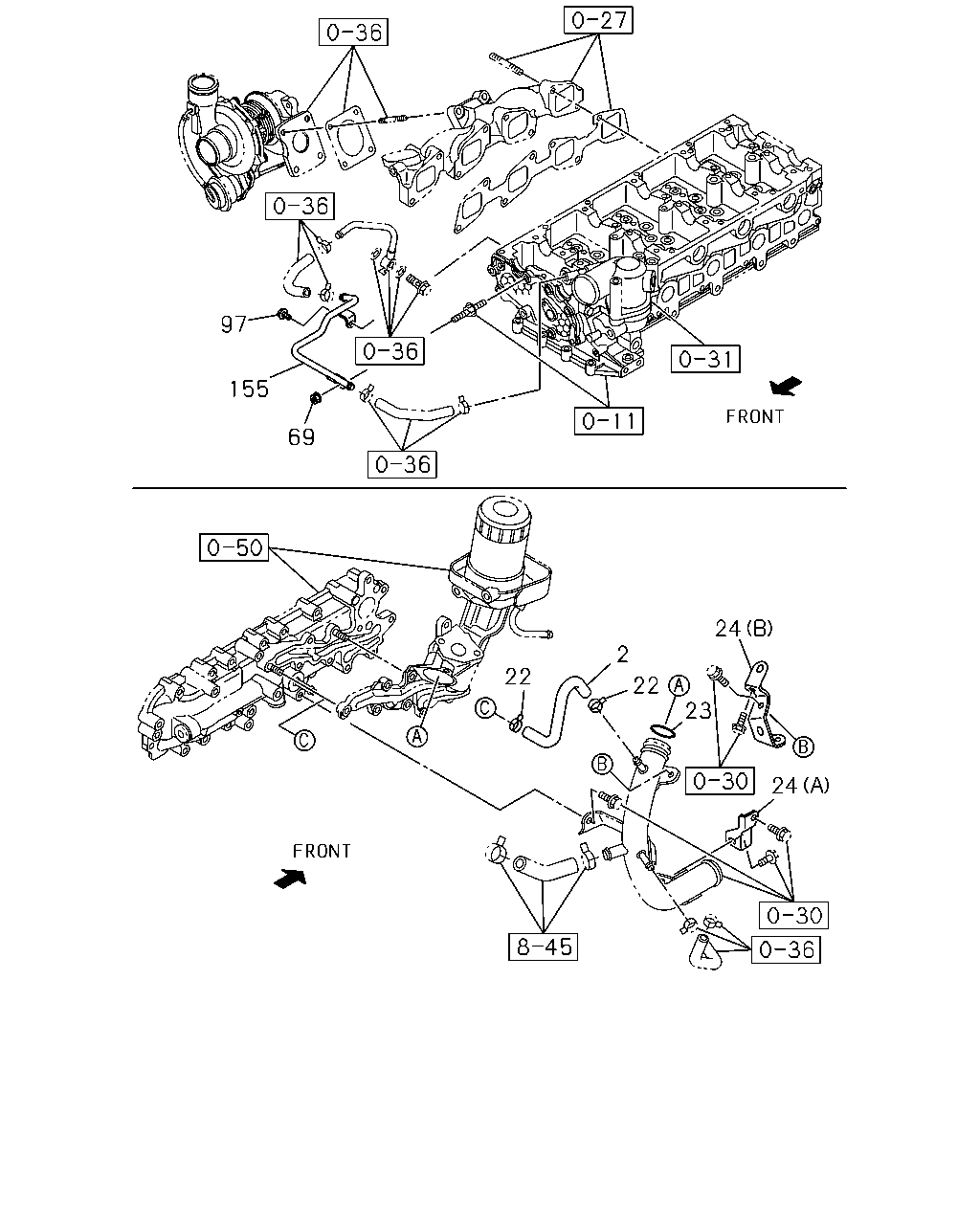

0-32 — WATER PIPING; ENGINE (#153826) — 49 parça

97 155 69 22 2 22 23 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.097 HOSE; WATER,BY-PASS	8-98168-393-1	01	1	1412-	●
2	01.097 HOSE; WATER,BY-PASS	8-98225-143-0	01	1	1412-1510		●
2	01.097 HOSE; WATER,BY-PASS	8-98225-143-0	01	1	1511-		●	●
22	01.153 CLIP; WATER HOSE 03.342 ID=15.1	8-98179-581-0	02	1	1412-1510	●	●
22	01.153 CLIP; WATER HOSE 03.342 ID=15.1	8-98179-581-0	02	1	1511-	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	1412-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	1412-				●
24	01.166 BRACKET; WATER PIPE (A)	8-97375-053-2	01	1	1412-	●
24	01.166 BRACKET; WATER PIPE (B)	8-98132-031-0	01	1	1412-	●
24	01.166 BRACKET; WATER PIPE (C)	8-98228-424-1	01	1	1412-1510		●
24	01.166 BRACKET; WATER PIPE (C)	8-98228-424-1	01	1	1511-		●	●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1412-1510	●	●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1511-	●	●	●
97	04.866 BOLT; WATER PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1412-1510	●	●
97	04.866 BOLT; WATER PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1511-	●	●	●
155	01.153 PIPE ASM; WATER	8-98132-032-0	01	1	1412-	●
155	01.153 PIPE ASM; WATER	8-98205-964-0	01	1	1412-1510		●
155	01.153 PIPE ASM; WATER	8-98205-964-0	01	1	1511-		●	●

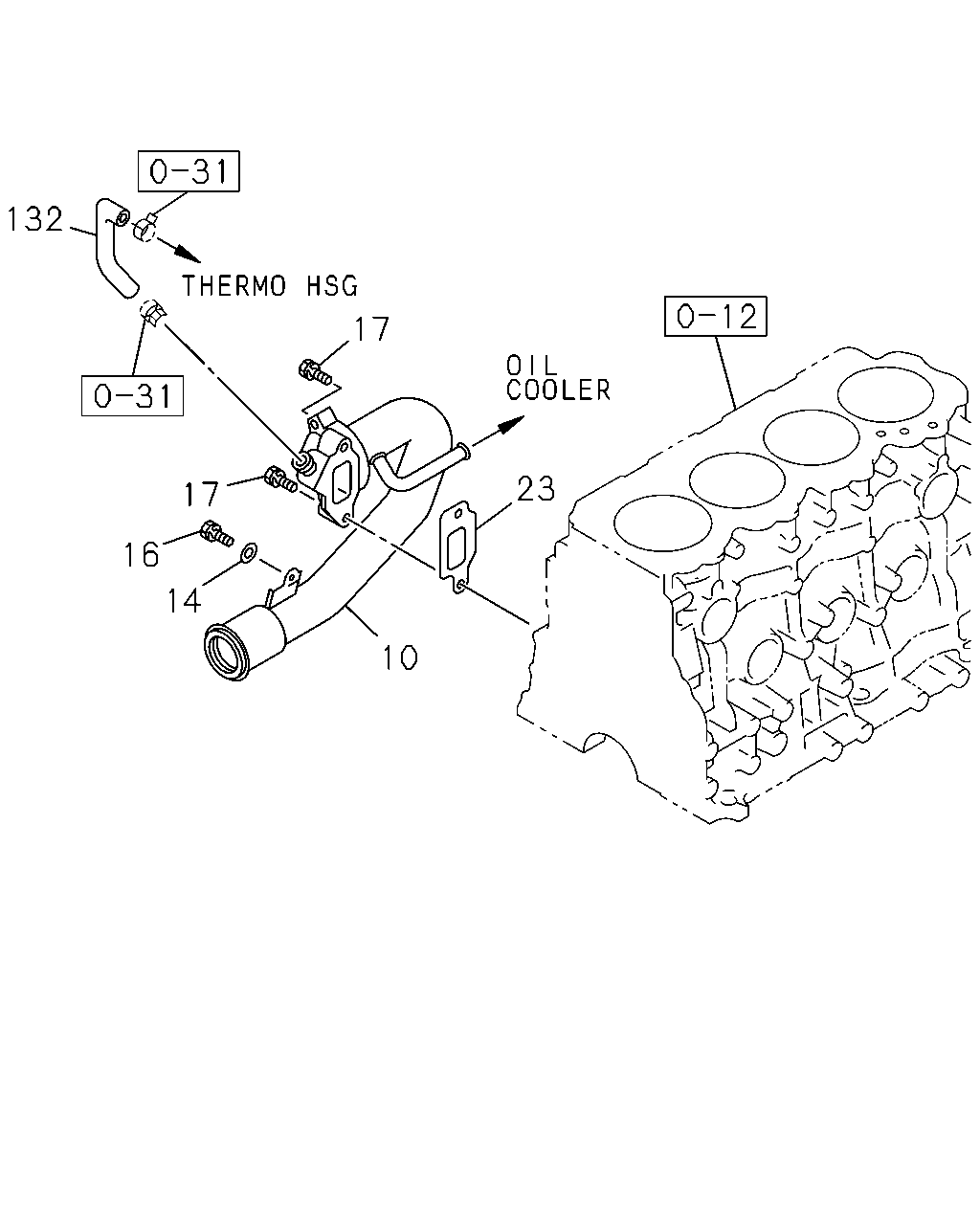

132 17 16 10 23 17 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
10	01.153 PIPE; SUCTION	8-97381-633-0	01	1	1412-		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	1412-		●
16	01.097 BOLT; INL PIPE 00.206 M8X20 W/LK WASHER	0-50540-820-0	01	1	1412-		●
17	01.153 BOLT; SUCTION PIPE 00.206 M8X50 W/LK WASHER	0-50540-850-0	02	1	1412-		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	1412-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	1412-		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	1412-		●

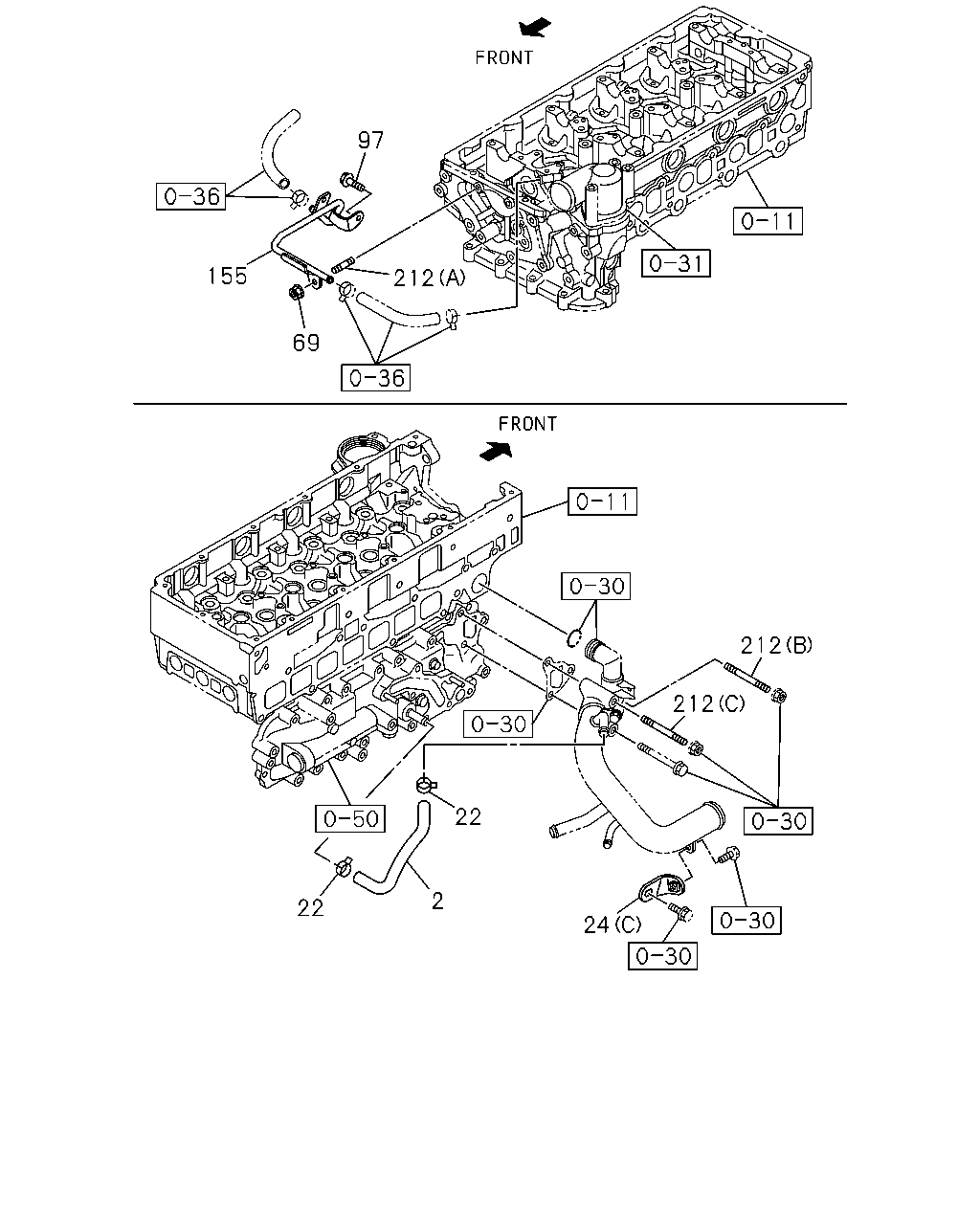

97 212 69 155 212 212 2 22 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.097 HOSE; WATER,BY-PASS	8-98168-393-1	01	1	1412-	●
2	01.097 HOSE; WATER,BY-PASS	8-98225-143-0	01	1	1412-1510		●
2	01.097 HOSE; WATER,BY-PASS	8-98225-143-0	01	1	1511-		●	●
22	01.153 CLIP; WATER HOSE 03.342 ID=15.1	8-98179-581-0	02	1	1412-1510	●	●
22	01.153 CLIP; WATER HOSE 03.342 ID=15.1	8-98179-581-0	02	1	1511-	●	●	●
24	01.166 BRACKET; WATER PIPE (A)	8-97375-053-2	01	1	1412-	●
24	01.166 BRACKET; WATER PIPE (B)	8-98132-031-0	01	1	1412-	●
24	01.166 BRACKET; WATER PIPE (C)	8-98228-424-1	01	1	1412-1510		●
24	01.166 BRACKET; WATER PIPE (C)	8-98228-424-1	01	1	1511-		●	●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1412-1510	●	●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1511-	●	●	●
97	04.866 BOLT; WATER PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1412-1510	●	●
97	04.866 BOLT; WATER PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1511-	●	●	●
155	01.153 PIPE ASM; WATER	8-98132-032-0	01	1	1412-	●
155	01.153 PIPE ASM; WATER	8-98205-964-0	01	1	1412-1510		●
155	01.153 PIPE ASM; WATER	8-98205-964-0	01	1	1511-		●	●
212	01.153 STUD; PIPE 01.453 (A) M6X12 L=21	0-41010-612-0	01	1	1412-1510		●
212	01.153 STUD; PIPE 01.453 (A) M6X12 L=21	0-41010-612-0	01	1	1511-		●	●
212	01.153 STUD; PIPE 01.540 (B) M8X40 L=52	0-41010-840-0	01	1	1412-1510		●
212	01.153 STUD; PIPE 01.540 (B) M8X40 L=52	0-41010-840-0	01	1	1511-		●	●
212	01.153 STUD; PIPE 03.275 (C) M8X75 L=87	9-04110-875-0	01	1	1412-1510		●
212	01.153 STUD; PIPE 03.275 (C) M8X75 L=87	9-04110-875-0	01	1	1511-		●	●

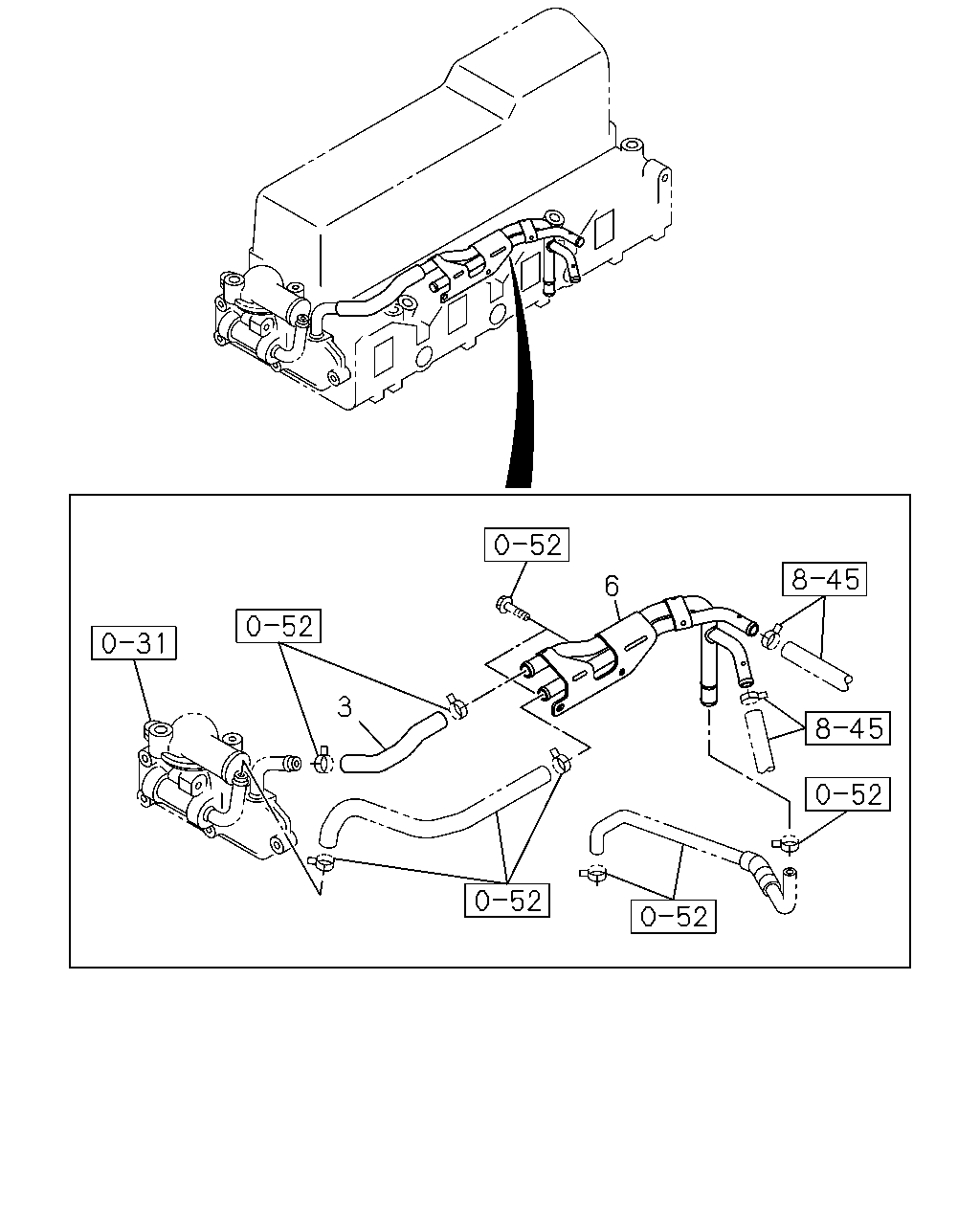

6 3

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	3	01.540 HOSE; WATER,OIL COOLER	8-97354-155-1	01	1	1412-				●
	6	09.190 CONNECTOR; HTR & COOLER HOSE	8-98200-080-2	01	1	1412-				●
