0-30 — WATER PUMP AND CORROSION RESISTOR (#153824) — 41 parça

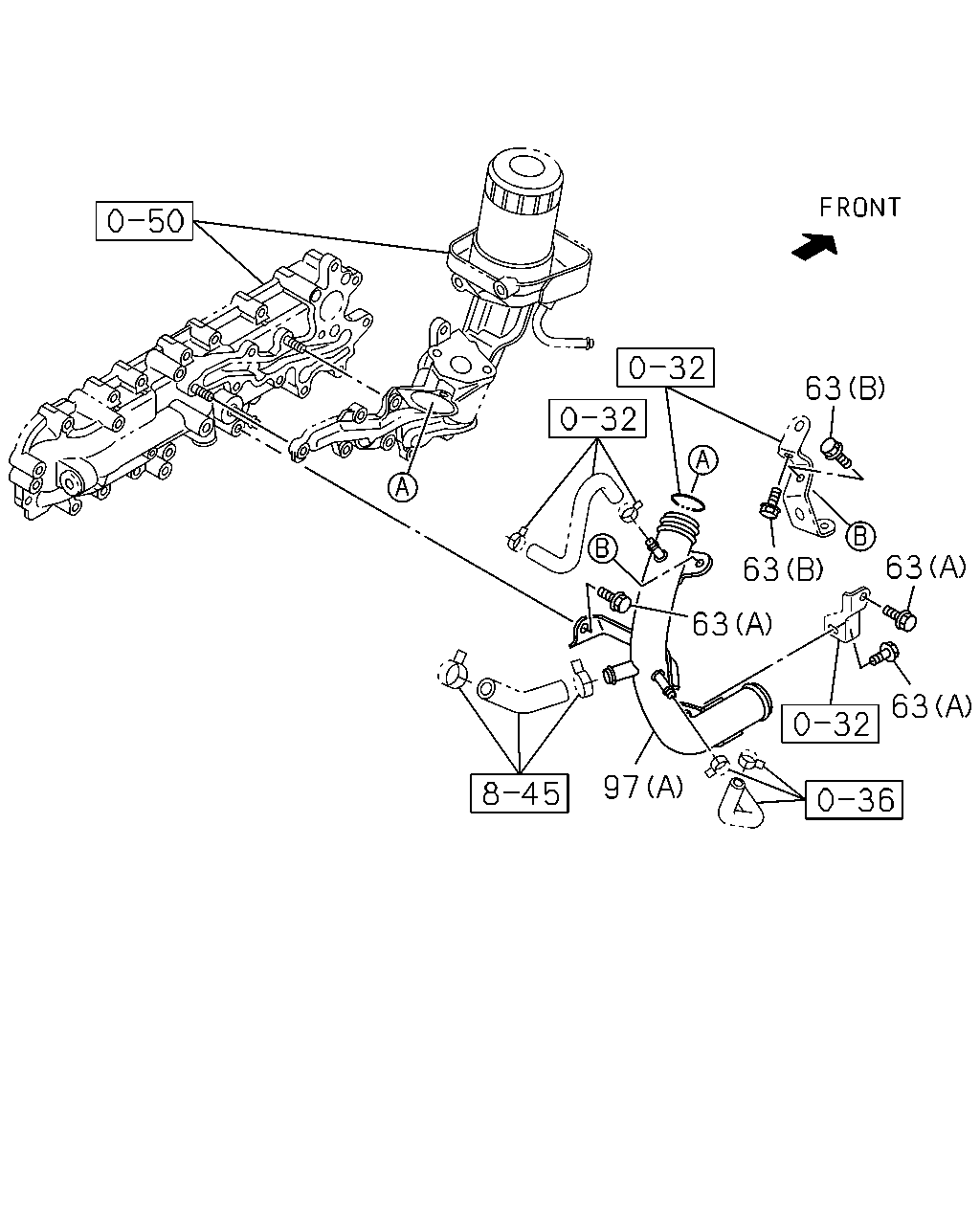

çizim 458006
63 63 63 63 63 97
BalonParca AdiParca NoAdetTipApplied Date A B C D
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1412- ●
63 01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1412- ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1412-1510 ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ●
63 01.073 BOLT; INL PIPE
01.252 (C) M8X80 FLANGE 		0-28050-880-0 01 1 1412-1510 ●
63 01.073 BOLT; INL PIPE
01.252 (C) M8X80 FLANGE 		0-28050-880-0 01 1 1511- ● ●
97 01.097 PIPE; WATER
(A) 		8-98132-029-0 01 1 1412- ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) 		8-98228-423-0 01 1 1412-1510 ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) 		8-98228-423-0 01 1 1511- ● ●
97 01.097 PIPE; WATER
COOLER W/FRESH AIR(C65) (B) 		8-98228-422-0 01 1 1412- ●

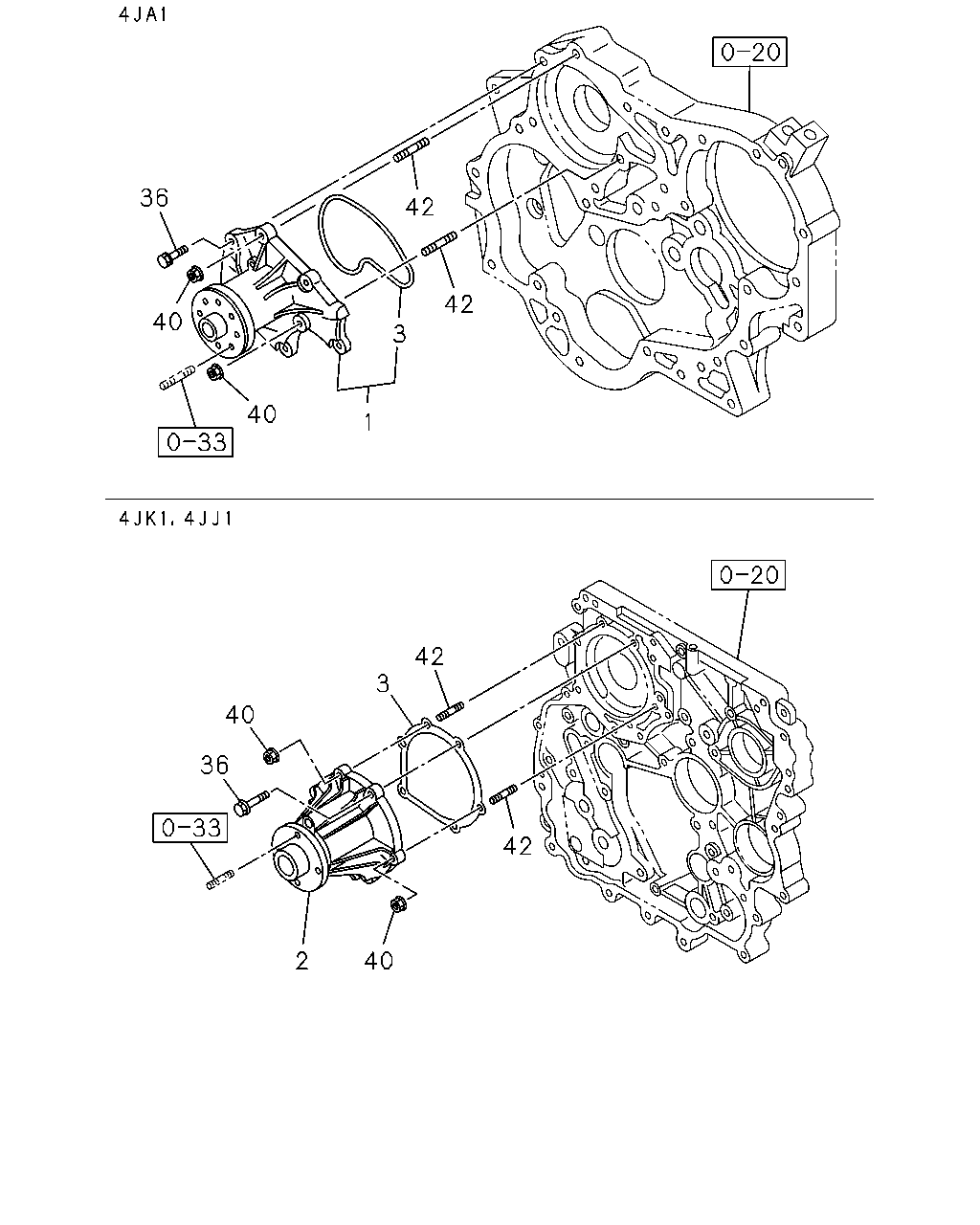

çizim 458230
40 1 3 42 42 40 36 42 42 40 2 3 40 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-5 01 1 1412- ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 1412-1510 ● ●
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 1511- ● ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1412-1510 ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1511- ● ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-1 01 1 1412- ●
36 00.386 BOLT; WATER PUMP TO C/BL
M8X50 FLANGE 		0-28050-850-0 04 1 1412-1510 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
M8X50 FLANGE 		0-28050-850-0 04 1 1511- ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 1412- ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1412-1510 ● ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1511- ● ● ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1412- ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 1412-1510 ● ●
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 1511- ● ● ●
42 01.073 STUD; WATER PUMP
M8X22 L=34 		0-41010-822-0 02 1 1412- ●

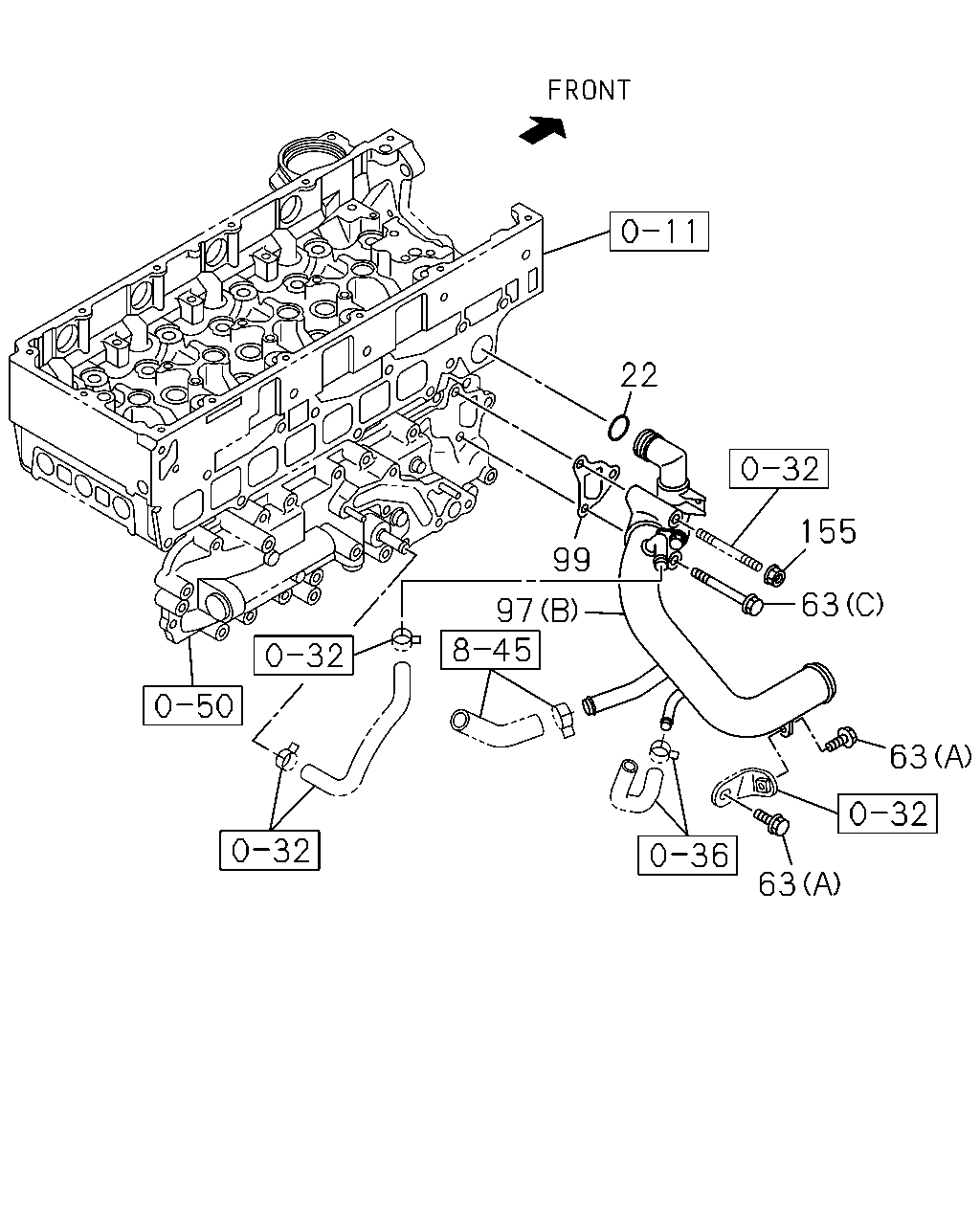

çizim 459021
22 155 63 63 63 97 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 01.079 GASKET
01.159 		0-95690-226-0 01 1 1412-1510 ●
22 01.079 GASKET
01.159 		0-95690-226-0 01 1 1511- ● ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1412- ●
63 01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1412- ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1412-1510 ●
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ●
63 01.073 BOLT; INL PIPE
01.252 (C) M8X80 FLANGE 		0-28050-880-0 01 1 1412-1510 ●
63 01.073 BOLT; INL PIPE
01.252 (C) M8X80 FLANGE 		0-28050-880-0 01 1 1511- ● ●
97 01.097 PIPE; WATER
(A) 		8-98132-029-0 01 1 1412- ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) 		8-98228-423-0 01 1 1412-1510 ●
97 01.097 PIPE; WATER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) 		8-98228-423-0 01 1 1511- ● ●
97 01.097 PIPE; WATER
COOLER W/FRESH AIR(C65) (B) 		8-98228-422-0 01 1 1412- ●
99 01.097 GASKET; WATER PIPE 8-98233-994-0 01 1 1412-1510 ●
99 01.097 GASKET; WATER PIPE 8-98233-994-0 01 1 1511- ● ●
155 01.097 NUT; PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1412-1510 ●
155 01.097 NUT; PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1511- ● ●
