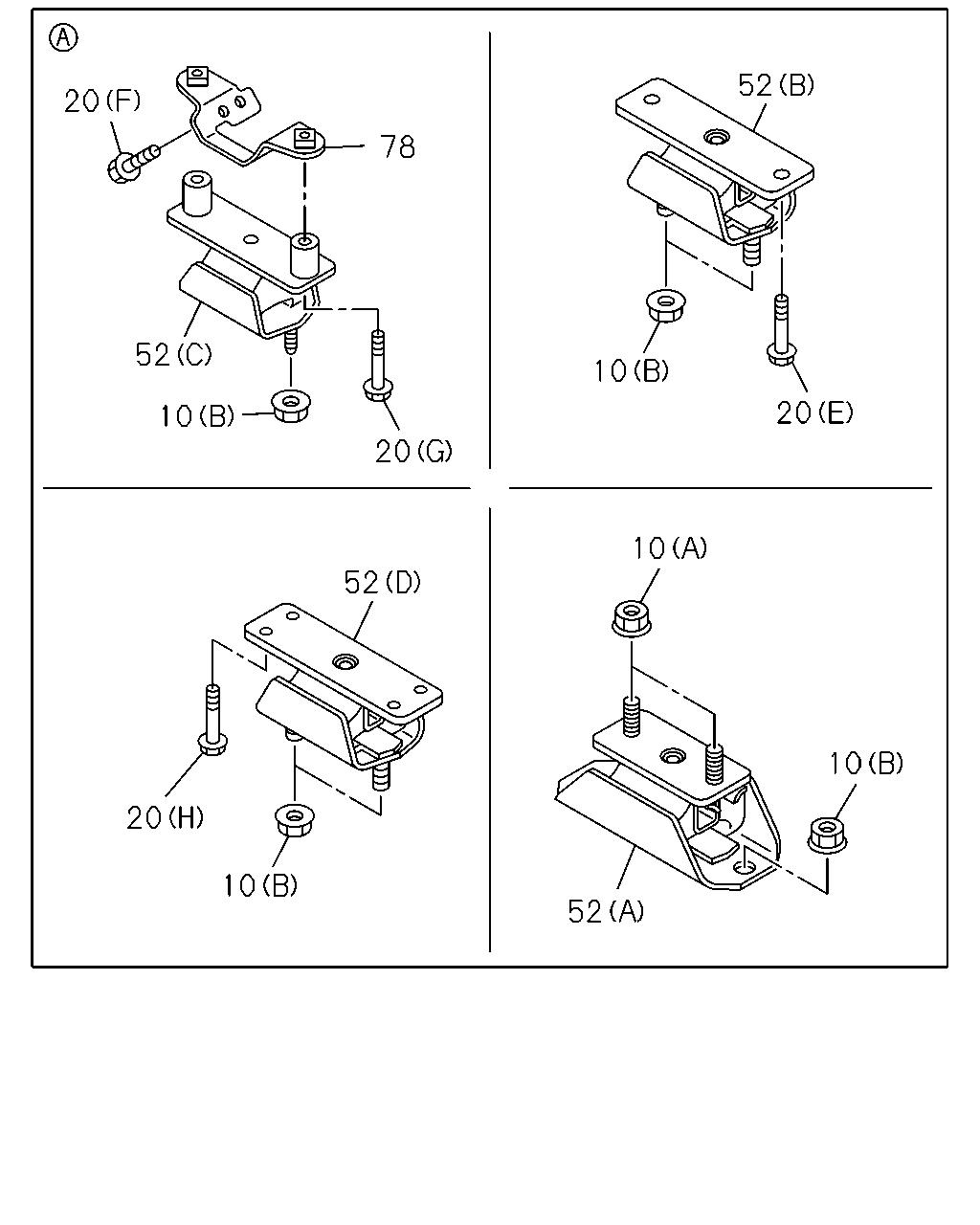

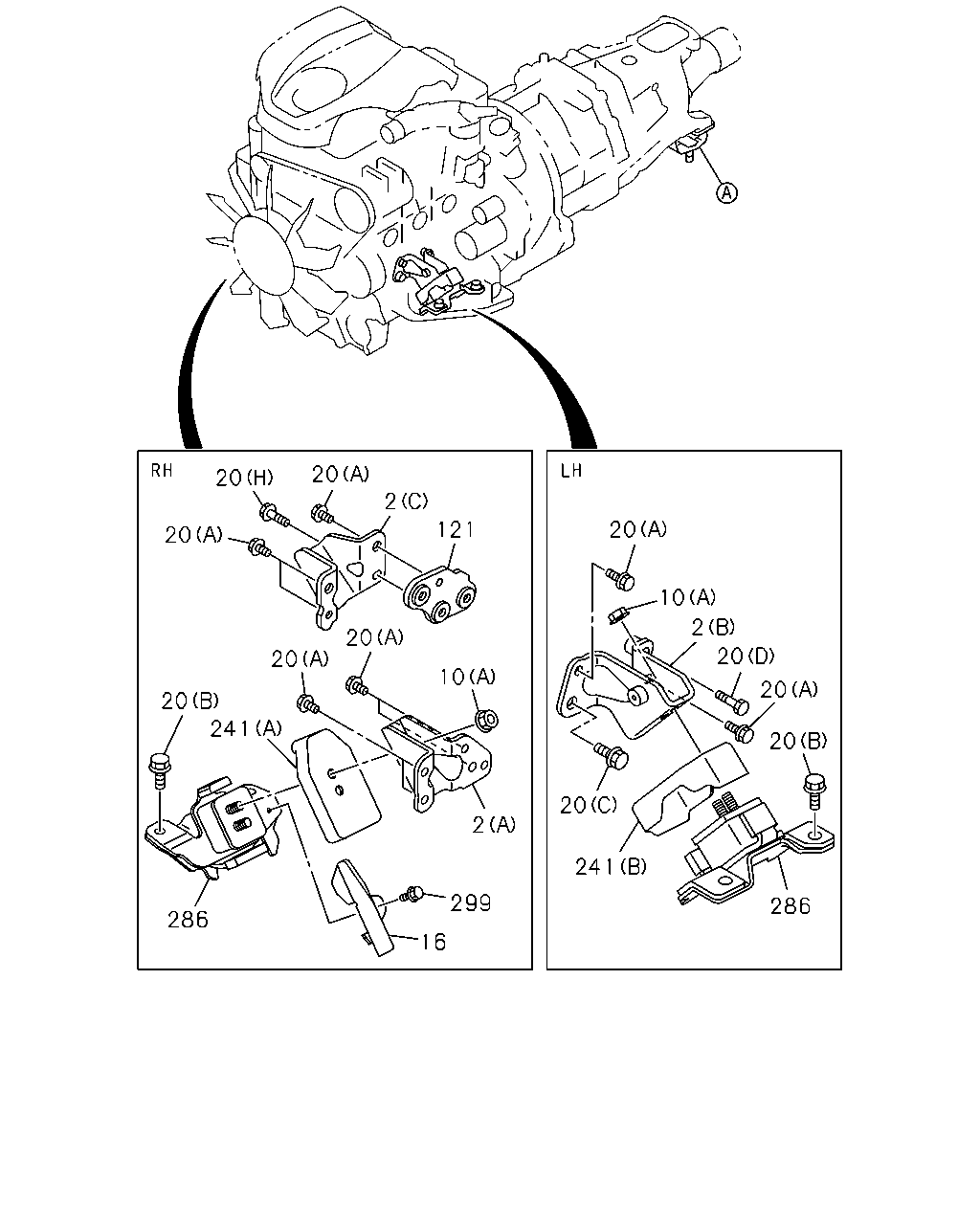

0-22 — ENGINE MOUNTING (#153820) — 88 parça

20 52 10 78 20 10 20 52 10 52 20 10 52 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	04	1	1412-1510	●	●	●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	04	1	1511-	●	●	●	●
10	04.085 NUT; MTG RUBBER 05.816 (B) M12 FLANGE	0-91180-212-0	02	1	1412-1510	●	●	●
10	04.085 NUT; MTG RUBBER 05.816 (B) M12 FLANGE	0-91180-212-0	02	1	1511-	●	●	●	●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	1412-		●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) (A) M10 FLANGE	0-91180-210-0	02	1	1412-	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A) M10 FLANGE	0-91180-210-0	02	1	1412-			●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (H) M8X35 FLANGE	0-28650-835-0	04	1	1511-				●
20	00.029 BOLT; ENG FOOT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	1412-1510	●	●	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	1511-	●	●	●	●
20	00.029 BOLT; ENG FOOT (D) M10X35 W/LK WASHER	0-50741-035-0	01	1	1412-1510	●	●	●
20	00.029 BOLT; ENG FOOT (D) M10X35 W/LK WASHER	0-50741-035-0	01	1	1511-	●	●	●	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	06	1	1412-1510	●		●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	06	1	1511-	●		●	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	07	1	1412-		●
20	00.029 BOLT; ENG FOOT 00.685 (H) M10X40 FLANGE	0-28051-040-0	01	1	1412-		●
20	00.029 BOLT; ENG FOOT (B) M10X30 FLANGE	8-98013-800-0	04	1	1412-1510	●	●	●
20	00.029 BOLT; ENG FOOT (B) M10X30 FLANGE	8-98013-800-0	04	1	1511-	●	●	●	●
20	00.029 BOLT; ENG FOOT 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE	0-28651-025-0	04	1	1412-1510			●
20	00.029 BOLT; ENG FOOT 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE	0-28651-025-0	04	1	1511-			●	●
20	00.029 BOLT; ENG FOOT 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE	8-98035-672-0	02	1	1412-1510			●
20	00.029 BOLT; ENG FOOT 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE	8-98035-672-0	02	1	1511-			●	●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) (E) M10X35 FLANGE	0-28751-035-0	02	1	1412-1510	●		●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) (E) M10X35 FLANGE	0-28751-035-0	02	1	1511-	●		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (B)	8-98193-343-0	01	1	1511-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (D)	8-98193-345-0	01	1	1511-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR (A)	8-98193-626-0	01	1	1412-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A)	8-98193-626-0	01	1	1412-	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (C)	8-98193-342-0	01	1	1412-1510			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (C)	8-98193-342-0	01	1	1511-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) (B)	8-98193-344-0	01	1	1412-	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (B)	8-98193-346-0	01	1	1412-1510			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (B)	8-98193-346-0	01	1	1511-			●	●
78	00.029 BRACKET; ENG MTG,RR 4X2(TFB***) A/T 5 SPEED-AISIN(MA1)	8-98164-580-2	01	1	1412-1510			●
78	00.029 BRACKET; ENG MTG,RR 4X2(TFB***) A/T 5 SPEED-AISIN(MA1)	8-98164-580-2	01	1	1511-			●	●

20 20 20 2 121 10 20 20 20 241 2 299 16 286 241 20 20 10 2 20 20 20 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.029 FOOT; ENG (B)	8-98132-101-0	01	1	1412-1510	●	●	●
2	00.029 FOOT; ENG (B)	8-98132-101-0	01	1	1511-	●	●	●	●
2	00.029 FOOT; ENG (A)	8-98132-100-0	01	1	1412-1510	●		●
2	00.029 FOOT; ENG (A)	8-98132-100-0	01	1	1511-	●		●	●
2	00.029 FOOT; ENG (C)	8-98208-226-0	01	1	1412-		●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	04	1	1412-1510	●	●	●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	04	1	1511-	●	●	●	●
10	04.085 NUT; MTG RUBBER 05.816 (B) M12 FLANGE	0-91180-212-0	02	1	1412-1510	●	●	●
10	04.085 NUT; MTG RUBBER 05.816 (B) M12 FLANGE	0-91180-212-0	02	1	1511-	●	●	●	●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	1412-		●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) (A) M10 FLANGE	0-91180-210-0	02	1	1412-	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A) M10 FLANGE	0-91180-210-0	02	1	1412-			●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT	8-98182-916-1	01	1	1412-1510	●		●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT	8-98182-916-1	01	1	1511-	●		●	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT	8-98215-263-0	01	1	1412-		●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (H) M8X35 FLANGE	0-28650-835-0	04	1	1511-				●
20	00.029 BOLT; ENG FOOT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	1412-1510	●	●	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	1511-	●	●	●	●
20	00.029 BOLT; ENG FOOT (D) M10X35 W/LK WASHER	0-50741-035-0	01	1	1412-1510	●	●	●
20	00.029 BOLT; ENG FOOT (D) M10X35 W/LK WASHER	0-50741-035-0	01	1	1511-	●	●	●	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	06	1	1412-1510	●		●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	06	1	1511-	●		●	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	07	1	1412-		●
20	00.029 BOLT; ENG FOOT 00.685 (H) M10X40 FLANGE	0-28051-040-0	01	1	1412-		●
20	00.029 BOLT; ENG FOOT (B) M10X30 FLANGE	8-98013-800-0	04	1	1412-1510	●	●	●
20	00.029 BOLT; ENG FOOT (B) M10X30 FLANGE	8-98013-800-0	04	1	1511-	●	●	●	●
20	00.029 BOLT; ENG FOOT 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE	0-28651-025-0	04	1	1412-1510			●
20	00.029 BOLT; ENG FOOT 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE	0-28651-025-0	04	1	1511-			●	●
20	00.029 BOLT; ENG FOOT 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE	8-98035-672-0	02	1	1412-1510			●
20	00.029 BOLT; ENG FOOT 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE	8-98035-672-0	02	1	1511-			●	●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) (E) M10X35 FLANGE	0-28751-035-0	02	1	1412-1510	●		●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) (E) M10X35 FLANGE	0-28751-035-0	02	1	1511-	●		●	●
121	00.029 BRACKET; ENG FOOT,FRT	8-98208-227-0	01	1	1412-		●
241	00.027 COVER; ENG MTG (A)	8-98101-956-2	01	1	1412-1510	●	●
241	00.027 COVER; ENG MTG M/T MUA 5 SPEED 5H(MWQ) (A)	8-98101-956-2	01	1	1412-1510			●
241	00.027 COVER; ENG MTG (A)	8-98101-956-2	01	1	1511-	●	●
241	00.027 COVER; ENG MTG M/T MUA 5 SPEED 5H(MWQ) (A)	8-98101-956-2	01	1	1511-			●
241	00.027 COVER; ENG MTG M/T MUX 5 SPEED 5S(MZJ) (A)	8-98101-956-2	01	1	1511-				●
241	00.027 COVER; ENG MTG (B)	8-98101-957-1	01	1	1412-1510	●	●
241	00.027 COVER; ENG MTG M/T MUA 5 SPEED 5H(MWQ) (B)	8-98101-957-1	01	1	1412-1510			●
241	00.027 COVER; ENG MTG (B)	8-98101-957-1	01	1	1511-	●	●
241	00.027 COVER; ENG MTG M/T MUA 5 SPEED 5H(MWQ) (B)	8-98101-957-1	01	1	1511-			●
241	00.027 COVER; ENG MTG M/T MUX 5 SPEED 5S(MZJ) (B)	8-98101-957-1	01	1	1511-				●
241	00.027 COVER; ENG MTG A/T 5 SPEED-AISIN(MA1) (A)	8-98194-507-1	01	1	1412-1510			●
241	00.027 COVER; ENG MTG A/T 5 SPEED-AISIN(MA1) (A)	8-98194-507-1	01	1	1511-			●	●
241	00.027 COVER; ENG MTG A/T 5 SPEED-AISIN(MA1) (B)	8-98194-508-1	01	1	1412-1510			●
241	00.027 COVER; ENG MTG A/T 5 SPEED-AISIN(MA1) (B)	8-98194-508-1	01	1	1511-			●	●
286	00.027 MOUNTING ASM; ENGINE	8-98075-376-2	01	1	1412-1510	●	●	●
286	00.027 MOUNTING ASM; ENGINE	8-98075-376-2	01	1	1511-	●	●	●	●
286	00.027 MOUNTING ASM; ENGINE	8-98250-592-0	01	1	1412-1510	●	●	●
286	00.027 MOUNTING ASM; ENGINE	8-98250-592-0	01	1	1511-	●	●	●	●
299	00.029 BOLT 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1412-1510	●	●	●
299	00.029 BOLT 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1511-	●	●	●	●
