Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#153817) — 312 parça

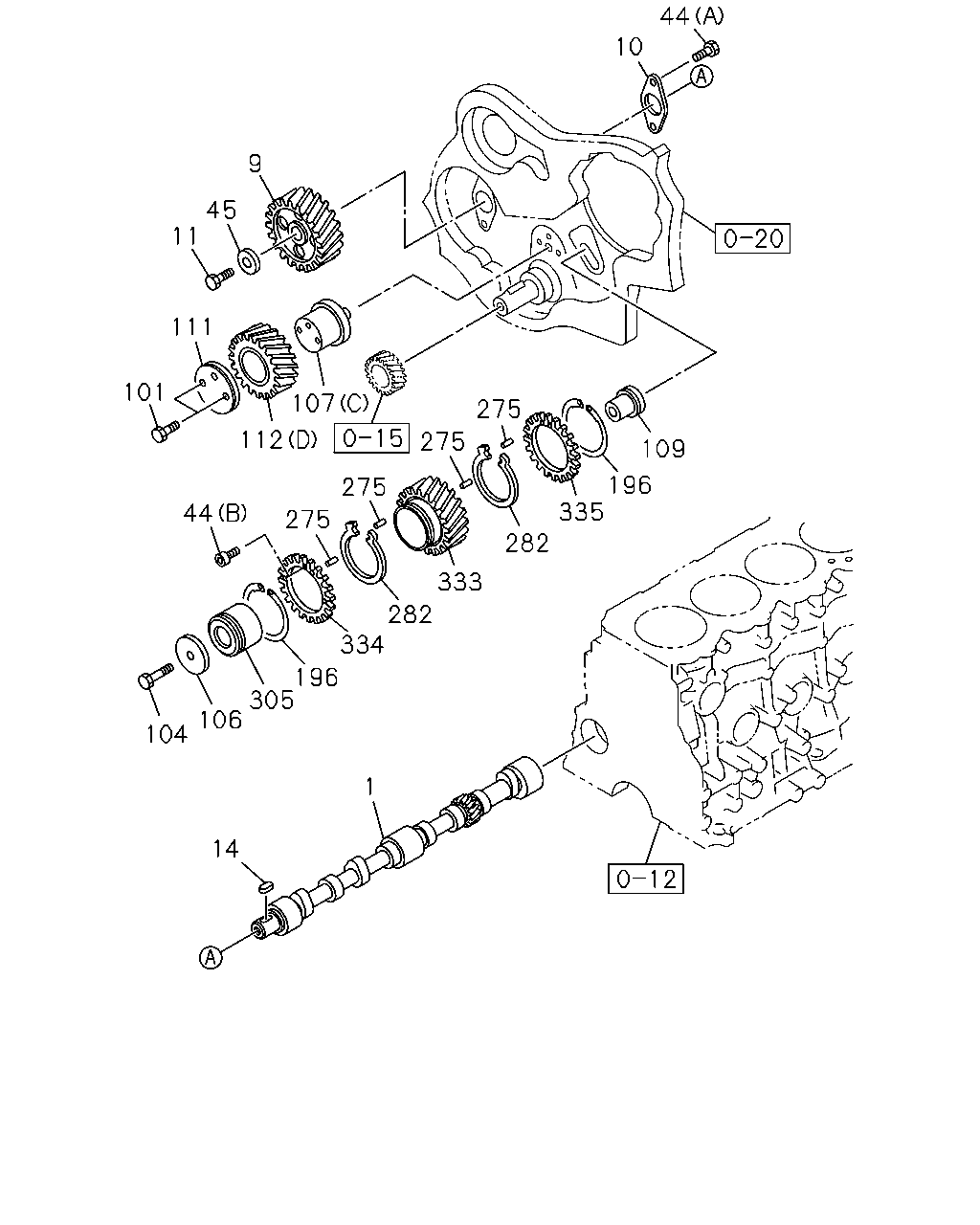

44 10 9 45 11 111 101 112 107 44 275 275 275 275 109 196 335 282 333 282 334 196 305 106 104 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-97287-657-1	01	1	1412-	●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	1412-	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	1412-	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	1412-	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	1412-	●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-	●
44	00.738 BOLT (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	1412-	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	1412-	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	1412-	●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	1412-	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	1412-	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	1412-1510		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	1511-		●	●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-322-1	01	1	1412-		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97943-224-0	01	1	1412-	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98245-905-0	01	1	1412-1510			●
107	00.724 SHAFT; IDLE GEAR (D)	8-98245-905-0	01	1	1511-			●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1412-1510		●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1511-		●	●	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	1412-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	1412-	●
112	00.724 GEAR; IDLE (A) Z=34	8-98021-052-1	01	1	1412-1510		●	●
112	00.724 GEAR; IDLE (A) Z=34	8-98021-052-1	01	1	1511-		●	●	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	1412-		●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	1412-		●
112	00.724 GEAR; IDLE (D) Z=43	8-97240-014-1	01	1	1412-	●
112	00.724 GEAR; IDLE (E) Z=35	8-98231-907-0	01	1	1412-1510			●
112	00.724 GEAR; IDLE (E) Z=35	8-98231-907-0	01	1	1511-			●	●
112	00.724 GEAR; IDLE (F) Z=80	8-98233-470-1	01	1	1412-1510			●
112	00.724 GEAR; IDLE (F) Z=80	8-98233-470-1	01	1	1511-			●	●
196	00.724 RING; SNAP	8-97245-684-1	02	1	1412-	●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	1412-	●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	1412-	●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	1412-	●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	1412-	●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	1412-	●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	1412-	●

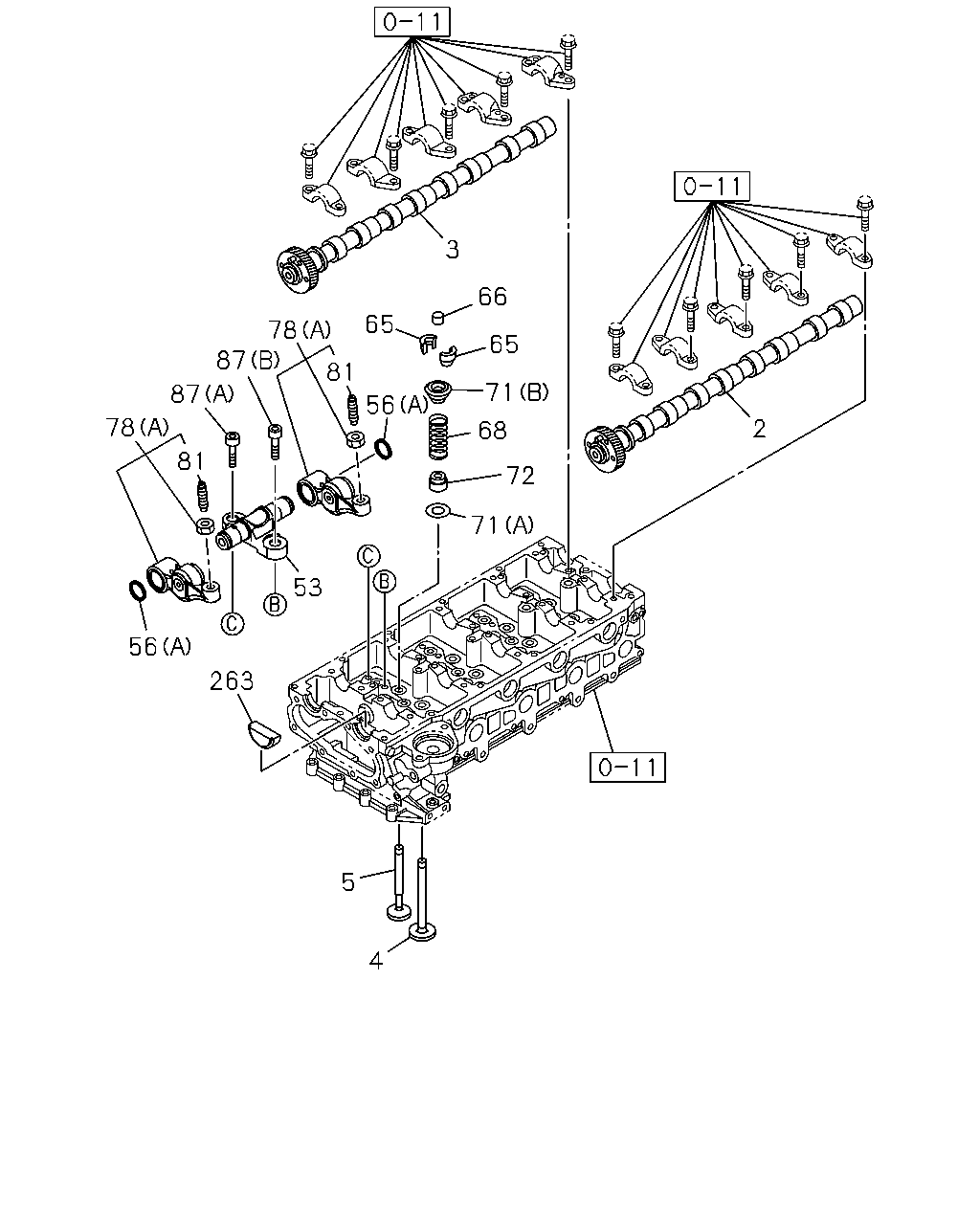

3 66 65 71 68 72 71 4 5 53 263 56 78 81 87 87 78 65 81 56 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.519 CAMSHAFT; INL	8-97328-642-8	01	1	1412-		●
2	00.519 CAMSHAFT; INL	8-98228-489-1	01	1	1412-1510			●
2	00.519 CAMSHAFT; INL	8-98228-489-1	01	1	1511-			●	●
3	00.519 CAMSHAFT; EXH	8-97328-644-8	01	1	1412-		●
3	00.519 CAMSHAFT; EXH	8-98228-492-1	01	1	1412-1510			●
3	00.519 CAMSHAFT; EXH	8-98228-492-1	01	1	1511-			●	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1412-1510		●	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1511-		●	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	1412-	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1412-1510		●	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1511-		●	●	●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1412-	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	1412-		●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	1412-		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	1412-	●
53	00.353 SHAFT; ROCKER ARM	8-98244-914-0	02	1	1412-1510			●
53	00.353 SHAFT; ROCKER ARM	8-98244-914-0	02	1	1511-			●	●
56	00.349 RING; SNAP,ROCKER ARM (A)	8-98109-470-0	16	1	1412-		●
56	00.349 RING; SNAP,ROCKER ARM (B) ID=17.5	9-09180-019-0	02	1	1412-	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1412-1510		●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1511-		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	1412-	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1412-1510		●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1511-		●	●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1412-1510		●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1511-		●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1412-	●
71	00.309 SEAT; SPR (A) OD=31	8-97144-584-0	16	1	1412-1510		●	●
71	00.309 SEAT; SPR (A) OD=31	8-97144-584-0	16	1	1511-		●	●	●
71	00.309 SEAT; SPR (B) OD=29.5	8-97311-668-0	16	1	1412-1510		●	●
71	00.309 SEAT; SPR (B) OD=29.5	8-97311-668-0	16	1	1511-		●	●	●
71	00.309 SEAT; SPR (C) OD=34	5-12563-001-0	08	1	1412-	●
71	00.309 SEAT; SPR (D) OD=32.8	8-94133-731-2	08	1	1412-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1412-1510		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1511-		●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	1412-	●
78	00.333 ARM; ROCKER (A)	8-98029-537-6	16	1	1412-		●
78	00.333 ARM; ROCKER (B)	8-94152-344-0	08	1	1412-	●
78	00.333 ARM; ROCKER (C)	8-98204-885-1	16	1	1412-1510			●
78	00.333 ARM; ROCKER (C)	8-98204-885-1	16	1	1511-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1412-1510		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1511-		●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	1412-	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1412-		●
87	00.349 BOLT; ROCKER SHAFT (A) M8X40 HEX SOCKET	0-58330-840-0	08	1	1412-		●
87	00.349 BOLT; ROCKER SHAFT (C) M10X60	8-94433-302-0	01	1	1412-	●
87	00.349 BOLT; ROCKER SHAFT 00.738 (D) M6X25 HEX SOCKET	8-98224-626-0	14	1	1412-1510			●
87	00.349 BOLT; ROCKER SHAFT 00.738 (D) M6X25 HEX SOCKET	8-98224-626-0	14	1	1511-			●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97947-079-0	04	1	1412-		●

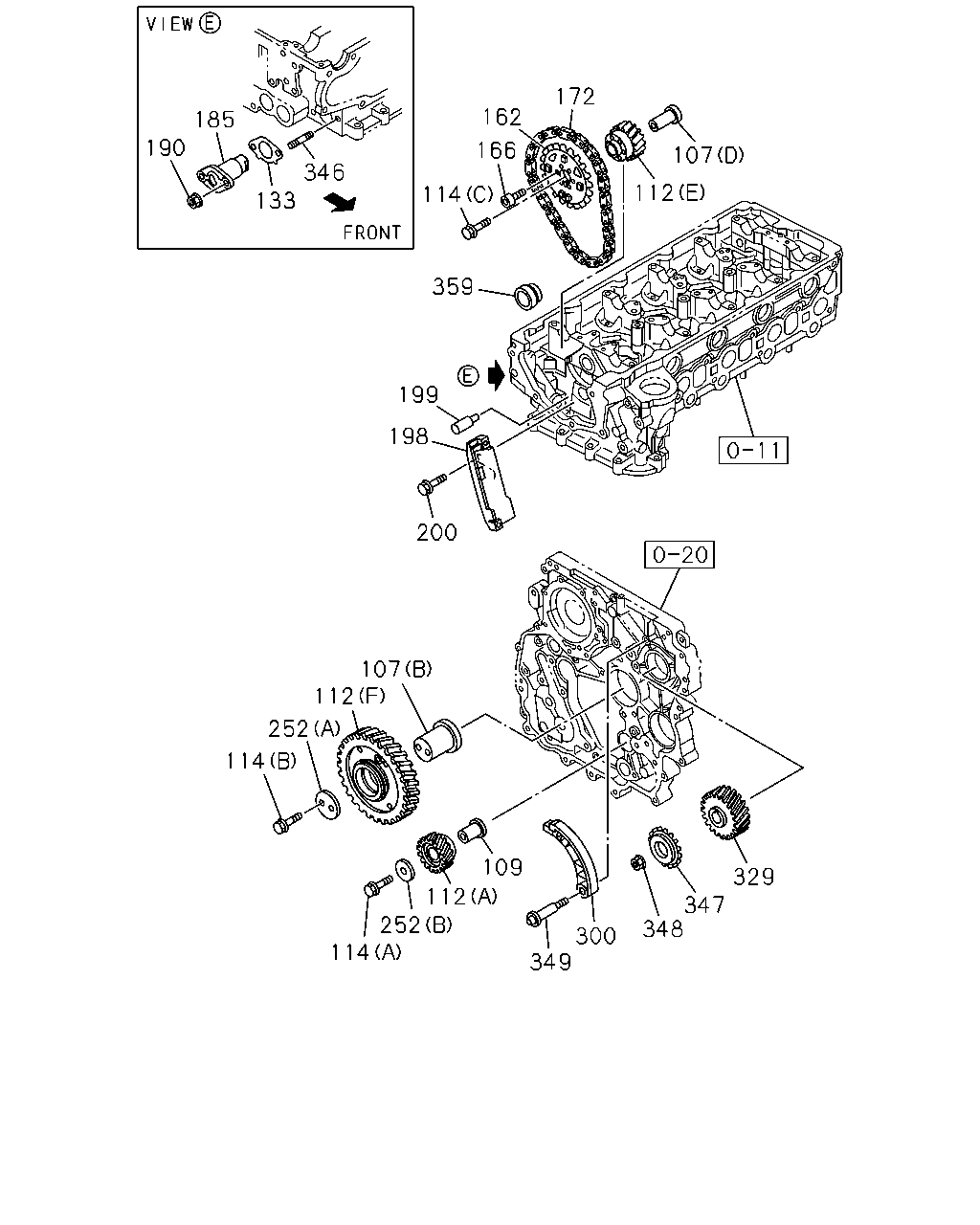

185 190 133 346 172 162 166 252 114 107 112 199 200 198 329 347 348 252 114 107 112 114 252 112 109 349 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	1412-1510		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	1511-		●	●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-322-1	01	1	1412-		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97943-224-0	01	1	1412-	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98245-905-0	01	1	1412-1510			●
107	00.724 SHAFT; IDLE GEAR (D)	8-98245-905-0	01	1	1511-			●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1412-1510		●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1511-		●	●	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	1412-	●
112	00.724 GEAR; IDLE (A) Z=34	8-98021-052-1	01	1	1412-1510		●	●
112	00.724 GEAR; IDLE (A) Z=34	8-98021-052-1	01	1	1511-		●	●	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	1412-		●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	1412-		●
112	00.724 GEAR; IDLE (D) Z=43	8-97240-014-1	01	1	1412-	●
112	00.724 GEAR; IDLE (E) Z=35	8-98231-907-0	01	1	1412-1510			●
112	00.724 GEAR; IDLE (E) Z=35	8-98231-907-0	01	1	1511-			●	●
112	00.724 GEAR; IDLE (F) Z=80	8-98233-470-1	01	1	1412-1510			●
112	00.724 GEAR; IDLE (F) Z=80	8-98233-470-1	01	1	1511-			●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1412-1510		●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1511-		●	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	1412-		●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1412-1510			●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1511-			●	●
114	00.724 BOLT; IDLE GEAR 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1412-1510			●
114	00.724 BOLT; IDLE GEAR 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1511-			●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-336-0	01	1	1412-1510		●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-336-0	01	1	1511-		●	●	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1412-1510		●	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1511-		●	●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1412-1510		●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1511-		●	●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-98119-279-1	01	1	1412-1510		●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-98119-279-1	01	1	1511-		●	●	●
185	00.724 TENSIONER; CHAIN	8-97945-068-1	01	1	1412-		●
185	00.724 TENSIONER; CHAIN	8-98258-885-0	01	1	1412-1510			●
185	00.724 TENSIONER; CHAIN	8-98258-885-0	01	1	1511-			●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	1412-1510		●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	1511-		●	●	●
198	00.724 GUIDE; TIMING CHAIN	8-98173-188-0	01	1	1412-1510		●	●
198	00.724 GUIDE; TIMING CHAIN	8-98173-188-0	01	1	1511-		●	●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1412-1510		●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1511-		●	●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1412-1510		●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1511-		●	●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	1412-1510		●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	1511-		●	●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	02	1	1412-		●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	01	1	1412-1510			●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	01	1	1511-			●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-1	01	1	1412-1510		●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-1	01	1	1511-		●	●	●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	1412-1510		●	●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	1511-		●	●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	1412-1510		●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	1511-		●	●	●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	1412-		●
347	00.429 SPROCKET; I/PUMP	8-98246-954-0	01	1	1412-1510			●
347	00.429 SPROCKET; I/PUMP	8-98246-954-0	01	1	1511-			●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1412-1510		●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1511-		●	●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1412-1510		●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1511-		●	●	●

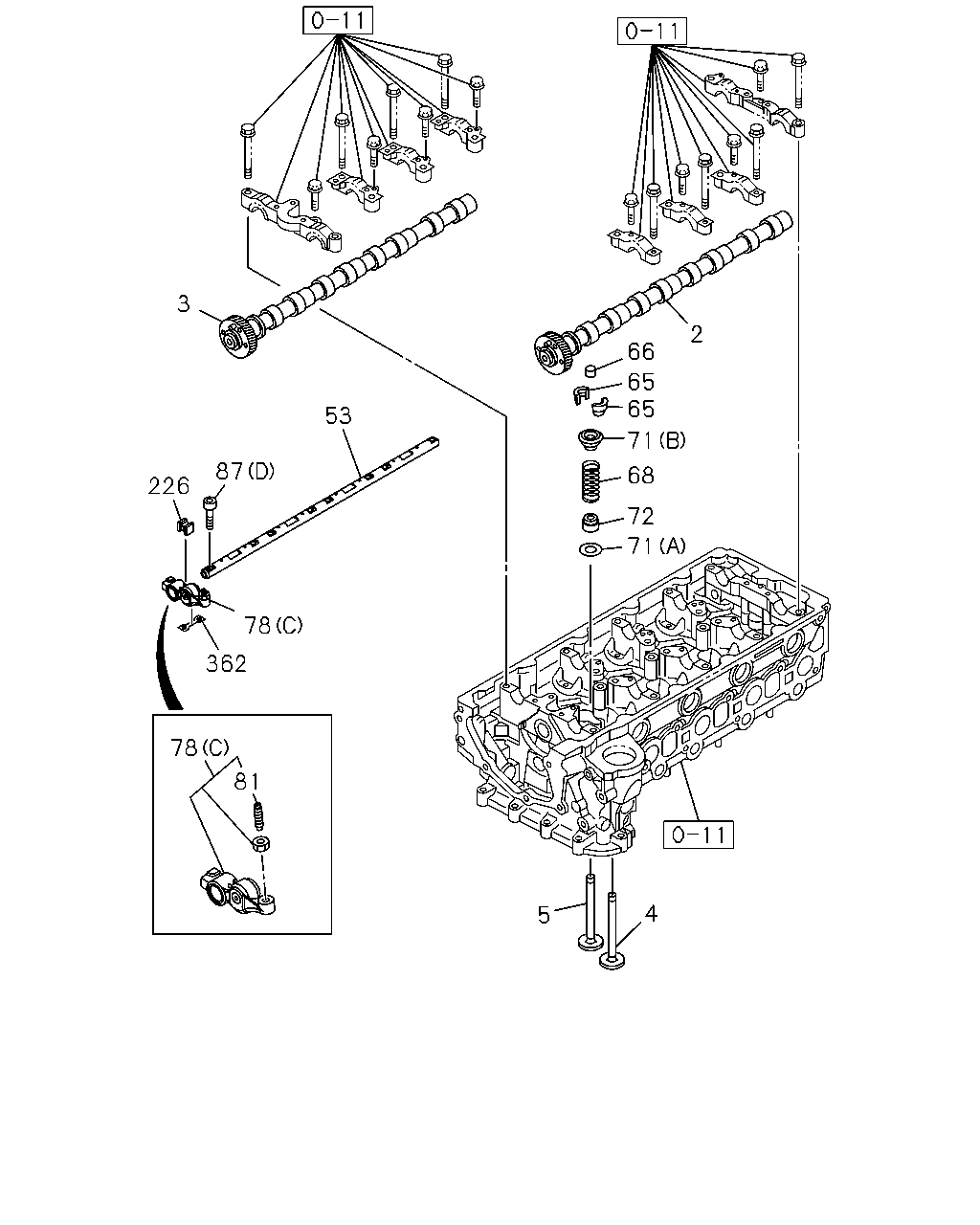

3 53 87 226 78 362 78 81 5 4 71 72 68 71 65 65 66 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.519 CAMSHAFT; INL	8-97328-642-8	01	1	1412-		●
2	00.519 CAMSHAFT; INL	8-98228-489-1	01	1	1412-1510			●
2	00.519 CAMSHAFT; INL	8-98228-489-1	01	1	1511-			●	●
3	00.519 CAMSHAFT; EXH	8-97328-644-8	01	1	1412-		●
3	00.519 CAMSHAFT; EXH	8-98228-492-1	01	1	1412-1510			●
3	00.519 CAMSHAFT; EXH	8-98228-492-1	01	1	1511-			●	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1412-1510		●	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1511-		●	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	1412-	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1412-1510		●	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1511-		●	●	●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1412-	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	1412-		●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	1412-		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	1412-	●
53	00.353 SHAFT; ROCKER ARM	8-98244-914-0	02	1	1412-1510			●
53	00.353 SHAFT; ROCKER ARM	8-98244-914-0	02	1	1511-			●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1412-1510		●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1511-		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	1412-	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1412-1510		●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1511-		●	●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1412-1510		●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1511-		●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1412-	●
71	00.309 SEAT; SPR (A) OD=31	8-97144-584-0	16	1	1412-1510		●	●
71	00.309 SEAT; SPR (A) OD=31	8-97144-584-0	16	1	1511-		●	●	●
71	00.309 SEAT; SPR (B) OD=29.5	8-97311-668-0	16	1	1412-1510		●	●
71	00.309 SEAT; SPR (B) OD=29.5	8-97311-668-0	16	1	1511-		●	●	●
71	00.309 SEAT; SPR (C) OD=34	5-12563-001-0	08	1	1412-	●
71	00.309 SEAT; SPR (D) OD=32.8	8-94133-731-2	08	1	1412-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1412-1510		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1511-		●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	1412-	●
78	00.333 ARM; ROCKER (A)	8-98029-537-6	16	1	1412-		●
78	00.333 ARM; ROCKER (B)	8-94152-344-0	08	1	1412-	●
78	00.333 ARM; ROCKER (C)	8-98204-885-1	16	1	1412-1510			●
78	00.333 ARM; ROCKER (C)	8-98204-885-1	16	1	1511-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1412-1510		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1511-		●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	1412-	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1412-		●
87	00.349 BOLT; ROCKER SHAFT (A) M8X40 HEX SOCKET	0-58330-840-0	08	1	1412-		●
87	00.349 BOLT; ROCKER SHAFT (C) M10X60	8-94433-302-0	01	1	1412-	●
87	00.349 BOLT; ROCKER SHAFT 00.738 (D) M6X25 HEX SOCKET	8-98224-626-0	14	1	1412-1510			●
87	00.349 BOLT; ROCKER SHAFT 00.738 (D) M6X25 HEX SOCKET	8-98224-626-0	14	1	1511-			●	●
226	00.303 SPRING; CMPR,ROCKER ARM	8-98204-889-0	08	1	1412-1510			●
226	00.303 SPRING; CMPR,ROCKER ARM	8-98204-889-0	08	1	1511-			●	●
362	00.662 PLATE	8-98233-620-0	06	1	1412-1510			●
362	00.662 PLATE	8-98233-620-0	06	1	1511-			●	●

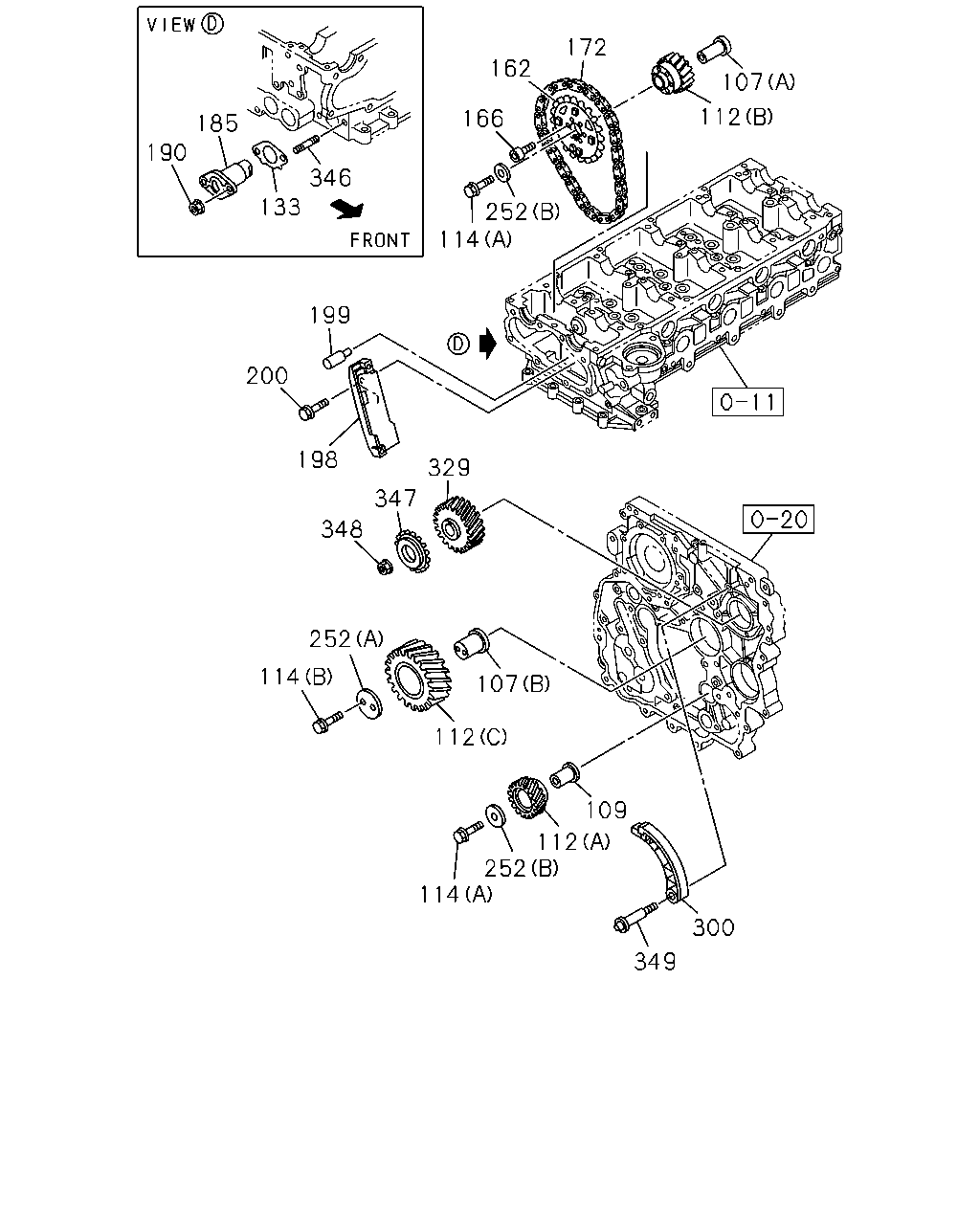

190 185 346 133 172 162 166 114 107 112 359 199 198 200 107 112 252 114 109 112 252 114 349 300 348 347 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	1412-1510		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	1511-		●	●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-322-1	01	1	1412-		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97943-224-0	01	1	1412-	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98245-905-0	01	1	1412-1510			●
107	00.724 SHAFT; IDLE GEAR (D)	8-98245-905-0	01	1	1511-			●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1412-1510		●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1511-		●	●	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	1412-	●
112	00.724 GEAR; IDLE (A) Z=34	8-98021-052-1	01	1	1412-1510		●	●
112	00.724 GEAR; IDLE (A) Z=34	8-98021-052-1	01	1	1511-		●	●	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	1412-		●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	1412-		●
112	00.724 GEAR; IDLE (D) Z=43	8-97240-014-1	01	1	1412-	●
112	00.724 GEAR; IDLE (E) Z=35	8-98231-907-0	01	1	1412-1510			●
112	00.724 GEAR; IDLE (E) Z=35	8-98231-907-0	01	1	1511-			●	●
112	00.724 GEAR; IDLE (F) Z=80	8-98233-470-1	01	1	1412-1510			●
112	00.724 GEAR; IDLE (F) Z=80	8-98233-470-1	01	1	1511-			●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1412-1510		●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1511-		●	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	1412-		●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1412-1510			●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1511-			●	●
114	00.724 BOLT; IDLE GEAR 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1412-1510			●
114	00.724 BOLT; IDLE GEAR 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1511-			●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-336-0	01	1	1412-1510		●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-336-0	01	1	1511-		●	●	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1412-1510		●	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1511-		●	●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1412-1510		●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1511-		●	●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-98119-279-1	01	1	1412-1510		●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-98119-279-1	01	1	1511-		●	●	●
185	00.724 TENSIONER; CHAIN	8-97945-068-1	01	1	1412-		●
185	00.724 TENSIONER; CHAIN	8-98258-885-0	01	1	1412-1510			●
185	00.724 TENSIONER; CHAIN	8-98258-885-0	01	1	1511-			●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	1412-1510		●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	1511-		●	●	●
198	00.724 GUIDE; TIMING CHAIN	8-98173-188-0	01	1	1412-1510		●	●
198	00.724 GUIDE; TIMING CHAIN	8-98173-188-0	01	1	1511-		●	●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1412-1510		●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1511-		●	●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1412-1510		●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1511-		●	●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	1412-1510		●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	1511-		●	●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	02	1	1412-		●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	01	1	1412-1510			●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	01	1	1511-			●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-1	01	1	1412-1510		●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-1	01	1	1511-		●	●	●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	1412-1510		●	●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	1511-		●	●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	1412-1510		●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	1511-		●	●	●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	1412-		●
347	00.429 SPROCKET; I/PUMP	8-98246-954-0	01	1	1412-1510			●
347	00.429 SPROCKET; I/PUMP	8-98246-954-0	01	1	1511-			●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1412-1510		●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1511-		●	●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1412-1510		●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1511-		●	●	●
359	02.530 SLEEVE; GEAR	8-97947-983-0	01	1	1412-1510			●
359	02.530 SLEEVE; GEAR	8-97947-983-0	01	1	1511-			●	●

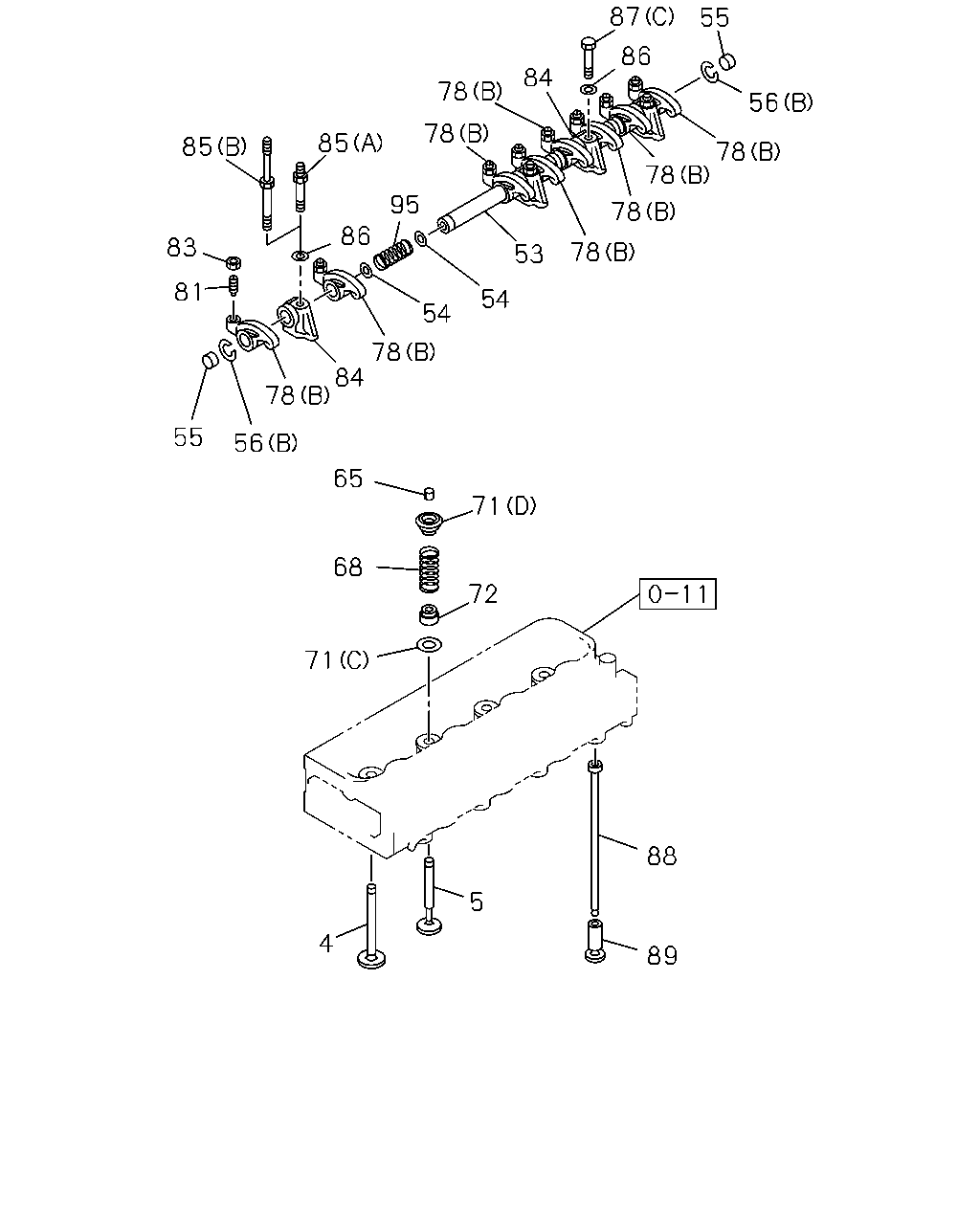

55 56 78 78 78 78 53 54 54 78 78 84 56 55 65 68 72 71 71 88 89 4 5 84 86 87 78 78 95 86 85 85 83 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	00.296 VALVE; INL	8-97309-675-1	08	1	1412-1510		●	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	1511-		●	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	1412-	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1412-1510		●	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	1511-		●	●	●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1412-	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	1412-		●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	1412-		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	1412-	●
53	00.353 SHAFT; ROCKER ARM	8-98244-914-0	02	1	1412-1510			●
53	00.353 SHAFT; ROCKER ARM	8-98244-914-0	02	1	1511-			●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	1412-	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	1412-	●
56	00.349 RING; SNAP,ROCKER ARM (A)	8-98109-470-0	16	1	1412-		●
56	00.349 RING; SNAP,ROCKER ARM (B) ID=17.5	9-09180-019-0	02	1	1412-	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1412-1510		●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1511-		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	1412-	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1412-1510		●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	1511-		●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1412-	●
71	00.309 SEAT; SPR (A) OD=31	8-97144-584-0	16	1	1412-1510		●	●
71	00.309 SEAT; SPR (A) OD=31	8-97144-584-0	16	1	1511-		●	●	●
71	00.309 SEAT; SPR (B) OD=29.5	8-97311-668-0	16	1	1412-1510		●	●
71	00.309 SEAT; SPR (B) OD=29.5	8-97311-668-0	16	1	1511-		●	●	●
71	00.309 SEAT; SPR (C) OD=34	5-12563-001-0	08	1	1412-	●
71	00.309 SEAT; SPR (D) OD=32.8	8-94133-731-2	08	1	1412-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1412-1510		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1511-		●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	1412-	●
78	00.333 ARM; ROCKER (A)	8-98029-537-6	16	1	1412-		●
78	00.333 ARM; ROCKER (B)	8-94152-344-0	08	1	1412-	●
78	00.333 ARM; ROCKER (C)	8-98204-885-1	16	1	1412-1510			●
78	00.333 ARM; ROCKER (C)	8-98204-885-1	16	1	1511-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1412-1510		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1511-		●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	1412-	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	1412-	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	1412-	●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	1412-	●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	1412-	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	1412-	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1412-		●
87	00.349 BOLT; ROCKER SHAFT (A) M8X40 HEX SOCKET	0-58330-840-0	08	1	1412-		●
87	00.349 BOLT; ROCKER SHAFT (C) M10X60	8-94433-302-0	01	1	1412-	●
87	00.349 BOLT; ROCKER SHAFT 00.738 (D) M6X25 HEX SOCKET	8-98224-626-0	14	1	1412-1510			●
87	00.349 BOLT; ROCKER SHAFT 00.738 (D) M6X25 HEX SOCKET	8-98224-626-0	14	1	1511-			●	●
88	00.426 ROD; PUSH	8-97378-496-0	08	1	1412-	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	1412-	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	1412-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
