0-12 — CYLINDER BLOCK (#153815) — 149 parça

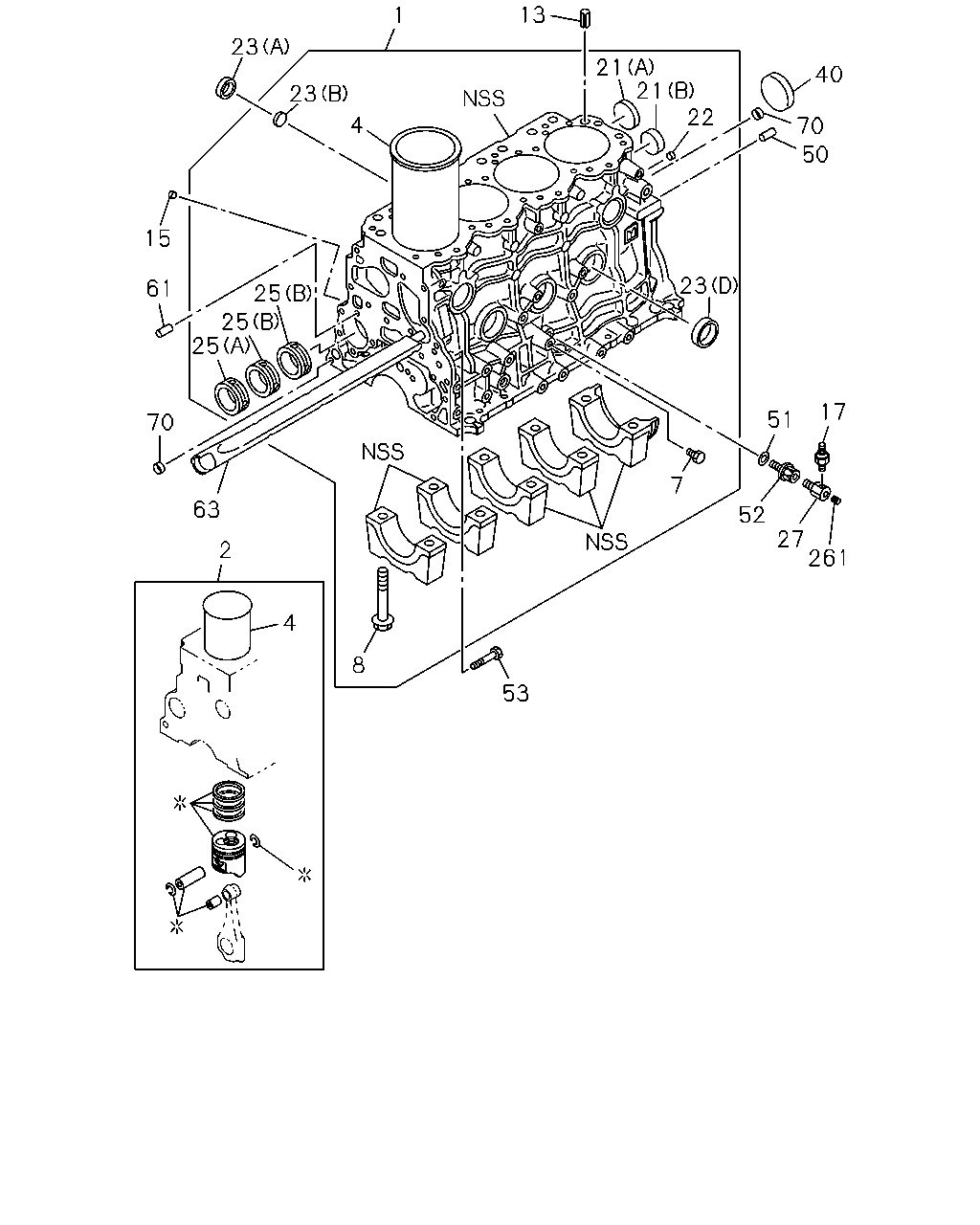

23 1 4 23 15 61 25 25 25 70 63 4 2 53 8 52 7 51 17 261 27 70 40 50 22 21 21 13 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1412-	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	1412-		●
1	00.033 BLOCK ASM; CYL	8-98244-867-1	01	1	1412-			●
1	00.033 BLOCK ASM; CYL	8-98244-866-1	01	1	1511-				●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-401-2	04	1	1412-		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-402-2	04	1	1412-		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-403-2	04	1	1412-		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-404-2	04	1	1412-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	1412-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	1412-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	1412-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	1412-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	1412-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	1412-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	1412-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	1412-		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1412-1510	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1511-	●	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1412-1510	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1511-	●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1412-1510	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1511-	●	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1412-1510	●		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1511-	●		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	1412-		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-3	01	1	1412-		●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1412-1510	●		●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1511-	●		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1412-1510	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1511-	●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1412-1510	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1511-	●	●	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	1412-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1412-1510	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1511-	●	●	●	●
25	00.539 METAL; CM/SHF (B)	8-97378-147-0	02	1	1412-		●
25	00.539 METAL; CM/SHF (A)	8-97378-148-0	01	1	1412-		●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	1412-		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	1412-		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	1412-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1412-1510	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1511-	●		●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1412-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1412-1502	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1412-1502		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1503-1510	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1511-	●	●	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	1412-		●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1412-1510	●		●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1511-	●		●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	1412-		●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	1412-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1412-1510	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1511-	●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1412-		●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	1412-		●

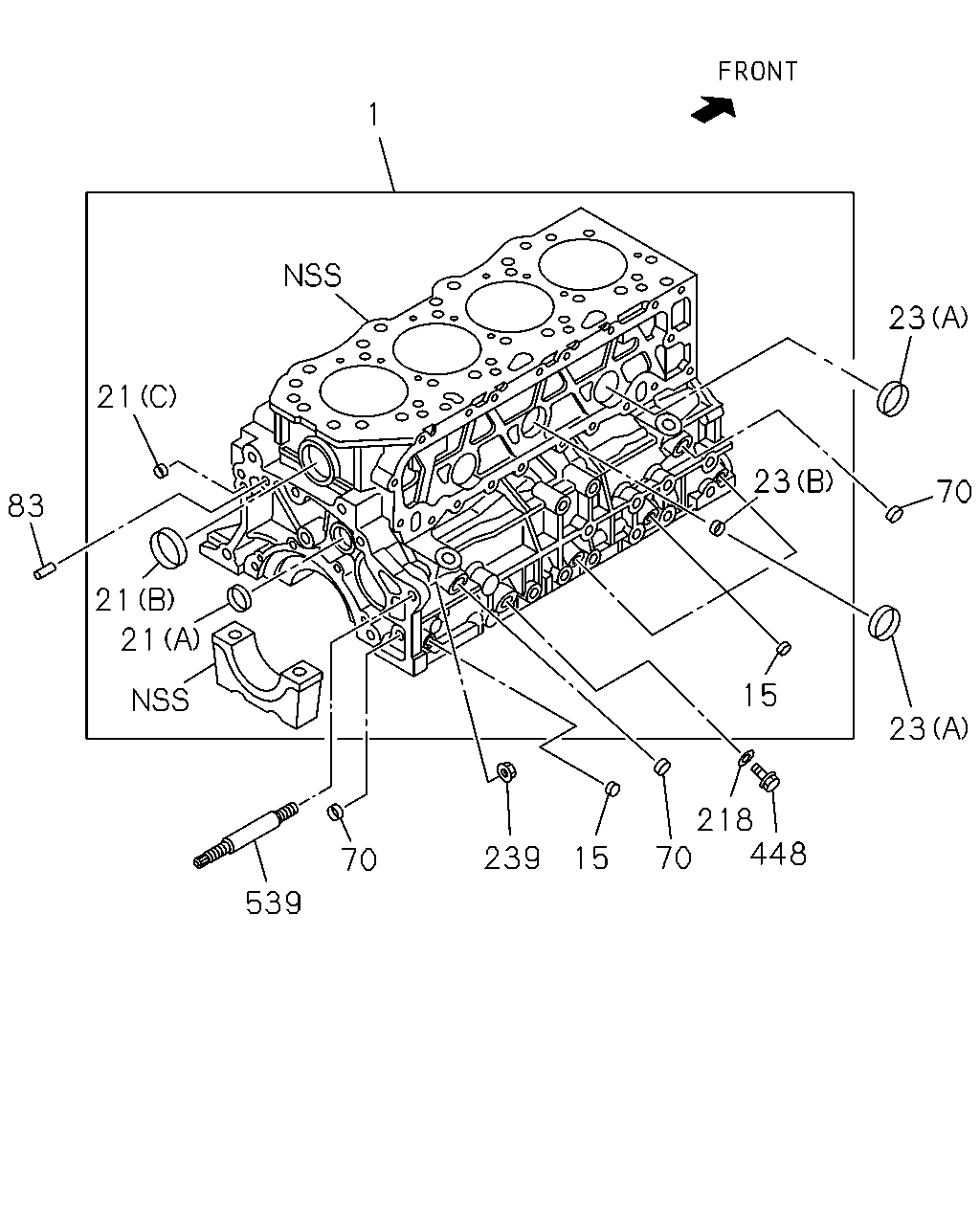

1 21 83 21 21 539 70 239 15 70 218 448 23 15 23 70 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1412-	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	1412-		●
1	00.033 BLOCK ASM; CYL	8-98244-867-1	01	1	1412-			●
1	00.033 BLOCK ASM; CYL	8-98244-866-1	01	1	1511-				●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1412-1510	●		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1511-	●		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	1412-		●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1412-1510	●		●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1511-	●		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1412-1510	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1511-	●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1412-1510	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1511-	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1412-1510	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1511-	●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1412-1510	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1511-	●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1412-		●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	1412-	●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ) 08.939 OD=10 L=32	9-08161-032-0	01	1	1412-			●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1412-	●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE	0-91180-110-0	01	1	1412-	●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1412-			●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	1412-	●
539	01.428 STUD; REAMER 00.862 M10X40 L=75.5	8-97371-842-1	01	1	1412-	●
539	01.428 STUD; REAMER M/T MUA 5 SPEED 5H(MWQ) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	1412-			●

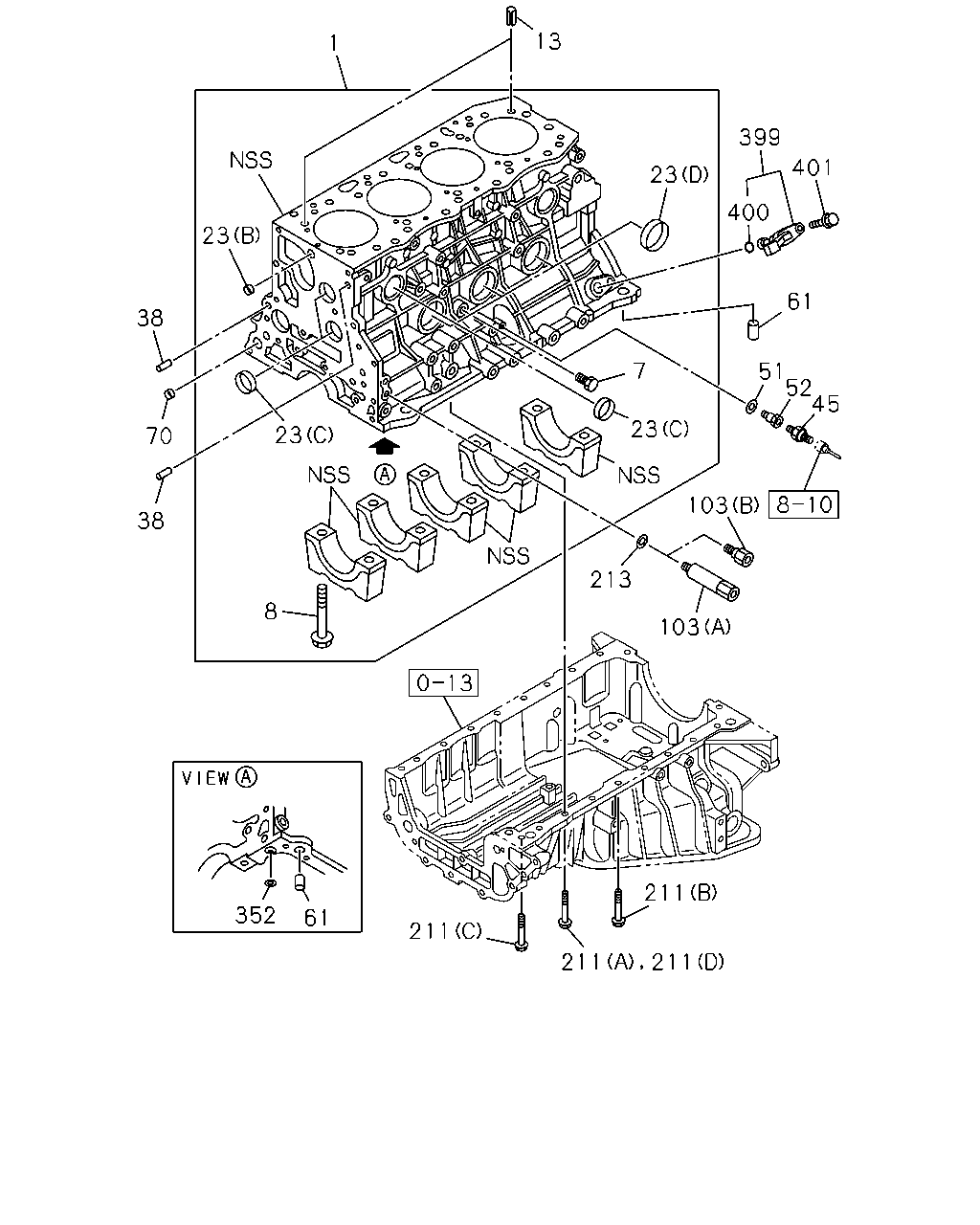

1 13 399 23 401 400 61 45 52 51 7 23 213 103 103 211 211 211 211 61 352 8 23 38 70 38 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1412-	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	1412-		●
1	00.033 BLOCK ASM; CYL	8-98244-867-1	01	1	1412-			●
1	00.033 BLOCK ASM; CYL	8-98244-866-1	01	1	1511-				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1412-1510	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1511-	●	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1412-1510	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1511-	●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1412-1510	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1511-	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1412-1510	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1511-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1412-1510	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1511-	●	●	●	●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	1412-1510	●		●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	1511-	●		●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1412-1510	●		●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1511-	●		●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1412-1510	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1511-	●		●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1412-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1412-1502	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1412-1502		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1503-1510	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1511-	●	●	●	●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1412-1510	●		●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1511-	●		●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	1412-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1412-1510	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1511-	●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1412-		●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	1412-	●
103	01.531 NIPPLE; OIL FEED (B)	8-98240-170-1	01	1	1412-1510			●
103	01.531 NIPPLE; OIL FEED (B)	8-98240-170-1	01	1	1511-			●	●
211	01.428 BOLT; CRANKCASE 06.216 (B) M8X25 FLANGE	0-28650-825-0	14	1	1412-1510	●		●
211	01.428 BOLT; CRANKCASE 06.216 (B) M8X25 FLANGE	0-28650-825-0	14	1	1511-	●		●	●
211	01.428 BOLT; CRANKCASE 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1412-	●
211	01.428 BOLT; CRANKCASE 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	1412-	●
211	01.428 BOLT; CRANKCASE 01.252 (D) M8X80 FLANGE	0-28050-880-0	06	1	1412-1510			●
211	01.428 BOLT; CRANKCASE 01.252 (D) M8X80 FLANGE	0-28050-880-0	06	1	1511-			●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1412-1510	●		●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1511-	●		●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	1412-	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE). 00.724	9-09566-109-0	01	1	1412-1510			●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE). 00.724	9-09566-109-0	01	1	1511-			●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1412-1510	●		●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1511-	●		●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1412-1510	●		●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1511-	●		●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1412-1510	●		●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1511-	●		●	●
