0-11 — CYLINDER HEAD (#153814) — 251 parça

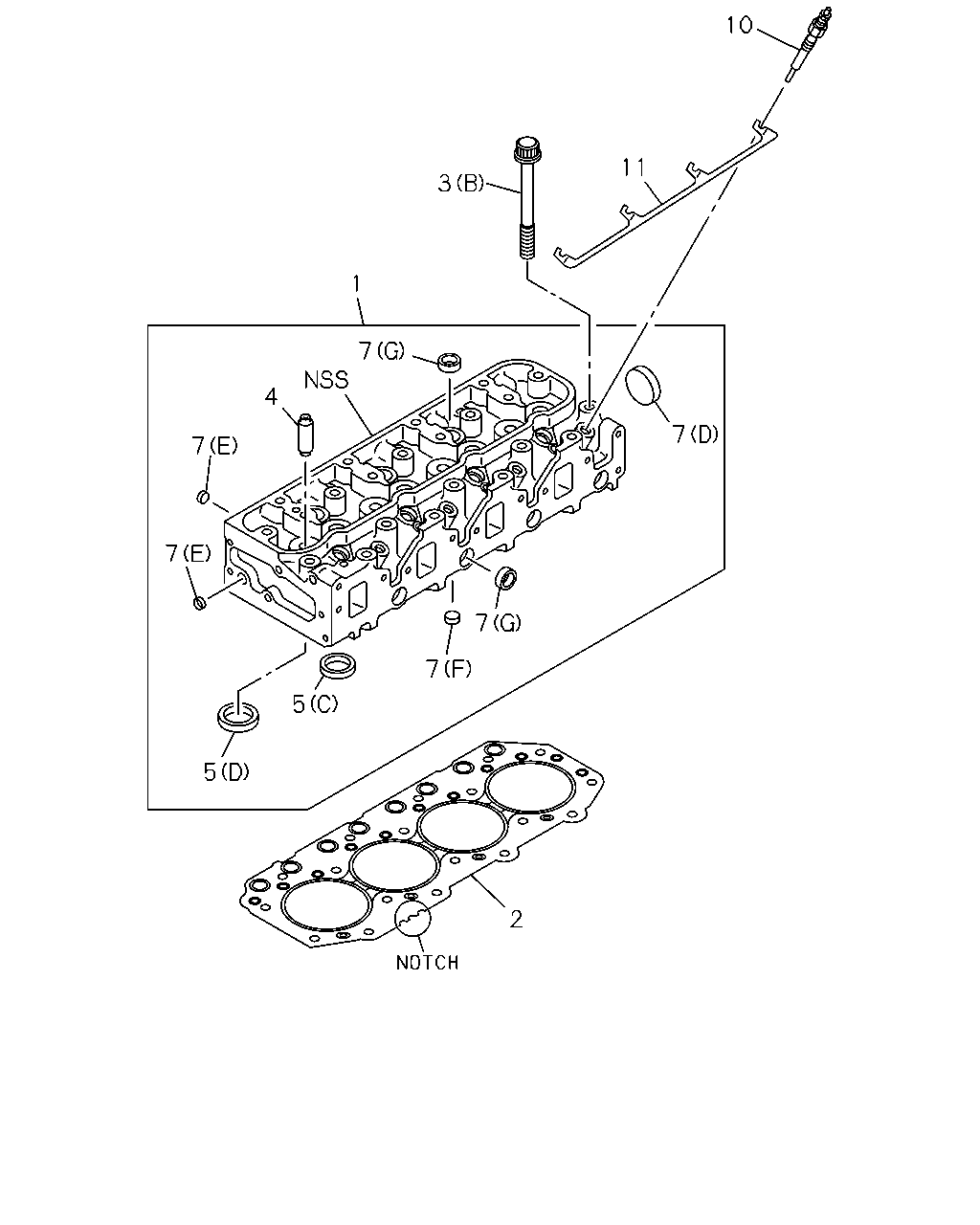

çizim 458094
1 7 4 7 7 5 5 7 7 7 11 10 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1412-1510 ●
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1511- ● ●
1 00.269 HEAD ASM; CYL 8-98217-455-0 01 1 1412- ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OVER SIZE 		8-97388-314-0 01 1 1412-1510 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OVER SIZE 		8-97388-314-0 01 1 1511- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.05 1-NOTCH 		8-98241-037-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.10 2-NOTCH 		8-98241-038-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.15 3-NOTCH 		8-98241-039-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE A T=1.60 1-NOTCH 		8-97350-318-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE B T=1.65 2-NOTCH 		8-97350-319-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE C T=1.70 3-NOTCH 		8-97350-320-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.11 1-HOLE 		8-98228-333-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.14 1-HOLE 		8-98261-318-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.14 1-HOLE 		8-98261-318-0 01 1 1511- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.16 2-HOLE 		8-98228-334-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.19 2-HOLE 		8-98261-319-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.19 2-HOLE 		8-98261-319-0 01 1 1511- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.21 3-HOLE 		8-98228-335-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.24 3-HOLE 		8-98261-320-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.24 3-HOLE 		8-98261-320-0 01 1 1511- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1412-1510 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1511- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M11X122 		8-97133-416-1 18 1 1412- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1412- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1412- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1412-1510 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1511- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1412-1510 ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1511- ● ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1412-1510 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1511- ● ● ●
5 00.253 SEAT; VLV INSERT
(D) INLET OD=41.2 		8-97231-228-0 04 1 1412- ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST OD=36.7 		8-97231-229-0 04 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 07 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) OD=18 		5-11219-008-0 01 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) OD=18 		5-11219-008-0 01 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 06 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 06 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 02 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 02 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=8 		8-97233-429-0 01 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=8 		8-97233-429-0 01 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=24 		8-97333-120-0 05 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=24 		8-97333-120-0 05 1 1511- ● ●
10 02.270 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1412-1510 ● ●
10 02.270 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1511- ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1412- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1412- ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1412-1510 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1511- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1412- ●

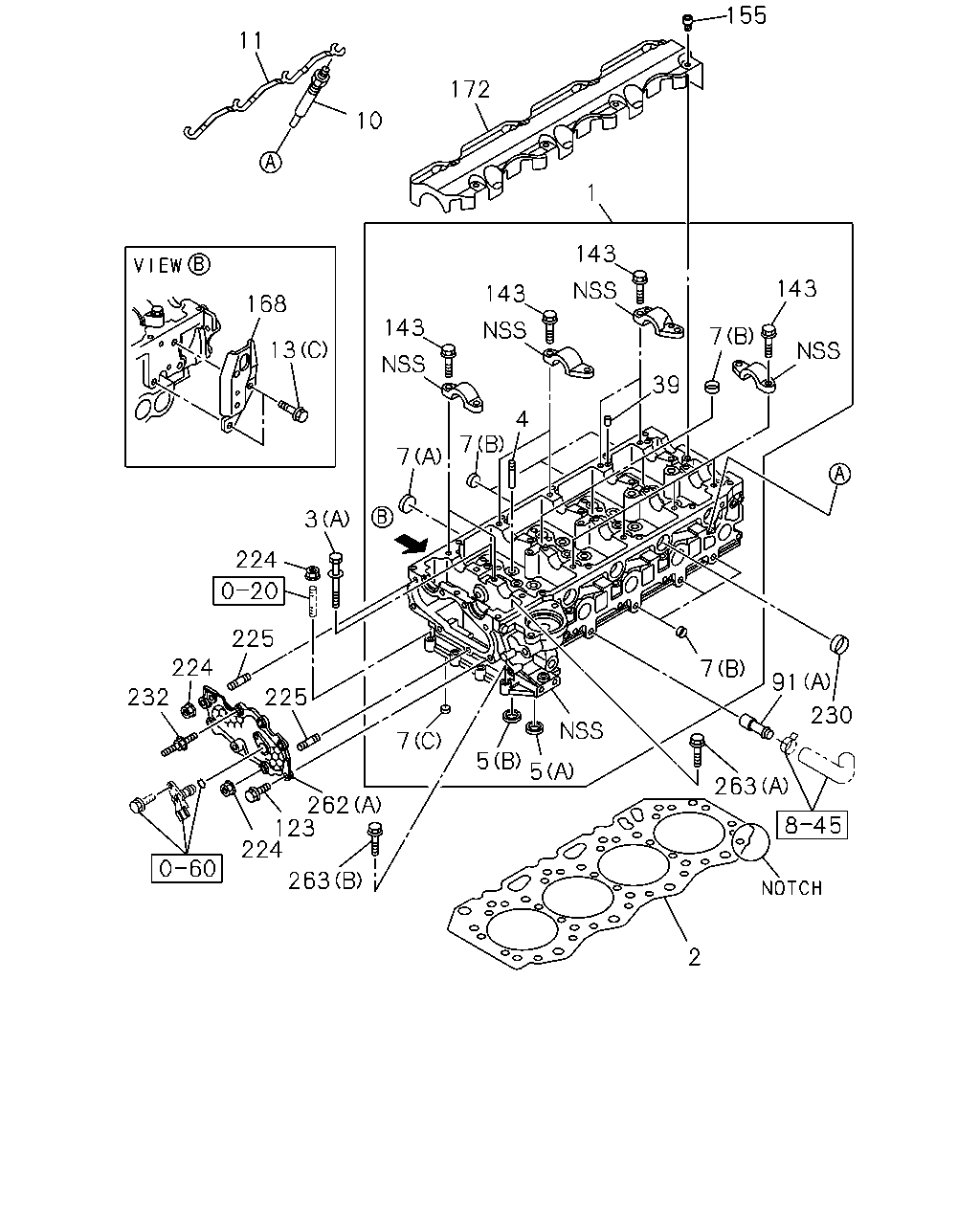

çizim 459636
11 10 172 155 143 7 143 1 143 143 168 13 7 4 39 3 224 224 225 232 225 7 5 5 262 123 224 263 2 263 7 91 230 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1412-1510 ●
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1511- ● ●
1 00.269 HEAD ASM; CYL 8-98217-455-0 01 1 1412- ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OVER SIZE 		8-97388-314-0 01 1 1412-1510 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OVER SIZE 		8-97388-314-0 01 1 1511- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.05 1-NOTCH 		8-98241-037-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.10 2-NOTCH 		8-98241-038-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.15 3-NOTCH 		8-98241-039-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE A T=1.60 1-NOTCH 		8-97350-318-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE B T=1.65 2-NOTCH 		8-97350-319-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE C T=1.70 3-NOTCH 		8-97350-320-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.11 1-HOLE 		8-98228-333-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.14 1-HOLE 		8-98261-318-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.14 1-HOLE 		8-98261-318-0 01 1 1511- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.16 2-HOLE 		8-98228-334-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.19 2-HOLE 		8-98261-319-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.19 2-HOLE 		8-98261-319-0 01 1 1511- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.21 3-HOLE 		8-98228-335-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.24 3-HOLE 		8-98261-320-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.24 3-HOLE 		8-98261-320-0 01 1 1511- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1412-1510 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1511- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M11X122 		8-97133-416-1 18 1 1412- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1412- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1412- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1412-1510 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1511- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1412-1510 ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1511- ● ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1412-1510 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1511- ● ● ●
5 00.253 SEAT; VLV INSERT
(D) INLET OD=41.2 		8-97231-228-0 04 1 1412- ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST OD=36.7 		8-97231-229-0 04 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 07 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) OD=18 		5-11219-008-0 01 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) OD=18 		5-11219-008-0 01 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 06 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 06 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 02 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 02 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=8 		8-97233-429-0 01 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=8 		8-97233-429-0 01 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=24 		8-97333-120-0 05 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=24 		8-97333-120-0 05 1 1511- ● ●
10 02.270 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1412-1510 ● ●
10 02.270 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1511- ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1412- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1412- ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1412-1510 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1511- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1412- ●
13 00.004 BOLT; HANGER
03.417 (C) M10X20 FLANGE 		0-28151-020-0 02 1 1412- ●
13 00.004 BOLT; HANGER
01.758 (A) M8X20 HEX SOCKET 		0-58330-820-0 01 1 1412-1510 ●
13 00.004 BOLT; HANGER
01.758 (A) M8X20 HEX SOCKET 		0-58330-820-0 01 1 1511- ● ●
13 00.004 BOLT; HANGER
00.206 (B) M8X30 HEX SOCKET 		0-58330-830-0 01 1 1412-1510 ●
13 00.004 BOLT; HANGER
00.206 (B) M8X30 HEX SOCKET 		0-58330-830-0 01 1 1511- ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1412- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 26 1 1412-1510 ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 26 1 1511- ● ●
91 08.846 PIPE; HTR
01.251 (A) 		8-94343-211-1 01 1 1412- ●
91 08.846 PIPE; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) 		8-98228-414-0 01 1 1412-1510 ●
91 08.846 PIPE; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) 		8-98228-414-0 01 1 1511- ● ●
91 08.846 PIPE; HTR
COOLER W/FRESH AIR(C65) (B) 		8-98228-414-0 02 1 1412- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 05 1 1412- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 03 1 1412-1510 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 03 1 1511- ● ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 1412- ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1412-1510 ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1511- ● ● ●
168 00.004 HANGER; ENG,FRT 8-98131-997-1 01 1 1412- ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98105-920-0 01 1 1412- ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98250-484-0 01 1 1412-1510 ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98250-484-0 01 1 1511- ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1412-1510 ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1511- ● ● ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1412-1510 ● ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1511- ● ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97943-955-0 04 1 1412-1510 ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97943-955-0 04 1 1511- ● ● ●
232 00.413 STUD; CAM,CARRIER
M6X12 M8X17 L=37 		8-97375-460-0 01 1 1412- ●
262 00.206 COVER; CYL HEAD
(A) 		8-98131-992-1 01 1 1412- ●
262 00.206 COVER; CYL HEAD
(B) 		8-98243-226-0 01 1 1412-1510 ●
262 00.206 COVER; CYL HEAD
(B) 		8-98243-226-0 01 1 1511- ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1412-1510 ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1511- ● ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1412-1510 ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1511- ● ● ●

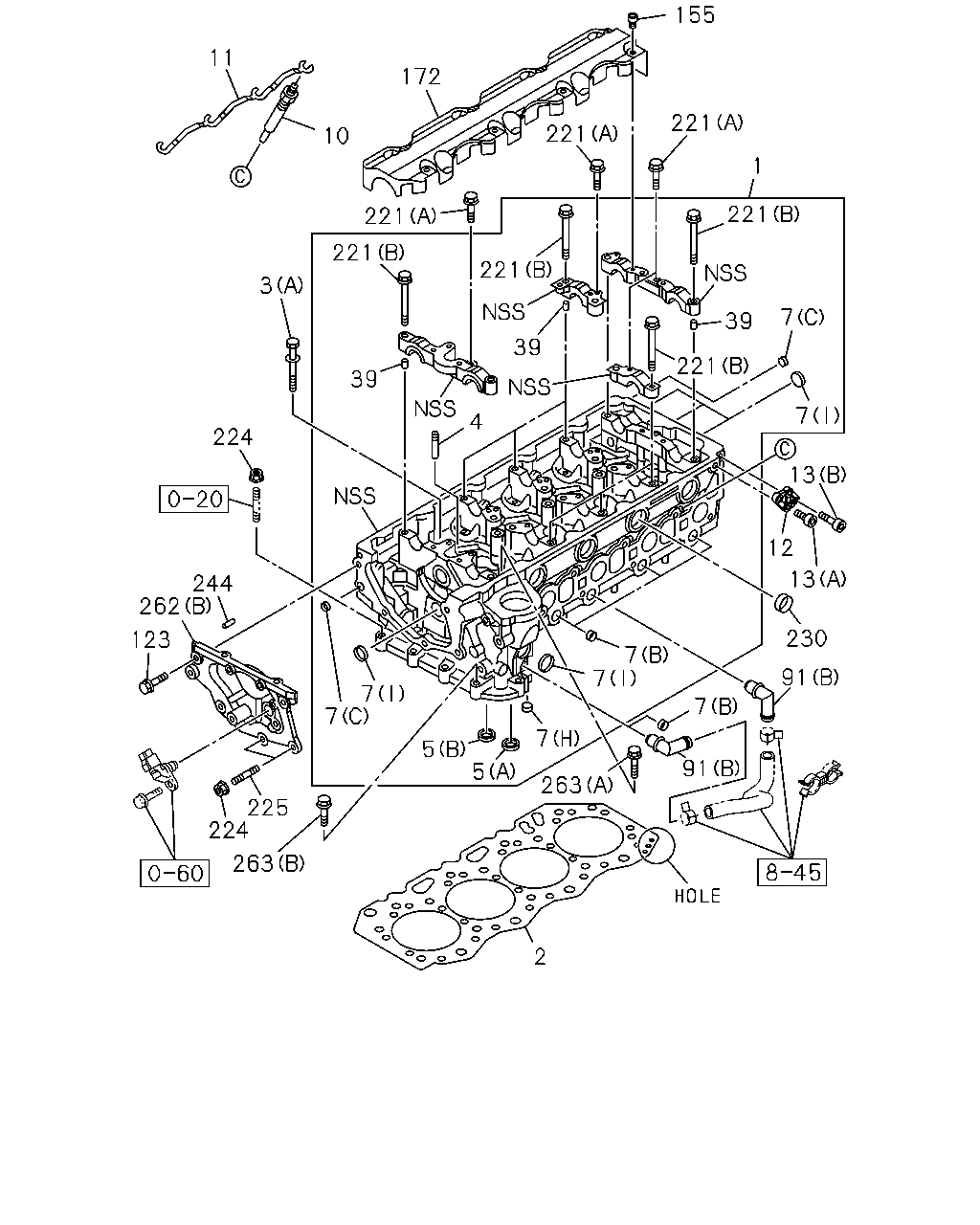

çizim 460329
172 10 221 221 221 155 221 221 39 7 221 7 13 12 13 230 91 7 7 7 91 7 263 2 5 5 7 7 244 262 123 224 263 225 3 224 39 221 11 39 4 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1412-1510 ●
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1511- ● ●
1 00.269 HEAD ASM; CYL 8-98217-455-0 01 1 1412- ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OVER SIZE 		8-97388-314-0 01 1 1412-1510 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OVER SIZE 		8-97388-314-0 01 1 1511- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.05 1-NOTCH 		8-98241-037-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.10 2-NOTCH 		8-98241-038-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.15 3-NOTCH 		8-98241-039-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE A T=1.60 1-NOTCH 		8-97350-318-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE B T=1.65 2-NOTCH 		8-97350-319-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) GRADE C T=1.70 3-NOTCH 		8-97350-320-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.11 1-HOLE 		8-98228-333-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.14 1-HOLE 		8-98261-318-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE A T=1.14 1-HOLE 		8-98261-318-0 01 1 1511- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.16 2-HOLE 		8-98228-334-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.19 2-HOLE 		8-98261-319-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE B T=1.19 2-HOLE 		8-98261-319-0 01 1 1511- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.21 3-HOLE 		8-98228-335-0 01 1 1412-1412 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.24 3-HOLE 		8-98261-320-0 01 1 1412-1510 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) STD GRADE C T=1.24 3-HOLE 		8-98261-320-0 01 1 1511- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1412-1510 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1511- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M11X122 		8-97133-416-1 18 1 1412- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1412- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1412- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1412-1510 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1511- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1412-1510 ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1511- ● ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1412-1510 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1511- ● ● ●
5 00.253 SEAT; VLV INSERT
(D) INLET OD=41.2 		8-97231-228-0 04 1 1412- ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST OD=36.7 		8-97231-229-0 04 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 07 1 1412- ●
7 00.253 CUP; SEALING,CYL HEAD
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) OD=18 		5-11219-008-0 01 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) OD=18 		5-11219-008-0 01 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 06 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 06 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 02 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 02 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=8 		8-97233-429-0 01 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=8 		8-97233-429-0 01 1 1511- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=24 		8-97333-120-0 05 1 1412-1510 ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=24 		8-97333-120-0 05 1 1511- ● ●
10 02.270 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1412-1510 ● ●
10 02.270 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1511- ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1412- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1412- ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1412-1510 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1511- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1412- ●
12 00.004 HANGER; ENG,RR 8-98239-364-0 01 1 1412-1510 ●
12 00.004 HANGER; ENG,RR 8-98239-364-0 01 1 1511- ● ●
13 00.004 BOLT; HANGER
03.417 (C) M10X20 FLANGE 		0-28151-020-0 02 1 1412- ●
13 00.004 BOLT; HANGER
01.758 (A) M8X20 HEX SOCKET 		0-58330-820-0 01 1 1412-1510 ●
13 00.004 BOLT; HANGER
01.758 (A) M8X20 HEX SOCKET 		0-58330-820-0 01 1 1511- ● ●
13 00.004 BOLT; HANGER
00.206 (B) M8X30 HEX SOCKET 		0-58330-830-0 01 1 1412-1510 ●
13 00.004 BOLT; HANGER
00.206 (B) M8X30 HEX SOCKET 		0-58330-830-0 01 1 1511- ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1412- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 26 1 1412-1510 ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 26 1 1511- ● ●
91 08.846 PIPE; HTR
01.251 (A) 		8-94343-211-1 01 1 1412- ●
91 08.846 PIPE; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) 		8-98228-414-0 01 1 1412-1510 ●
91 08.846 PIPE; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),AIR CONDITIONER AUTOM ATIC CONT(C61) (B) 		8-98228-414-0 01 1 1511- ● ●
91 08.846 PIPE; HTR
COOLER W/FRESH AIR(C65) (B) 		8-98228-414-0 02 1 1412- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 05 1 1412- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 03 1 1412-1510 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 03 1 1511- ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1412-1510 ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1511- ● ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98105-920-0 01 1 1412- ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98250-484-0 01 1 1412-1510 ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98250-484-0 01 1 1511- ● ●
221 00.413 BOLT; BRKT
01.531 (A) M6X30 FLANGE 		0-28050-630-0 08 1 1412-1510 ●
221 00.413 BOLT; BRKT
01.531 (A) M6X30 FLANGE 		0-28050-630-0 08 1 1511- ● ●
221 00.413 BOLT; BRKT
01.531 (B) M8X85 		1-09044-074-0 21 1 1412-1510 ●
221 00.413 BOLT; BRKT
01.531 (B) M8X85 		1-09044-074-0 21 1 1511- ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1412-1510 ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1511- ● ● ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1412-1510 ● ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1511- ● ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97943-955-0 04 1 1412-1510 ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97943-955-0 04 1 1511- ● ● ●
244 00.206 PIN; HEAD GASKET
08.939 OD=5 L=10 		9-08150-510-0 01 1 1412-1510 ●
244 00.206 PIN; HEAD GASKET
08.939 OD=5 L=10 		9-08150-510-0 01 1 1511- ● ●
262 00.206 COVER; CYL HEAD
(A) 		8-98131-992-1 01 1 1412- ●
262 00.206 COVER; CYL HEAD
(B) 		8-98243-226-0 01 1 1412-1510 ●
262 00.206 COVER; CYL HEAD
(B) 		8-98243-226-0 01 1 1511- ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1412-1510 ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1511- ● ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1412-1510 ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
