Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#153809) — 21 parça
◀
[890A] SPEAKER (11 parça)
[890A] AUDIOLESS COVER (4 parça)

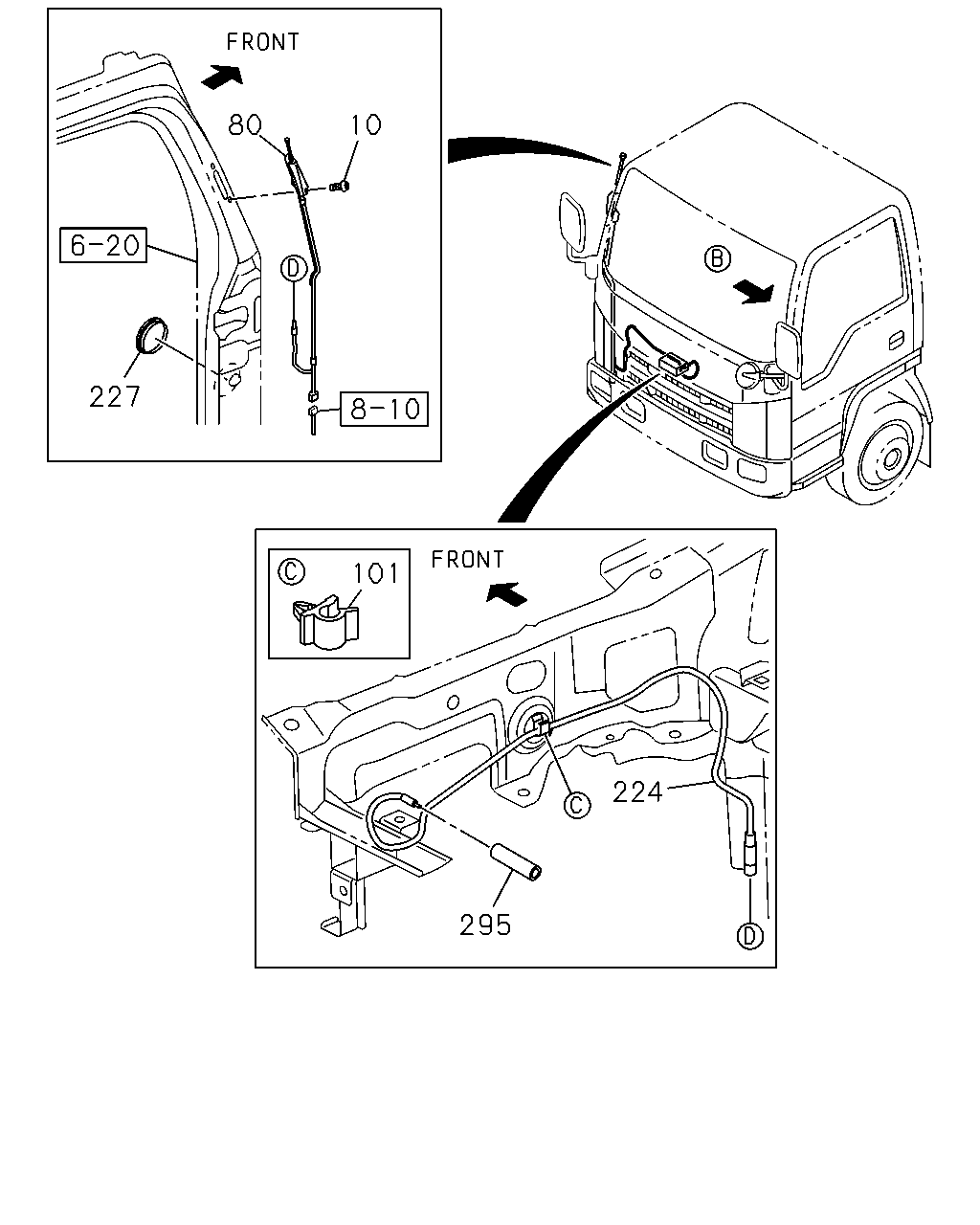

[890A] RADIO ANTENNA (6 parça)
▶
222
116
171
222
5
48
49
117
221
221
222
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
09.647 HARNESS; EXT
2-SPEAKER SYSTEM BASE<U95>
8-97131-327-0
02
1
1412-
48
09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95>
8-97317-001-1
02
1
1412-
49
09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
1412-
116
16.165 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95>
8-97852-324-3
01
1
1412-
116
16.165 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95>
8-97852-325-3
01
1
1412-
117
16.165 SCREW; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
06
1
1412-
171
09.650 COVER; SPEAKER
2-SPEAKER SYSTEM BASE<U95>
8-97852-331-4
02
1
1412-
221
16.165 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (A)
8-97852-327-5
02
1
1412-
221
16.165 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (B)
8-97852-601-2
02
1
1412-
222
16.165 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 09.264 (A)
1-09987-144-0
02
1
1412-
222
16.165 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 01.269 (B) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1412-
226
36
6
33
6
226
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

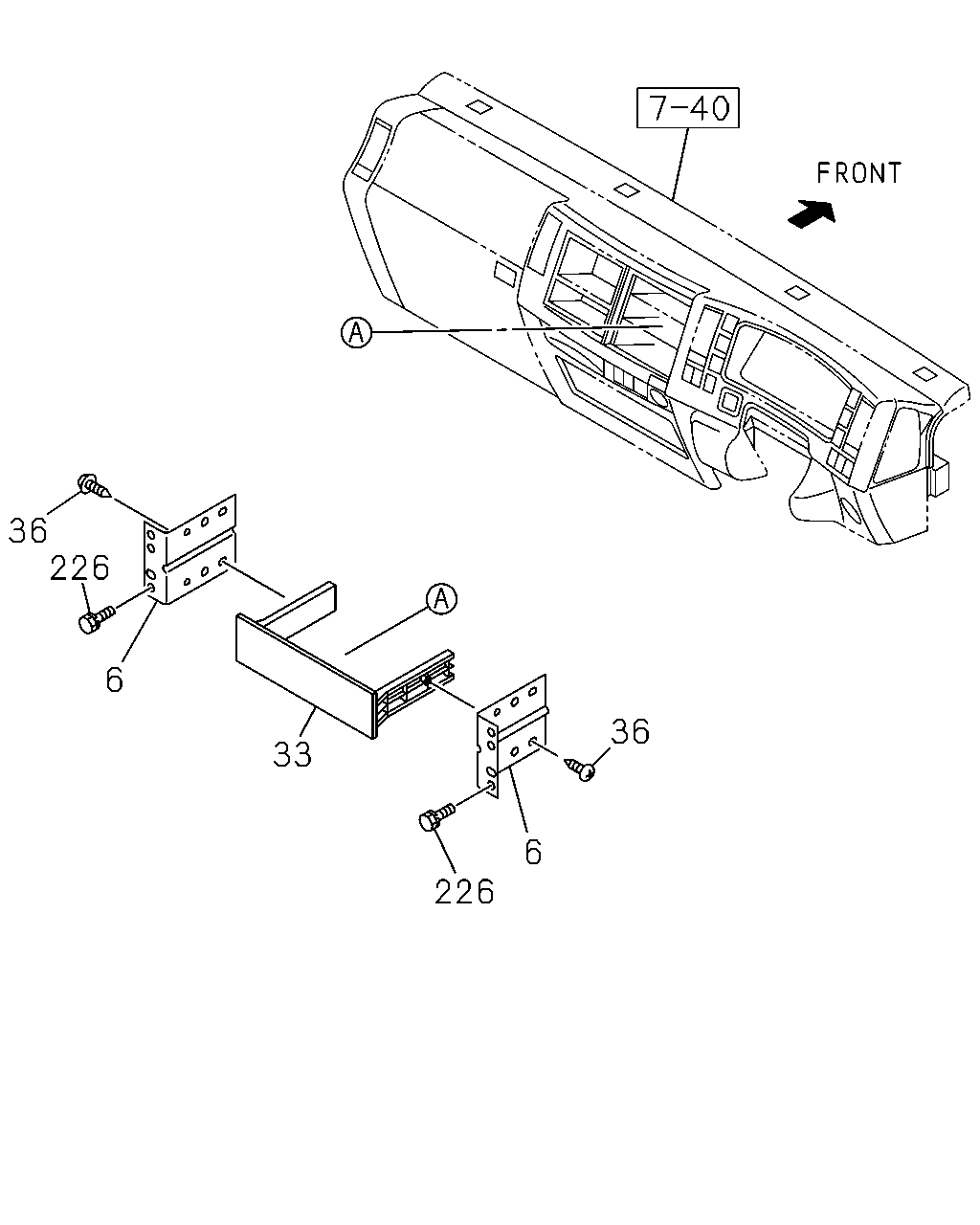

6
09.645 BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
1412-
33
09.650 COVER; RADIO
BLACK
8-97407-896-2
01
1
1412-
36
09.779 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1412-
226
09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1412-
224
295
227
80
10
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES
8-98061-742-0
02
1
1412-
80
09.645 ANTENNA
8-98210-873-1
01
1
1412-
101
09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8
8-94128-483-0
01
1
1412-
224
09.647 CABLE; EXT,FEEDER
8-98072-505-0
01
1
1412-
227
09.647 PROTECTOR; EDGE
02.559 ID=47
8-94279-735-0
01
1
1412-
295
09.665 INSULATOR; ANTENNA
8-98095-617-1
01
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
