Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

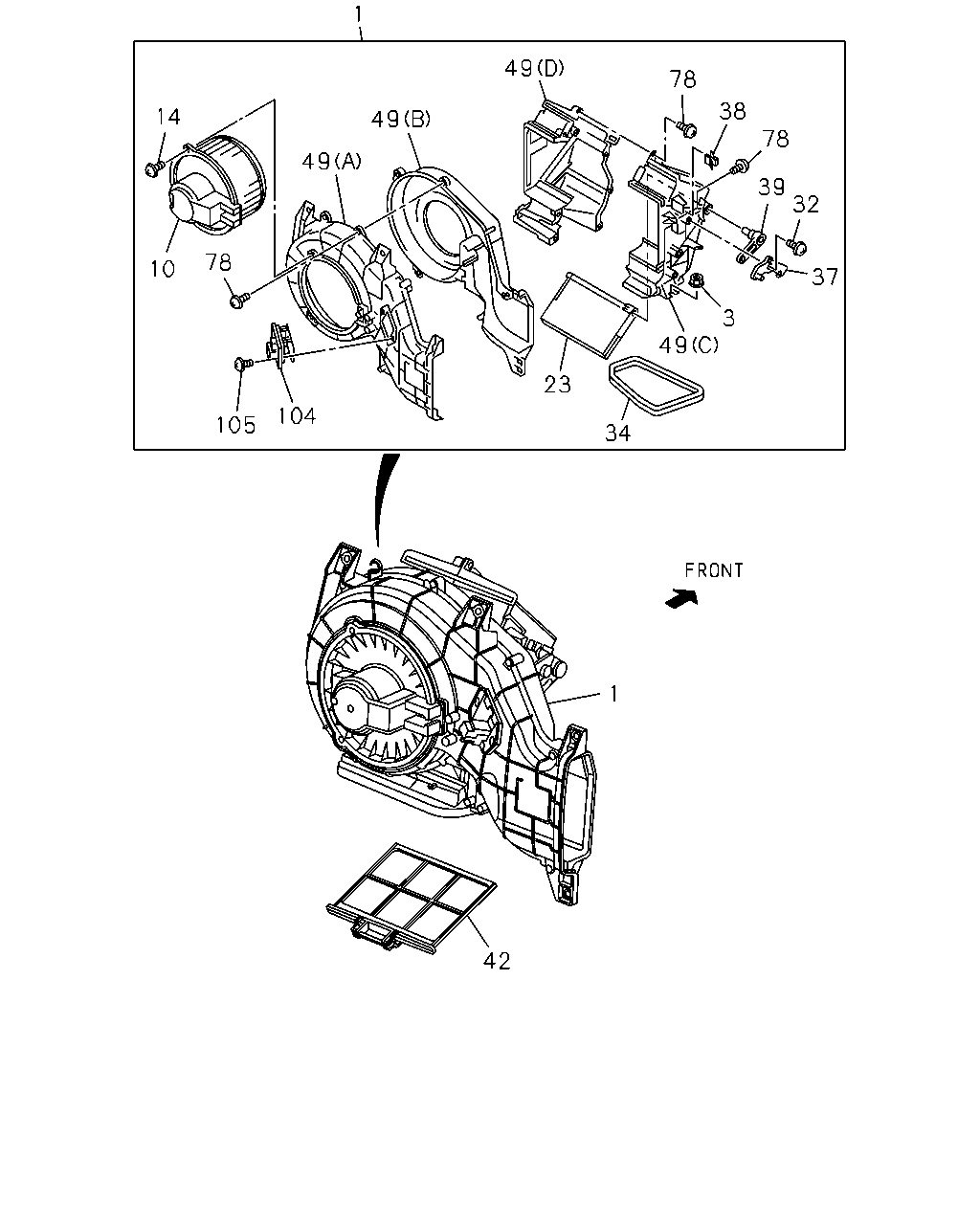

8-73 — BLOWER UNIT
(#153807) — 18 parça
42
1
34
49
3
37
32
39
78
38
78
49
49
49
1
14
10
78
105
104
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
08.855 BLOWER ASM
8-98183-592-0
01
1
1412-
3
08.855 NUT; CASE
09.190 M8
1-83539-319-0
02
1
1412-
10
08.855 MOTOR ASM; FAN,BLOWER UNIT
8-98183-924-0
01
1
1412-
14
08.857 SCREW; COVER TO CASE
M5X16
8-98047-448-0
03
1
1412-
23
08.857 SHUTTER; BLOWER UNIT
8-98047-761-0
01
1
1412-
32
08.856 SCREW; LEVER
08.852 M4X16
8-98047-416-0
01
1
1412-
34
08.856 LINING; BLOWER UNIT
8-98047-764-0
01
1
1412-
37
09.786 LEVER; MODE LEVER
8-98047-765-0
01
1
1412-
38
09.787 CLIP; BLOWER UNIT
08.854
8-98047-417-0
01
1
1412-
39
09.786 LEVER; SHUTTER,BLOWER UNIT
8-98047-454-0
01
1
1412-
42
08.857 FILTER; BLOWER UNIT
8-98025-006-1
01
1
1412-
49
08.857 CASE; BLOWER UNIT
(C)
8-98047-757-0
01
1
1412-
49
08.857 CASE; BLOWER UNIT
(D)
8-98047-758-0
01
1
1412-
49
08.857 CASE; BLOWER UNIT
(B)
8-98047-759-0
01
1
1412-
49
08.857 CASE; BLOWER UNIT
(A)
8-98047-760-0
01
1
1412-
78
08.857 SCREW; CASE TO CASE
08.852 M4X16 TAPPING
8-97957-708-0
19
1
1412-
104
08.855 RESISTOR; BLOWER UNIT
8-98074-113-0
01
1
1412-
105
08.855 SCREW; RESISTOR
08.852 M4X16 TAPPING
8-97957-708-0
02
1
1412-
